GN 7330

Gripping Trays

Zinc Die Casting, Screw-In Type

Enquire Now

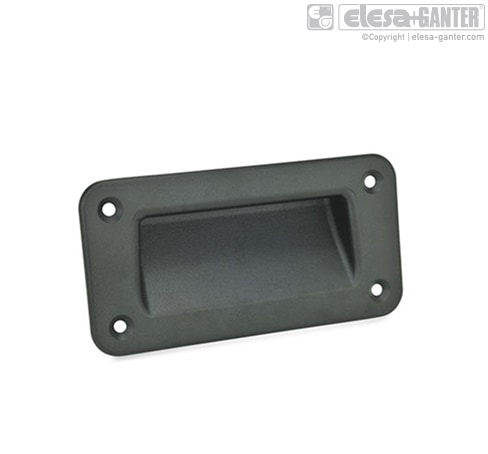

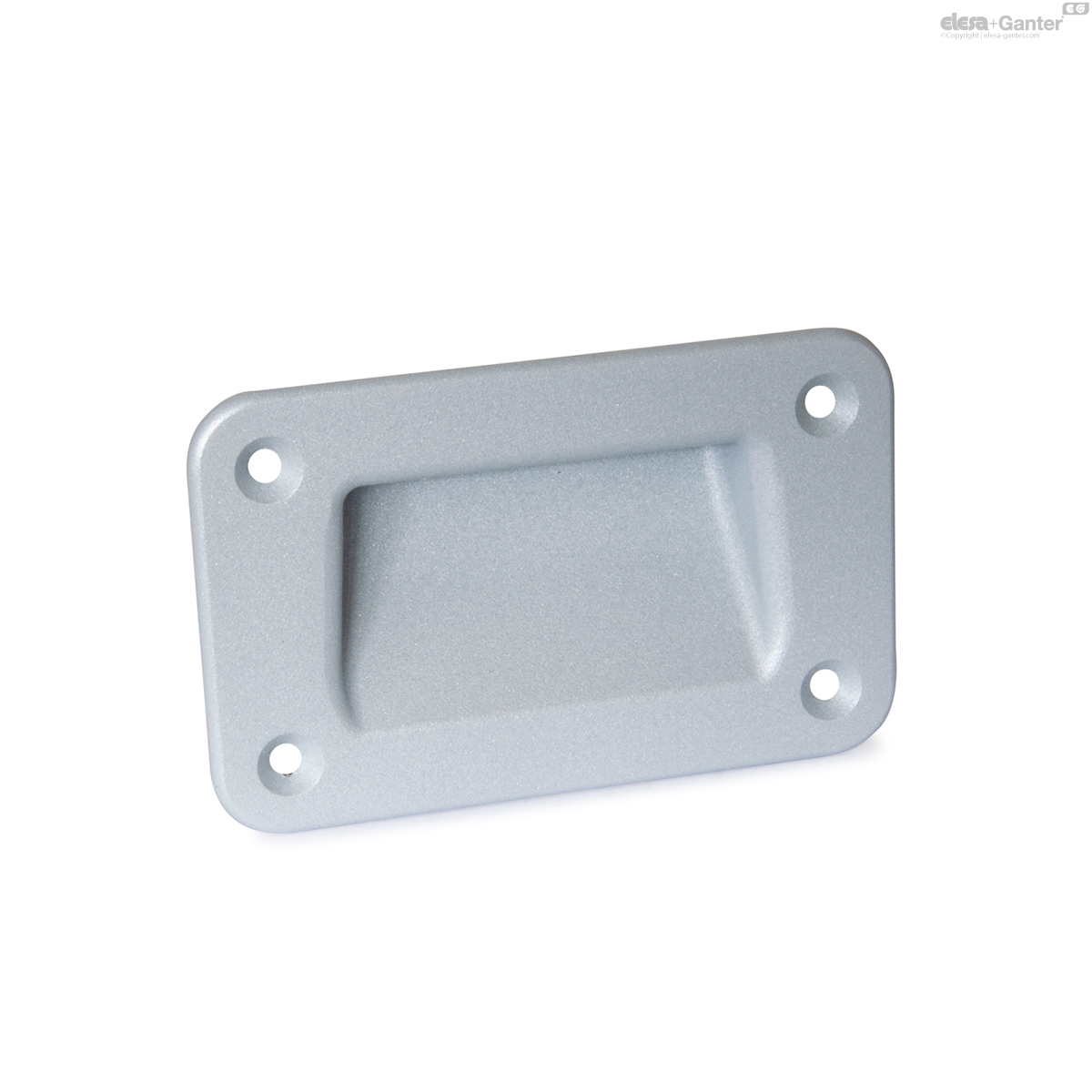

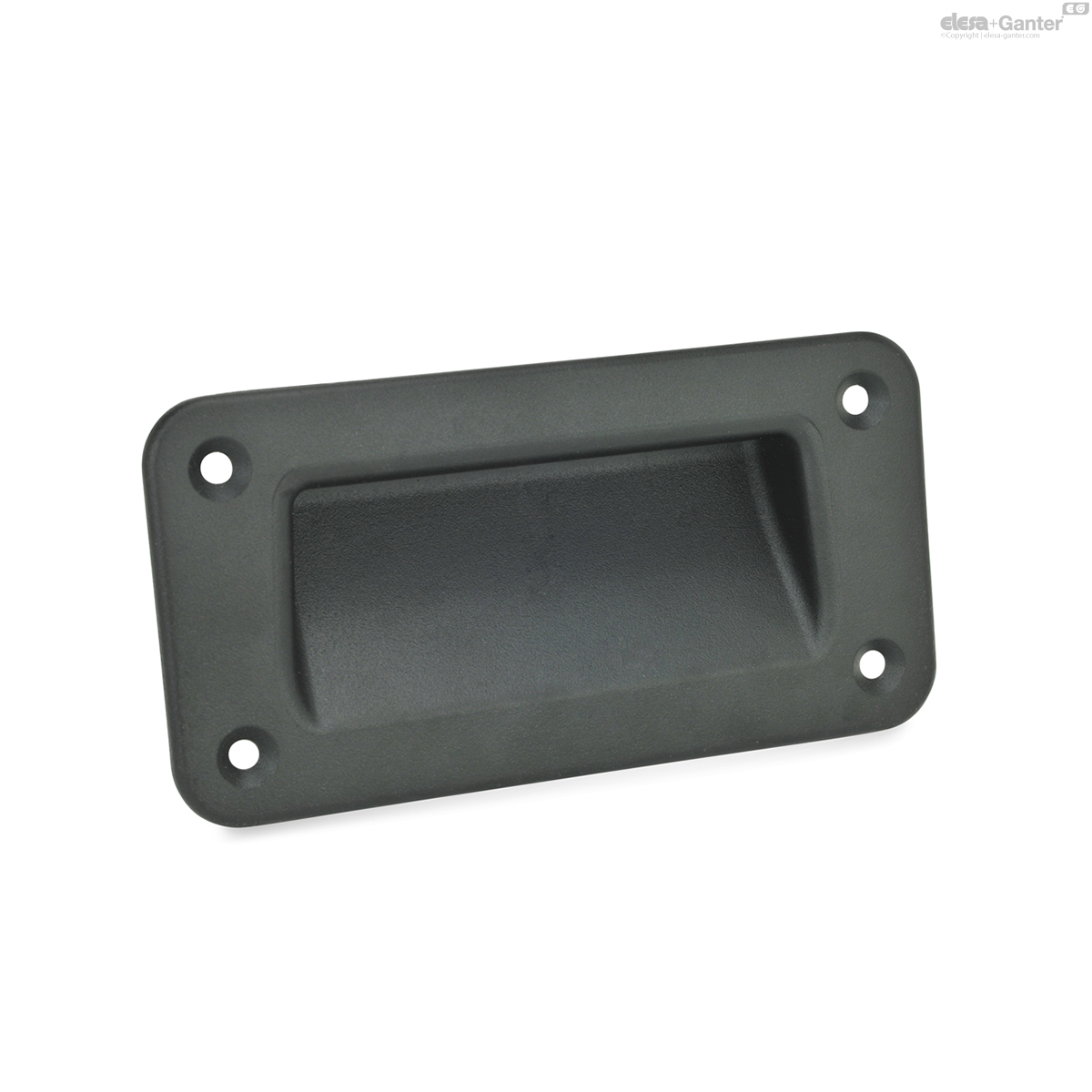

GN 7330-A-1

Gripping Trays

Mounting from the operator‘s side, without seal

GN 7330-A-2

Gripping Trays

Mounting from the operator‘s side, with seal

GN 7330-C-1

Gripping Trays

Mounting from the back, without seal

GN 7330-C-2

Gripping Trays

Mounting from the back, with seal

Description

Specification

Types

Type A: Mounting from the operator‘s side (for identification no. 2 with four countersunk sealing screws)
Type C: Mounting from the back

Identification no.

No. 1: Without seal
No. 2: With seal

Handle

Zinc die casting

Powder coated

Black, RAL 9005, textured finish SW

Silver, RAL 9006, textured finish SR

Housing seal for identification no. 2

Rubber NBR

Black

Glued

Countersunk sealing screws for type A, id. no. 2

DIN 7991-M5x16

Stainless steel

Polyamide coating on head

Grub screws for type C

Stainless steel

Molded-in

Protection class IP 66

Information

Gripping trays GN 7330 can be easily and quickly installed from the front using countersunk screws or from the back with grub screws.

Gripping trays with housing seal (identification no. 2) prevent the penetration of any dirt or liquids into the housing interior. Type A is supplied with four additional countersunk sealing screws, which feature a polyamide coating on the head to create a tight seal.

Technical information

IP Protection Classes
Stainless Steel Characteristics

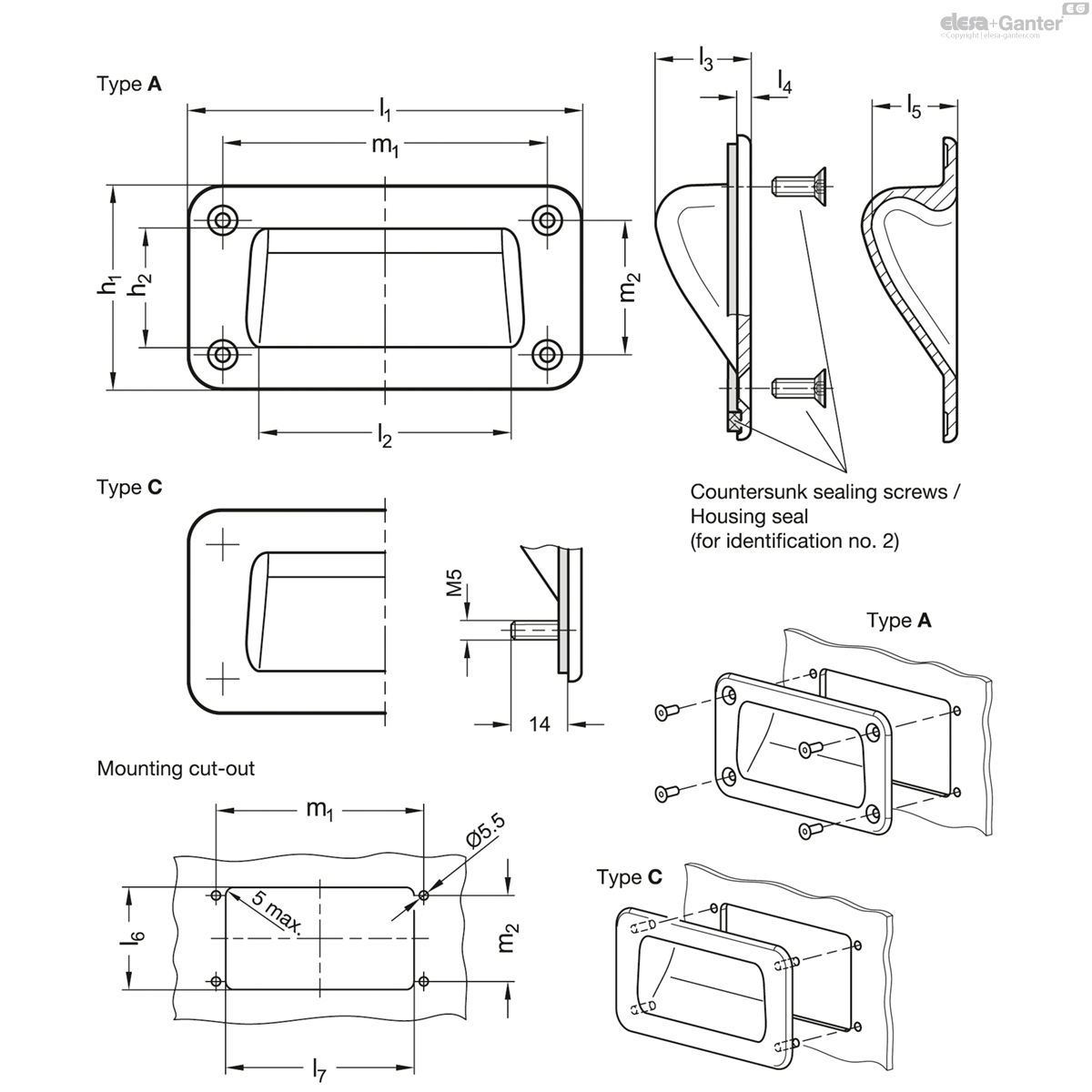

GN 7330-A-1

	Color	l₁	h₁	h₂	l₂	l₃	l₄	l₅	l₆ +1	l₇ +1	m₁	m₂
Code														Actions
GN 7330-127-A-1-SR	SR - RAL 9006	127	80	43	72	25	3.5	22.5	60	88	100	53	233
GN 7330-127-A-1-SW	SW - RAL 9005	127	80	43	72	25	3.5	22.5	60	88	100	53	233
GN 7330-155-A-1-SR	SR - RAL 9006	155	80	43	99	25	3.5	22.5	60	115	128	53	289
GN 7330-155-A-1-SW	SW - RAL 9005	155	80	43	99	25	3.5	22.5	60	115	128	53	289
