GN 732.1
Cylinder Head Shoulder Bolts
Steel / Stainless Steel
GN 732.1
Cylinder Head Shoulder Bolts

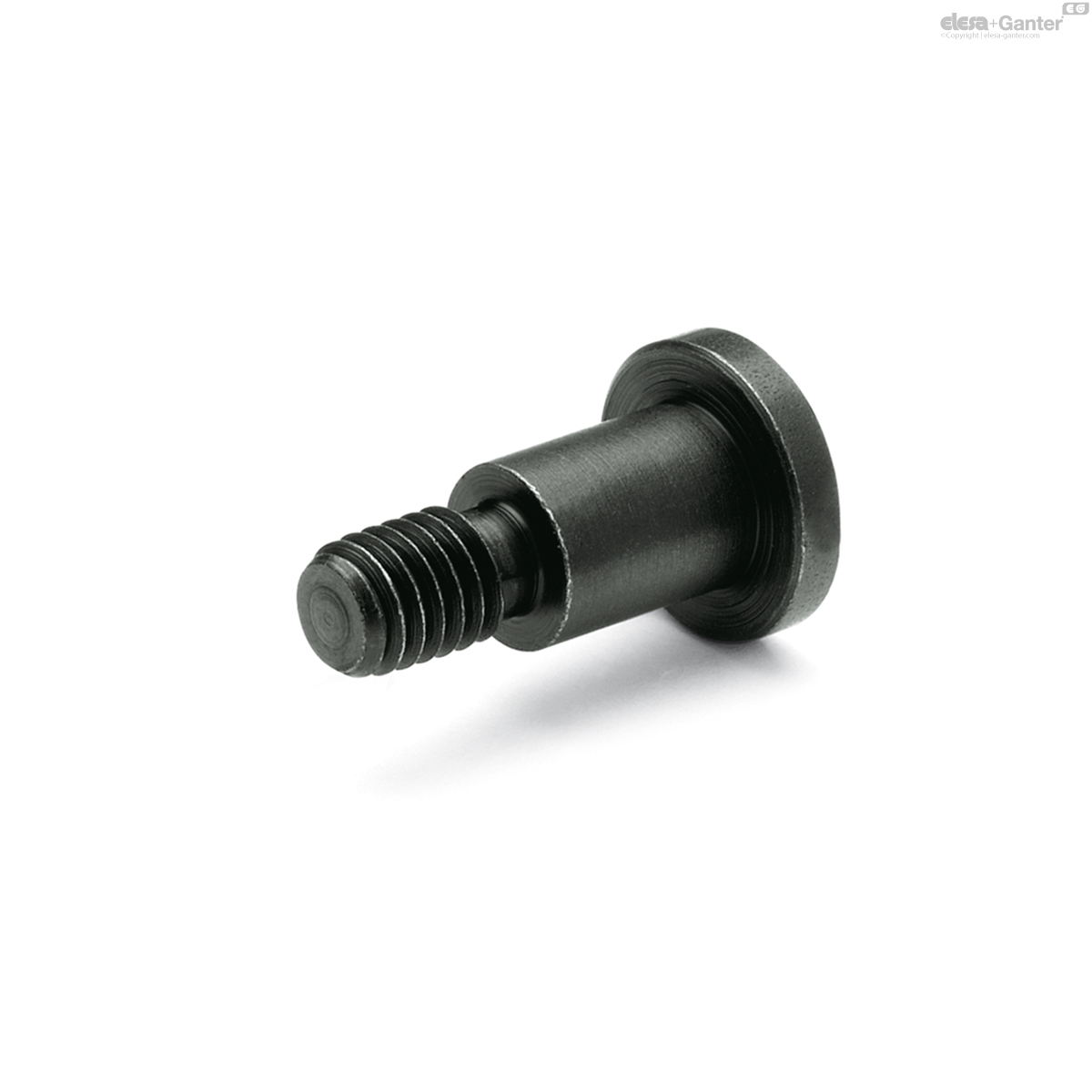

Steel
GN 732.1-NI
Cylinder Head Shoulder Bolts

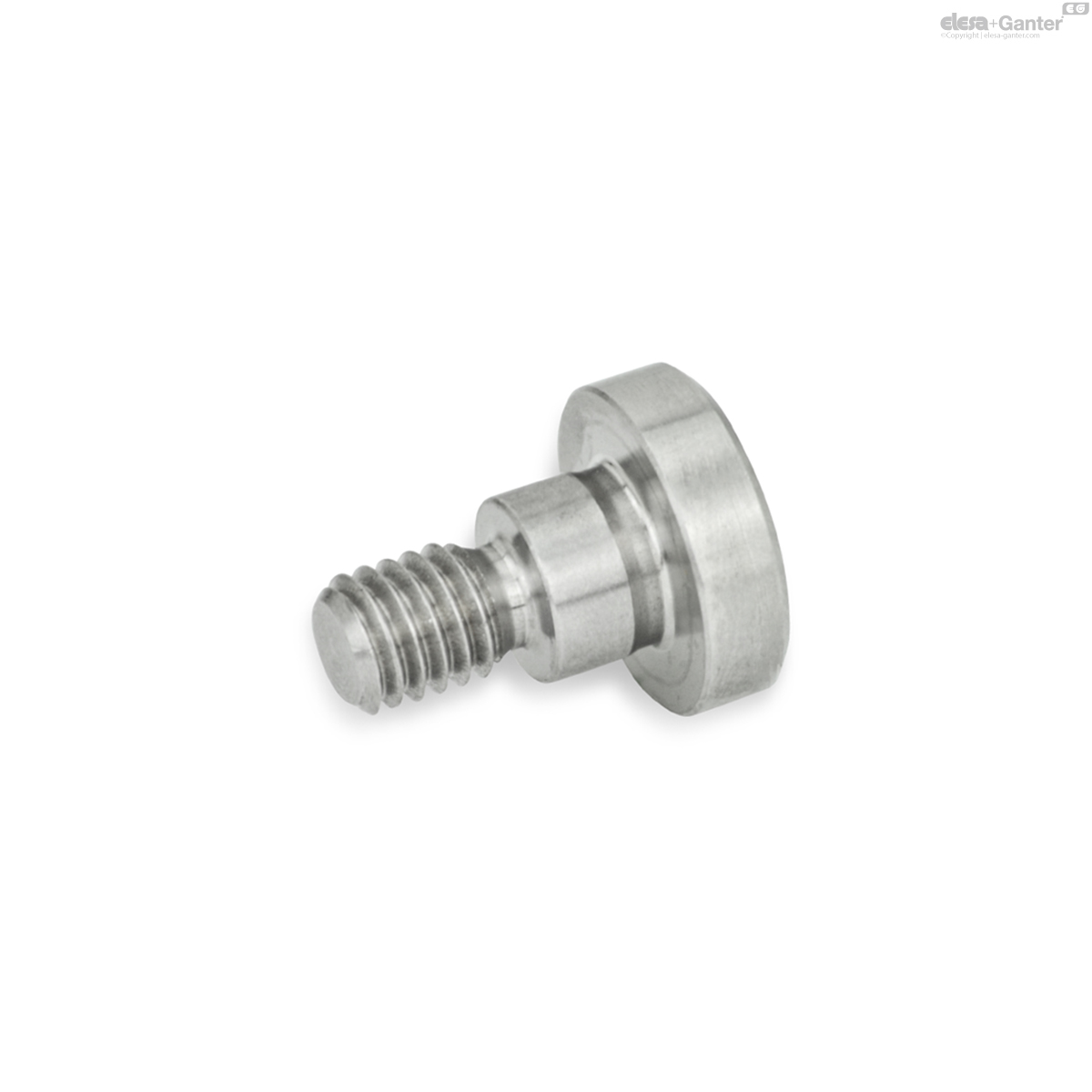

Stainless Steel
Description
Specification
- Steel ST
- Property class 5.8
- Blackened
- Case-hardened (all round depth 0.2 to 0.4 mm)
Stainless steel AISI 303 NI
Information
The dimensions d2 / l1 of the cylinder head shoulder bolts GN 732.1 permit a use as bearing pin for swing bolts DIN 444 , swing bolts GN 1524  swing nuts GN 444.2  and hubs with eccentrical cam GN 919 .
Technical information
- Strength values of screws / nutsÂ
- Stainless Steel CharacteristicsÂ
GN 732.1
| d1 | d2 | l1 +0.20/+0.13 | d3 | l2 | l3 | s |  |
||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| GN 732.1-M5-6-5-ST | M 5 | 6 -0.03 /-0.05 | 5 | 12 | 7 | 3 | 3 | 5 |
|
| GN 732.1-M5-6-6-ST | M 5 | 6 -0.03 /-0.05 | 6 | 12 | 7 | 3 | 3 | 5 |
|
| GN 732.1-M5-6-7-ST | M 5 | 6 -0.03 /-0.05 | 7 | 12 | 7 | 3 | 3 | 5 |
|
| GN 732.1-M5-6-8-ST | M 5 | 6 -0.03 /-0.05 | 8 | 12 | 7 | 3 | 3 | 5 |
|
| GN 732.1-M6-8-5-ST | M 6 | 8 -0.05/-0.08 | 5 | 14 | 8 | 4 | 4 | 8 |
|
| GN 732.1-M6-8-6-ST | M 6 | 8 -0.05/-0.08 | 6 | 14 | 8 | 4 | 4 | 8 |
|
| GN 732.1-M6-8-8-ST | M 6 | 8 -0.05/-0.08 | 8 | 14 | 8 | 4 | 4 | 9 |
|
| GN 732.1-M6-8-9-ST | M 6 | 8 -0.05/-0.08 | 9 | 14 | 8 | 4 | 4 | 9 |
|
| GN 732.1-M6-8-10-ST | M 6 | 8 -0.05/-0.08 | 10 | 14 | 8 | 4 | 4 | 10 |
|
| GN 732.1-M6-8-12-ST | M 6 | 8 -0.05/-0.08 | 12 | 14 | 8 | 4 | 4 | 10 |
|
| GN 732.1-M6-8-13-ST | M 6 | 8 -0.05/-0.08 | 13 | 14 | 8 | 4 | 4 | 8 |
|
| GN 732.1-M8-10-8-ST | M 8 | 10 -0.05/-0.08 | 8 | 16 | 11 | 5 | 5 | 15 |
|
| GN 732.1-M8-10-10-ST | M 8 | 10 -0.05/-0.08 | 10 | 16 | 11 | 5 | 5 | 16 |
|
| GN 732.1-M8-10-12-ST | M 8 | 10 -0.05/-0.08 | 12 | 16 | 11 | 5 | 5 | 18 |
|
| GN 732.1-M8-10-14-ST | M 8 | 10 -0.05/-0.08 | 14 | 16 | 11 | 5 | 5 | 19 |
|
| GN 732.1-M8-10-15-ST | M 8 | 10 -0.05/-0.08 | 15 | 16 | 11 | 5 | 5 | 18 |
|
| GN 732.1-M10-12-12-ST | M 10 | 12 -0.05/-0.08 | 12 | 19 | 13 | 6 | 6 | 28 |
|
| GN 732.1-M10-12-14-ST | M 10 | 12 -0.05/-0.08 | 14 | 19 | 13 | 6 | 6 | 30 |
|
| GN 732.1-M10-12-16-ST | M 10 | 12 -0.05/-0.08 | 16 | 19 | 13 | 6 | 6 | 26 |
|
| GN 732.1-M10-12-17-ST | M 10 | 12 -0.05/-0.08 | 17 | 19 | 13 | 6 | 6 | 33 |
|
| GN 732.1-M12-14-14-ST | M 12 | 14 -0.05/-0.08 | 14 | 22 | 16 | 8 | 8 | 48 |
|
| GN 732.1-M12-14-16-ST | M 12 | 14 -0.05/-0.08 | 16 | 22 | 16 | 8 | 8 | 50 |
|
| GN 732.1-M12-14-18-ST | M 12 | 14 -0.05/-0.08 | 18 | 22 | 16 | 8 | 8 | 53 |
|
| GN 732.1-M14-16-17-ST | M 14 | 16 -0.05/-0.08 | 17 | 25 | 19 | 8 | 8 | 72 |
|
| GN 732.1-M14-16-18-ST | M 14 | 16 -0.05/-0.08 | 18 | 25 | 19 | 8 | 8 | 73 |
|
