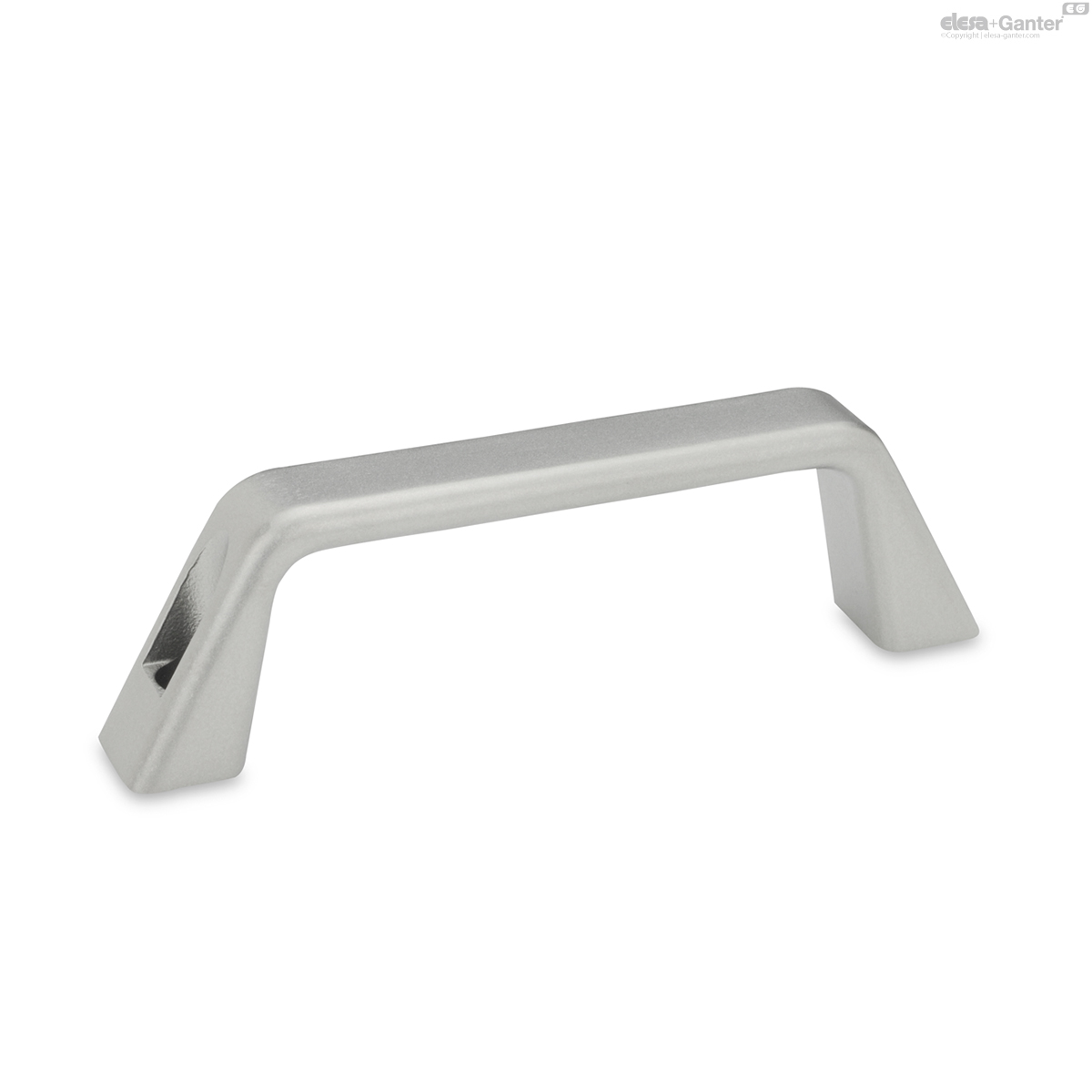

GN 728.5
Cabinet U-Handles
Stainless Steel Precision Casting
GN 728.5-A
Cabinet U-Handles
Mounting from the back (threaded blind bore)
GN 728.5-B
Cabinet U-Handles
Mounting from the operator‘s side
Description
Specification
Types
- Type A: Mounting from the back (threaded blind bore)
- Type B: Mounting from the operator‘s side
Stainless steel precision casting AISI CF-8
Matt shot-blasted
Information
The installation of cabinet U-handles GN 728.5 can be carried out from the back (type A) as well as from the operator’s side (type B).
Technical information
- Load Rating InformationÂ
- Stainless Steel CharacteristicsÂ
GN 728.5-A

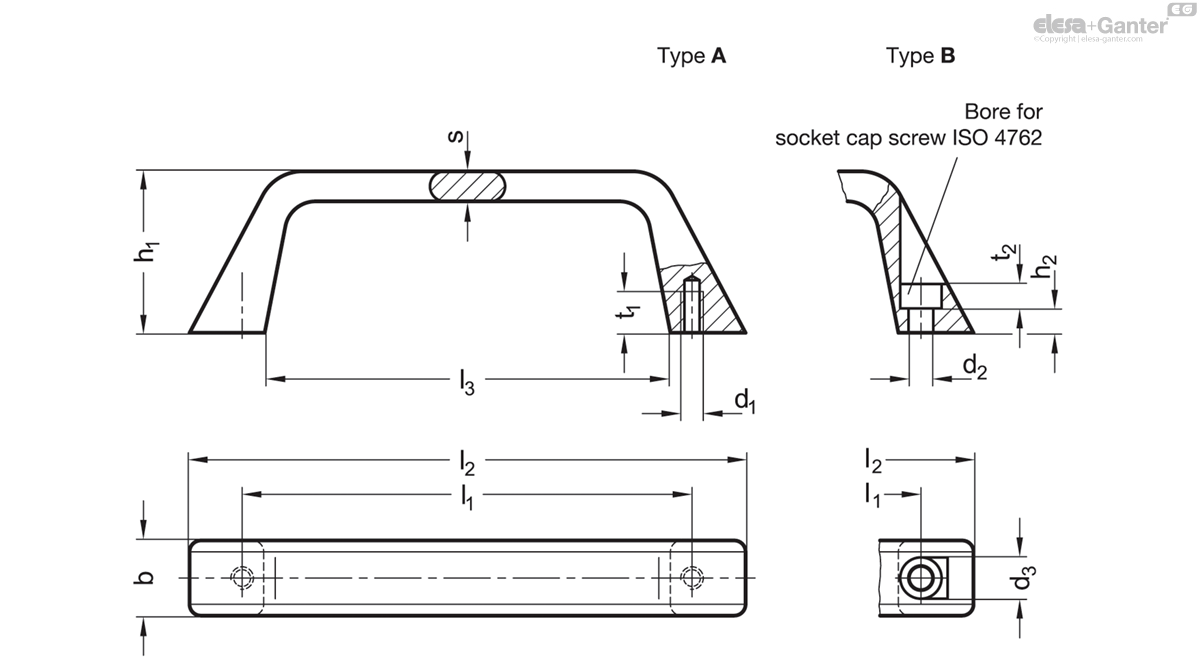

| l1 | b | d1 | d3 | h1 | l2 | l3 | s | t1 min. |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||
| GN 728.5-120-A | 120 | 22.5 | M 6 | 11 | 42.5 | 147 | 108 | 8 | 10 | 269 |
|
