Knurled Control knobs

Aluminium

Enquire Now

Description

Specification

Types

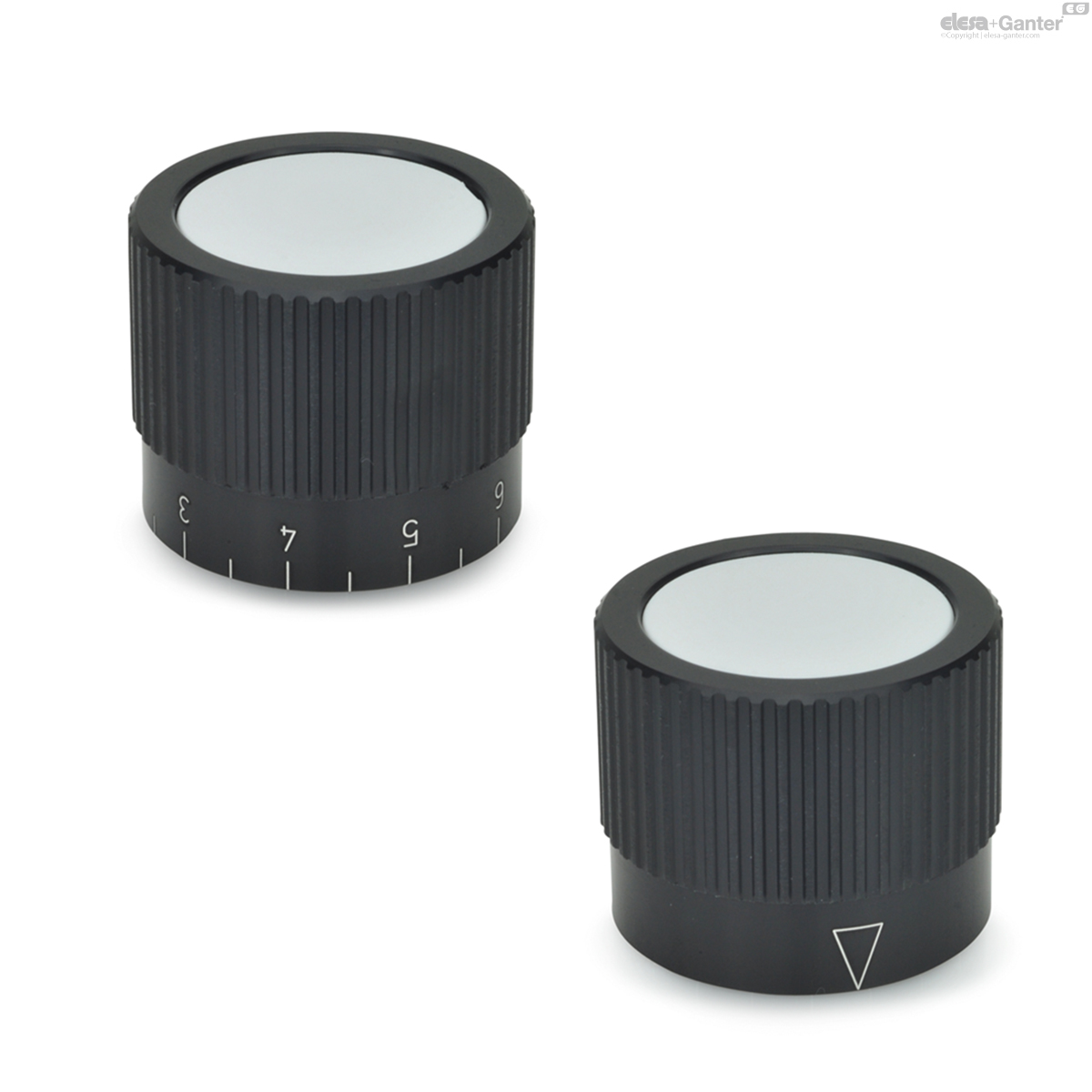

Type A: with arrow

Type B: neutral, without indicator point or scale

Type S: with scale 0...9, 20 graduations

Identification no.

No. 1: with grub screw

No. 2: with collet

Aluminium

anodized, black

Scale (Type S) and arrow (Type A)

white, engraved with laser precision

Cover

Plastic, light grey

Collet / hexagon nut

Brass

Stainless Steel-Grub screw DIN 916

with internal hexagon and serrated point

Information

The light grey cover of the control knobs GN 726.1 shrouds the fixing components as well as the shaft end. The cover also lends itself for a logo or other symbols.

The collet version permits a simple adjustment of the types with scale or arrow.

Scale and arrow on the control knobs are indelibly marked and easily legible.

Besides the standard scale (Type S) the control knobs can be supplied with any type of graduation.

Regarding design, numbering run, numbering position and mubering sequence of the scale please see the layout for scale rings on the order sheet 'How to order graduations' .

On request

special graduations see 'How to order graduations'

Technical information

ISO-Fundamental Tolerances

GN 726.1

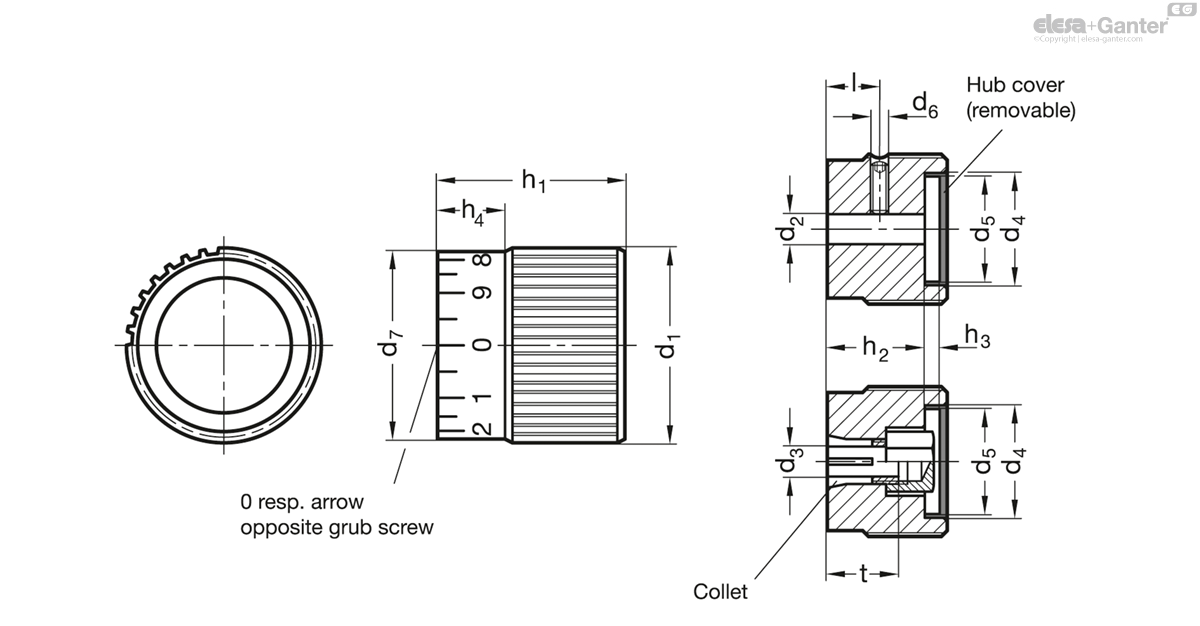

	d₁	d₂ H8	d₃	d₄	d₅	d₆	d₇	h₁	h₂	h₃	h₄	l	t
Code															Actions
GN 726.1-22-B5-A-1	22	B 5	-	16	14	M 4	20	22	16	4.3	8	12.5	-	17
GN 726.1-22-B5-B-1	22	B 5	-	16	14	M 4	20	22	16	4.3	8	12.5	-	26
GN 726.1-22-B5-S-1	22	B 5	-	16	14	M 4	20	22	16	4.3	8	12.5	-	19
GN 726.1-27-B6-A-1	27	B 6	-	20	18	M 4	25	26	20	4.3	9	14	-	32
GN 726.1-27-B6-B-1	27	B 6	-	20	18	M 4	25	26	20	4.3	9	14	-	38
GN 726.1-27-B6-S-1	27	B 6	-	20	18	M 4	25	26	20	4.3	9	14	-	40
GN 726.1-27-Z6-A-2	27	-	Z 6	20	18	-	25	26	20	4.3	9	-	14	37
GN 726.1-27-Z6-B-2	27	-	Z 6	20	18	-	25	26	20	4.3	9	-	14	37
GN 726.1-27-Z6-S-2	27	-	Z 6	20	18	-	25	26	20	4.3	9	-	14	37
GN 726.1-34-B6-A-1	34	B 6	-	25	23	M 5	32	30	24	4.2	10	15	-	59
GN 726.1-34-B6-B-1	34	B 6	-	25	23	M 5	32	30	24	4.2	10	15	-	59
GN 726.1-34-B6-S-1	34	B 6	-	25	23	M 5	32	30	24	4.2	10	15	-	59
GN 726.1-34-B8-A-1	34	B 8	-	25	23	M 5	32	30	24	4.2	10	15	-	58
GN 726.1-34-B8-B-1	34	B 8	-	25	23	M 5	32	30	24	4.2	10	15	-	58
GN 726.1-34-B8-S-1	34	B 8	-	25	23	M 5	32	30	24	4.2	10	15	-	58
GN 726.1-34-Z8-A-2	34	-	Z 8	25	23	-	32	30	24	4.2	10	-	17	65
GN 726.1-34-Z8-B-2	34	-	Z 8	25	23	-	32	30	24	4.2	10	-	17	65
GN 726.1-34-Z8-S-2	34	-	Z 8	25	23	-	32	30	24	4.2	10	-	17	65
GN 726.1-42-B8-A-1	42	B 8	-	32	30	M 5	40	34	28	4	11	16	-	102
GN 726.1-42-B8-B-1	42	B 8	-	32	30	M 5	40	34	28	4	11	16	-	102
GN 726.1-42-B8-S-1	42	B 8	-	32	30	M 5	40	34	28	4	11	16	-	102
GN 726.1-42-B10-A-1	42	B 10	-	32	30	M 5	40	34	28	4	11	16	-	103
GN 726.1-42-B10-B-1	42	B 10	-	32	30	M 5	40	34	28	4	11	16	-	103
GN 726.1-42-B10-S-1	42	B 10	-	32	30	M 5	40	34	28	4	11	16	-	103
GN 726.1-42-Z10-A-2	42	-	Z 10	32	30	-	40	34	28	4	11	-	20	112
GN 726.1-42-Z10-B-2	42	-	Z 10	32	30	-	40	34	28	4	11	-	20	112
GN 726.1-42-Z10-S-2	42	-	Z 10	32	30	-	40	34	28	4	11	-	20	112
