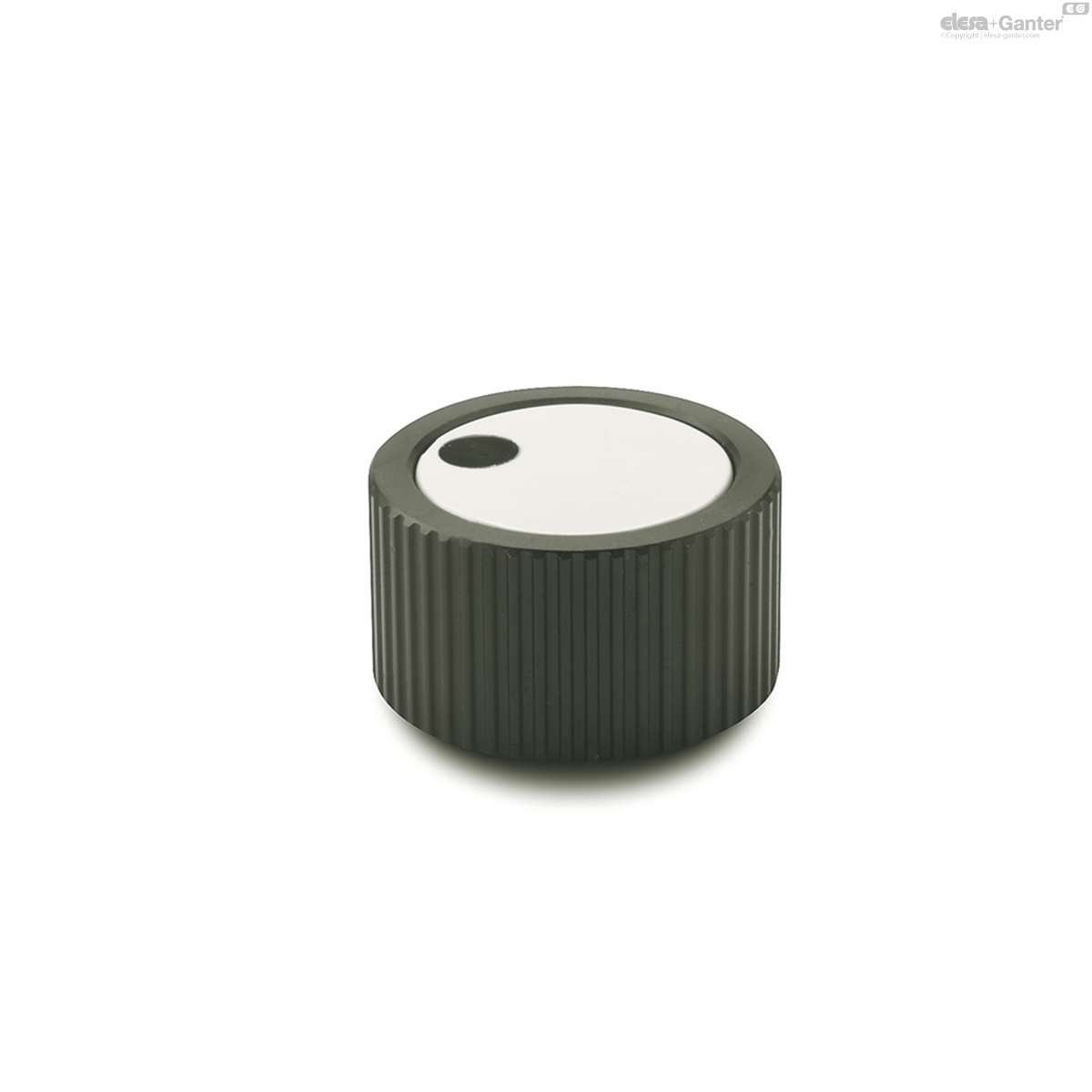

Knurled Control knobs

Aluminium

Enquire Now

Description

Specification

Types

Type N: Cover neutral

Type M: Cover with indicator point

Identification no.

No. 1: with grub screw

No. 2: with collet

Aluminium

anodized, black

Cover

Plastic, light grey

Collet / hexagon nut

Brass

Stainless Steel-Grub screw DIN 916

with internal hexagon and serrated point

Information

The light grey cover of the control knobs GN 726 shrouds the fixing components as well as the shaft end. The cover also lends itself for a logo or other symbols.

Made from an aluminum extrusion allows the manufacture of customized solutions in existing diameters at relatively low cost.

Technical information

ISO-Fundamental Tolerances

GN 726

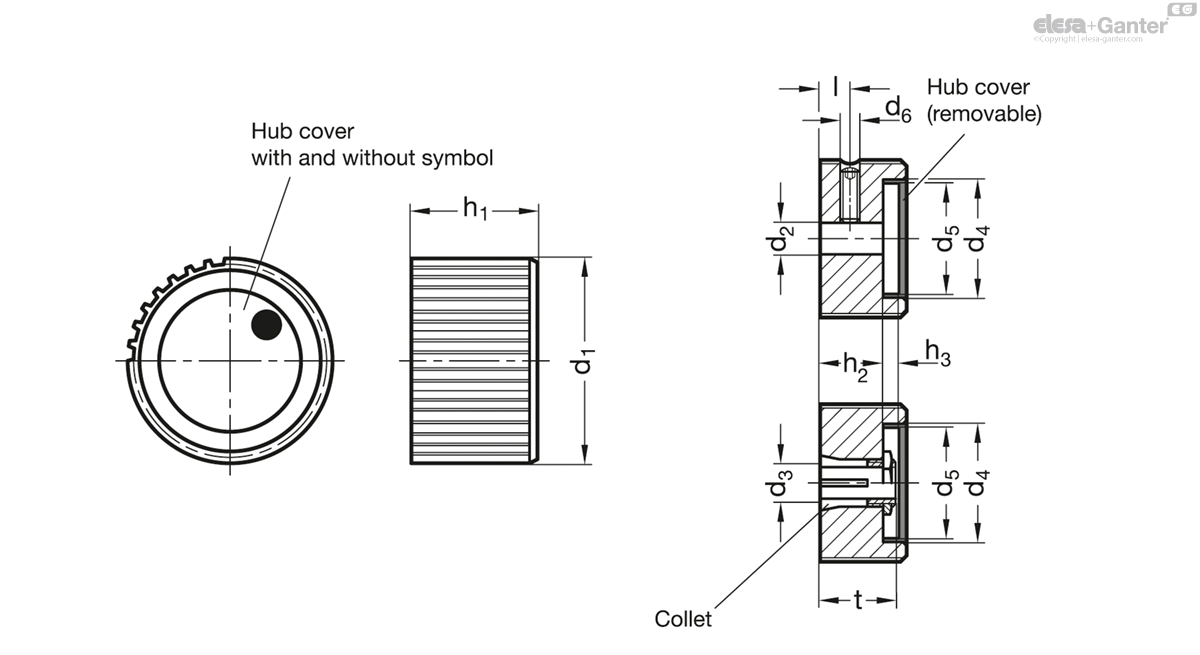

	d₁	d₂ H8	d₃	d₄	d₅	d₆	h₁	h₂	h₃	l	t
Code													Actions
GN 726-22-B5-M-1	22	B 5	-	16	14	M 4	15	9	4.3	5	-	12
GN 726-22-B5-N-1	22	B 5	-	16	14	M 4	15	9	4.3	5	-	12
GN 726-27-B6-M-1	27	B 6	-	20	18	M 4	17	11	4.3	5.5	-	21
GN 726-27-B6-N-1	27	B 6	-	20	18	M 4	17	11	4.3	5.5	-	25
GN 726-27-Z6-M-2	27	-	Z 6	20	18	-	17	11	4.3	-	14	28
GN 726-27-Z6-N-2	27	-	Z 6	20	18	-	17	11	4.3	-	14	23
GN 726-34-B6-M-1	34	B 6	-	25	23	M 5	20	14	4.2	7	-	39
GN 726-34-B6-N-1	34	B 6	-	25	23	M 5	20	14	4.2	7	-	39
GN 726-34-B8-M-1	34	B 8	-	25	23	M 5	20	14	4.2	7	-	40
GN 726-34-B8-N-1	34	B 8	-	25	23	M 5	20	14	4.2	7	-	38
GN 726-34-Z8-M-2	34	-	Z 8	25	23	-	20	14	4.2	-	17	42
GN 726-34-Z8-N-2	34	-	Z 8	25	23	-	20	14	4.2	-	17	42
GN 726-42-B8-M-1	42	B 8	-	32	30	M 5	23	17	4	8.5	-	69
GN 726-42-B8-N-1	42	B 8	-	32	30	M 5	23	17	4	8.5	-	69
GN 726-42-B10-M-1	42	B 10	-	32	30	M 5	23	17	4	8.5	-	67
GN 726-42-B10-N-1	42	B 10	-	32	30	M 5	23	17	4	8.5	-	75
GN 726-42-Z10-M-2	42	-	Z 10	32	30	-	23	17	4	-	20	73
GN 726-42-Z10-N-2	42	-	Z 10	32	30	-	23	17	4	-	20	73
