GN 724.6

Indexing Plungers

Steel / Stainless Steel, with Chamfered Pin, with Flange for Surface Mounting

Enquire Now

GN 724.6-ST-ZB

Indexing Plungers

Steel, zinc plated, blue passivated

GN 724.6-ST-SW

Indexing Plungers

Steel, zinc plated, powder coated

GN 724.6-NI

Indexing Plungers

Stainless Steel

Description

Specification

Types

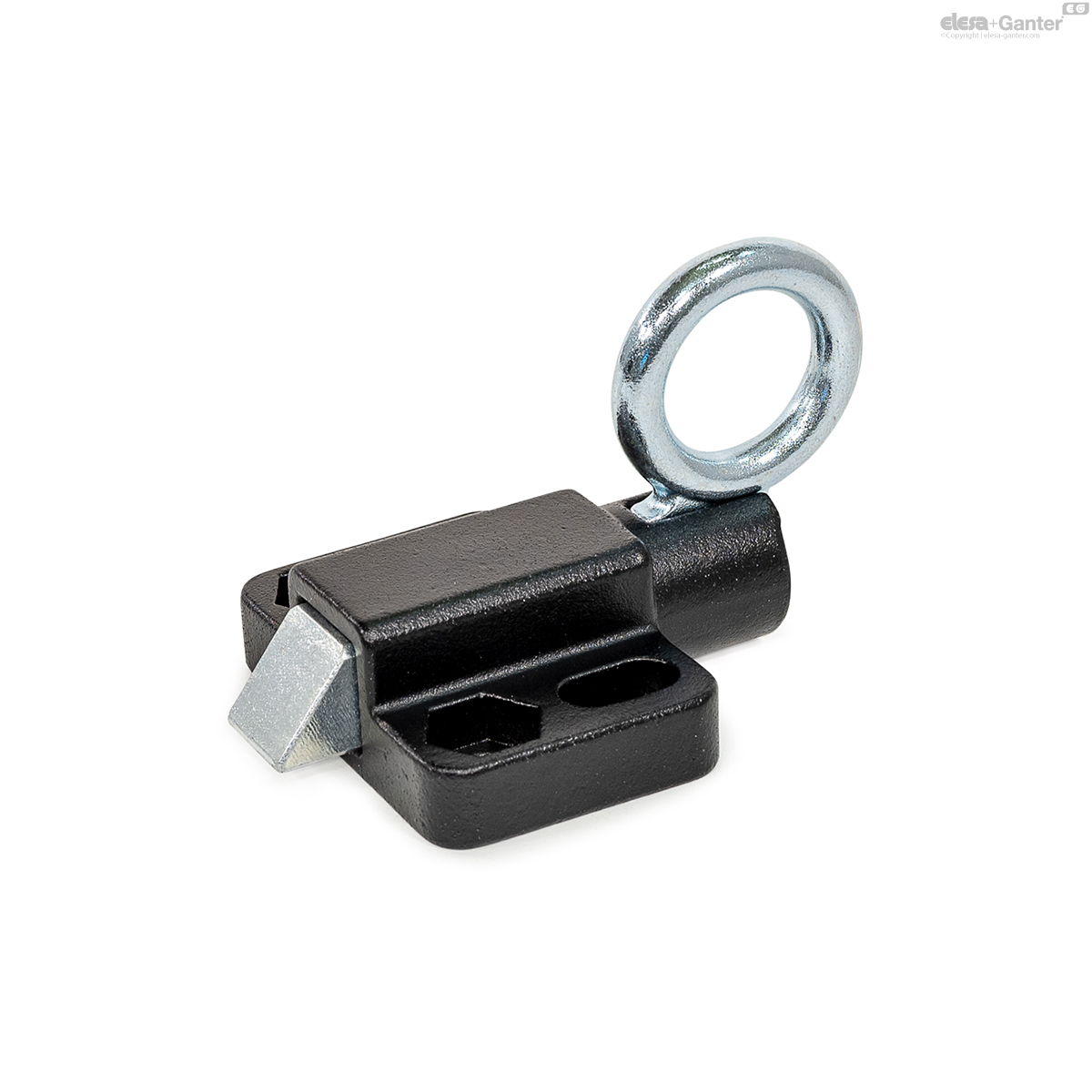

Type C1: Chamfer, top

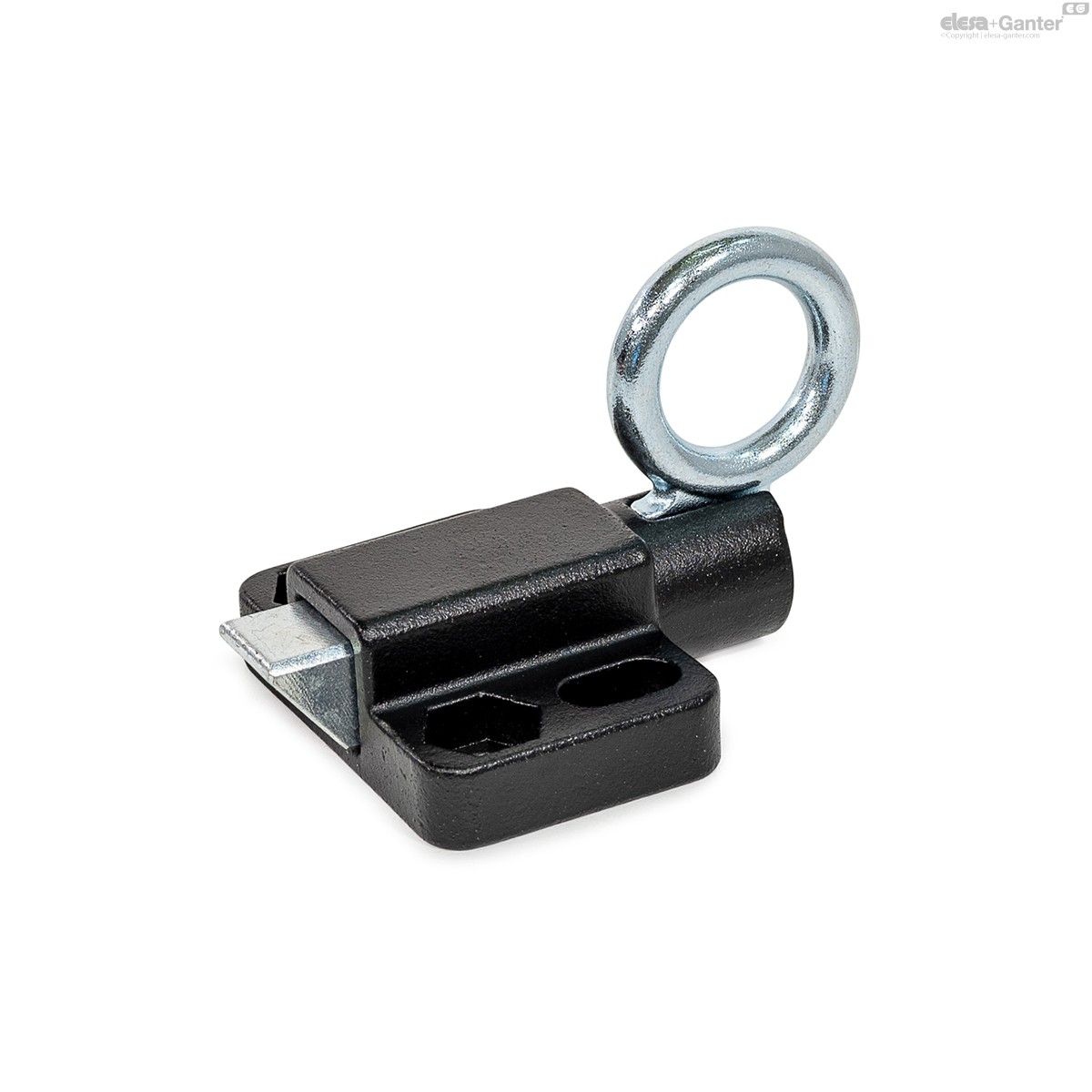

Type C2: Chamfer, bottom

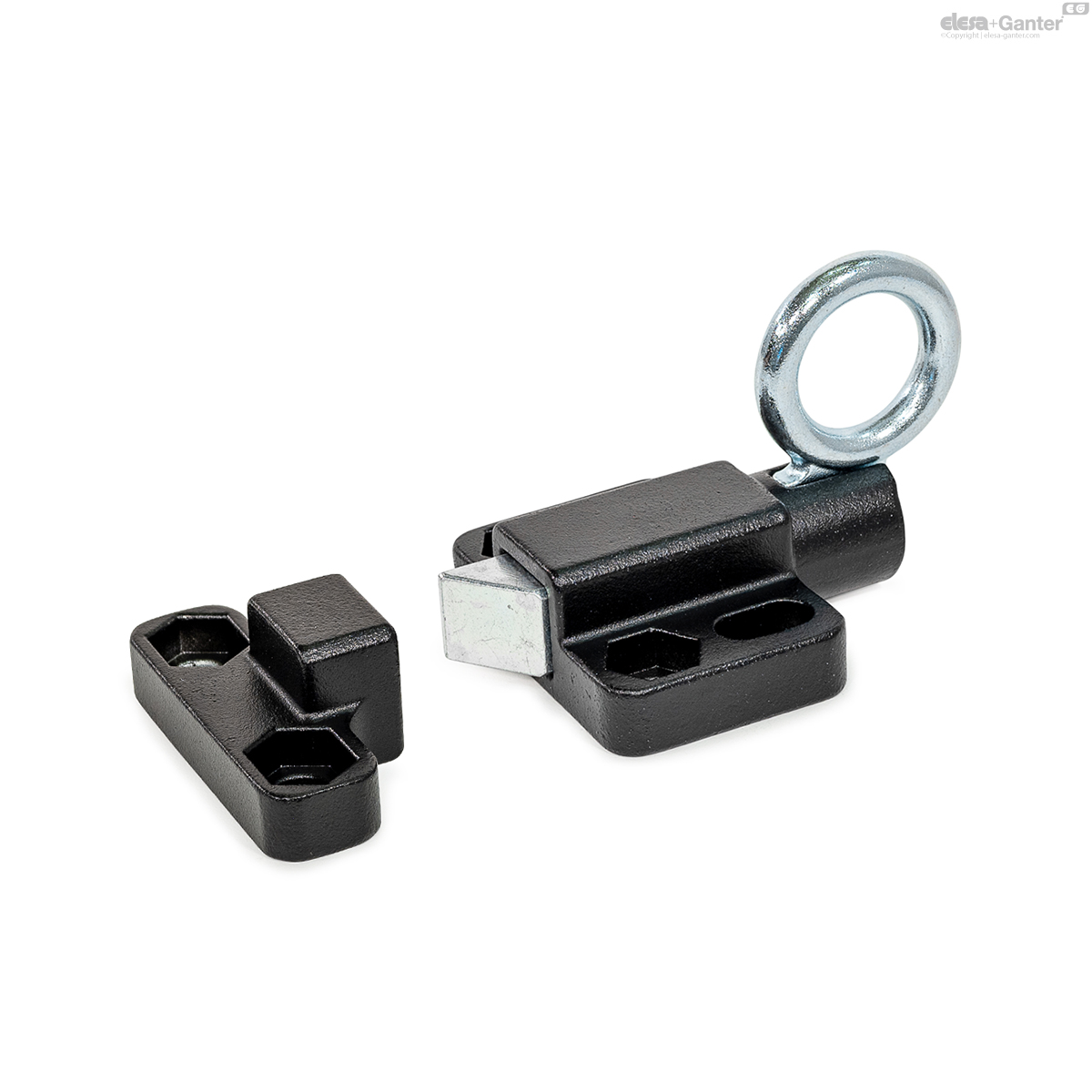

Type C3: Chamfer, right

Type C4: Chamfer, left

Identification no.

No. 1: Without counter piece

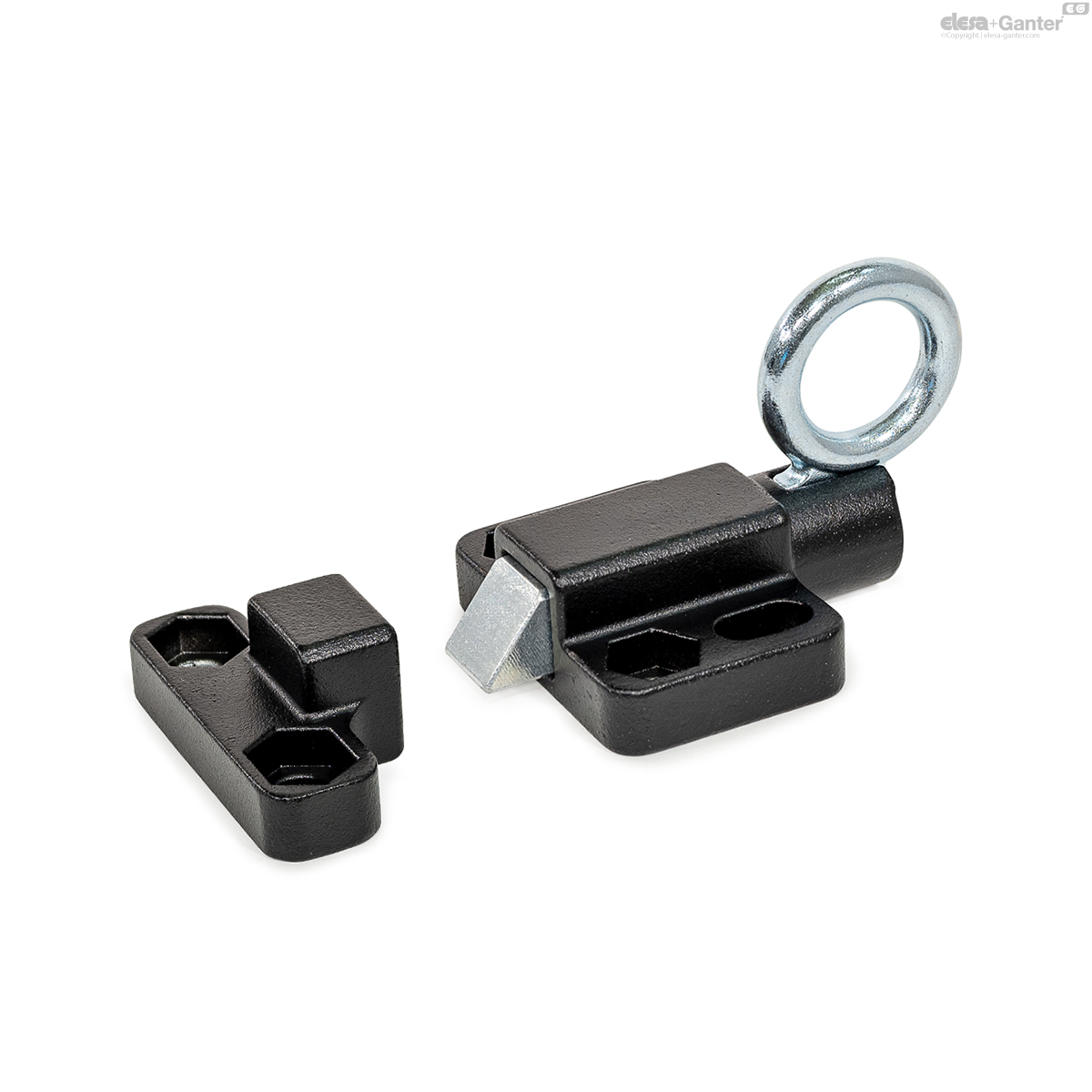

No. 2: With counter piece

Guide / Counter piece

Steel precision casting

Zinc plated, blue passivated ZB

Zinc plated and powder coated

Black, RAL 9005, textured finish SW

Stainless steel precision casting AISI CF-8 NI

Pull ring

Steel precision casting

Zinc plated, blue passivated (for ZB and SW)

Stainless steel precision casting AISI CF-8 (for NI)

Plunger pin

Steel, hardened

Zinc plated, blue passivated (for ZB and SW)

Stainless steel AISI 431, hardened (for NI)

Compression spring

Stainless steel AISI 316Ti

Information

Indexing plungers GN 724.6 have a plunger pin with square cross-section, a latching surface on one side and a chamfer on the other. When the object to be secured moves towards the chamfer, the plunger pin is pushed back into the guide, allowing grooves and edges to pass over the pin. The plunger pin engages automatically in the direction of the latching surface.

The latching can be released by pulling the pull ring by hand or with a cable or pull rod using a hook. The types with rest position are used when the plunger pin should temporarily not protrude. For this purpose, the pull ring is turned sideways after the plunger pin has been retracted. The ring is held in this position by the catch recess at the top of the guide.

The dimensional tolerances between the pin and the guide have been chosen to ensure functional reliability even in roughly dimensioned applications or in the event of soiling.

For fastening, slotted or hex mounting holes allow the use of socket cap screws DIN 912 and hex head screws or nuts according to DIN 931 or DIN 934.

Technical information

Range of Indexing Plungers

Stainless Steel Characteristics

Application Examples

GN 724.6-ST-SW

	Color	b₁	s	a	d₁	d₂	h₁	k₁ min.	l₁ ≈	l₂	l₃	l₄	l₅	l₆	l₇	Spring load in N≈ initial	Spring load in N≈ end	b₂ +0.3	d₃ +0.2	h₂	h₃	k₂	k₃	k₄	k₅	k₆	k₇	m	A/F
Code																															Actions
GN 724.6-13-20-C1-SW-1	C1-1	13	20	6.5	34	6	10	-	68	10	35	1	41.5	48	-	14	35	6.5	6.1	7.5	1.5	7.5	18	12	-	-	-	34	10	185
GN 724.6-13-20-C1-SW-2	C1-2	13	20	6.5	34	6	10	1.5	68	10	35	1	41.5	48	26.5	14	35	6.5	6.1	7.5	1.5	7.5	18	12	19	2.5	1.5	34	10	238
GN 724.6-13-20-C2-SW-1	C2-1	13	20	6.5	34	6	10	-	68	10	35	1	41.5	48	-	14	35	6.5	6.1	7.5	1.5	7.5	18	12	-	-	-	34	10	185
GN 724.6-13-20-C2-SW-2	C2-2	13	20	6.5	34	6	10	1.5	68	10	35	1	41.5	48	26.5	14	35	6.5	6.1	7.5	1.5	7.5	18	12	19	2.5	1.5	34	10	238
GN 724.6-13-20-C3-SW-1	C3-1	13	20	6.5	34	6	10	-	68	10	35	1	41.5	48	-	14	35	6.5	6.1	7.5	1.5	7.5	18	12	-	-	-	34	10	185
GN 724.6-13-20-C3-SW-2	C3-2	13	20	6.5	34	6	10	1.5	68	10	35	1	41.5	48	26.5	14	35	6.5	6.1	7.5	1.5	7.5	18	12	19	2.5	1.5	34	10	238
GN 724.6-13-20-C4-SW-1	C4-1	13	20	6.5	34	6	10	-	68	10	35	1	41.5	48	-	14	35	6.5	6.1	7.5	1.5	7.5	18	12	-	-	-	34	10	185
GN 724.6-13-20-C4-SW-2	C4-2	13	20	6.5	34	6	10	1.5	68	10	35	1	41.5	48	26.5	14	35	6.5	6.1	7.5	1.5	7.5	18	12	19	2.5	1.5	34	10	238
GN 724.6-20-30-C1-SW-1	C1-1	20	30	10	48	9	15	-	102	15	54	1.5	60	80	-	22	70	10	10.1	14	5	14	34	10	-	-	-	55	17	741
GN 724.6-20-30-C1-SW-2	C1-2	20	30	10	48	9	15	2	102	15	54	1.5	60	80	40	22	70	10	10.1	14	5	14	34	10	27.5	3	2	55	17	978
GN 724.6-20-30-C2-SW-1	C2-1	20	30	10	48	9	15	-	102	15	54	1.5	60	80	-	22	70	10	10.1	14	5	14	34	10	-	-	-	55	17	741
GN 724.6-20-30-C2-SW-2	C2-2	20	30	10	48	9	15	2	102	15	54	1.5	60	80	40	22	70	10	10.1	14	5	14	34	10	27.5	3	2	55	17	978
GN 724.6-20-30-C3-SW-1	C3-1	20	30	10	48	9	15	-	102	15	54	1.5	60	80	-	22	70	10	10.1	14	5	14	34	10	-	-	-	55	17	741
GN 724.6-20-30-C3-SW-2	C3-2	20	30	10	48	9	15	2	102	15	54	1.5	60	80	40	22	70	10	10.1	14	5	14	34	10	27.5	3	2	55	17	978
GN 724.6-20-30-C4-SW-1	C4-1	20	30	10	48	9	15	-	102	15	54	1.5	60	80	-	22	70	10	10.1	14	5	14	34	10	-	-	-	55	17	741
GN 724.6-20-30-C4-SW-2	C4-2	20	30	10	48	9	15	2	102	15	54	1.5	60	80	40	22	70	10	10.1	14	5	14	34	10	27.5	3	2	55	17	978
