Indexing Plungers

Steel / Stainless Steel, for Welding, with or without Rest Position, with Pull Ring or Latch

Enquire Now

GN 722.4-ST

Indexing Plungers

Steel, without Rest Position

GN 722.4-ST-RP-R

Indexing Plungers

Steel, with Rest Position, with Pull Ring

GN 722.4-ST-RP-L

Indexing Plungers

Steel, with Rest Position, with Latch

GN 722.4-A4

Indexing Plungers

Stainless Steel, without Rest Position

GN 722.4-A4-RP-R

Indexing Plungers

Stainless Steel, with Rest Position, with Pull Ring

GN 722.4-A4-RP-L

Indexing Plungers

Stainless Steel, with Rest Position, with Latch

Description

Specification

Types

Type A: Square, with pull ring, mounted

Type AU: Square, with pull ring, unmounted

Type R: Round, with pull ring, mounted

Type RU: Round, with pull ring, unmounted

Type C: Square, with pull ring, mounted (riveted)

Type CU: Square, with pull ring, unmounted

Type T: Round, with pull ring, mounted (riveted)

Type TU: Round, with pull ring, unmounted

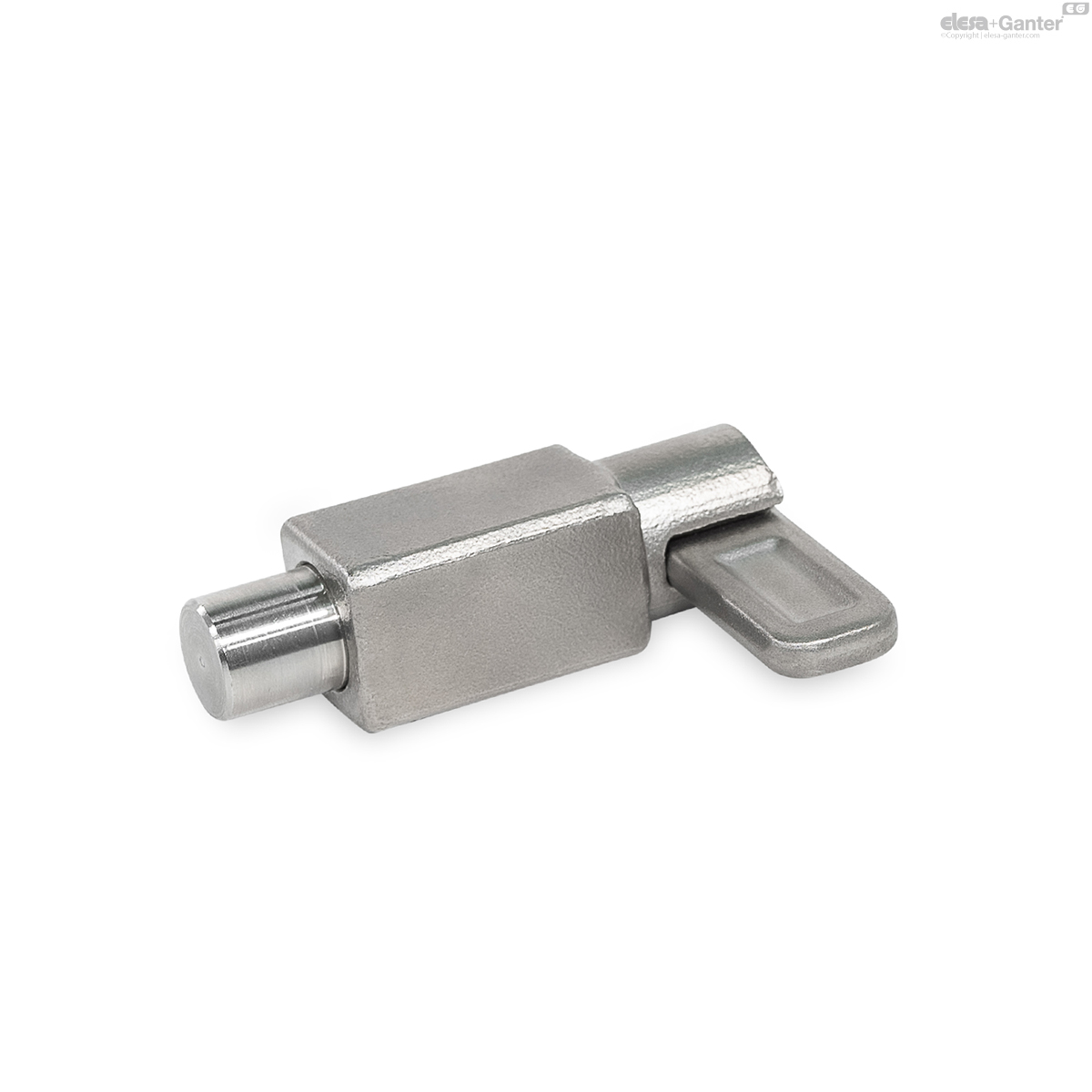

Type E: Square, with latch, mounted (riveted)

Type EU: Square, with latch, unmounted

Type V: Round, with latch, mounted (riveted)

Type VU: Round, with latch, unmounted

Guide

Steel precision casting ST

Weldable, blackened

Stainless steel precision casting AISI 316 A4

Weldable

Pull ring

Steel precision casting

Zinc plated, blue passivated (for ST)

Stainless steel precision casting AISI 316 (for A4)

Latch

Steel precision casting

Zinc plated, blue passivated (for ST)

Stainless steel precision casting AISI 316 (for A4)

Plunger pin

Steel, zinc plated, blue passivated (for ST)

Pressure spring

Stainless steel AISI 316 (for A4)

Grub Screw DIN 915 (without rest position)

Countersunk screw (with rest position)

Steel, zinc plated (for ST)

Stainless steel (for A4)

Pressure spring

Stainless steel AISI 316Ti

Information

With indexing plungers GN 722.4, the plunger pin is actuated via the pull ring / latch. This is done either manually, with a cable or by means of an extended pull rod with hook. The ST version is designed for applications in steel construction, whereas the stainless steel version A4 is suitable for use in particularly aggressive environments.

The types with a rest position are used when the plunger pin should temporarily not protrude. For this purpose, the pull ring is turned sideways after the locking pin has been retracted. The ring is held in this position by the catch groove at the top of the guide.

The dimensional tolerances between plunger pin and guide are selected so that the functional reliability is guaranteed even after welding, applying a corrosion protection layer or in case of contamination.

For fastening by welding, the unmounted types AU / RU / CU / TU / EU / VU are particularly recommended to avoid changes to the microstructure of the material due to heating of the spring and plunger pin. In this case, the indexing plunger is assembled only after the surface treatment of the welded guide.

Range of Indexing Plungers

Technical information

Load Rating Information

Stainless Steel Characteristics

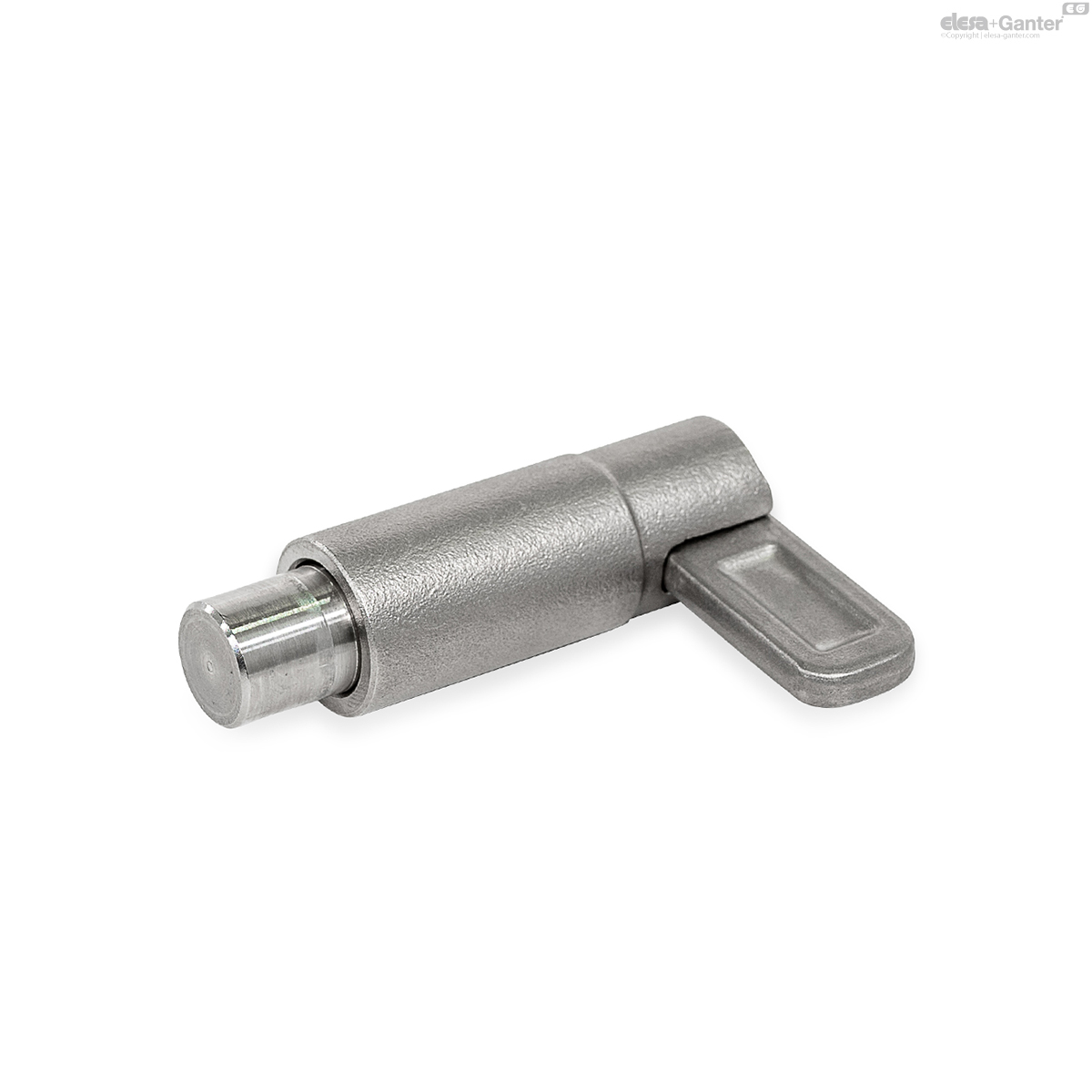

GN 722.4-A4-RP-L

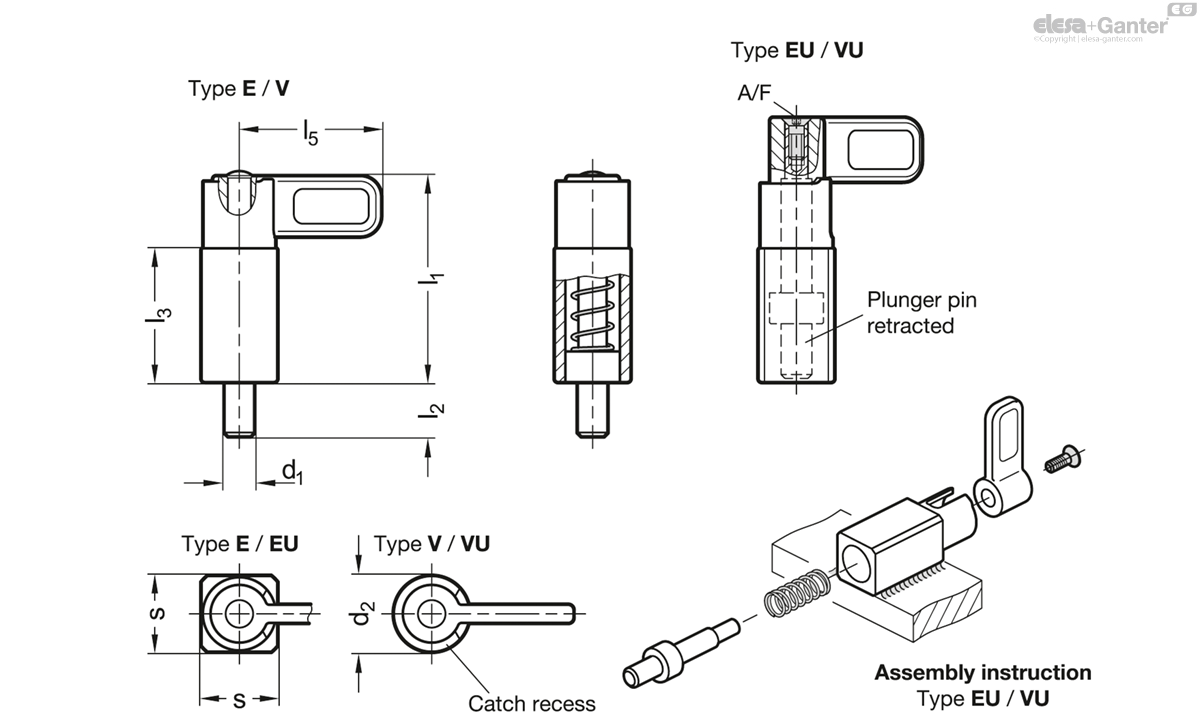

	Color	d₁ Pin -0.05/-0.25 Bore +0.1/+0.3	d₁ Pin -0.05/-0.25 Bore +0.2/+0.4	d₂	s	l₁ ≈	l₂	l₃	l₅	A/F	Spring load in N≈ initial	Spring load in N≈ end
Code														Actions
GN 722.4-8-20-E-A4	E	8	-	-	20	54	14	35	37	2.5	14	35	144
GN 722.4-8-20-EU-A4	EU	8	-	-	20	54	14	35	37	2.5	14	35	143
GN 722.4-8-20-V-A4	V	-	8	20	-	54	14	35	37	2.5	14	35	122
GN 722.4-8-20-VU-A4	VU	-	8	20	-	54	14	35	37	2.5	14	35	121
GN 722.4-10-20-E-A4	E	10	-	-	20	54	14	35	37	2.5	14	35	147
GN 722.4-10-20-EU-A4	EU	10	-	-	20	54	14	35	37	2.5	14	35	146
GN 722.4-10-20-V-A4	V	-	10	20	-	54	14	35	37	2.5	14	35	125
GN 722.4-10-20-VU-A4	VU	-	10	20	-	54	14	35	37	2.5	14	35	125
GN 722.4-12-20-E-A4	E	12	-	-	20	54	14	35	37	2.5	14	35	151
GN 722.4-12-20-EU-A4	EU	12	-	-	20	54	14	35	37	2.5	14	35	150
GN 722.4-12-20-V-A4	V	-	12	20	-	54	14	35	37	2.5	14	35	129
GN 722.4-12-20-VU-A4	VU	-	12	20	-	54	14	35	37	2.5	14	35	128
GN 722.4-14-20-E-A4	E	14	-	-	20	54	14	35	37	2.5	14	35	156
GN 722.4-14-20-EU-A4	EU	14	-	-	20	54	14	35	37	2.5	14	35	155
GN 722.4-14-20-V-A4	V	-	14	20	-	54	14	35	37	2.5	14	35	134
GN 722.4-14-20-VU-A4	VU	-	14	20	-	54	14	35	37	2.5	14	35	133
GN 722.4-16-30-E-A4	E	16	-	-	30	83	20	54	55	4	22	70	533
GN 722.4-16-30-EU-A4	EU	16	-	-	30	83	20	54	55	4	22	70	530
GN 722.4-16-30-V-A4	V	-	16	30	-	83	20	54	55	4	22	70	456
GN 722.4-16-30-VU-A4	VU	-	16	30	-	83	20	54	55	4	22	70	454
GN 722.4-20-30-E-A4	E	20	-	-	30	83	20	54	55	4	22	70	552
GN 722.4-20-30-EU-A4	EU	20	-	-	30	83	20	54	55	4	22	70	549
GN 722.4-20-30-V-A4	V	-	20	30	-	83	20	54	55	4	22	70	474
GN 722.4-20-30-VU-A4	VU	-	20	30	-	83	20	54	55	4	22	70	472
