Home Indexing and Positioning Elements Indexing plungers GN 722.2

GN 722.2

Spring Latches

Steel / Stainless Steel, with Flange for Surface Mounting, Right-Angled to the Plunger Pin

Enquire Now

Description

Specification

Types

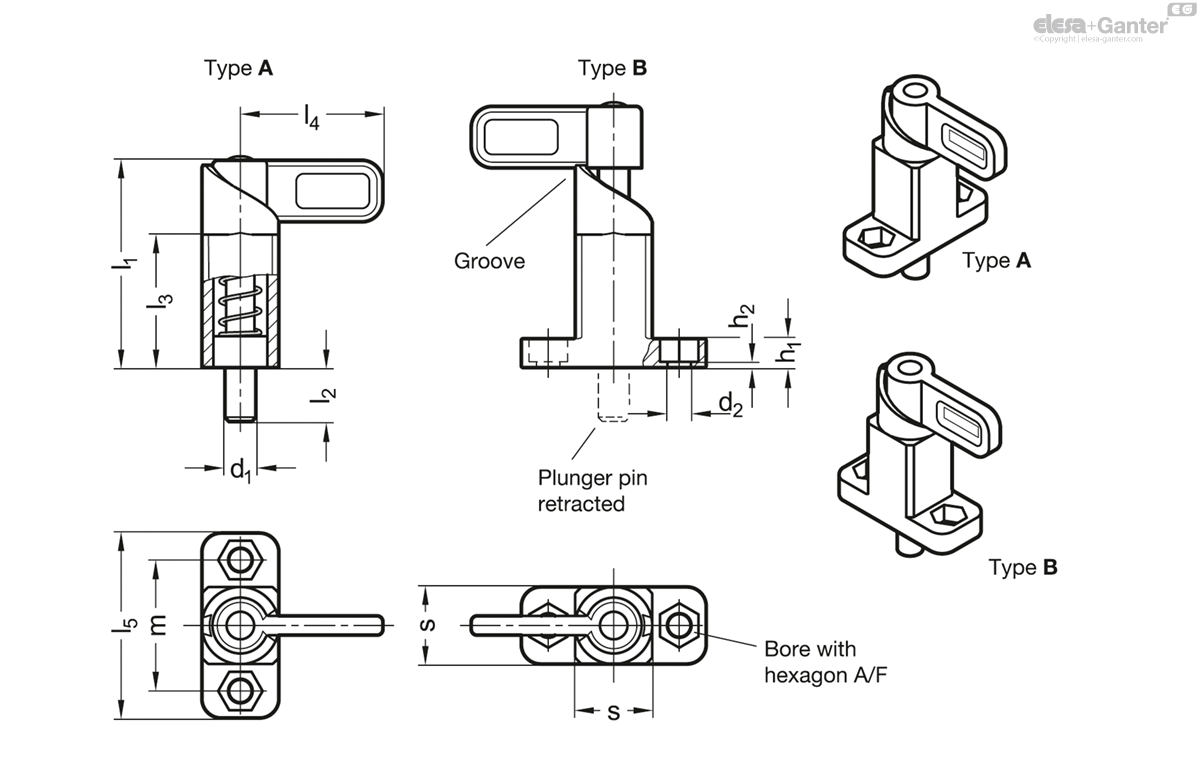

Type A: Latch position right-angled to fixing holes

Type B: Latch position parallel to fixing holes

Version in Steel ST

Guide

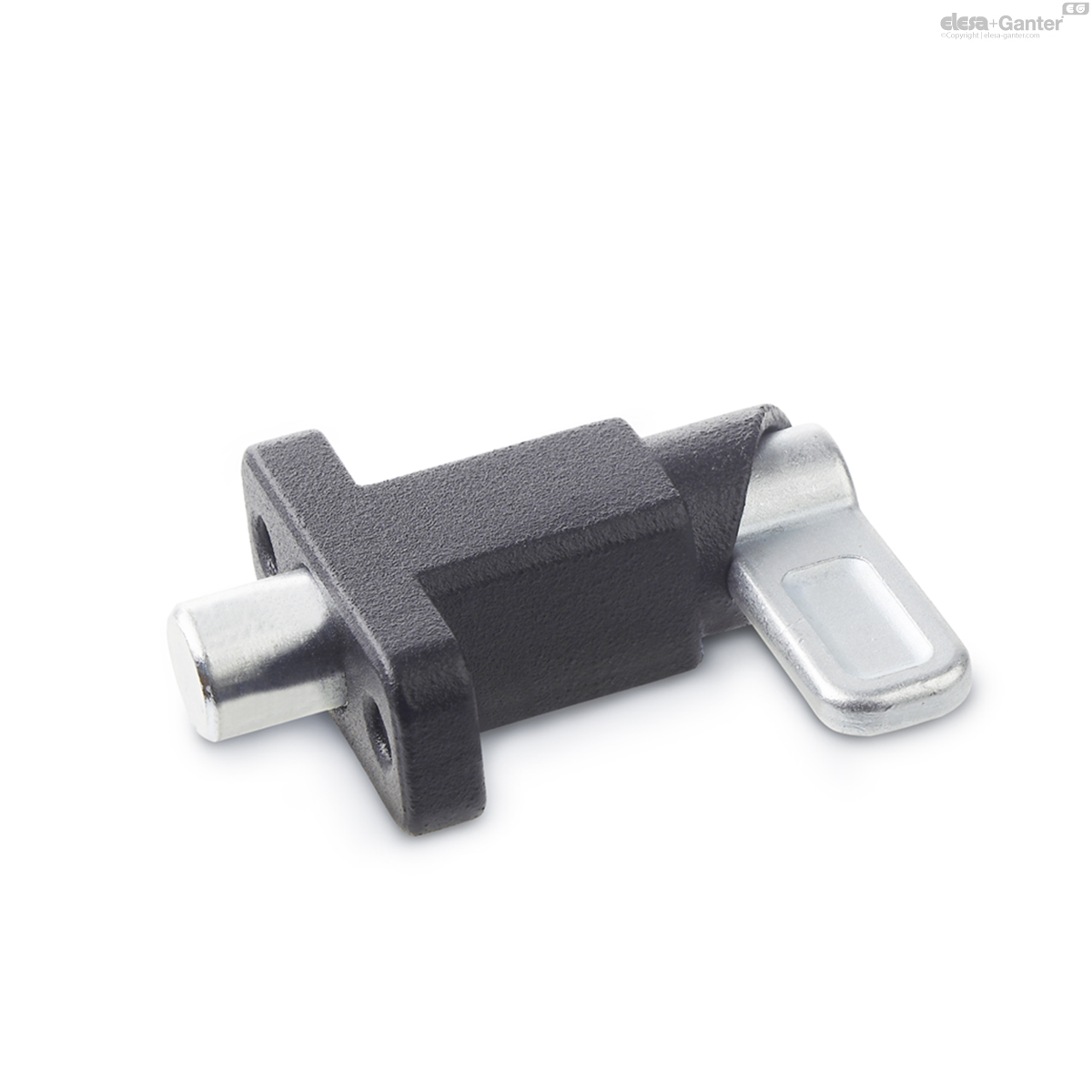

Steel precision casting

zinc plated, blue passivated ZB

zinc plated and plastic coated

black, textured finish SW

Latch

zinc plated, blue passivated

Plunger pin

Steel, zinc plated, blue passivated

Spring

Stainless Steel AISI 316Ti

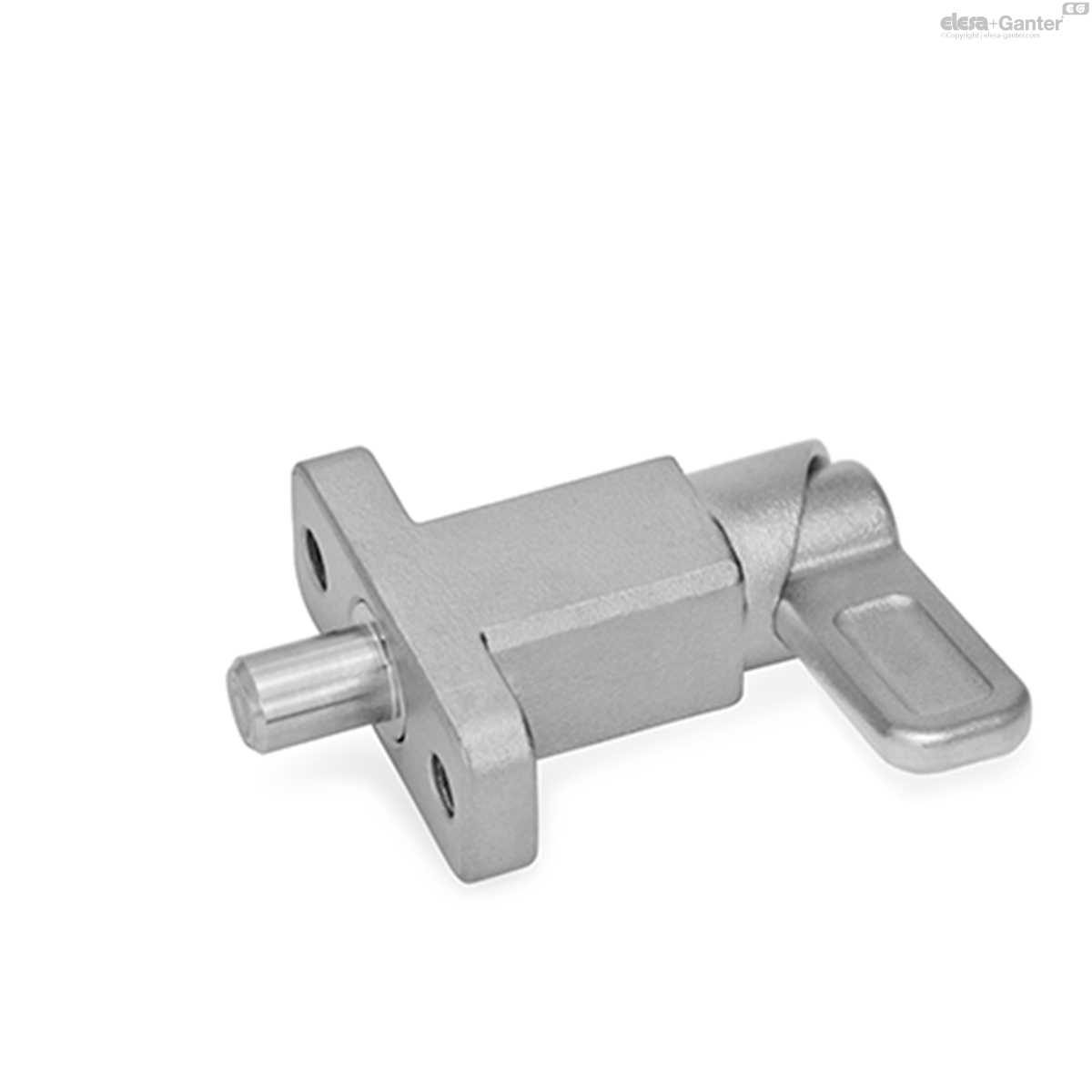

Version in Stainless Steel A4

Guide / Latch

Stainless Steel precision casting A4

AISI 316

Plunger Pin

Stainless Steel AISI 316

Spring

Stainless Steel AISI 316Ti

Information

With spring latches GN 722.2, the plunger pin is retracted over the curve of the guide by a 180° turn of the latch. The notch at the upper end of the curve causes the latch to be held in place if the plunger pin needs to be kept temporarily from protruding. The ZB and SW versions are designed for applications in steel construction, whereas the A4 stainless steel version is suitable for use in particularly aggressive environments.

The dimensional tolerances between plunger pin and guide are selected so that the functional reliability is guaranteed even after welding, applying a corrosion protection layer or in case of contamination.

The hexagonal mounting holes allow the use of socket cap screws DIN 912 and hexagon screws or nuts according to DIN 931 or DIN 934.

Range of cam action indexing plungers

Technical information

Stainless Steel characteristics

Load rating information

GN 722.2-ST

	d₁ Pin -0.05/-0.25 Bore +0.1/+0.3	s	d₂ +0.2	h₁	h₂	l₁ ≈	l₂	l₃	l₄	l₅	m	A/F	Spring load in N ≈ initial	Spring load in N ≈ end
Code																Actions
GN 722.2-8-20-A-SW	8	20	6.1	7.5	1.5	54	14	35	37	48	34	10	16	55	160
GN 722.2-8-20-A-ZB	8	20	6.1	7.5	1.5	54	14	35	37	48	34	10	16	55	164
GN 722.2-8-20-B-SW	8	20	6.1	7.5	1.5	54	14	35	37	48	34	10	16	55	160
GN 722.2-8-20-B-ZB	8	20	6.1	7.5	1.5	54	14	35	37	48	34	10	16	55	164
GN 722.2-10-20-A-SW	10	20	6.1	7.5	1.5	54	14	35	37	48	34	10	16	55	168
GN 722.2-10-20-A-ZB	10	20	6.1	7.5	1.5	54	14	35	37	48	34	10	16	55	166
GN 722.2-10-20-B-SW	10	20	6.1	7.5	1.5	54	14	35	37	48	34	10	16	55	160
GN 722.2-10-20-B-ZB	10	20	6.1	7.5	1.5	54	14	35	37	48	34	10	16	55	167
GN 722.2-12-20-A-SW	12	20	6.1	7.5	1.5	54	14	35	37	48	34	10	16	55	172
GN 722.2-12-20-A-ZB	12	20	6.1	7.5	1.5	54	14	35	37	48	34	10	16	55	171
GN 722.2-12-20-B-SW	12	20	6.1	7.5	1.5	54	14	35	37	48	34	10	16	55	170
GN 722.2-12-20-B-ZB	12	20	6.1	7.5	1.5	54	14	35	37	48	34	10	16	55	170
GN 722.2-14-20-A-SW	14	20	6.1	7.5	1.5	54	14	35	37	48	34	10	16	55	175
GN 722.2-14-20-A-ZB	14	20	6.1	7.5	1.5	54	14	35	37	48	34	10	16	55	176
GN 722.2-14-20-B-SW	14	20	6.1	7.5	1.5	54	14	35	37	48	34	10	16	55	175
GN 722.2-14-20-B-ZB	14	20	6.1	7.5	1.5	54	14	35	37	48	34	10	16	55	175
GN 722.2-16-30-A-SW	16	30	10.1	15	5	83	20	54	55	80	55	17	30	110	727
GN 722.2-16-30-A-ZB	16	30	10.1	15	5	83	20	54	55	80	55	17	30	110	626
GN 722.2-16-30-B-SW	16	30	10.1	15	5	83	20	54	55	80	55	17	30	110	628
GN 722.2-16-30-B-ZB	16	30	10.1	15	5	83	20	54	55	80	55	17	30	110	623
GN 722.2-20-30-A-SW	20	30	10.1	15	5	83	20	54	55	80	55	17	30	110	636
GN 722.2-20-30-A-ZB	20	30	10.1	15	5	83	20	54	55	80	55	17	30	110	750
GN 722.2-20-30-B-SW	20	30	10.1	15	5	83	20	54	55	80	55	17	30	110	752
GN 722.2-20-30-B-ZB	20	30	10.1	15	5	83	20	54	55	80	55	17	30	110	758
