GN 715.2

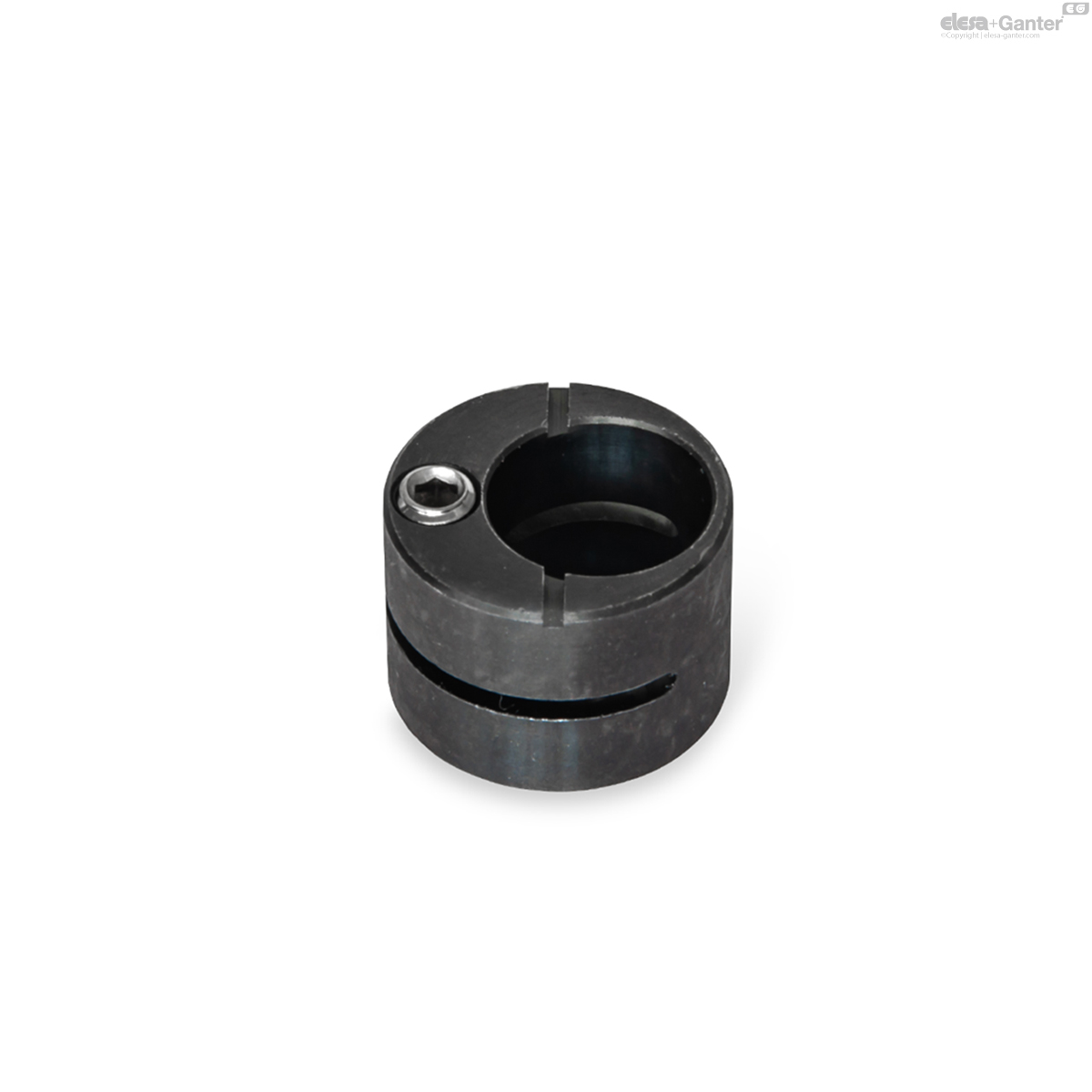

Eccentric bushes
for side thrust pins GN 714 / GN 715
Description
Specification
Steel
blackened
Information
Eccentric bushes GN 715.2 allows side thrust pins GN 715 / GN 714 to be adjusted. These bushes allow the side thrust pin to be precisely adjused to suit the requirements for clamping of a component.
Technical information
- ISO-Fundamental Tolerances -
GN 715.2

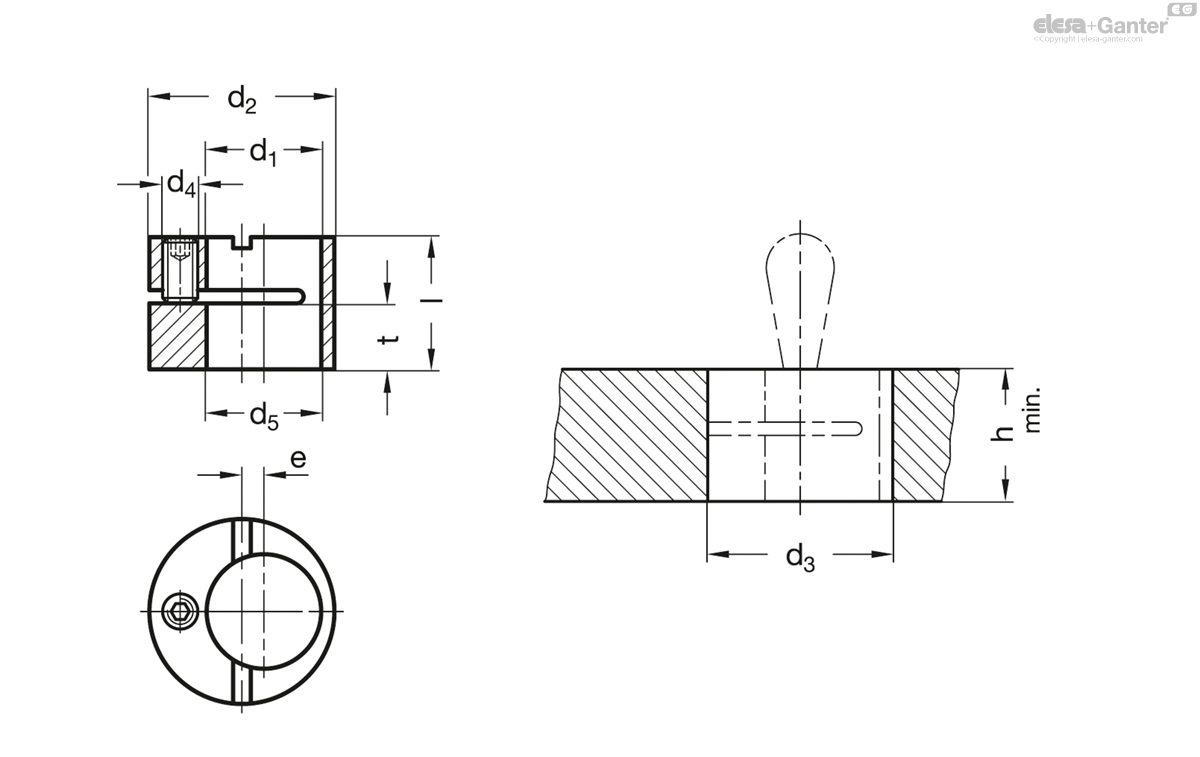

| d1 | d2 h9 | d3 H7 | d4 | d5 +0.1 | e | h min. | l -0.2 | t | For side thrust pin-Ø |
 |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| GN 715.2-6 | 6 | 12 | 12 | M 4 | 6.2 | 2 | 10 | 9.9 | 4.4 | 3 | 5 |
|
| GN 715.2-10 | 10 | 16 | 16 | M 4 | 10.2 | 2 | 12 | 11.9 | 5.4 | 5 | 6 | 9 |
|
| GN 715.2-12 | 12 | 18 | 18 | M 4 | 12.2 | 2 | 14 | 13.9 | 6.6 | 8 | 13 |
|
| GN 715.2-16 | 16 | 25 | 25 | M 6 | 16.2 | 3 | 18 | 17.9 | 7.9 | 10 | 35 |
|
