GN 714

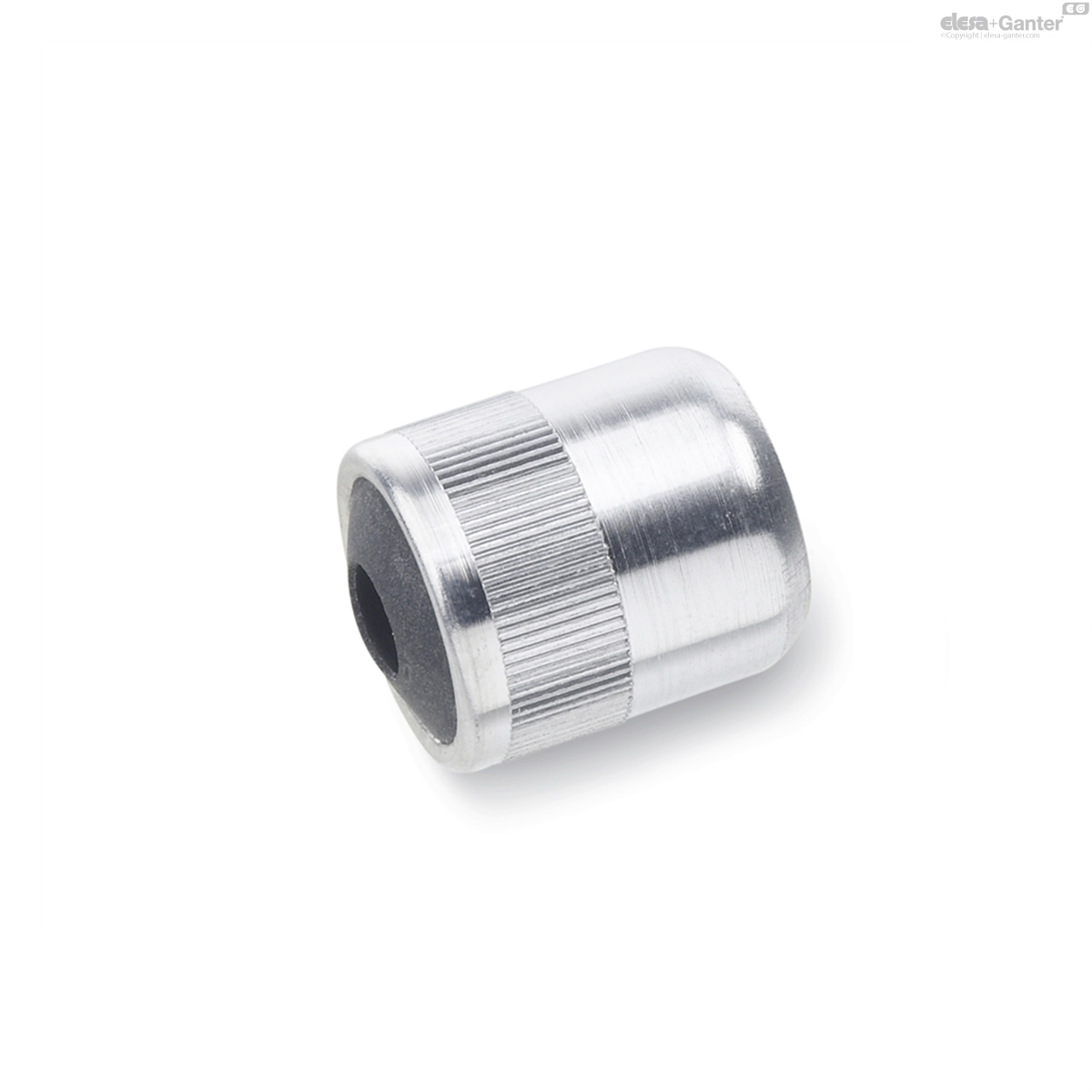

Side thrust pins

without pressure pin, press on type

Enquire Now

Description

Specification

Housing Aluminium

blank

Thrust plate with female thread

hardened, blackened

Thrust spring coding

Force, low thrust: grey

medium thrust: lack

high thrust: silver

Seal rubber

NBR (Perbunan)

Information

Side thrust pins GN 714 are the result of further development of GN 715 It is left to the customer to design his own pressure pin which can be screwed into the thrust plate.

This design extends the field of applications for side thrust pins offering identical advantages i.e. they eliminate costly alternatives, are space saving and are simple to install. The knurled body requires bore to H8 tolerance only.

For easy mounting a suitable tool GN 715.1 is available (see table).

Accessory

Mounting tools GN 715.1 (Code no. see table)

Technical information

ISO-Fundamental Tolerances -

Elastomer characteristics

Technical and assembly instructions

w = Movement of pin

F = Side thrust in N

initial thrust = F₀

end thrust = 1.1 x F₀

a₂-a₁ = Clamping range for workpiece

x = distance centre line – thrust point at w₂

x₁ for highest thrust point (a₁)

x₂ for lowest thrust point (a₂)

l₀ = Distance end stop – bore of thrust bush

l₀ = l_m + x

l_m = Average length of workpiece l_max. + l_min./2

For contact points (workpiece height) between a₁ and

a₂ a value for x has to be used lying between x₁ and

x₂ (interpolation).

By observing the above values the full movement of the side thrust pin will be available to cover the tolerance of the workpiece.

For inserting the side thrust pins the use of a mounting tool GN 715.1 or spanner GN 713.1 is recommended.

Eccentric bushes GN 715.2 are tooling accessory for GN 714 /GN 715. They enable a precise optimum setting of side thrust pins. This allows an adjustment to l0 to accommodate for instance a larger tolerance range on a workpiece.

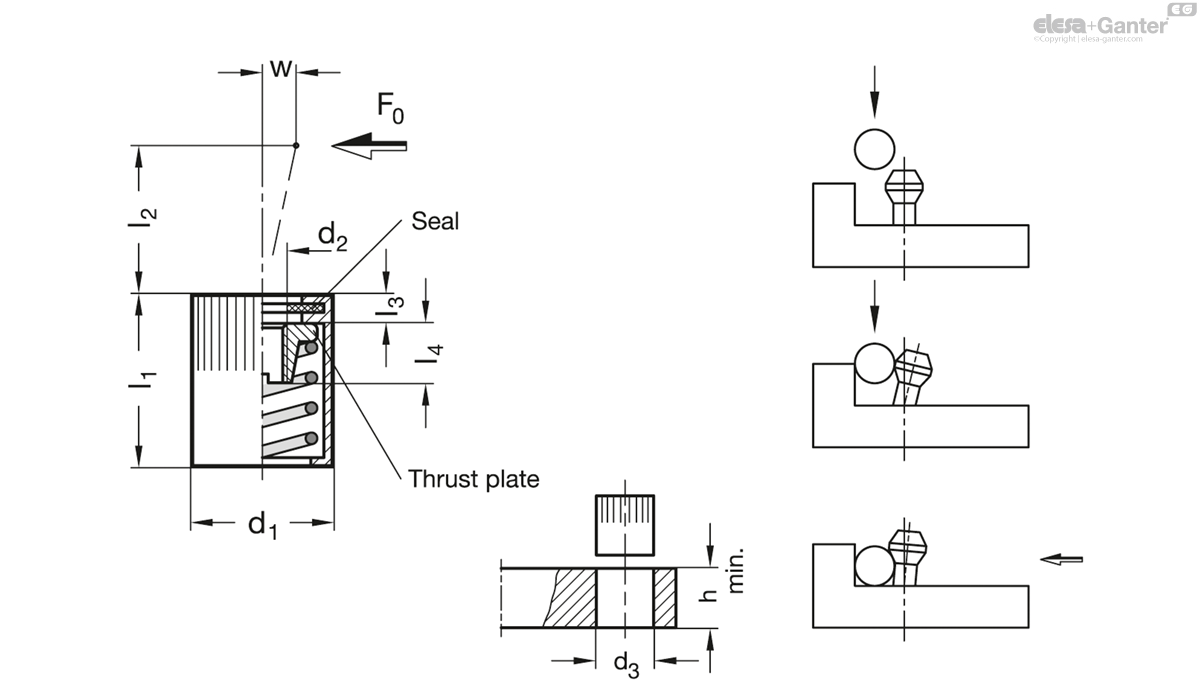

GN 714

	d₁	Side thrust F₀ in N ≈ at l₂	d₂	d₃ H8	h min.	l₁ -1	l₂	l₃	l₄	w	Code no.
Code													Actions
GN 714-10-20	10	20	M 4	10	12	12	4	1.5	4.5	1.6	GN 715.1-5.6	2
GN 714-10-40	10	40	M 4	10	12	12	7.5	1.5	4.5	2	GN 715.1-5.6	2
GN 714-10-50	10	50	M 4	10	12	12	4	1.5	4.5	1.6	GN 715.1-5.6	2
GN 714-10-75	10	75	M 4	10	12	12	7.5	1.5	4.5	2	GN 715.1-5.6	2
GN 714-10-100	10	100	M 4	10	12	12	4	1.5	4.5	1.6	GN 715.1-5.6	2
GN 714-10-150	10	150	M 4	10	12	12	7.5	1.5	4.5	2	GN 715.1-10	3
GN 714-16-100	16	100	M 6	16	18	18	11.5	2	7.5	3.2	GN 715.1-10	9
GN 714-16-200	16	200	M 6	16	18	18	11.5	2	7.5	3.2	GN 715.1-10	9
GN 714-16-300	16	300	M 6	16	18	18	11.5	2	7.5	3.2	GN 715.1-10	10
