GN 711
Rulers
Stainless Steel / Plastic, Self-Adhesive
GN 711-NI-W
Rulers
Figures horizontally arranged (figure sequences L, M, R)
GN 711-NI-S
Rulers
Figures vertically arranged (figure sequences U, M, O)

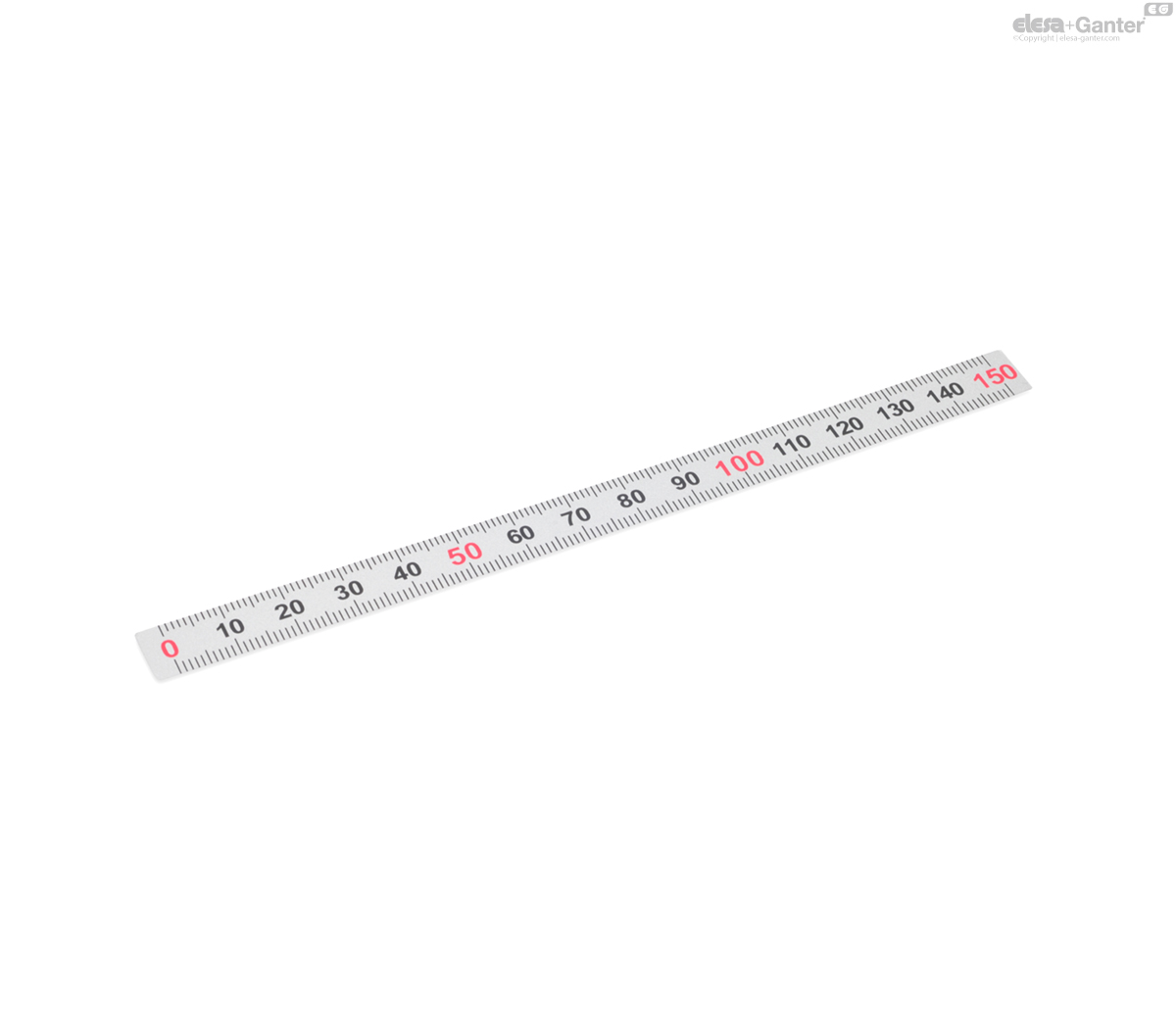

GN 711-KUS-W
Rulers
Figures horizontally arranged (figure sequences L, M, R)
GN 711-KUS-S
Rulers
Figures vertically arranged (figure sequences U, M, O)
Description
Specification
Types
- Type W: Figures horizontally arranged (figure sequences L, M, R)
- Type S: Figures vertically arranged (figure sequences U, M, O)
Stainless steel NI
- Thickness 0,6 mm
- Scale etched
Plastic KUS
- Thickness 0,3 mm
- Highlighted in silver
- Scale printed
Information
The position of linear actuator connectors can be easily read from GN 711 rulers. With GN 711.1 reference arrows, reference points can be marked on rulers or reference positions in machines.

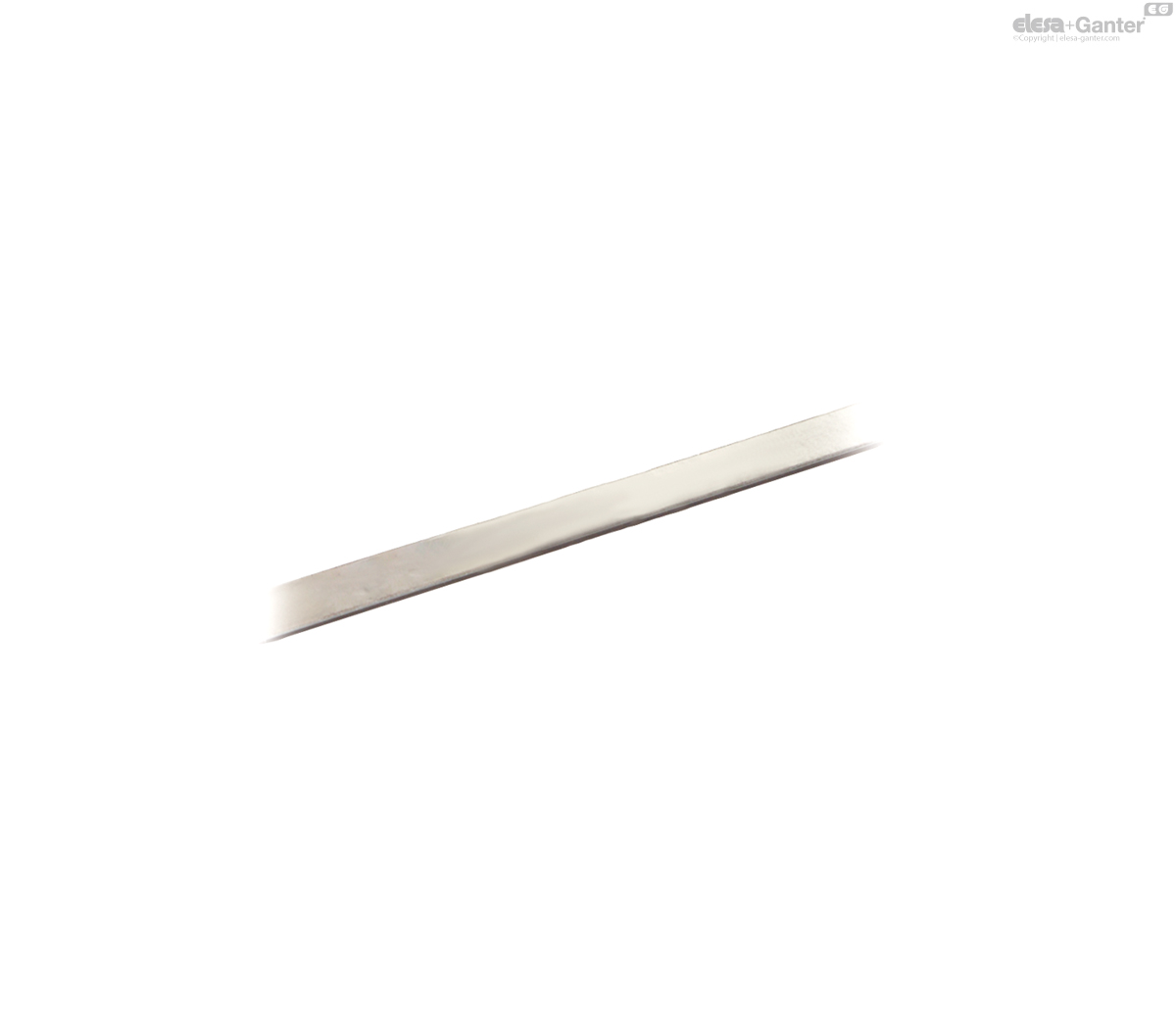

The adhesive tape on the rear allows you to affix rulers or reference arrows on all suitable and clean surfaces after the protective film is removed. The top of the stainless steel rulers is also protected by additional protective film.
Indicator arrows GN 711.1 for rulers are to be ordered separately.
GN 711-KUS-W
| Color | Length l Scale |  |
||
|---|---|---|---|---|
| Code | Actions | |||
| GN 711-KUS-50-W-L | L | 50 | 1 |
|
| GN 711-KUS-50-W-M | M | 50 | 1 |
|
| GN 711-KUS-50-W-R | R | 50 | 1 |
|
| GN 711-KUS-100-W-L | L | 100 | 2 |
|
| GN 711-KUS-100-W-M | M | 100 | 2 |
|
| GN 711-KUS-100-W-R | R | 100 | 2 |
|
| GN 711-KUS-150-W-L | L | 150 | 15 |
|
| GN 711-KUS-150-W-M | M | 150 | 15 |
|
| GN 711-KUS-150-W-R | R | 150 | 15 |
|
| GN 711-KUS-200-W-L | L | 200 | 16 |
|
| GN 711-KUS-200-W-M | M | 200 | 16 |
|
| GN 711-KUS-200-W-R | R | 200 | 16 |
|
| GN 711-KUS-300-W-L | L | 300 | 17 |
|
| GN 711-KUS-300-W-M | M | 300 | 17 |
|
| GN 711-KUS-300-W-R | R | 300 | 17 |
|
| GN 711-KUS-400-W-L | L | 400 | 18 |
|
| GN 711-KUS-400-W-M | M | 400 | 18 |
|
| GN 711-KUS-400-W-R | R | 400 | 18 |
|
| GN 711-KUS-500-W-L | L | 500 | 19 |
|
| GN 711-KUS-500-W-M | M | 500 | 19 |
|
| GN 711-KUS-500-W-R | R | 500 | 19 |
|
| GN 711-KUS-750-W-L | L | 750* | 20 |
|
| GN 711-KUS-750-W-M | M | 750* | 20 |
|
| GN 711-KUS-750-W-R | R | 750* | 20 |
|
| GN 711-KUS-1000-W-L | L | 1000* | 22 |
|
| GN 711-KUS-1000-W-M | M | 1000* | 22 |
|
| GN 711-KUS-1000-W-R | R | 1000* | 22 |
|
