GN 710
Dust caps
for angled ball joints DIN 71802
Description
Specification
Rubber
- temperature resistant up to 110 °C
- black
Information
Dust caps GN 710 prevent the entering of dirt into angled ball joints DIN 71802Â
On request
- Angled ball joints with mounted dust cap
Technical information
- Elastomer characteristicsÂ

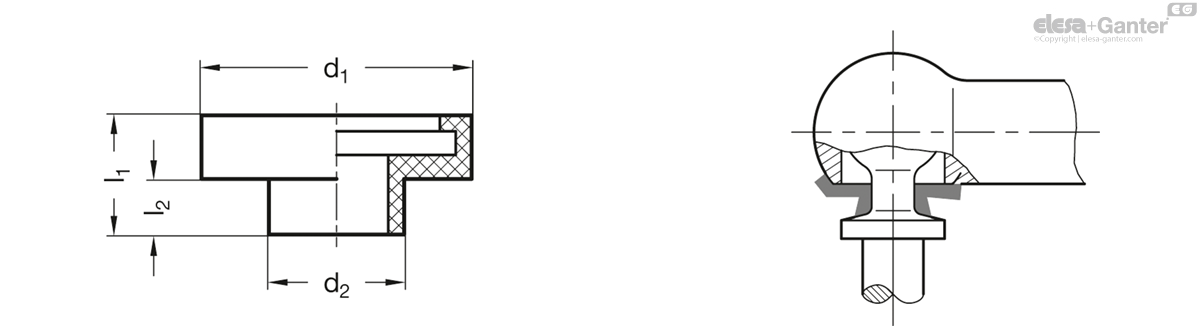

GN 710
| d1 | d2 | l1 | l2 | For angeled ball joints DIN 71802 Size (d1) |
 |
||
|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||
| GN 710-12 | 12 | 5.5 | 4.5 | 1.5 | 8 | 1 |
|
| GN 710-13,5 | 13.5 | 7 | 6.5 | 3.5 | 10 | 2 |
|
| GN 710-17,5 | 17.5 | 8.5 | 7.5 | 3.5 | 13 | 1 |
|
| GN 710-22 | 22 | 10.5 | 8.5 | 4.5 | 16 | 2 |
|
| GN 710-25,5 | 25.5 | 12.5 | 12.5 | 7 | 19 | 2 |
|
