GN 70b
Cover and Edging Profiles
Plastic, for Aluminum Profiles (b-Modular System)
Description
Specification
Plastic (Polypropylen PP)
Black KS
Information

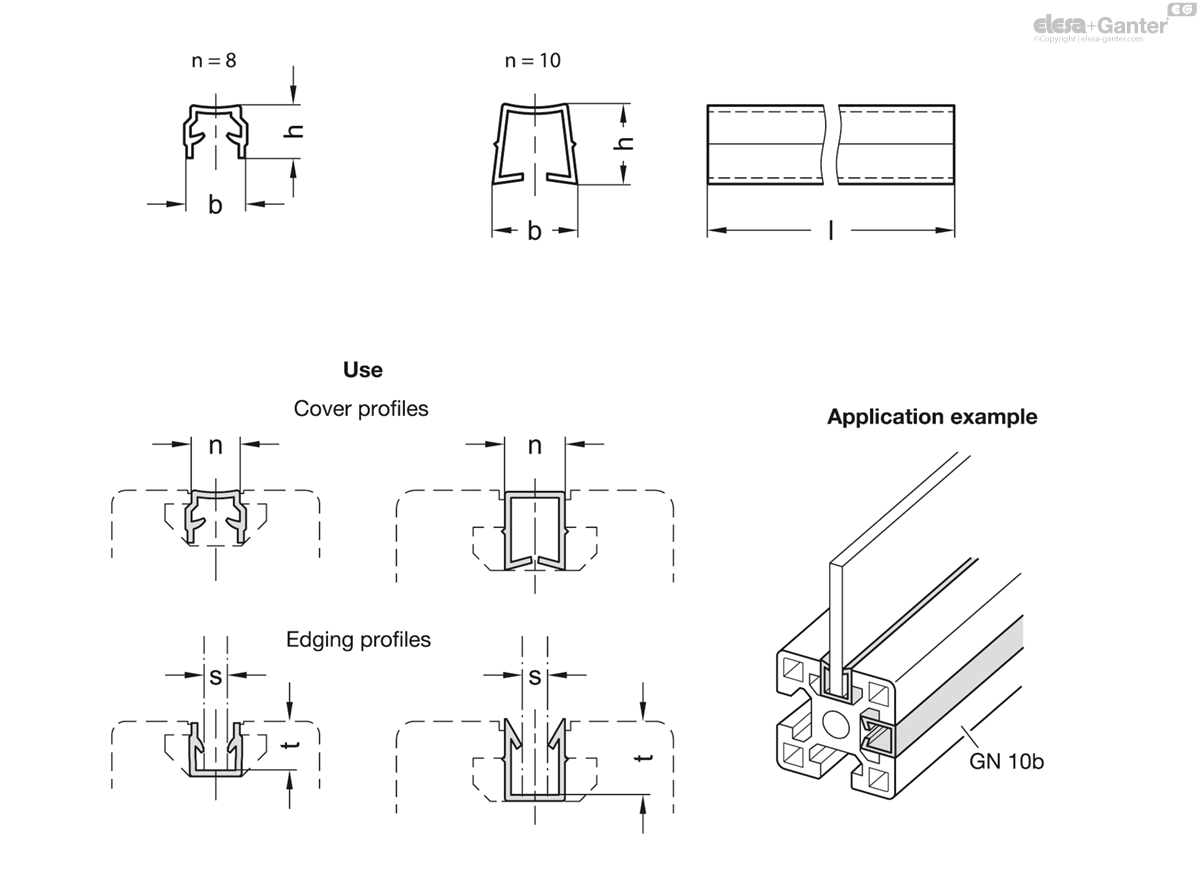

Cover and edging profiles GN 70b are inserted into the slot of aluminum profiles.
When used as a cover profile, they are installed with the closed side facing out. This way, they protect the slot from dust and dirt, cover the cables and hoses in the slot and make for visually appealing appearance.
When used as an edging profile, they are installed with the open side facing out. This allows for panel elements such as panes of glass or PMMA to be fixed directly into the groove.
Cover and edging profiles are supplied in bundles. The table shows the quantity included in each bundle.
Technical information
- Plastic CharacteristicsÂ
GN 70b
| Color | n | Length l in m | Bundle Pieces |
b ≈ | h ≈ | s Clamping range |
t |  |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| GN 70b-8-KS-2-4 | 8 | 8 | 2 | 4 | 10 | 8.5 | 4 - 6 | 8 | 34 |
|
| GN 70b-10-KS-2-4 | 10 | 10 | 2 | 4 | 14 | 13 | 4 - 6 | 11.5* | 60 |
|
