GN 708.1

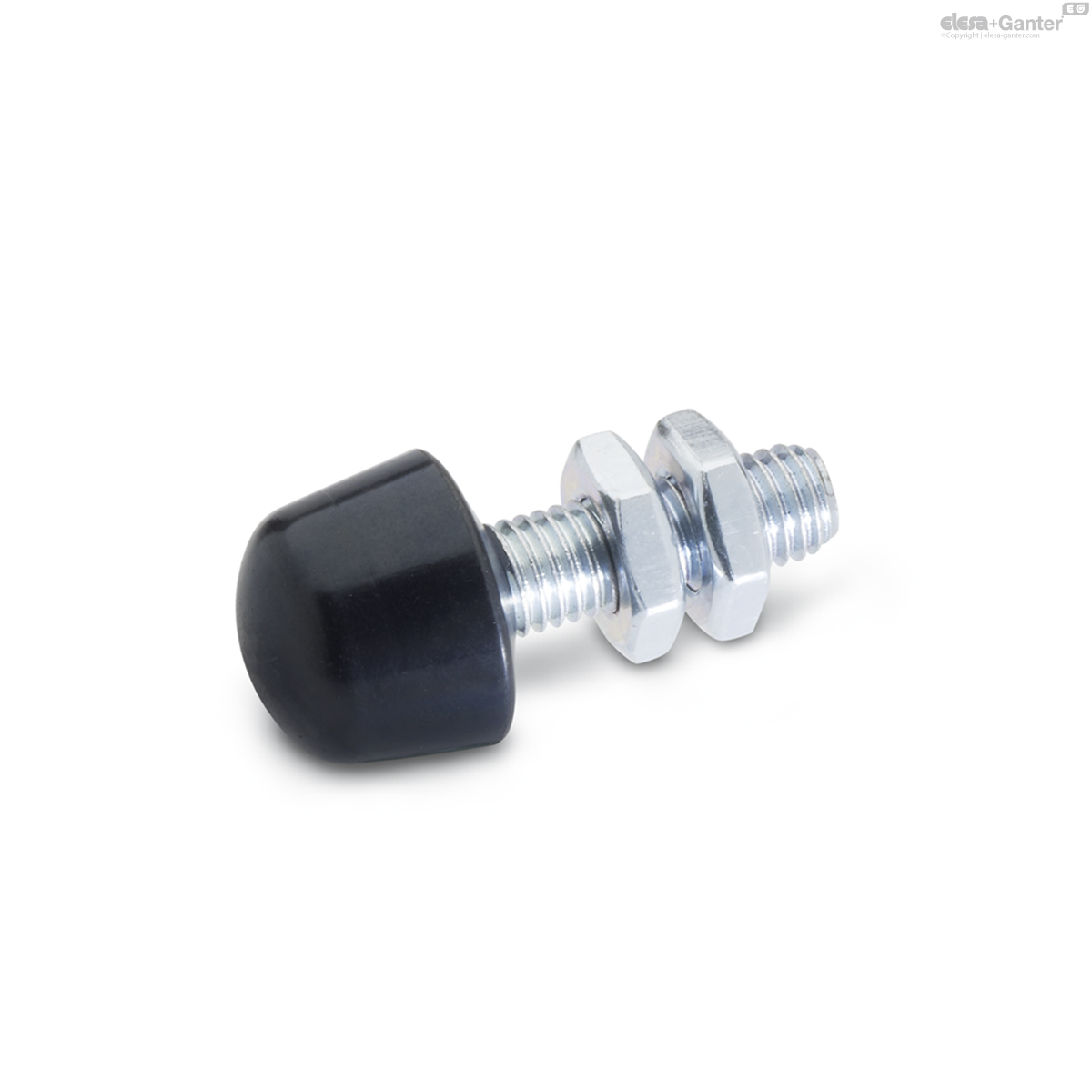

Clamping Screws
Steel / Stainless Steel, with Rubber Thrust Pad
Description
Specification
Types

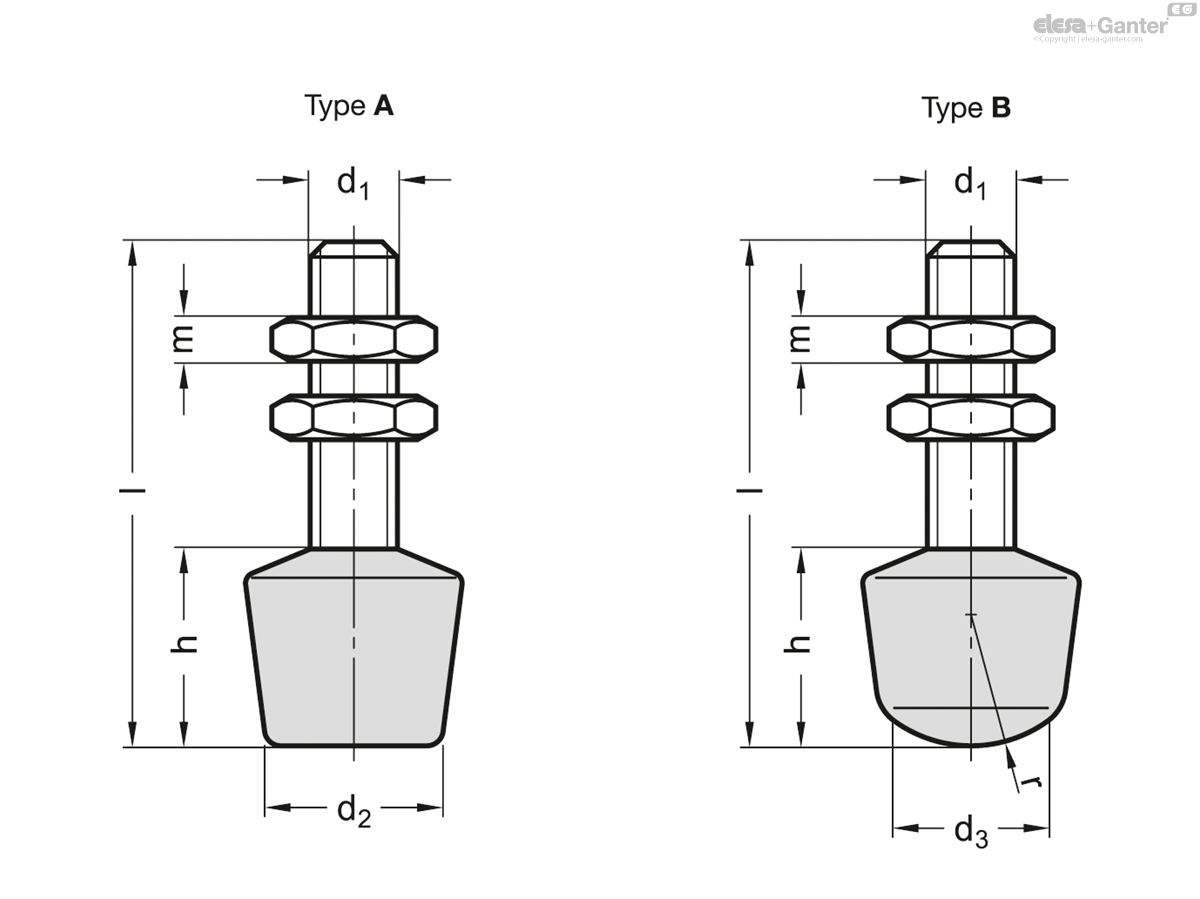

- Type A: Flat pressure area

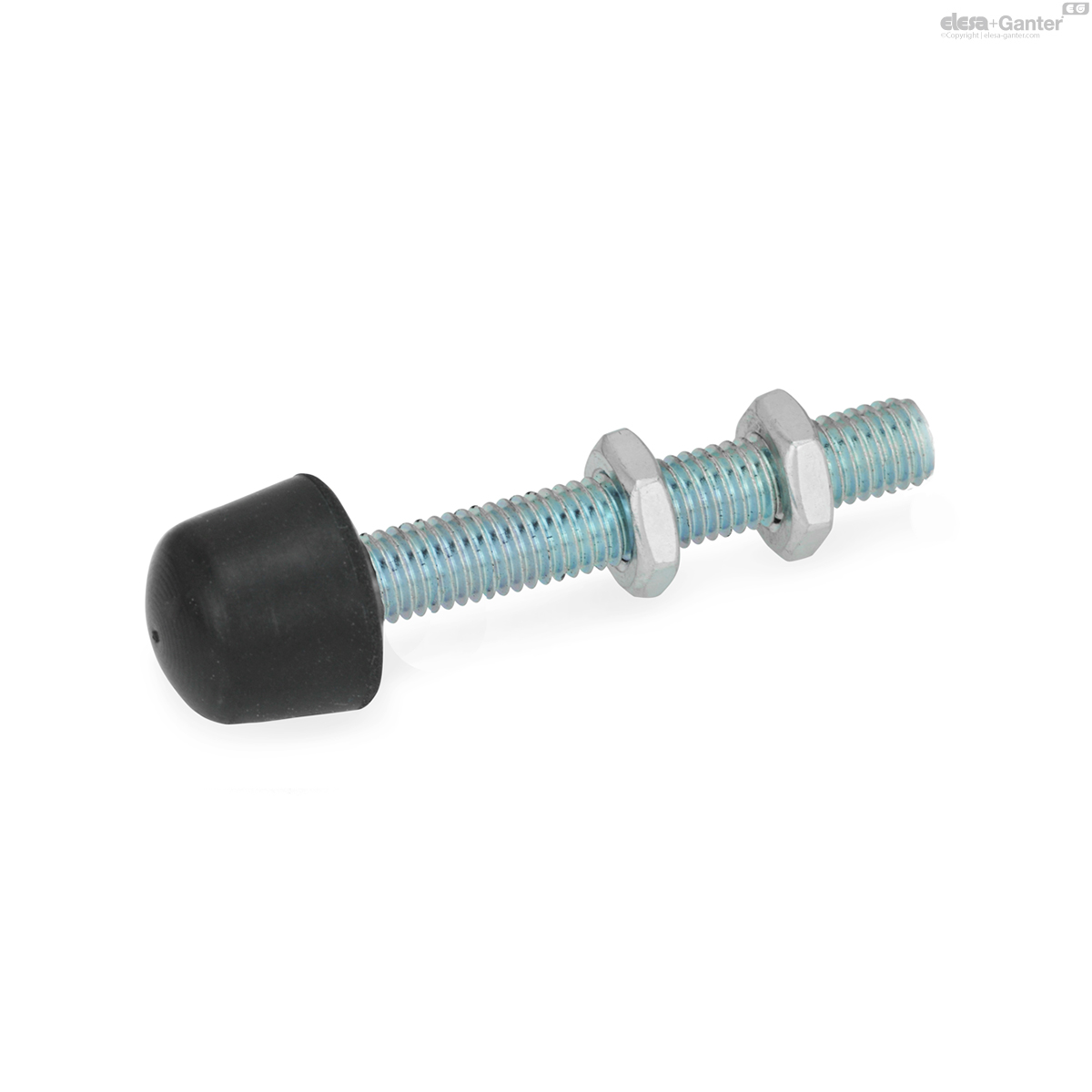

- Type B: Rounded pressure area
Screw
- Steel ST
Zinc plated, blue passivated

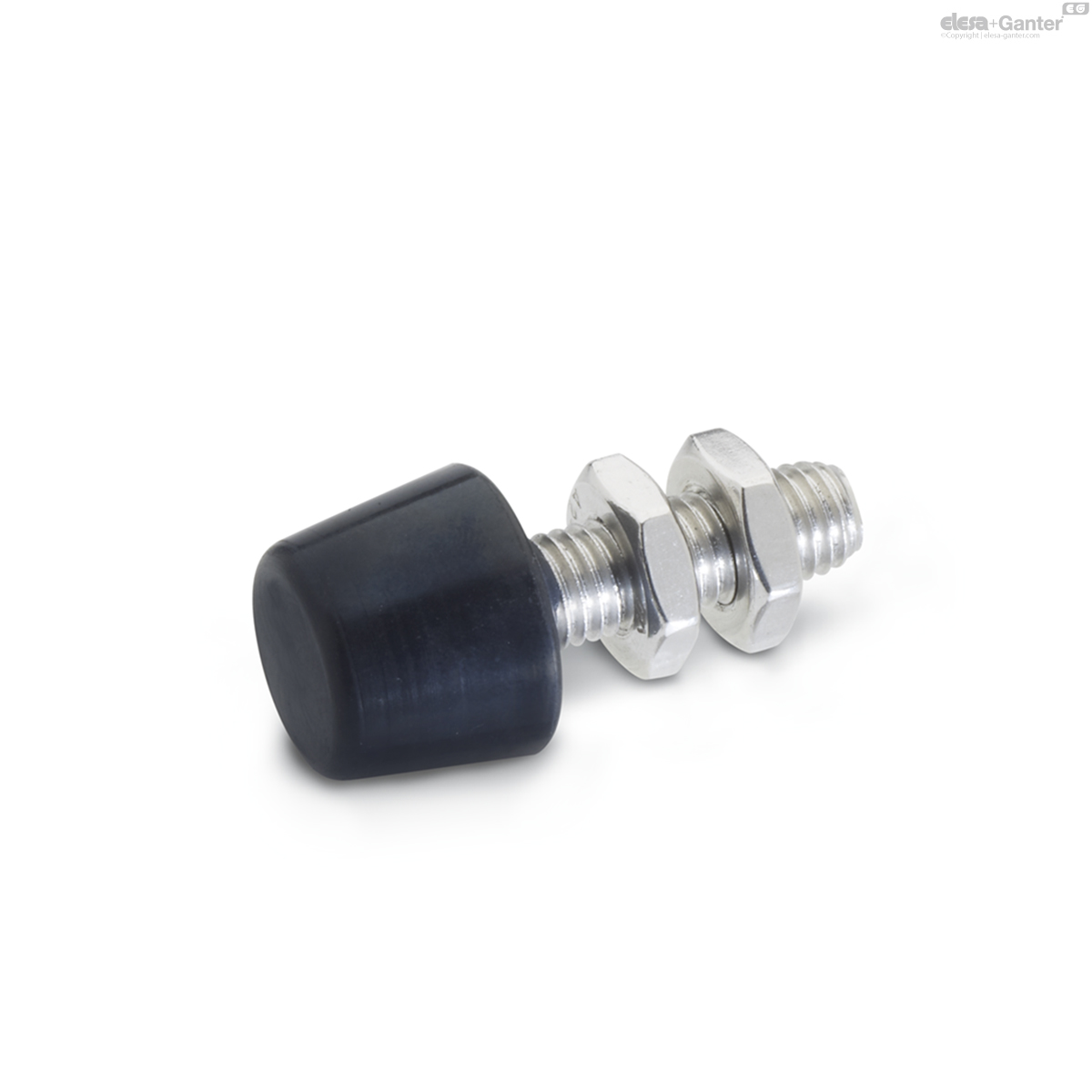

- Stainless steel AISI 304 NI
Hex nuts ISO 4035
- Steel zinc plated, blue passivated
- Stainless steel AISI 304
Thrust pad
Rubber, Neoprene (CR)
- 85 Shore A ≈
- Vulcanized
- Black
Information
The two hex nuts are included parts of the order.
Technical information
- Elastomer characteristicsÂ
- Stainless Steel characteristicsÂ
GN 708.1-ST
| Color | d1 | l | d2 | d3 | h | m | r |  |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| GN 708.1-M4-23-A-ST | A | M 4 | 23 | 8 | 9.8 | 5 | 2.2 | 6 | 4 |
|
| GN 708.1-M4-23-B-ST | Type B | M 4 | 23 | 8 | 9.8 | 5 | 2.2 | 6 | 4 |
|
| GN 708.1-M4-30-A-ST | A | M 4 | 30 | 8 | 9.8 | 5 | 2.2 | 6 | 5 |
|
| GN 708.1-M4-30-B-ST | Type B | M 4 | 30 | 8 | 9.8 | 5 | 2.2 | 6 | 5 |
|
| GN 708.1-M4-33-A-ST | A | M 4 | 33 | 8 | 8 | 10 | 2.2 | 6 | 6 |
|
| GN 708.1-M4-33-B-ST | Type B | M 4 | 33 | 8 | 8 | 10 | 2.2 | 6 | 6 |
|
| GN 708.1-M4-43-A-ST | A | M 4 | 43 | 8 | 8 | 10 | 2.2 | 6 | 7 |
|
| GN 708.1-M4-43-B-ST | Type B | M 4 | 43 | 8 | 8 | 10 | 2.2 | 6 | 7 |
|
| GN 708.1-M5-45-A-ST | A | M 5 | 45 | 10 | 9 | 11 | 2.7 | 8 | 9 |
|
| GN 708.1-M5-45-B-ST | Type B | M 5 | 45 | 10 | 9 | 11 | 2.7 | 8 | 9 |
|
| GN 708.1-M5-55-A-ST | A | M 5 | 55 | 10 | 9 | 11 | 2.7 | 8 | 11 |
|
| GN 708.1-M5-55-B-ST | Type B | M 5 | 55 | 10 | 9 | 11 | 2.7 | 8 | 11 |
|
| GN 708.1-M6-35-A-ST | A | M 6 | 35 | 13 | 12 | 12 | 3.2 | 10 | 12 |
|
| GN 708.1-M6-35-B-ST | Type B | M 6 | 35 | 13 | 12 | 12 | 3.2 | 10 | 12 |
|
| GN 708.1-M6-55-A-ST | A | M 6 | 55 | 13 | 12 | 12 | 3.2 | 10 | 15 |
|
| GN 708.1-M6-55-B-ST | Type B | M 6 | 55 | 13 | 12 | 12 | 3.2 | 10 | 15 |
|
| GN 708.1-M6-65-A-ST | A | M 6 | 65 | 13 | 12 | 12 | 3.2 | 10 | 18 |
|
| GN 708.1-M6-65-B-ST | Type B | M 6 | 65 | 13 | 12 | 12 | 3.2 | 10 | 18 |
|
| GN 708.1-M8-43-A-ST | A | M 8 | 43 | 16 | 14 | 18 | 4 | 12 | 26 |
|
| GN 708.1-M8-43-B-ST | Type B | M 8 | 43 | 16 | 14 | 18 | 4 | 12 | 28 |
|
| GN 708.1-M8-68-A-ST | A | M 8 | 68 | 16 | 14 | 18 | 4 | 12 | 9 |
|
| GN 708.1-M8-68-B-ST | Type B | M 8 | 68 | 16 | 14 | 18 | 4 | 12 | 34 |
|
| GN 708.1-M10-50-A-ST | A | M 10 | 50 | 20 | 18 | 21 | 5 | 15 | 51 |
|
| GN 708.1-M10-50-B-ST | Type B | M 10 | 50 | 20 | 18 | 21 | 5 | 15 | 52 |
|
| GN 708.1-M10-77-A-ST | A | M 10 | 77 | 20 | 18 | 21 | 5 | 15 | 61 |
|
| GN 708.1-M10-77-B-ST | Type B | M 10 | 77 | 20 | 18 | 21 | 5 | 15 | 64 |
|
| GN 708.1-M10-97-A-ST | A | M 10 | 97 | 20 | 18 | 21 | 5 | 15 | 74 |
|
| GN 708.1-M10-97-B-ST | Type B | M 10 | 97 | 20 | 18 | 21 | 5 | 15 | 73 |
|
| GN 708.1-M12-100-A-ST | A | M 12 | 100 | 25 | 23 | 24 | 6 | 18 | 107 |
|
| GN 708.1-M12-100-B-ST | Type B | M 12 | 100 | 25 | 23 | 24 | 6 | 18 | 107 |
|
| GN 708.1-M12-130-A-ST | A | M 12 | 130 | 25 | 23 | 24 | 6 | 18 | 132 |
|
| GN 708.1-M12-130-B-ST | Type B | M 12 | 130 | 25 | 23 | 24 | 6 | 18 | 131 |
|
