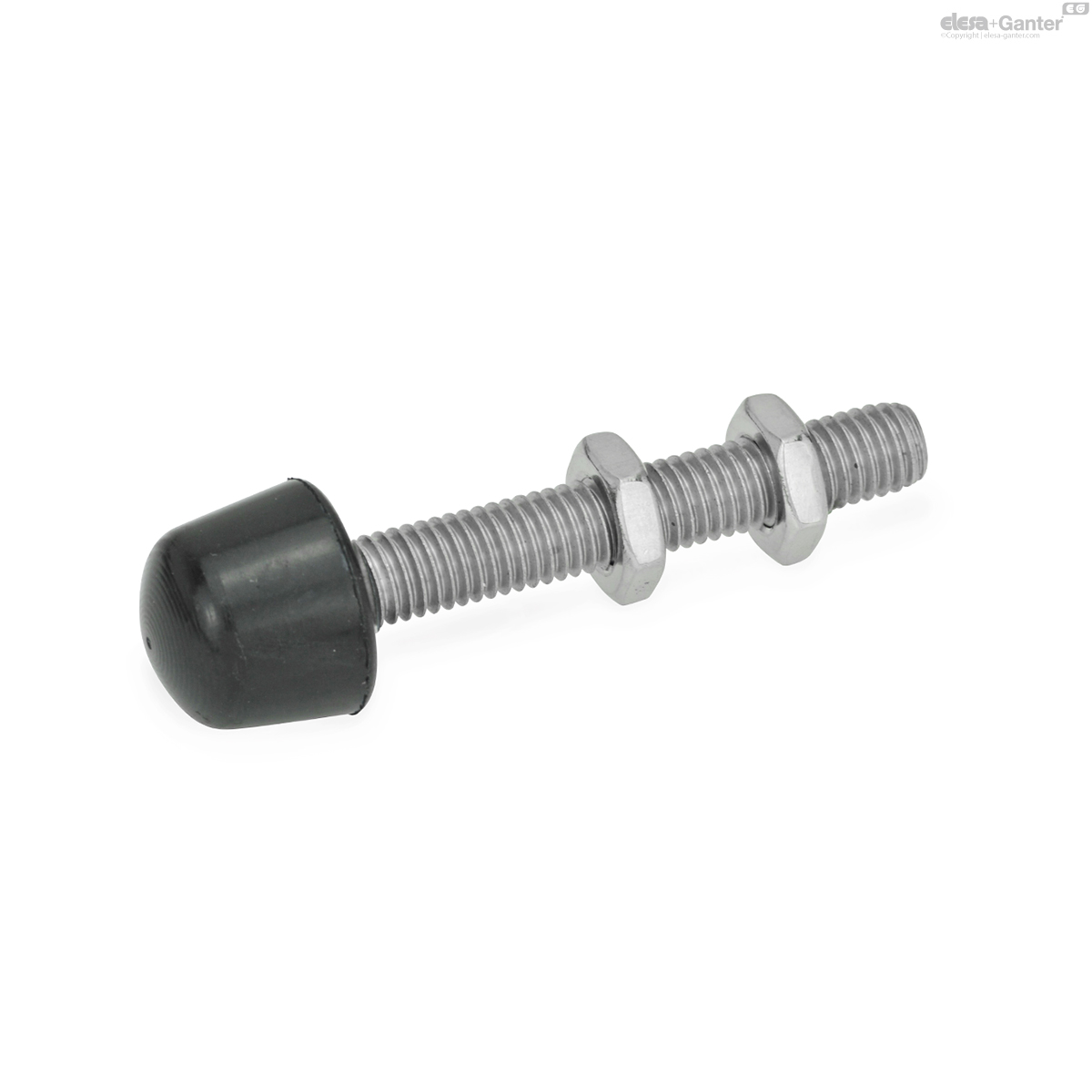

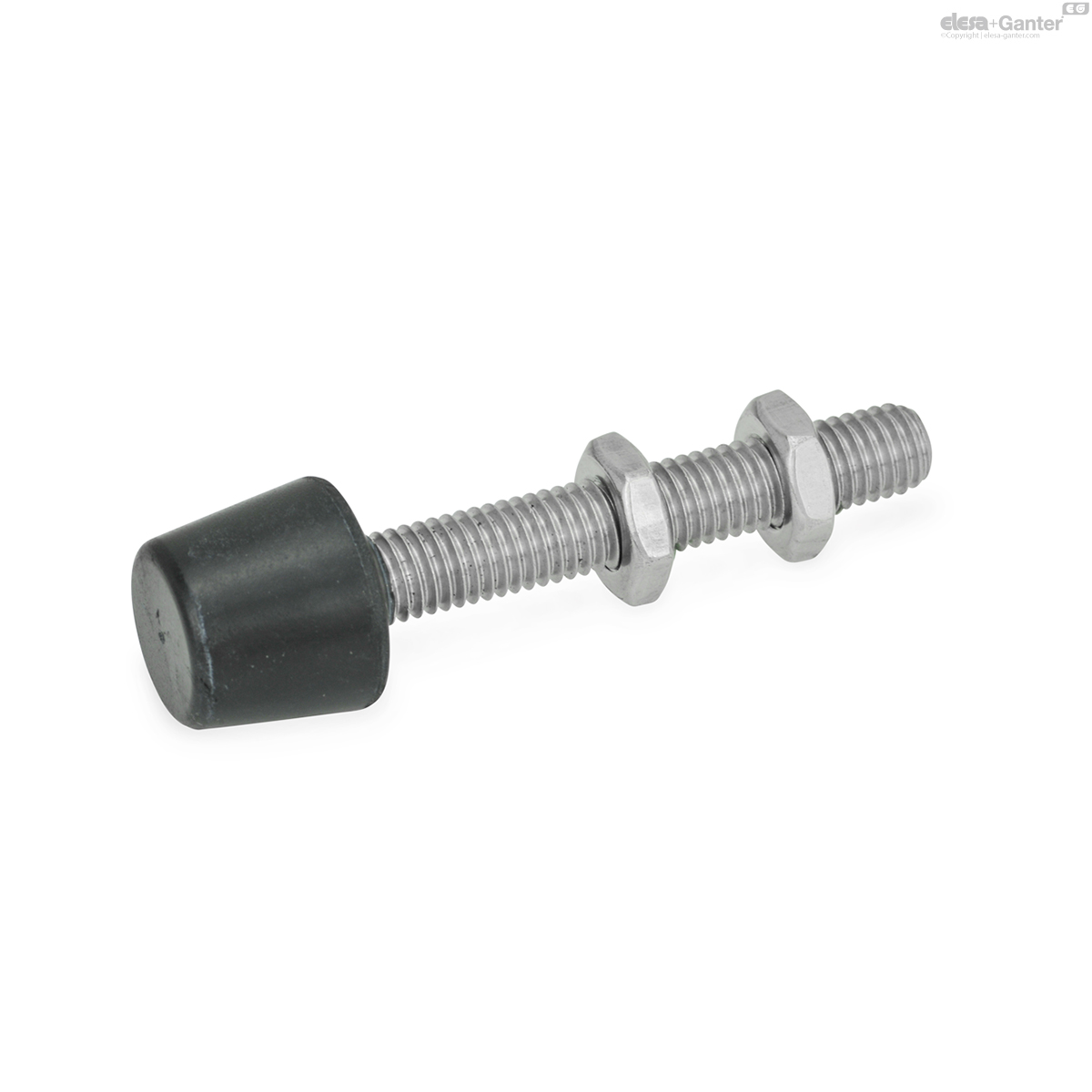

GN 708.1

Clamping Screws

Steel / Stainless Steel, with Rubber Thrust Pad

Enquire Now

Description

Specification

Screw

Zinc plated, blue passivated

Hex nuts ISO 4035

Thrust pad

Rubber, Neoprene (CR)

Information

The two hex nuts are included parts of the order.

Technical information

	Color	d₁	l	d₂	d₃	h	m	r
Code										Actions
GN 708.1-M4-23-A-NI	A	M 4	23	8	9.8	5	2.2	6	4
GN 708.1-M4-23-B-NI	Type B	M 4	23	8	9.8	5	2.2	6	4
GN 708.1-M4-30-A-NI	A	M 4	30	8	9.8	5	2.2	6	5
GN 708.1-M4-30-B-NI	Type B	M 4	30	8	9.8	5	2.2	6	5
GN 708.1-M4-33-A-NI	A	M 4	33	8	8	10	2.2	6	6
GN 708.1-M4-33-B-NI	Type B	M 4	33	8	8	10	2.2	6	6
GN 708.1-M4-43-A-NI	A	M 4	43	8	8	10	2.2	6	7
GN 708.1-M4-43-B-NI	Type B	M 4	43	8	8	10	2.2	6	8
GN 708.1-M5-45-A-NI	A	M 5	45	10	9	11	2.7	8	10
GN 708.1-M5-45-B-NI	Type B	M 5	45	10	9	11	2.7	8	10
GN 708.1-M5-55-A-NI	A	M 5	55	10	9	11	2.7	8	11
GN 708.1-M5-55-B-NI	Type B	M 5	55	10	9	11	2.7	8	11
GN 708.1-M6-35-A-NI	A	M 6	35	13	12	12	3.2	10	14
GN 708.1-M6-35-B-NI	Type B	M 6	35	13	12	12	3.2	10	13
GN 708.1-M6-55-A-NI	A	M 6	55	13	12	12	3.2	10	15
GN 708.1-M6-55-B-NI	Type B	M 6	55	13	12	12	3.2	10	16
GN 708.1-M6-65-A-NI	A	M 6	65	13	12	12	3.2	10	19
GN 708.1-M6-65-B-NI	Type B	M 6	65	13	12	12	3.2	10	18
GN 708.1-M8-43-A-NI	A	M 8	43	16	14	18	4	12	28
GN 708.1-M8-43-B-NI	Type B	M 8	43	16	14	18	4	12	27
GN 708.1-M8-68-A-NI	A	M 8	68	16	14	18	4	12	33
GN 708.1-M8-68-B-NI	Type B	M 8	68	16	14	18	4	12	34
GN 708.1-M10-50-A-NI	A	M 10	50	20	18	21	5	15	53
GN 708.1-M10-50-B-NI	Type B	M 10	50	20	18	21	5	15	52
GN 708.1-M10-77-A-NI	A	M 10	77	20	18	21	5	15	65
GN 708.1-M10-77-B-NI	Type B	M 10	77	20	18	21	5	15	64
GN 708.1-M10-97-A-NI	A	M 10	97	20	18	21	5	15	74
GN 708.1-M10-97-B-NI	Type B	M 10	97	20	18	21	5	15	73
GN 708.1-M12-100-A-NI	A	M 12	100	25	23	24	6	18	109
GN 708.1-M12-100-B-NI	Type B	M 12	100	25	23	24	6	18	109
GN 708.1-M12-130-A-NI	A	M 12	130	25	23	24	6	18	134
GN 708.1-M12-130-B-NI	Type B	M 12	130	25	23	24	6	18	132
