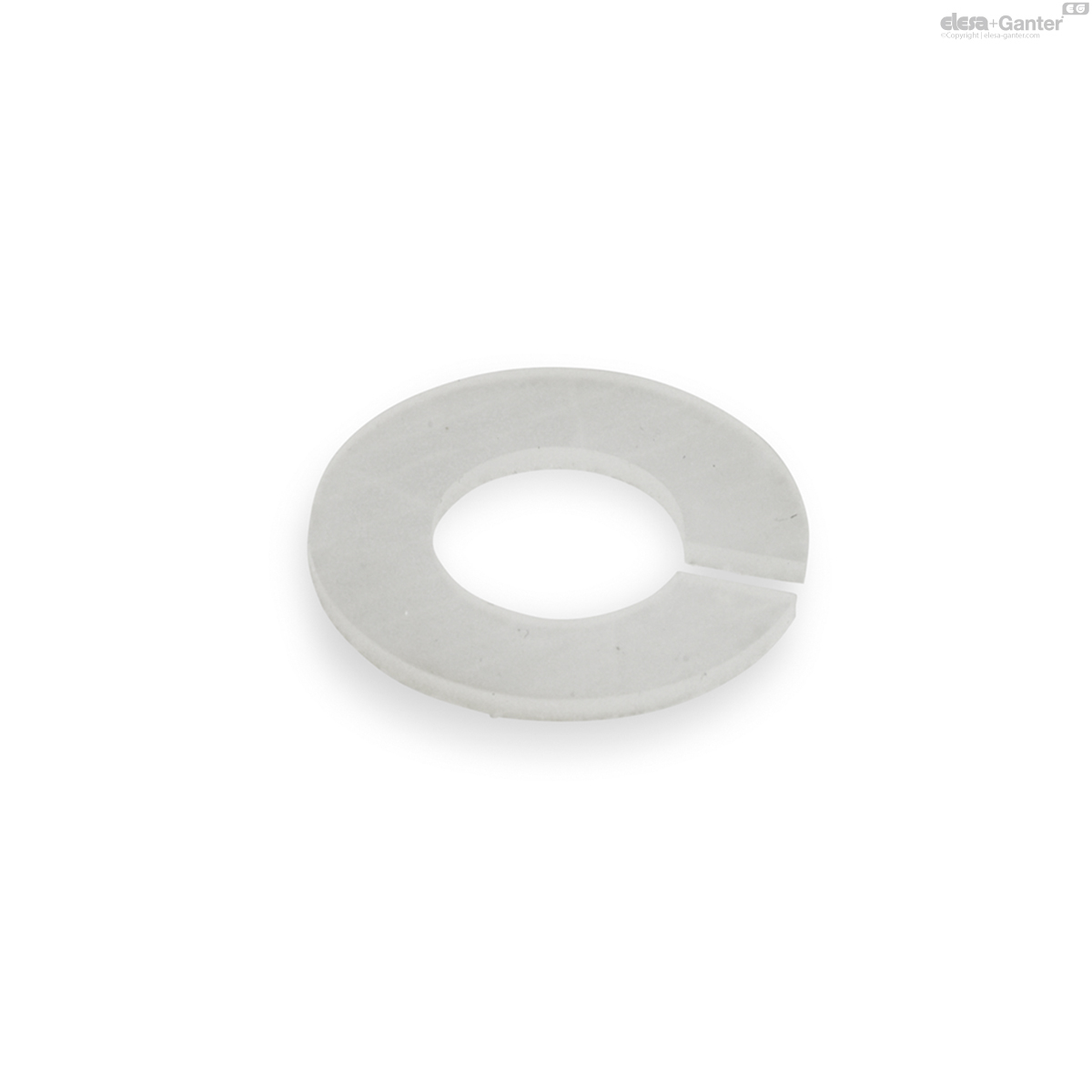

GN 7062.30
Damping Washers
Elastomer, for Semi-Split Shaft Collars
Description
Specification
Elastomer (PUR)
- 70 Shore A
- Temperature resistant up to 80 °C
- Transparent
Adhesive film
- Acrylate dispersion, solvent-free
- Strong adhesion
Information
Damping washers GN 7062.30 are designed as accessories for split and semi-split shaft collars and are attached with the help of an adhesive film, preferably on the groove-less side of the shaft collar. They absorb mild shocks and have a sound-dampening effect when the shaft collars come into contact with other components.
Generally, after the protective film is removed, the damping washers can be attached to any suitable and clean surface.
Semi-split shaft collars GN 7062.3 are generally offered with assembled damping washers.
Technical information
- Plastic Characteristics
GN 7062.30

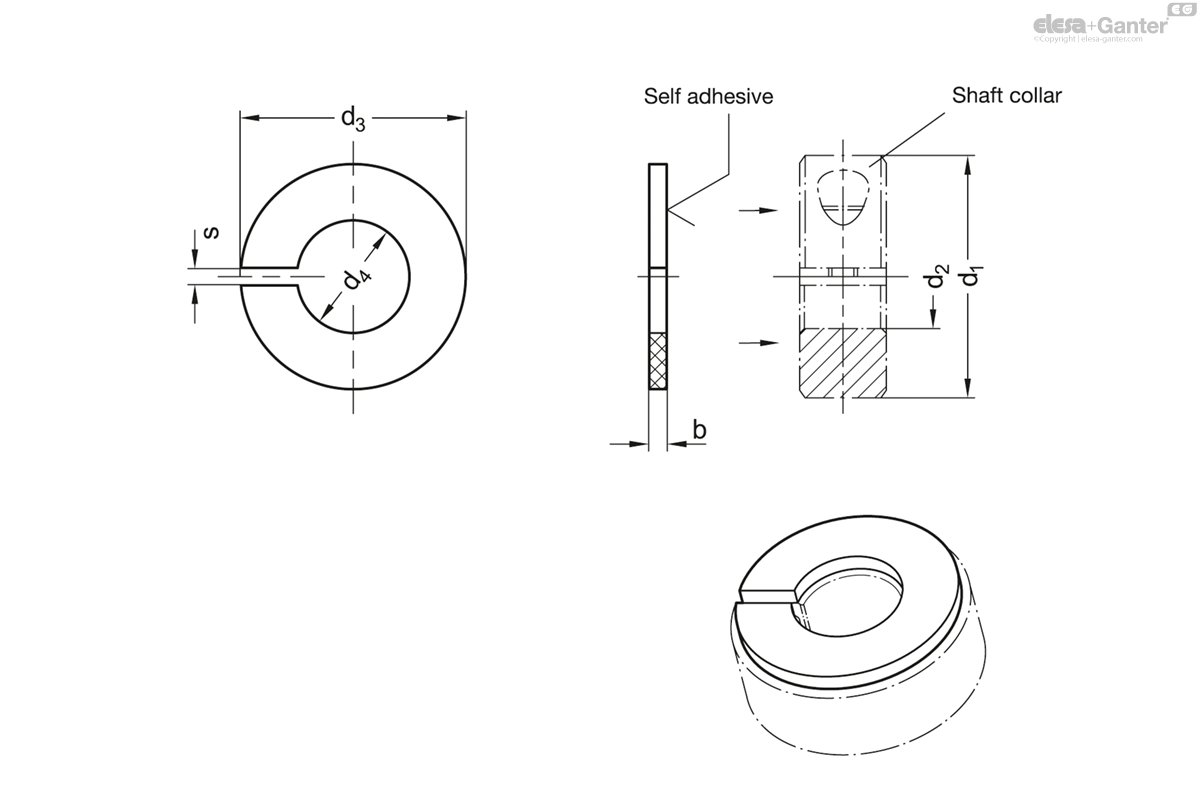

| d1 | d2 | d3 | d4 | b ±0.2 | s |  |
||
|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||
| GN 7062.30-30-B12 | 30 | B 12 | 28 | 13 | 2 | 2.1 | 2 |
|
| GN 7062.30-32-B14 | 32 | B 14 | 30 | 15 | 2 | 2.1 | 2 |
|
| GN 7062.30-36-B15 | 36 | B 15 | 34 | 16 | 2 | 2.1 | 2 |
|
| GN 7062.30-36-B16 | 36 | B 16 | 34 | 17 | 2 | 2.1 | 2 |
|
| GN 7062.30-42-B18 | 42 | B 18 | 39 | 19.5 | 3 | 3 | 4 |
|
| GN 7062.30-42-B20 | 42 | B 20 | 39 | 21.5 | 3 | 3 | 4 |
|
| GN 7062.30-48-B22 | 48 | B 22 | 45 | 23.5 | 3 | 3 | 5 |
|
| GN 7062.30-48-B25 | 48 | B 25 | 45 | 26.5 | 3 | 3 | 5 |
|
| GN 7062.30-55-B28 | 55 | B 28 | 52 | 29.5 | 3 | 3 | 7 |
|
| GN 7062.30-55-B30 | 55 | B 30 | 52 | 31.5 | 3 | 3 | 5 |
|
| GN 7062.30-60-B32 | 60 | B 32 | 57 | 33.5 | 3 | 4 | 7 |
|
| GN 7062.30-60-B35 | 60 | B 35 | 57 | 36.5 | 3 | 4 | 6 |
|
| GN 7062.30-65-B40 | 65 | B 40 | 62 | 41.5 | 3 | 4 | 7 |
|
