GN 7062.2
Semi-Split Shaft Collars
Stainless Steel, with Flange Holes
Description
Specification
Types

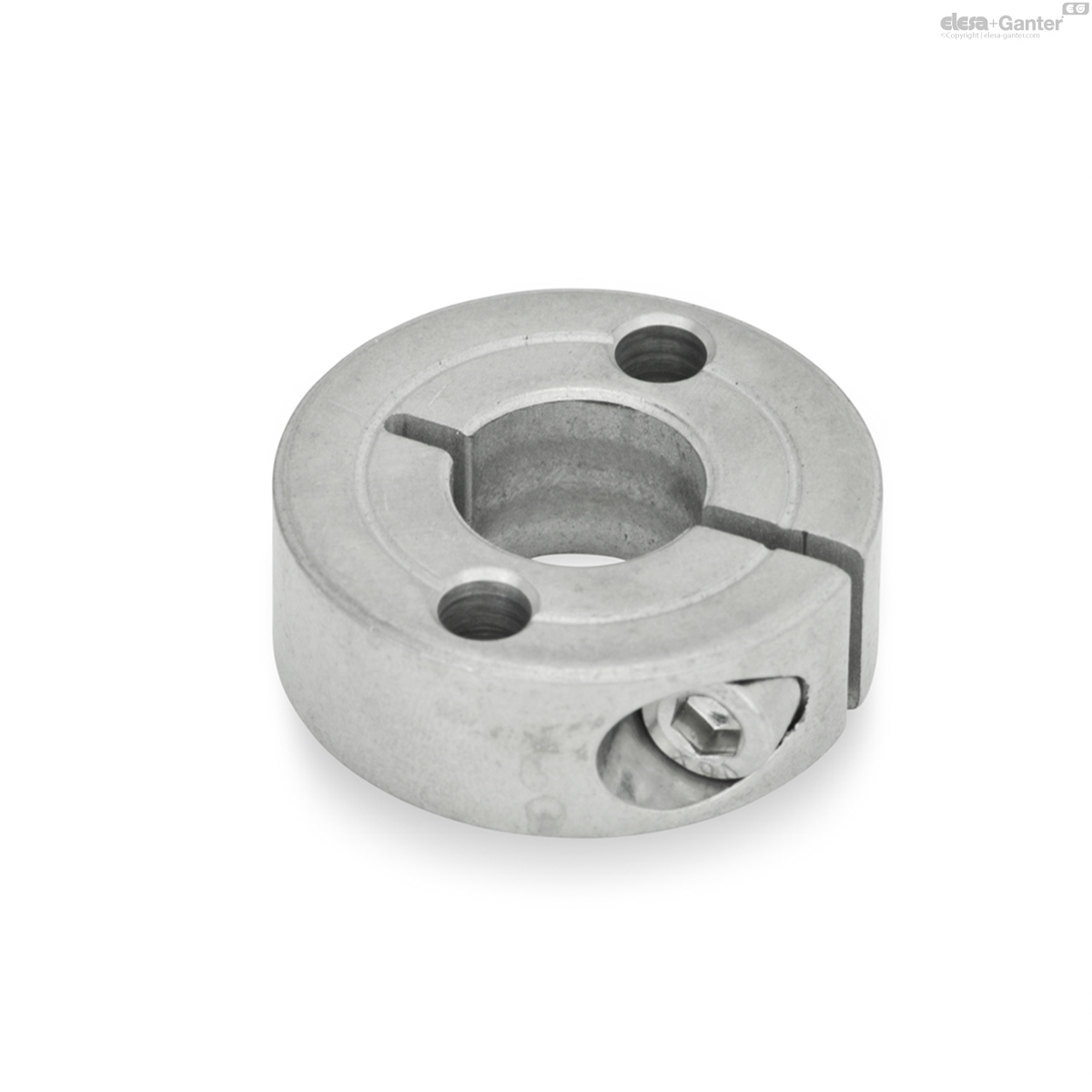

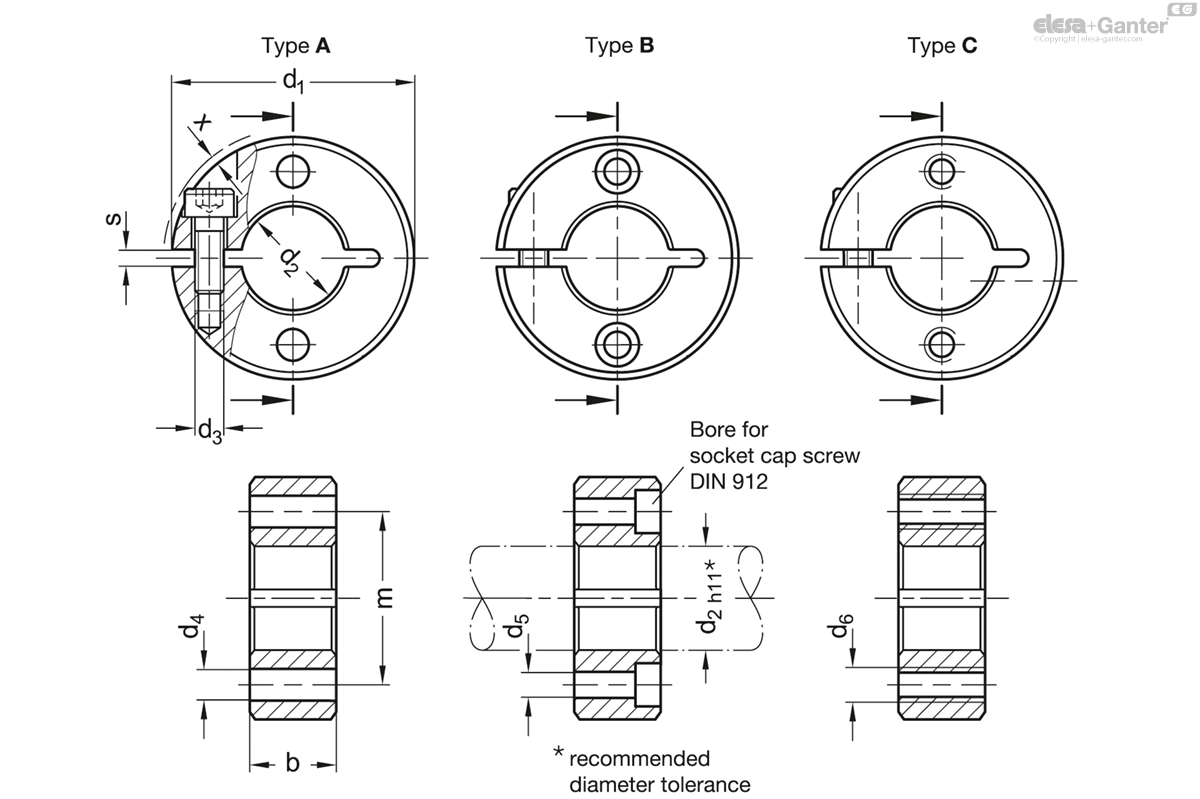

- Type A: With two through holes
- Type B: With two countersunk holes for socket cap screws

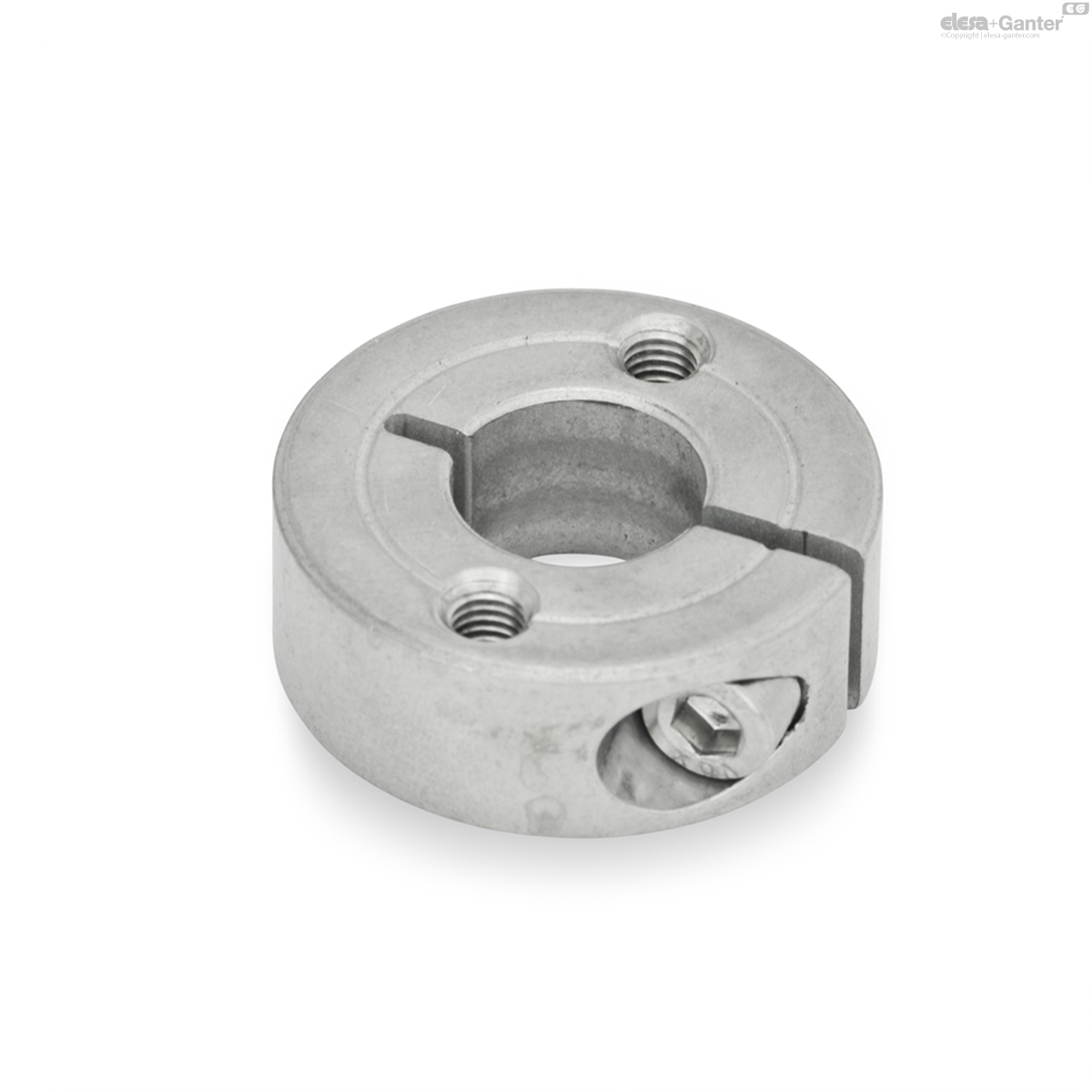

- Type C: With two tapped holes
Stainless steel AISI 316LHC NI
Sintered
Socket cap screw DIN 912
Stainless steel AISI 304
Information
With semi-split shaft collars GN 7062.2, e.g., axles are attached to housing, or wheels and washers are installed on shafts.
They can be assembled safely and easily with a high clamping force by reducing the slot height, without damaging the surface of shafts and axles.
The thread d3 for sizes d1 = 30 to 36 is designed as a through hole; for sizes d1 = 42 and larger, it is designed as blind hole.
- List of Shaft Collar TypesÂ
Accessory
- Adjustable Hand Levers GN 311Â
- Damping Washers GN 7062.30Â
Technical information
- ISO-Fundamental TolerancesÂ
- Stainless Steel CharacteristicsÂ
GN 7062.2
| Color | d1 | d2 H10 Bore series |
b ±0.2 | d3 | d4 | d5 | d6 | m Bore series |
s | x ≈ Max. protrusion of cap screw |
Adjustable hand lever for d3 |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| GN 7062.2-30-B12-NI-A | A | 30 | B 12 | 11 | M 4 | 4.5 | - | - | 21 | 2.1 | 0.7 | GN 311-30-M4-12-SW | 38 |
|
| GN 7062.2-30-B12-NI-B | B | 30 | B 12 | 11 | M 4 | - | 3.5 | - | 21 | 2.1 | 0.7 | GN 311-30-M4-12-SW | 38 |
|
| GN 7062.2-30-B12-NI-C | C | 30 | B 12 | 11 | M 4 | - | - | M 4 | 21 | 2.1 | 0.7 | GN 311-30-M4-12-SW | 38 |
|
| GN 7062.2-32-B14-NI-A | A | 32 | B 14 | 11 | M 4 | 4.5 | - | - | 23 | 2.1 | 0.7 | GN 311-30-M4-12-SW | 41 |
|
| GN 7062.2-32-B14-NI-B | B | 32 | B 14 | 11 | M 4 | - | 3.5 | - | 23 | 2.1 | 0.7 | GN 311-30-M4-12-SW | 45 |
|
| GN 7062.2-32-B14-NI-C | C | 32 | B 14 | 11 | M 4 | - | - | M 4 | 23 | 2.1 | 0.7 | GN 311-30-M4-12-SW | 45 |
|
| GN 7062.2-36-B15-NI-A | A | 36 | B 15 | 13 | M 5 | 5.5 | - | - | 25.5 | 2.1 | 1.4 | GN 311-30-M5-13-SW | 63 |
|
| GN 7062.2-36-B15-NI-B | B | 36 | B 15 | 13 | M 5 | - | 4.5 | - | 25.5 | 2.1 | 1.4 | GN 311-30-M5-13-SW | 61 |
|
| GN 7062.2-36-B15-NI-C | C | 36 | B 15 | 13 | M 5 | - | - | M 5 | 25.5 | 2.1 | 1.4 | GN 311-30-M5-13-SW | 70 |
|
| GN 7062.2-36-B16-NI-A | A | 36 | B 16 | 13 | M 5 | 5.5 | - | - | 26 | 2.1 | 1.4 | GN 311-30-M5-13-SW | 61 |
|
| GN 7062.2-36-B16-NI-B | B | 36 | B 16 | 13 | M 5 | - | 4.5 | - | 26 | 2.1 | 1.4 | GN 311-30-M5-13-SW | 61 |
|
| GN 7062.2-36-B16-NI-C | C | 36 | B 16 | 13 | M 5 | - | - | M 5 | 26 | 2.1 | 1.4 | GN 311-30-M5-13-SW | 68 |
|
| GN 7062.2-42-B18-NI-A | A | 42 | B 18 | 15 | M 5 | 5.5 | - | - | 30 | 3 | 0.6 | GN 311-30-M5-15-SW | 97 |
|
| GN 7062.2-42-B18-NI-B | B | 42 | B 18 | 15 | M 5 | - | 4.5 | - | 30 | 3 | 0.6 | GN 311-30-M5-15-SW | 97 |
|
| GN 7062.2-42-B18-NI-C | C | 42 | B 18 | 15 | M 5 | - | - | M 5 | 30 | 3 | 0.6 | GN 311-30-M5-15-SW | 99 |
|
| GN 7062.2-42-B20-NI-A | A | 42 | B 20 | 15 | M 5 | 5.5 | - | - | 31 | 3 | 0.6 | GN 311-30-M5-15-SW | 100 |
|
| GN 7062.2-42-B20-NI-B | B | 42 | B 20 | 15 | M 5 | - | 4.5 | - | 31 | 3 | 0.6 | GN 311-30-M5-15-SW | 90 |
|
| GN 7062.2-42-B20-NI-C | C | 42 | B 20 | 15 | M 5 | - | - | M 5 | 31 | 3 | 0.6 | GN 311-30-M5-15-SW | 93 |
|
| GN 7062.2-48-B22-NI-A | A | 48 | B 22 | 15 | M 5 | 6.5 | - | - | 35 | 3 | 0 | GN 311-45-M5-16-SW | 124 |
|
| GN 7062.2-48-B22-NI-B | B | 48 | B 22 | 15 | M 5 | - | 5.5 | - | 35 | 3 | 0 | GN 311-45-M5-16-SW | 123 |
|
| GN 7062.2-48-B22-NI-C | C | 48 | B 22 | 15 | M 5 | - | - | M 6 | 35 | 3 | 0 | GN 311-45-M5-16-SW | 125 |
|
| GN 7062.2-48-B25-NI-A | A | 48 | B 25 | 15 | M 5 | 6.5 | - | - | 36.5 | 3 | 0 | GN 311-45-M5-16-SW | 113 |
|
| GN 7062.2-48-B25-NI-B | B | 48 | B 25 | 15 | M 5 | - | 5.5 | - | 36.5 | 3 | 0 | GN 311-45-M5-16-SW | 112 |
|
| GN 7062.2-48-B25-NI-C | C | 48 | B 25 | 15 | M 5 | - | - | M 6 | 36.5 | 3 | 0 | GN 311-45-M5-16-SW | 114 |
|
| GN 7062.2-55-B28-NI-A | A | 55 | B 28 | 15 | M 6 | 6.5 | - | - | 41.5 | 3 | 0.5 | GN 311-45-M6-18-SW | 156 |
|
| GN 7062.2-55-B28-NI-B | B | 55 | B 28 | 15 | M 6 | - | 5.5 | - | 41.5 | 3 | 0.5 | GN 311-45-M6-18-SW | 155 |
|
| GN 7062.2-55-B28-NI-C | C | 55 | B 28 | 15 | M 6 | - | - | M 6 | 41.5 | 3 | 0.5 | GN 311-45-M6-18-SW | 147 |
|
| GN 7062.2-55-B30-NI-A | A | 55 | B 30 | 15 | M 6 | 6.5 | - | - | 42.5 | 3 | 0.5 | GN 311-45-M6-18-SW | 145 |
|
| GN 7062.2-55-B30-NI-B | B | 55 | B 30 | 15 | M 6 | - | 5.5 | - | 42.5 | 3 | 0.5 | GN 311-45-M6-18-SW | 145 |
|
| GN 7062.2-55-B30-NI-C | C | 55 | B 30 | 15 | M 6 | - | - | M 6 | 42.5 | 3 | 0.5 | GN 311-45-M6-18-SW | 146 |
|
| GN 7062.2-60-B32-NI-A | A | 60 | B 32 | 15 | M 6 | 6.5 | - | - | 46 | 4 | 0.4 | GN 311-45-M6-19-SW | 190 |
|
| GN 7062.2-60-B32-NI-B | B | 60 | B 32 | 15 | M 6 | - | 5.5 | - | 46 | 4 | 0.4 | GN 311-45-M6-19-SW | 198 |
|
| GN 7062.2-60-B32-NI-C | C | 60 | B 32 | 15 | M 6 | - | - | M 6 | 46 | 4 | 0.4 | GN 311-45-M6-19-SW | 192 |
|
| GN 7062.2-60-B35-NI-A | A | 60 | B 35 | 15 | M 6 | 6.5 | - | - | 47.5 | 4 | 0.4 | GN 311-45-M6-19-SW | 161 |
|
| GN 7062.2-60-B35-NI-B | B | 60 | B 35 | 15 | M 6 | - | 5.5 | - | 47.5 | 4 | 0.4 | GN 311-45-M6-19-SW | 160 |
|
| GN 7062.2-60-B35-NI-C | C | 60 | B 35 | 15 | M 6 | - | - | M 6 | 47.5 | 4 | 0.4 | GN 311-45-M6-19-SW | 162 |
|
| GN 7062.2-65-B40-NI-A | A | 65 | B 40 | 15 | M 6 | 6.5 | - | - | 52.5 | 4 | 0.5 | GN 311-45-M6-20-SW | 182 |
|
| GN 7062.2-65-B40-NI-B | B | 65 | B 40 | 15 | M 6 | - | 5.5 | - | 52.5 | 4 | 0.5 | GN 311-45-M6-20-SW | 180 |
|
| GN 7062.2-65-B40-NI-C | C | 65 | B 40 | 15 | M 6 | - | - | M 6 | 52.5 | 4 | 0.5 | GN 311-45-M6-20-SW | 185 |
|
