GN 7062.10

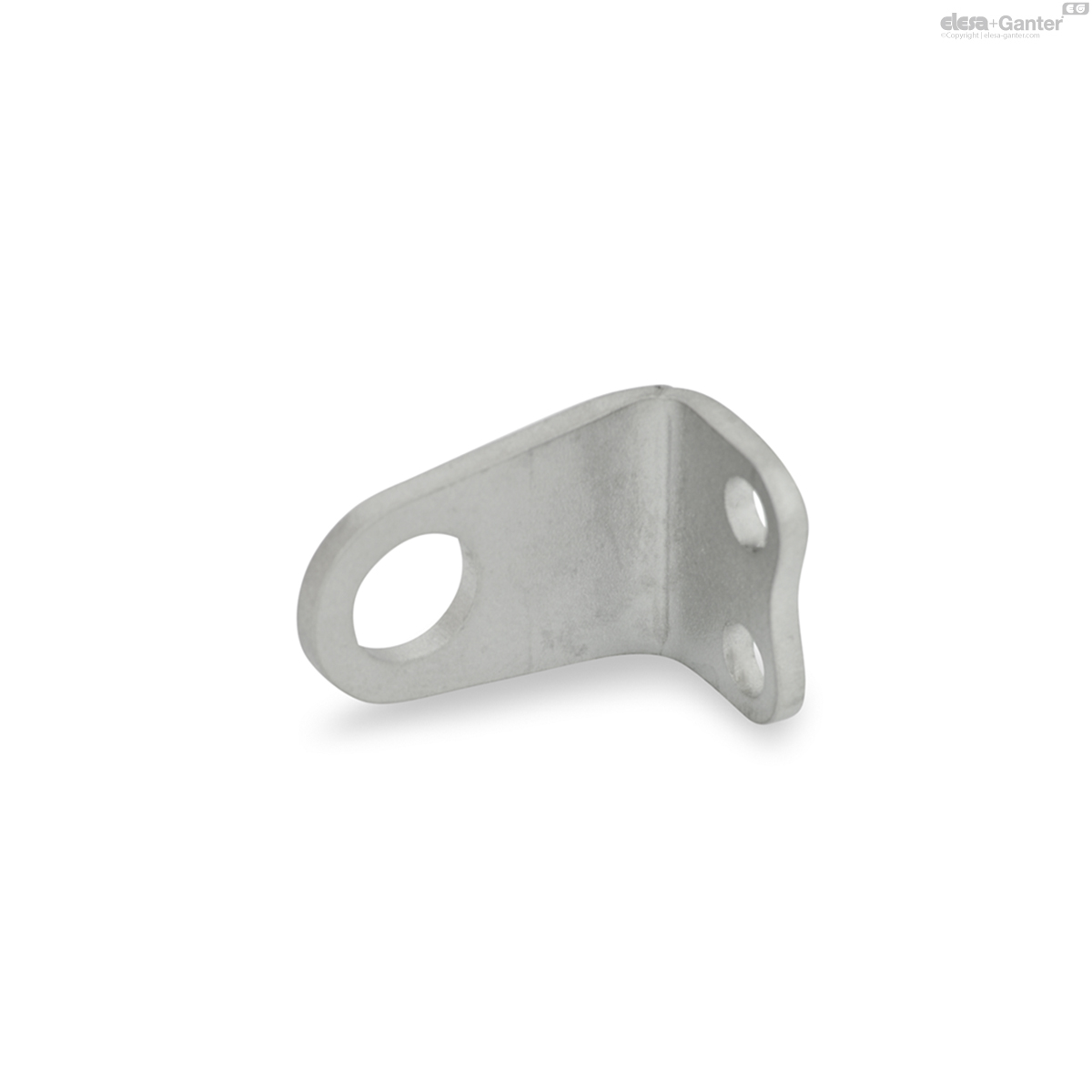

Sensor Holders
for Shaft Collars GN 7062.1 / GN 7072.1, Stainless Steel
Description
Specification
Type
- Type L: Angled
Stainless steel AISI 304
Matte shot-blasted
Information
The sensor holders GN 7062.10 are designed for holding sensors attached with two lock nuts.
The holes d2 match the extension-tapped holes of the shaft collars GN 7062.1  / GN 7072.1 in measurement and facilitate axial or radial positioning of sensors.
Technical information
- Stainless Steel Characteristics

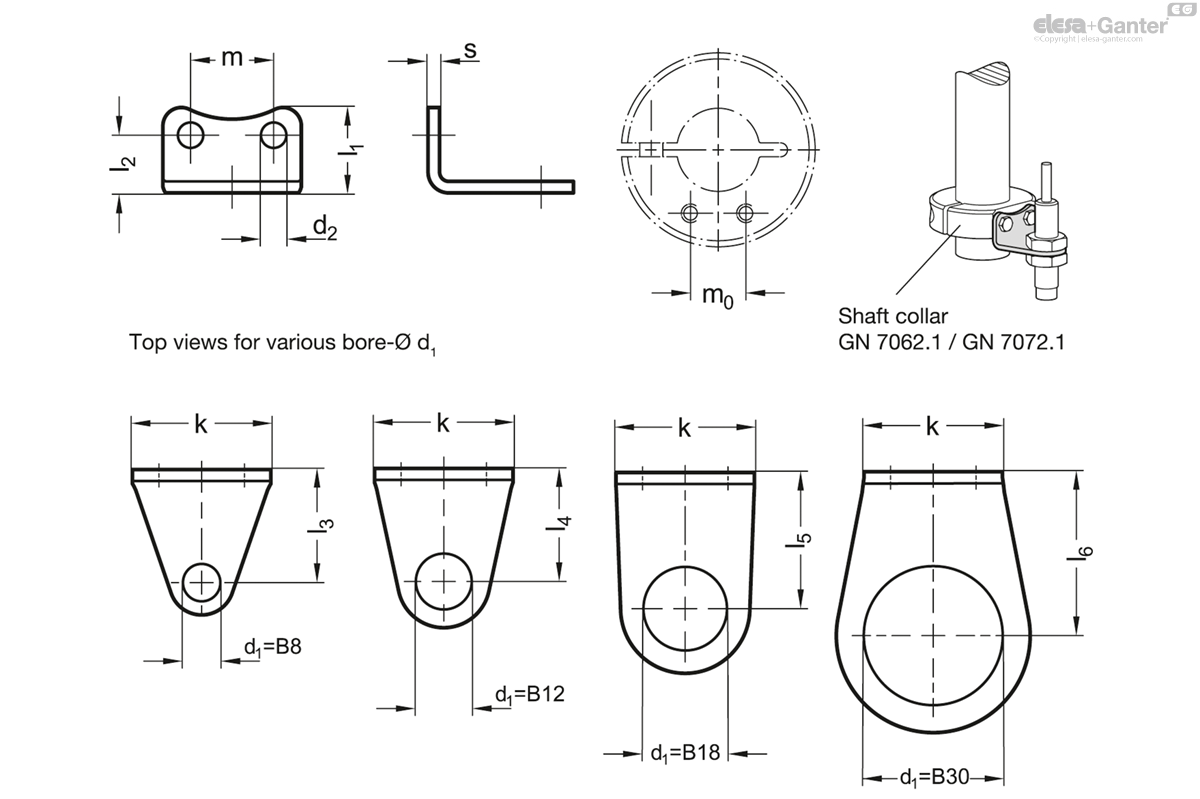

GN 7062.10
| m0 | d1 +0.1 | k | d2 | l1 | l2 | l3 | l4 | l5 | l6 | m | s |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| GN 7062.10-B8-14-L | 8 | B 8 | 14 | 3.5 | 13 | 9.5 | 15 | - | - | - | 8 | 2 | 6 |
|
| GN 7062.10-B8-18-L | 10 | B 8 | 18 | 4.5 | 14.5 | 10.5 | 19 | - | - | - | 10 | 2 | 8 |
|
| GN 7062.10-B8-23-L | 12 | B 8 | 23 | 4.5 | 17 | 12.5 | 19 | - | - | - | 12 | 2.5 | 13 |
|
| GN 7062.10-B8-30-L | 18 | B 8 | 30 | 5.5 | 18.5 | 12.5 | 24.5 | - | - | - | 18 | 2.5 | 18 |
|
| GN 7062.10-B12-14-L | 8 | B 12 | 14 | 3.5 | 13 | 9.5 | - | 19 | - | - | 8 | 2 | 8 |
|
| GN 7062.10-B12-18-L | 10 | B 12 | 18 | 4.5 | 14.5 | 10.5 | - | 24.5 | - | - | 10 | 2 | 11 |
|
| GN 7062.10-B12-23-L | 12 | B 12 | 23 | 4.5 | 17 | 12.5 | - | 24.5 | - | - | 12 | 2.5 | 16 |
|
| GN 7062.10-B12-30-L | 18 | B 12 | 30 | 5.5 | 18.5 | 12.5 | - | 24.5 | - | - | 18 | 2.5 | 20 |
|
| GN 7062.10-B18-18-L | 10 | B 18 | 18 | 4.5 | 14.5 | 10.5 | - | - | 29.5 | - | 10 | 2 | 14 |
|
| GN 7062.10-B18-23-L | 12 | B 18 | 23 | 4.5 | 17 | 12.5 | - | - | 29.5 | - | 12 | 2.5 | 20 |
|
| GN 7062.10-B18-30-L | 18 | B 18 | 30 | 5.5 | 18.5 | 12.5 | - | - | 29.5 | - | 18 | 2.5 | 24 |
|
| GN 7062.10-B30-23-L | 12 | B 30 | 23 | 4.5 | 17 | 12.5 | - | - | - | 35.5 | 12 | 2.5 | 27 |
|
| GN 7062.10-B30-30-L | 18 | B 30 | 30 | 5.5 | 18.5 | 12.5 | - | - | - | 35.5 | 18 | 2.5 | 31 |
|
