GN 7045.2
Pan Head Screws
Stainless Steel, with Phillips Drive, with Recessed Stud for Loss Protection
Description
Specification
Stainless steel AISI 304 NI
Information

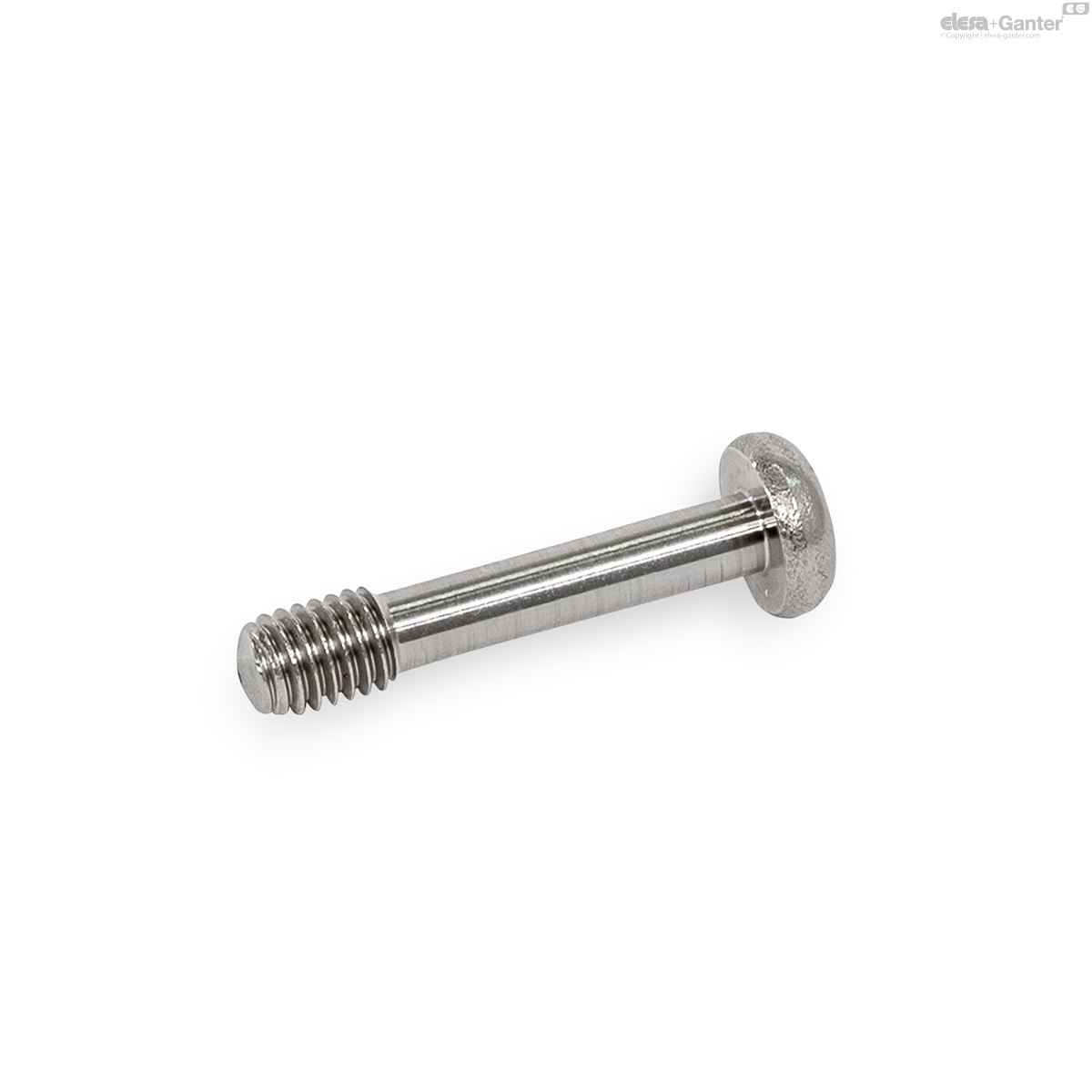

Pan head screws GN 7045.2 feature a recessed stud d3, making it easy to secure them against loss, such as in a cover.
Thus the „captivity of the mounting element“ according to the Machinery Directive 2006 / 42 / EG is given.

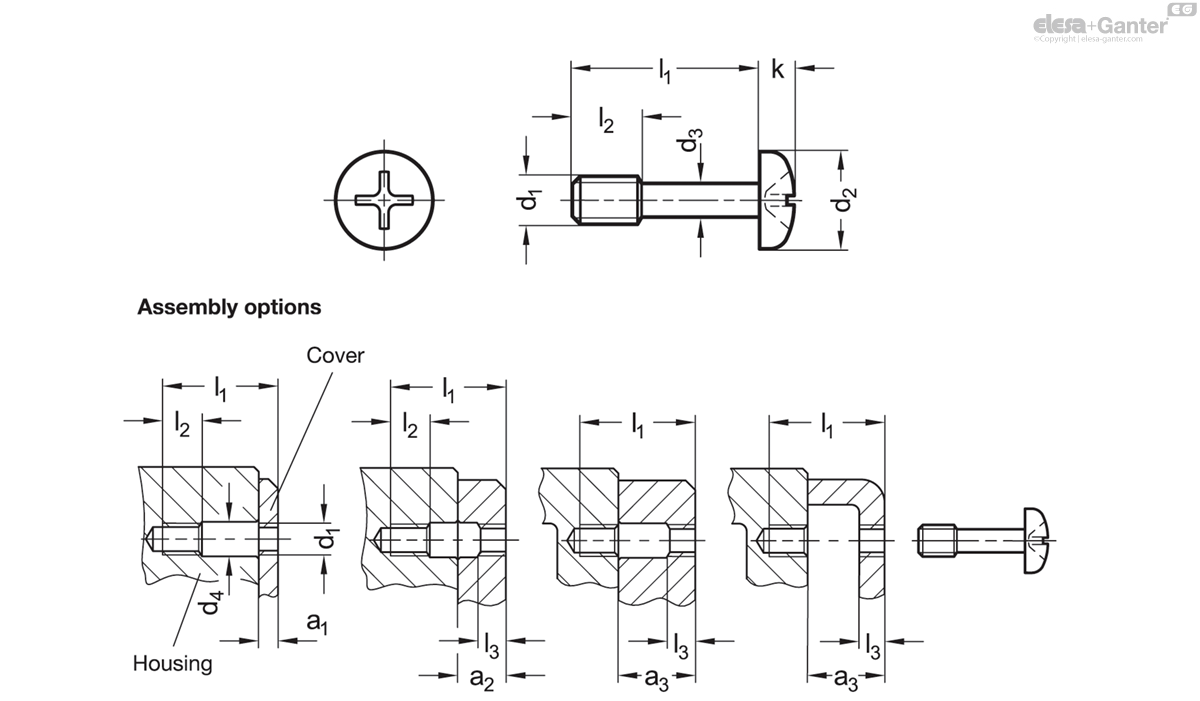

For this purpose, instead of a normal through / threaded hole a thread d1 on both sides, if necessary with a corresponding clearance hole d4 must be provided. Depending on the design and required clamping length a1 ... a3 of the cover, there are a number of assembly options as shown.
Technical information
- Stainless Steel CharacteristicsÂ
GN 7045.2
| d1 | l1 | a1 | a2 | a3 | d2 | d3 -0.3 | d4 | k | l2 | l3 | Phillips drive |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| GN 7045.2-M3-12-NI | M 3 | 12 | 1.5-3 | 3-6.5 | 6.5-8 | 5.5 | 2.2 | 3.5 | 2 | 4 | 1.5 | PH 2 | 1 |
|
| GN 7045.2-M3-16-NI | M 3 | 16 | 3-7 | 7-8 | 8-12 | 5.5 | 2.2 | 3.5 | 2 | 4 | 1.5 | PH 2 | 2 |
|
| GN 7045.2-M4-16-NI | M 4 | 16 | 2-5 | 5-8 | 8-11 | 7 | 3 | 4.5 | 2.6 | 5 | 2 | PH 2 | 2 |
|
| GN 7045.2-M4-20-NI | M 4 | 20 | 5-9 | 9-11 | 11-15 | 7 | 3 | 4.5 | 2.6 | 5 | 2 | PH 2 | 3 |
|
| GN 7045.2-M5-20-NI | M 5 | 20 | 2.5-6 | 6-10.5 | 10.5-14 | 9 | 3.9 | 5.5 | 3.3 | 6 | 2.5 | PH 2 | 3 |
|
| GN 7045.2-M5-25-NI | M 5 | 25 | 6-11 | 11-14 | 14-19 | 9 | 3.9 | 5.5 | 3.3 | 6 | 2.5 | PH 2 | 4 |
|
| GN 7045.2-M6-25-NI | M 6 | 25 | 3-7 | 7-13 | 13-17 | 10.5 | 4.6 | 6.5 | 3.9 | 8 | 3 | PH 3 | 5 |
|
| GN 7045.2-M6-30-NI | M 6 | 30 | 7-12 | 12-17 | 17-22 | 10.5 | 4.6 | 6.5 | 3.9 | 8 | 3 | PH 3 | 6 |
|
| GN 7045.2-M8-30-NI | M 8 | 30 | 4-8 | 8-16 | 16-20 | 14 | 6.3 | 8.5 | 5.2 | 10 | 4 | PH 3 | 12 |
|
| GN 7045.2-M8-35-NI | M 8 | 35 | 8-13 | 13-20 | 20-25 | 14 | 6.3 | 8.5 | 5.2 | 10 | 4 | PH 3 | 14 |
|
| GN 7045.2-M8-40-NI | M 8 | 40 | 13-18 | 18-25 | 25-30 | 14 | 6.3 | 8.5 | 5.2 | 10 | 4 | PH 3 | 14 |
|
