GN 676.5
Knobs
Stainless Steel
Description
Specification
Types
- Type A: Without knurl

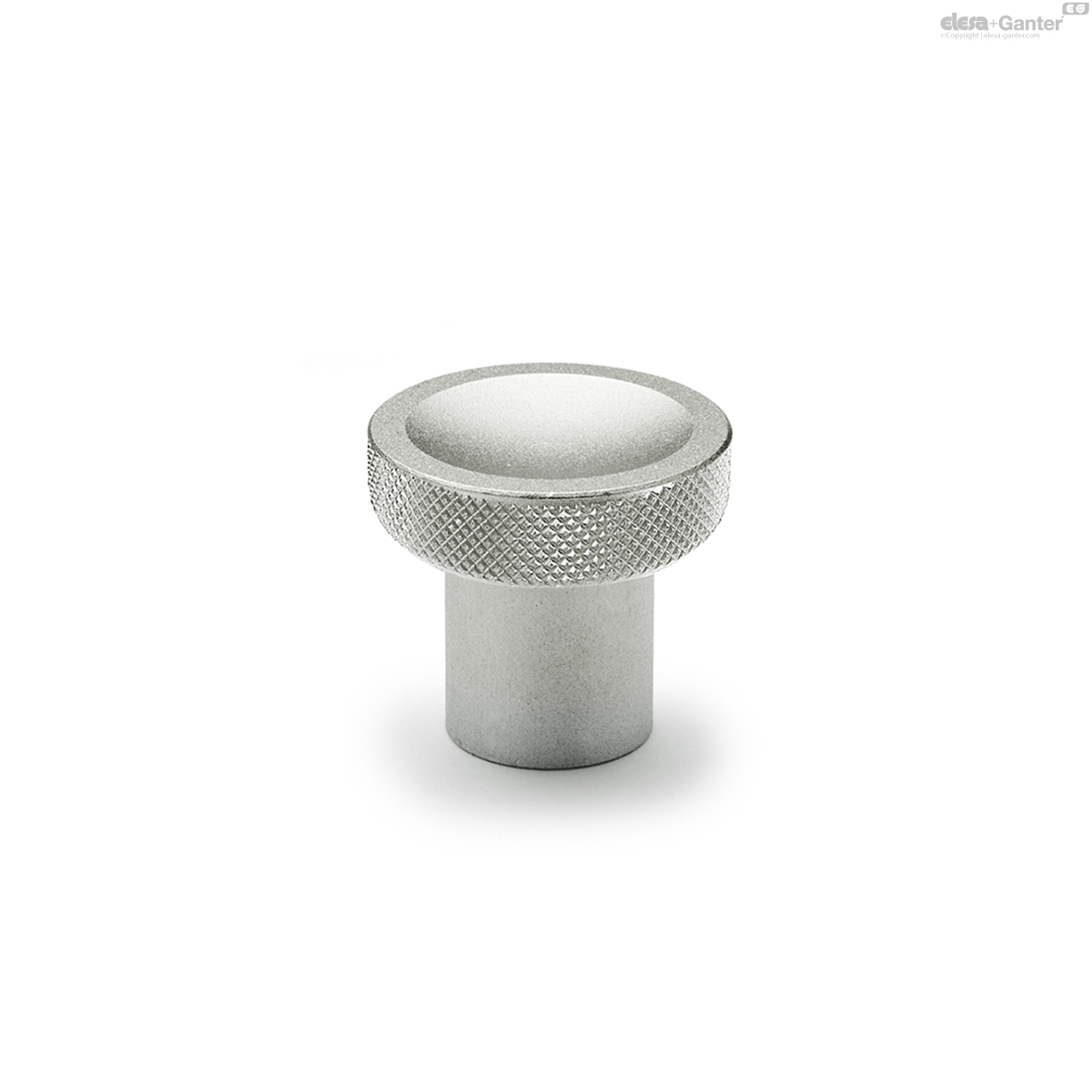

- Type B: With knurl
Stainless steel AISI 303
Matte shot-blasted
Information
Knobs GN 676.5 are used in applications where a push or pull movement is required. Their concave top gives a more comfortable thumb grip.
The version with knurl (type B) can be used as a knurled nut.
Technical information
- Stainless Steel CharacteristicsÂ
GN 676.5-A
| d1 | d2 | d3 | h1 | h2 | t min. |  |
||
|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||
| GN 676.5-21-M4-A | 21 | M 4 | 12.5 | 18 | 10.5 | 10 | 26 |
|
| GN 676.5-21-M5-A | 21 | M 5 | 12.5 | 18 | 10.5 | 10 | 26 |
|
| GN 676.5-25-M6-A | 25 | M 6 | 14.5 | 22.5 | 14 | 12 | 43 |
|
| GN 676.5-25-M8-A | 25 | M 8 | 14.5 | 22.5 | 14 | 12 | 42 |
|
| GN 676.5-31-M8-A | 31 | M 8 | 18.5 | 27 | 17 | 15 | 75 |
|
| GN 676.5-31-M10-A | 31 | M 10 | 18.5 | 27 | 17 | 17 | 75 |
|
