GN 668
Flat Cabinet U-Handles
Aluminum
GN 668-A
Flat Cabinet U-Handles
Mounting from the back (threaded blind bore)
GN 668-B
Flat Cabinet U-Handles
Mounting from the operator‘s side (only for b1 = 20)
Description
Specification
Types
- Type A: Mounting from the back (threaded blind bore)
- Type B: Mounting from the operator‘s side (only for b1 = 20)
Handle
Aluminum
- Powder coated

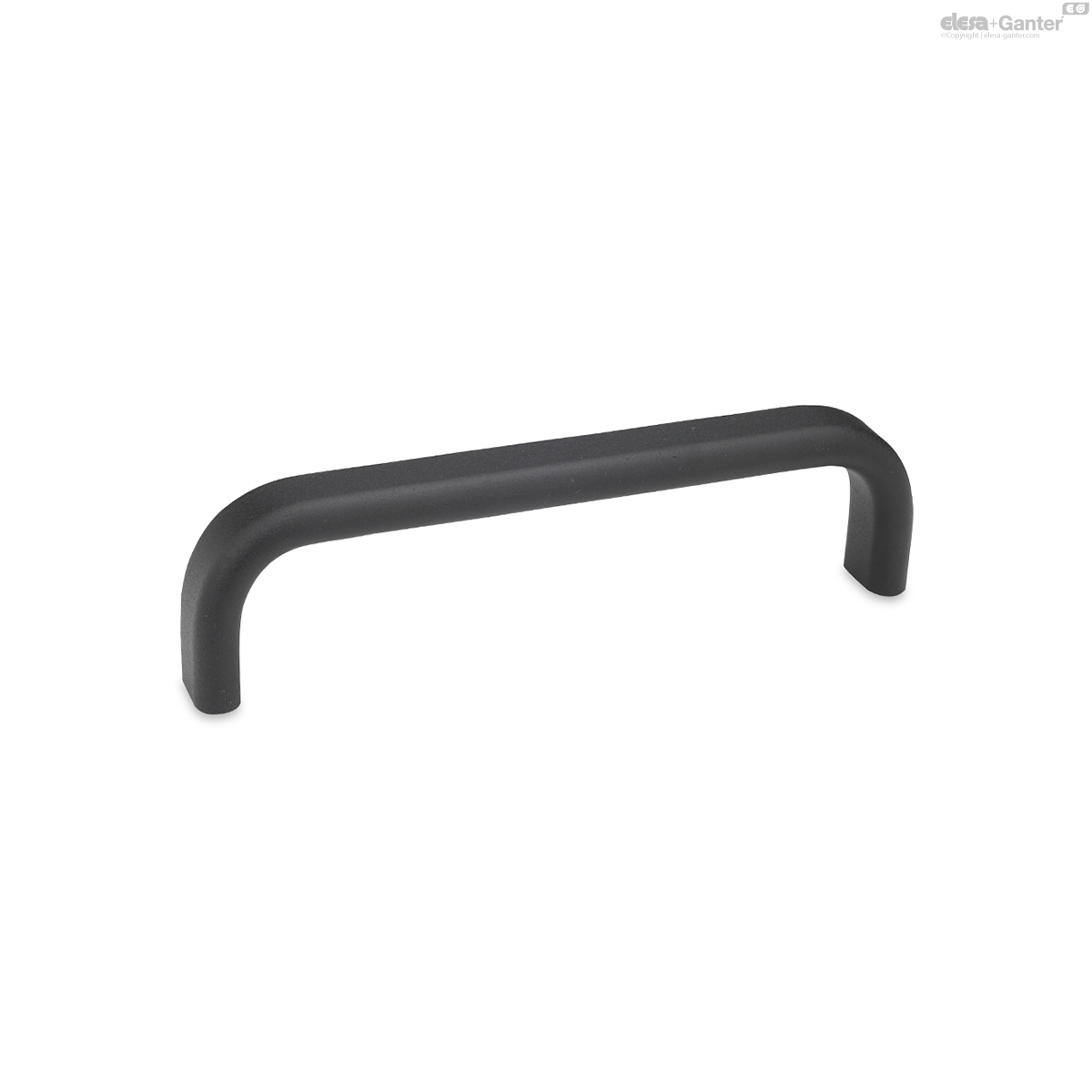

- Black, RAL 9005, textured finish SW

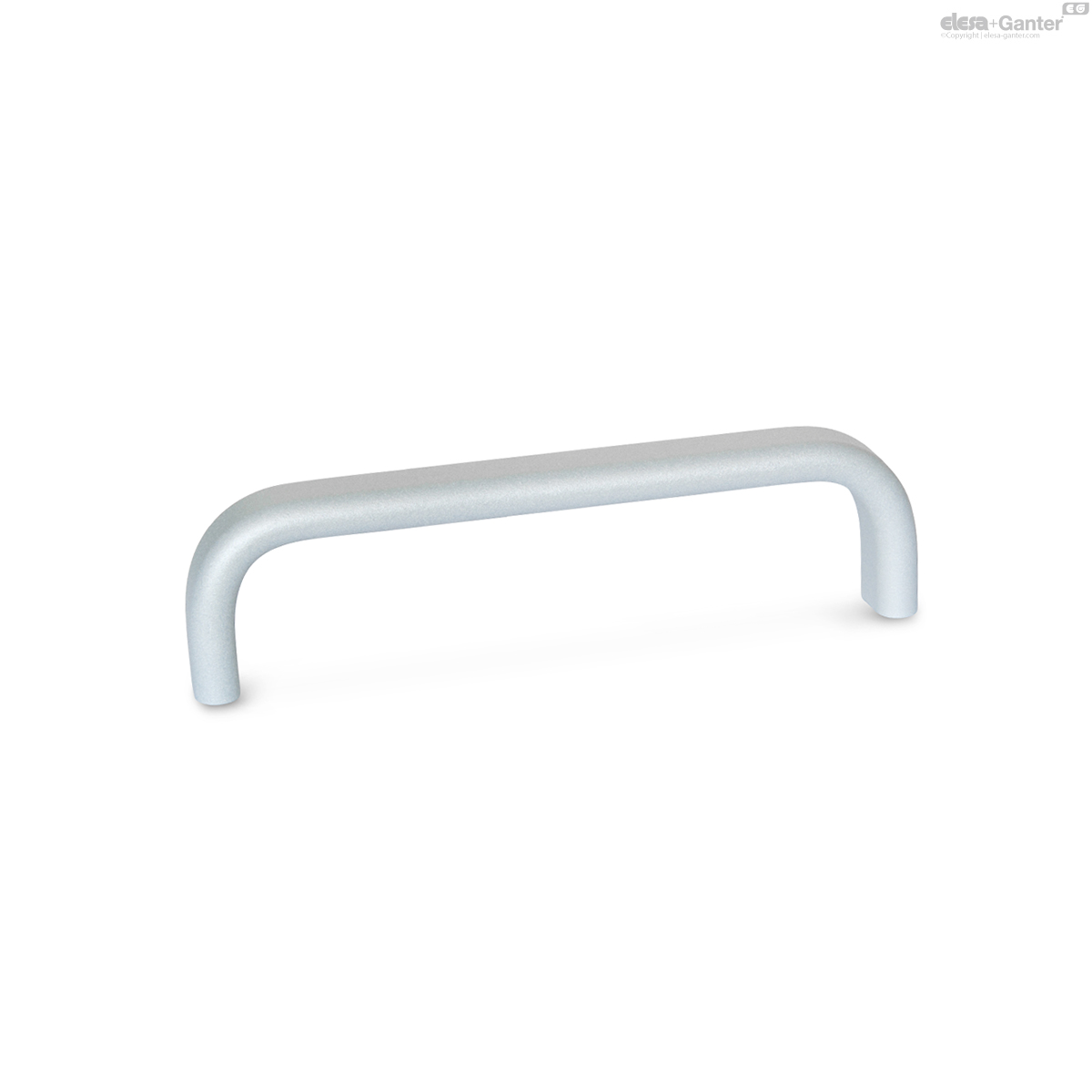

- Silver, RAL 9006, textured finish SR

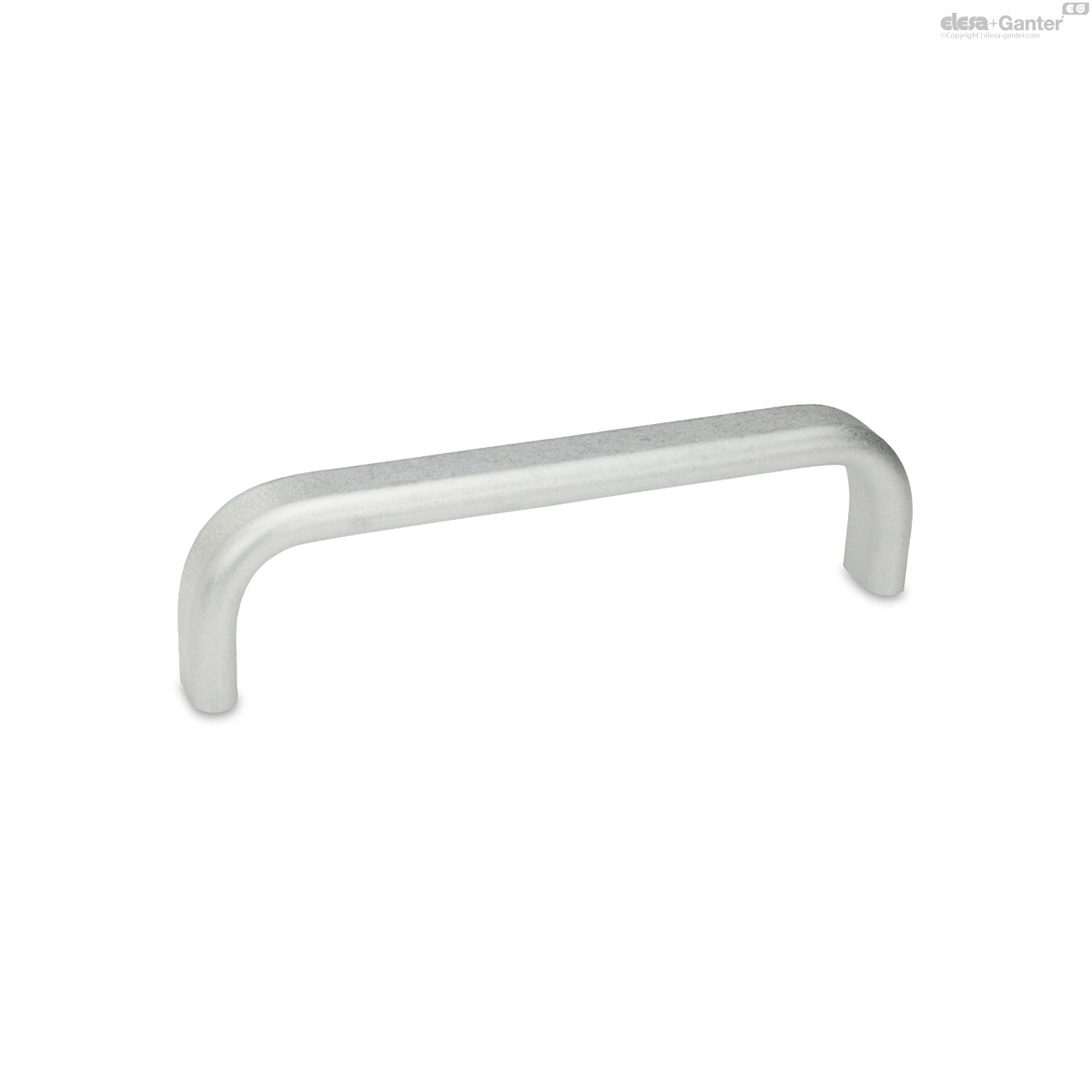

- Plain finish, tumbled BL
Fastening set for type B
- Handle bases
- Plastic, Polyamide (PA)
- Black, matte finish for SW / BL
- Light gray, matte finish for SR
- Socket cap screws DIN 7984
- Steel
- Zinc plated, blue passivated
Information
Flat cabinet U-handles GN 668 are manufactured from a bent aluminum profile.
They can be mounted either from the back (type A) or by means of the handle base from the operator’s side (type B).
Technical information
- Load Rating InformationÂ
- Plastic CharacteristicsÂ

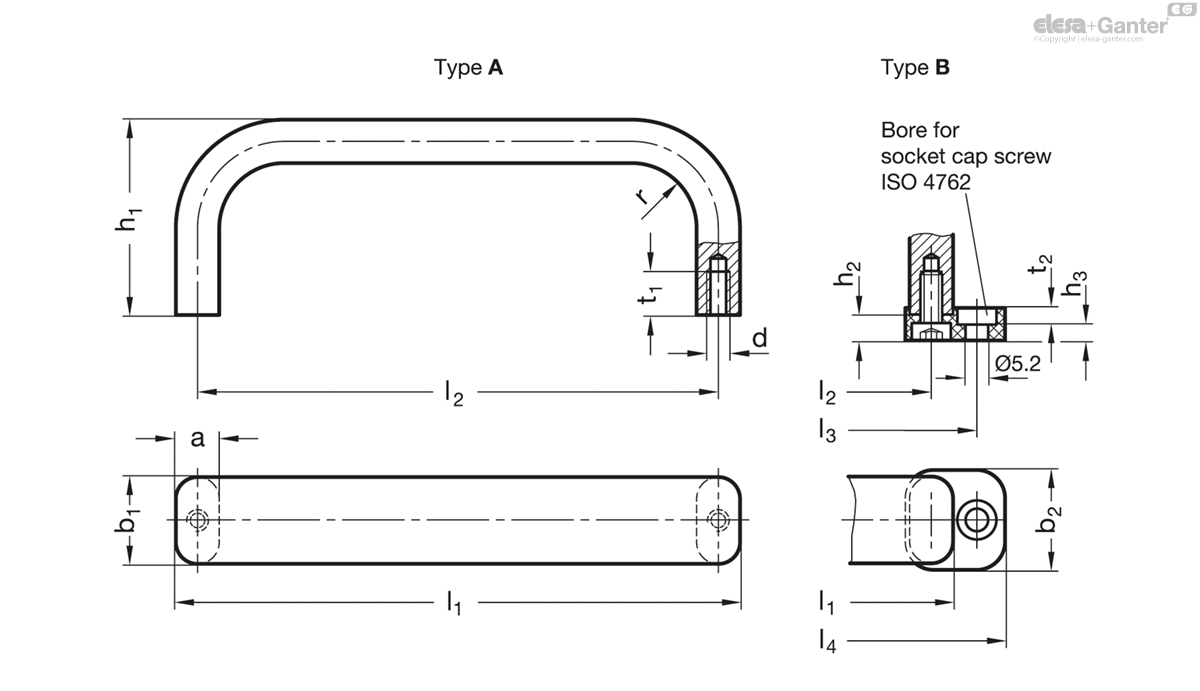

GN 668-A
| Color | b1 | l1 | a | b2 | d | h1 | l2 | r | t min. |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| GN 668-20-130-A-BL | BL - Plain finish | 20 | 130 | 10 | 23 | M 5 | 45 | 120 | 15 | 10 | 80 |
|
| GN 668-20-130-A-SR | SR - RAL 9006 | 20 | 130 | 10 | 23 | M 5 | 45 | 120 | 15 | 10 | 80 |
|
| GN 668-20-130-A-SW | SW - RAL 9005 | 20 | 130 | 10 | 23 | M 5 | 45 | 120 | 15 | 10 | 80 |
|
| GN 668-20-170-A-BL | BL - Plain finish | 20 | 170 | 10 | 23 | M 5 | 45 | 160 | 15 | 10 | 111 |
|
| GN 668-20-170-A-SR | SR - RAL 9006 | 20 | 170 | 10 | 23 | M 5 | 45 | 160 | 15 | 10 | 111 |
|
| GN 668-20-170-A-SW | SW - RAL 9005 | 20 | 170 | 10 | 23 | M 5 | 45 | 160 | 15 | 10 | 111 |
|
| GN 668-20-190-A-BL | BL - Plain finish | 20 | 190 | 10 | 23 | M 5 | 45 | 180 | 15 | 10 | 120 |
|
| GN 668-20-190-A-SR | SR - RAL 9006 | 20 | 190 | 10 | 23 | M 5 | 45 | 180 | 15 | 10 | 120 |
|
| GN 668-20-190-A-SW | SW - RAL 9005 | 20 | 190 | 10 | 23 | M 5 | 45 | 180 | 15 | 10 | 120 |
|
| GN 668-20-210-A-BL | BL - Plain finish | 20 | 210 | 10 | 23 | M 5 | 45 | 200 | 15 | 10 | 125 |
|
| GN 668-20-210-A-SR | SR - RAL 9006 | 20 | 210 | 10 | 23 | M 5 | 45 | 200 | 15 | 10 | 125 |
|
| GN 668-20-210-A-SW | SW - RAL 9005 | 20 | 210 | 10 | 23 | M 5 | 45 | 200 | 15 | 10 | 125 |
|
| GN 668-30-262-A-BL | BL - Plain finish | 30 | 262 | 12 | - | M 6 | 50 | 250 | 15 | 12 | 277 |
|
| GN 668-30-262-A-SR | SR - RAL 9006 | 30 | 262 | 12 | - | M 6 | 50 | 250 | 15 | 12 | 277 |
|
| GN 668-30-262-A-SW | SW - RAL 9005 | 30 | 262 | 12 | - | M 6 | 50 | 250 | 15 | 12 | 277 |
|
| GN 668-30-312-A-BL | BL - Plain finish | 30 | 312 | 12 | - | M 6 | 50 | 300 | 15 | 12 | 334 |
|
| GN 668-30-312-A-SR | SR - RAL 9006 | 30 | 312 | 12 | - | M 6 | 50 | 300 | 15 | 12 | 334 |
|
| GN 668-30-312-A-SW | SW - RAL 9005 | 30 | 312 | 12 | - | M 6 | 50 | 300 | 15 | 12 | 334 |
|
| GN 668-30-362-A-BL | BL - Plain finish | 30 | 362 | 12 | - | M 6 | 50 | 350 | 15 | 12 | 380 |
|
| GN 668-30-362-A-SR | SR - RAL 9006 | 30 | 362 | 12 | - | M 6 | 50 | 350 | 15 | 12 | 380 |
|
| GN 668-30-362-A-SW | SW - RAL 9005 | 30 | 362 | 12 | - | M 6 | 50 | 350 | 15 | 12 | 380 |
|
| GN 668-30-412-A-BL | BL - Plain finish | 30 | 412 | 12 | - | M 6 | 50 | 400 | 15 | 12 | 425 |
|
| GN 668-30-412-A-SR | SR - RAL 9006 | 30 | 412 | 12 | - | M 6 | 50 | 400 | 15 | 12 | 425 |
|
| GN 668-30-412-A-SW | SW - RAL 9005 | 30 | 412 | 12 | - | M 6 | 50 | 400 | 15 | 12 | 425 |
|
