GN 666
Tubular Handles
Tube Aluminum / Stainless Steel, Handle Legs Plastic

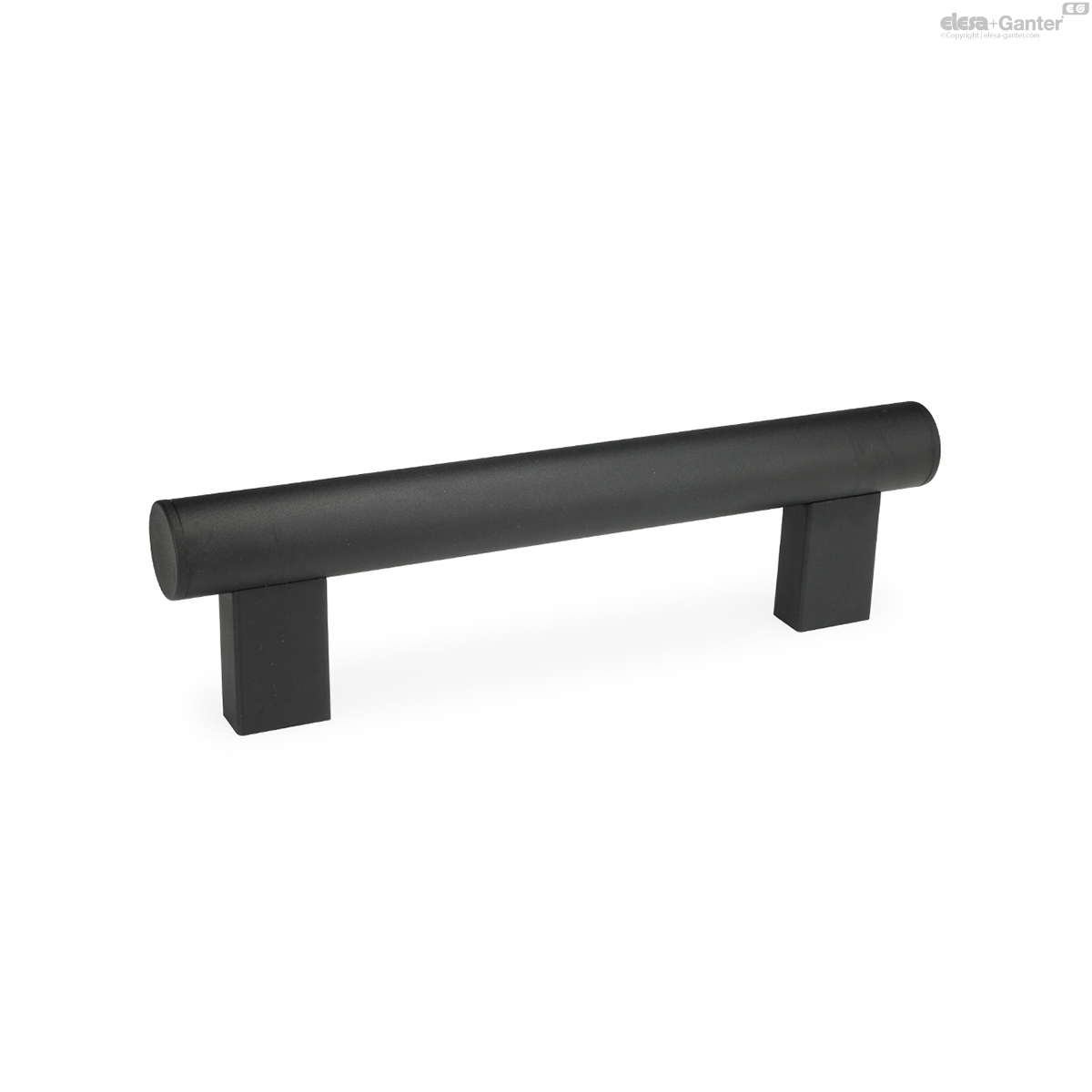

GN 666-SW
Tubular Handles
Handle tube, aluminum, powder coated, black

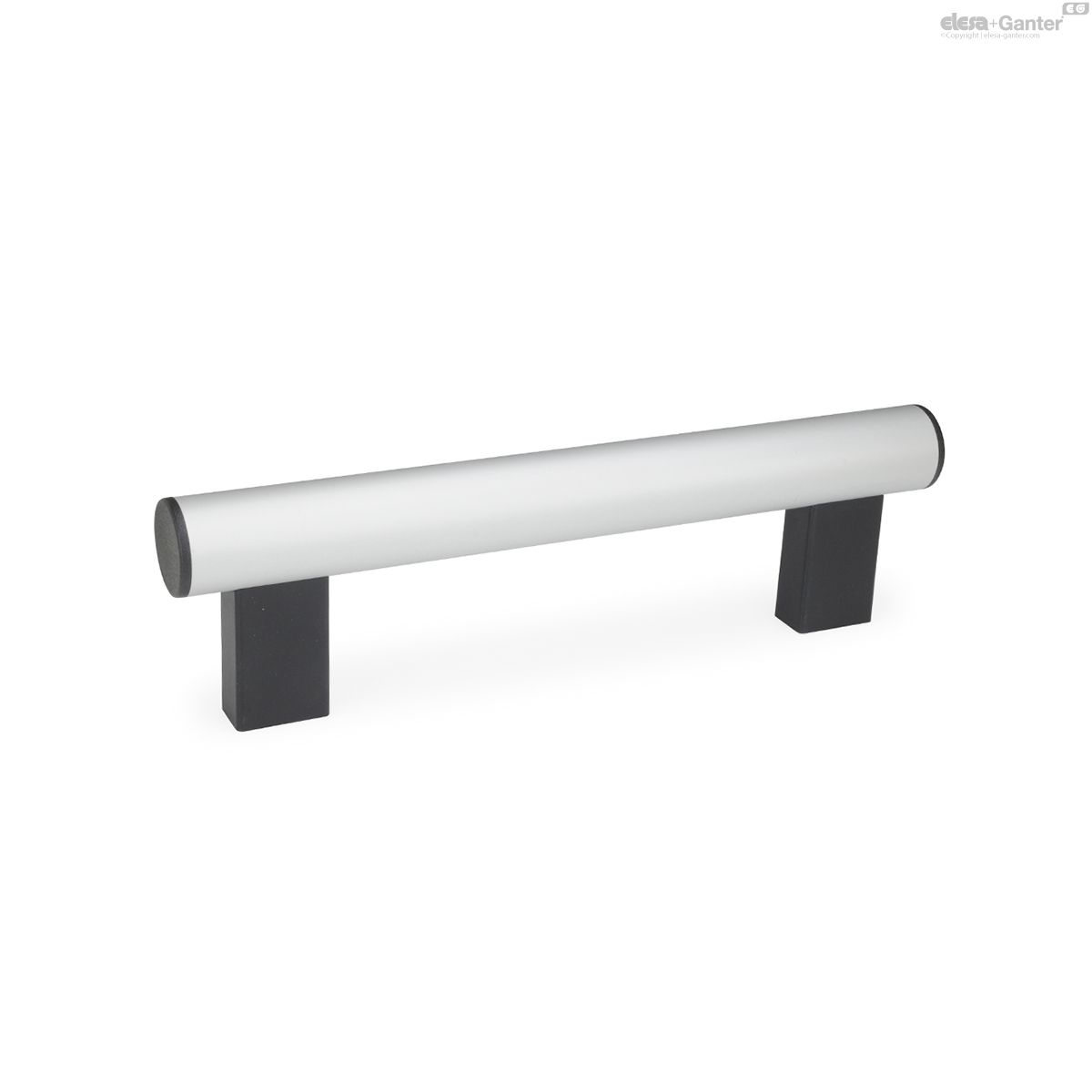

GN 666-EL
Tubular Handles
Handle tube aluminum, anodized, natural color
GN 666-ELG
Tubular Handles
Handle tube aluminum, anodized, natural color

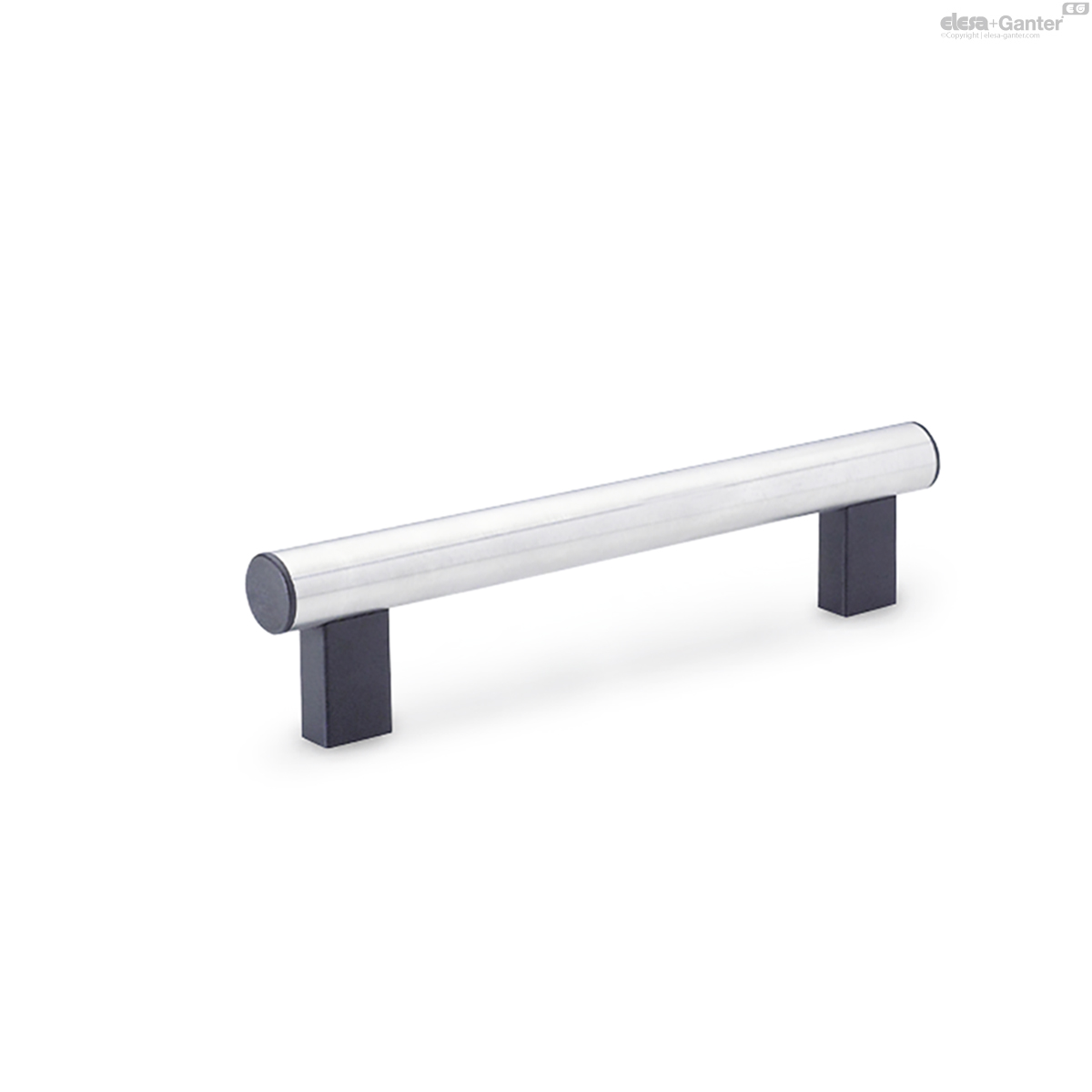

GN 666-NG
Tubular Handles
Stainless steel
Description
Specification
Handle tube
Wall thickness 1,5 mm
- Aluminum
- Powder coated
- Black, RAL 9005, textured finish SW
- Handle legs / Covers, black, matte finish
- Anodized, natural color EL
- Handle legs / Covers, black, matte finish
- Anodized, natural color ELG
- Handle legs / Covers, light gray, matte finish
- Stainless steel AISI 304
- Ground, matte shiny finish NG
- Handle legs / Covers, black, matte finish
Handle legs
Plastic, Polyamide (PA)
- Glass fiber reinforced
- Operating temperature up to 100 °C
- Threaded bushing steel, zinc plated
Covers
Plastic, thermoplastic elastomer (TPE)
Information
Owing to their large range of variants and their classic design, tubular handles GN 666 are the perfect choice for many applications.
With the modular structure, special lengths are avaiable even in comparatively small unit quantities. Large handle lengths can be supported by additional handle legs.
Technical information
- Load Rating InformationÂ
- Plastic CharacteristicsÂ
- Stainless Steel CharacteristicsÂ
GN 666-SW

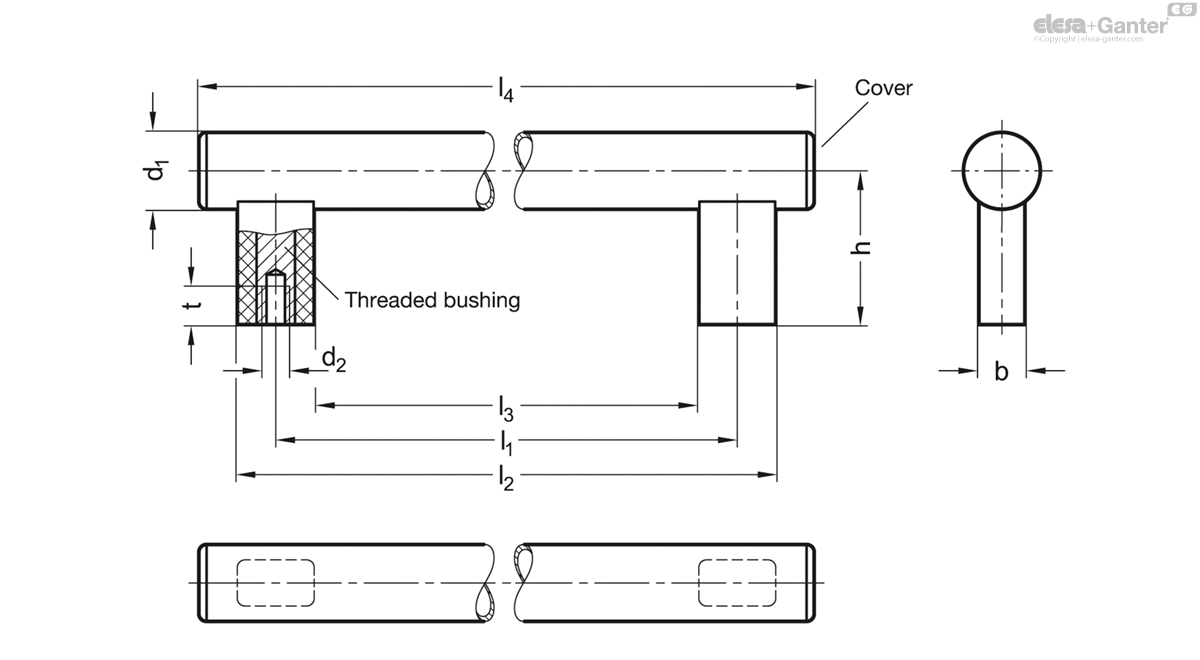

| d1 | d2 | l1 ±0.5 | b | h | l2 | l3 | l4 | t min. |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||
| GN 666-30-M6-200-SW | 30 | M 6 | 200 | 18 | 60 | 230 | 170 | 265 | 12 | 219 |
|
| GN 666-30-M6-250-SW | 30 | M 6 | 250 | 18 | 60 | 280 | 220 | 315 | 12 | 230 |
|
| GN 666-30-M6-300-SW | 30 | M 6 | 300 | 18 | 60 | 330 | 270 | 365 | 12 | 264 |
|
| GN 666-30-M6-350-SW | 30 | M 6 | 350 | 18 | 60 | 380 | 320 | 415 | 12 | 280 |
|
| GN 666-30-M6-400-SW | 30 | M 6 | 400 | 18 | 60 | 430 | 370 | 465 | 12 | 300 |
|
| GN 666-30-M6-500-SW | 30 | M 6 | 500 | 18 | 60 | 530 | 470 | 565 | 12 | 330 |
|
| GN 666-30-M6-600-SW | 30 | M 6 | 600 | 18 | 60 | 630 | 570 | 665 | 12 | 365 |
|
| GN 666-30-M8-200-SW | 30 | M 8 | 200 | 18 | 60 | 230 | 170 | 265 | 15 | 229 |
|
| GN 666-30-M8-250-SW | 30 | M 8 | 250 | 18 | 60 | 280 | 220 | 315 | 15 | 240 |
|
| GN 666-30-M8-300-SW | 30 | M 8 | 300 | 18 | 60 | 330 | 270 | 365 | 15 | 266 |
|
| GN 666-30-M8-350-SW | 30 | M 8 | 350 | 18 | 60 | 380 | 320 | 415 | 15 | 280 |
|
| GN 666-30-M8-400-SW | 30 | M 8 | 400 | 18 | 60 | 430 | 370 | 465 | 15 | 280 |
|
| GN 666-30-M8-500-SW | 30 | M 8 | 500 | 18 | 60 | 530 | 470 | 565 | 15 | 339 |
|
| GN 666-30-M8-600-SW | 30 | M 8 | 600 | 18 | 60 | 630 | 570 | 665 | 15 | 376 |
|
