GN 666.5

Tubular Handles

Stainless Steel, Mounting from the Back

Enquire Now

With stainless steel cover cap

Description

Specification

Types

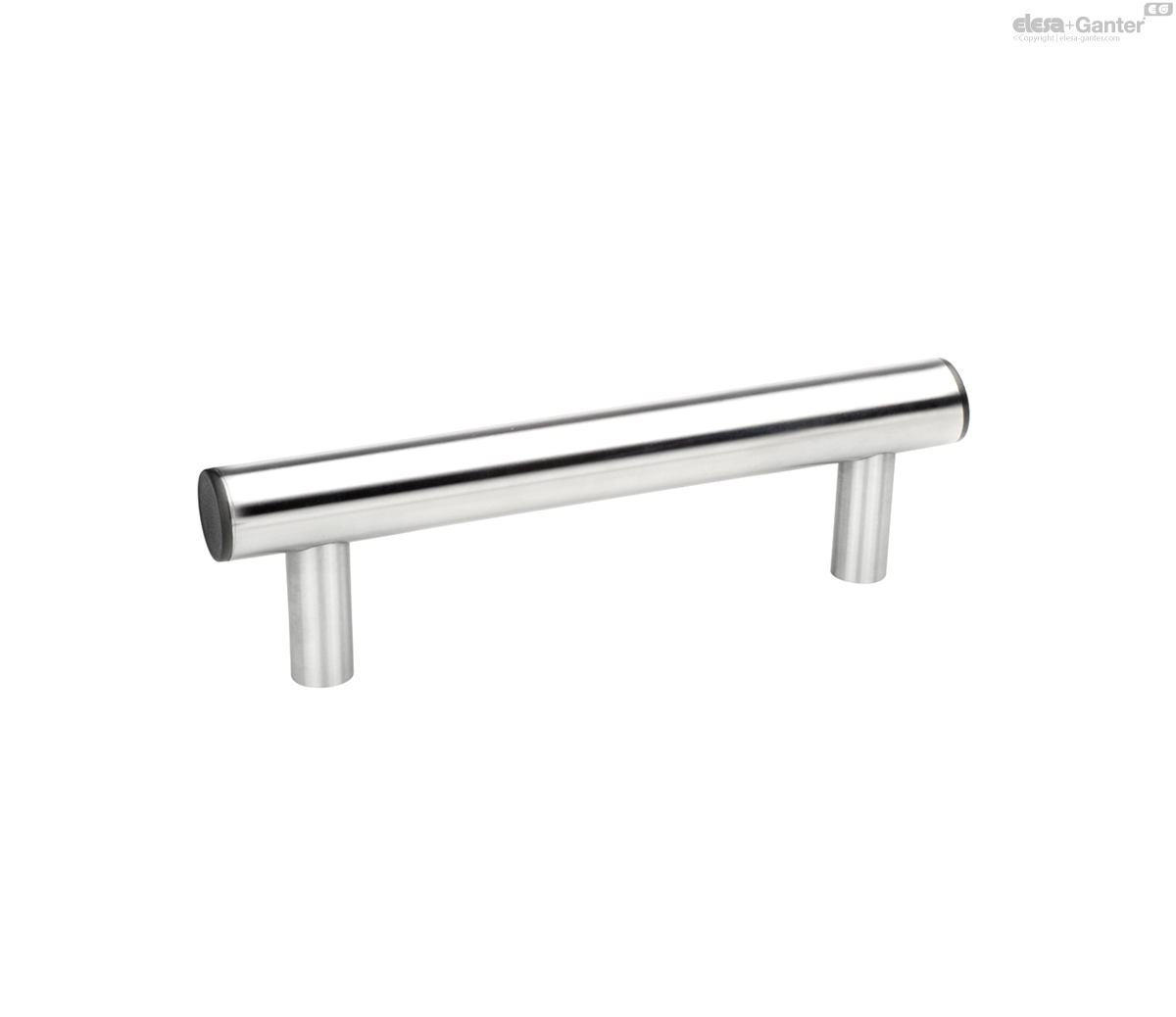

Type K: With plastic cover

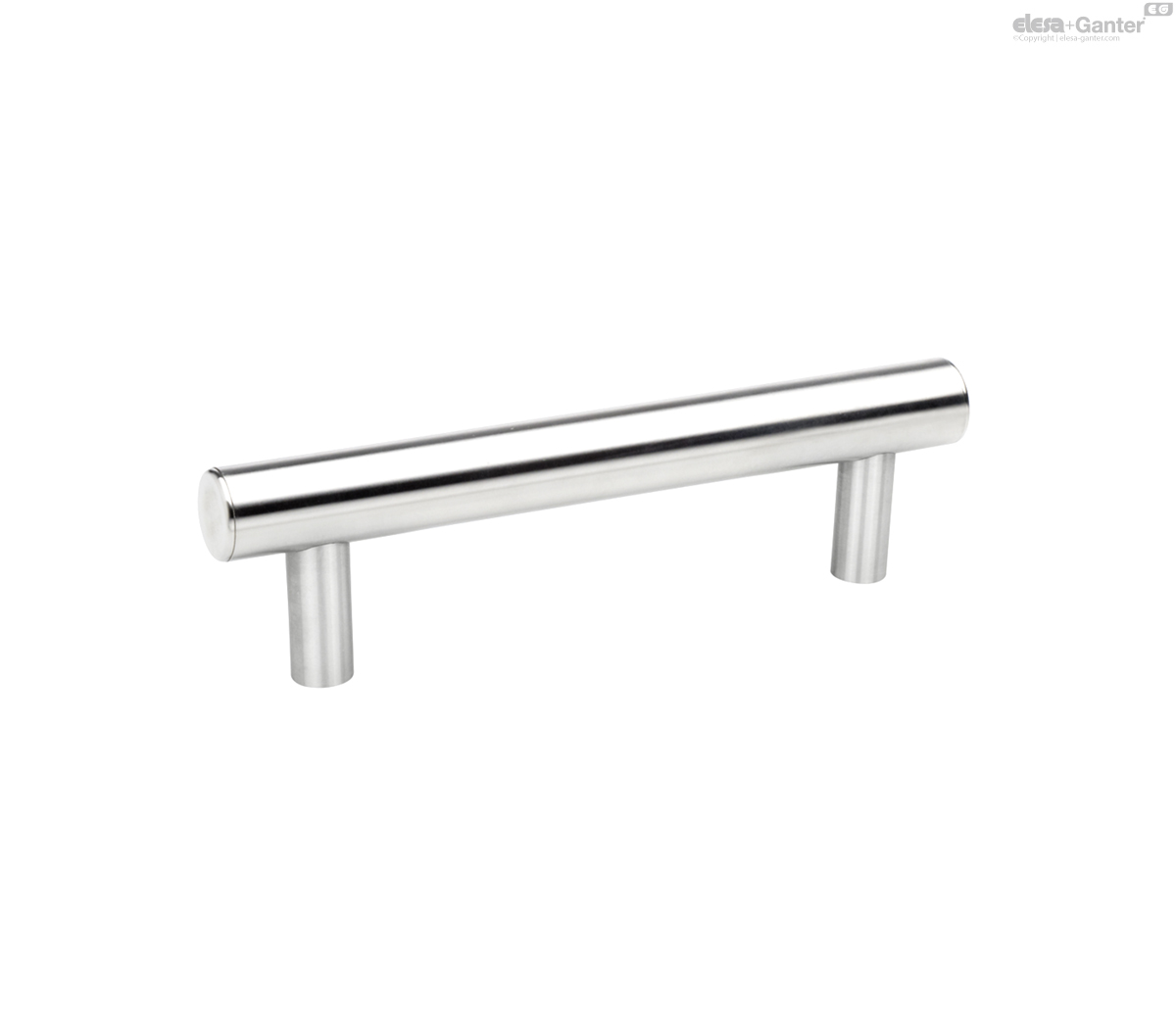

Type E: With stainless steel cover cap

Handle tube

Stainless steel AISI 304, wall thickness 1,5 mm

Matte shiny finish, ground

Handle legs

Stainless steel AISI 304

Matte shiny finish, ground

Covers

Plastic, thermoplastic elastomer (TPE)

Black, matte finish for type K

Stainless steel AISI 304 for type E

Information

Type E of tubular handles GN 666.5 is completely made of A2 stainless steel.

On request

Special lengths

Technical information

Example of application
Load Rating Information
Plastic Characteristics
Stainless Steel Characteristics

Mounting sketch

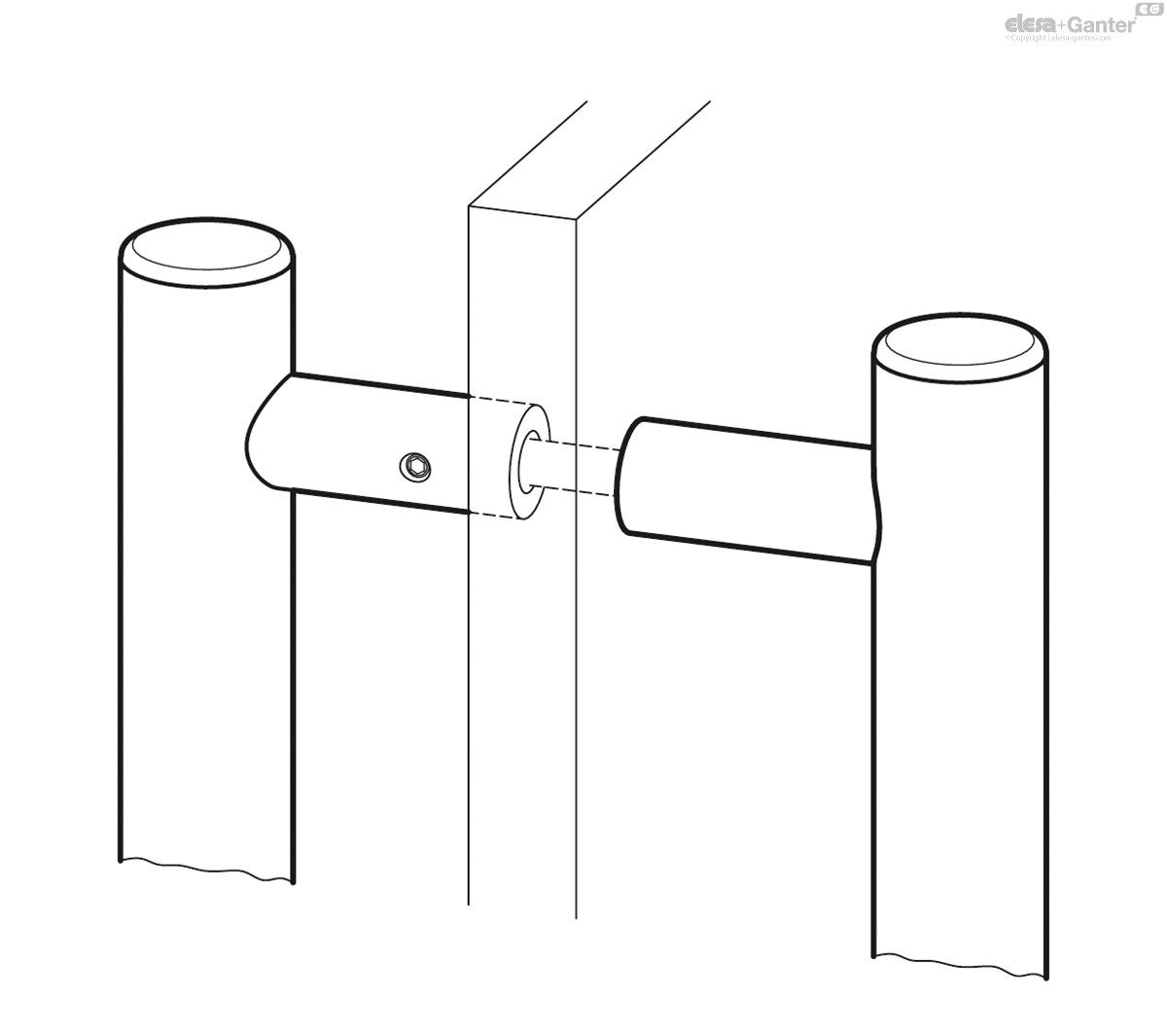

Example of application

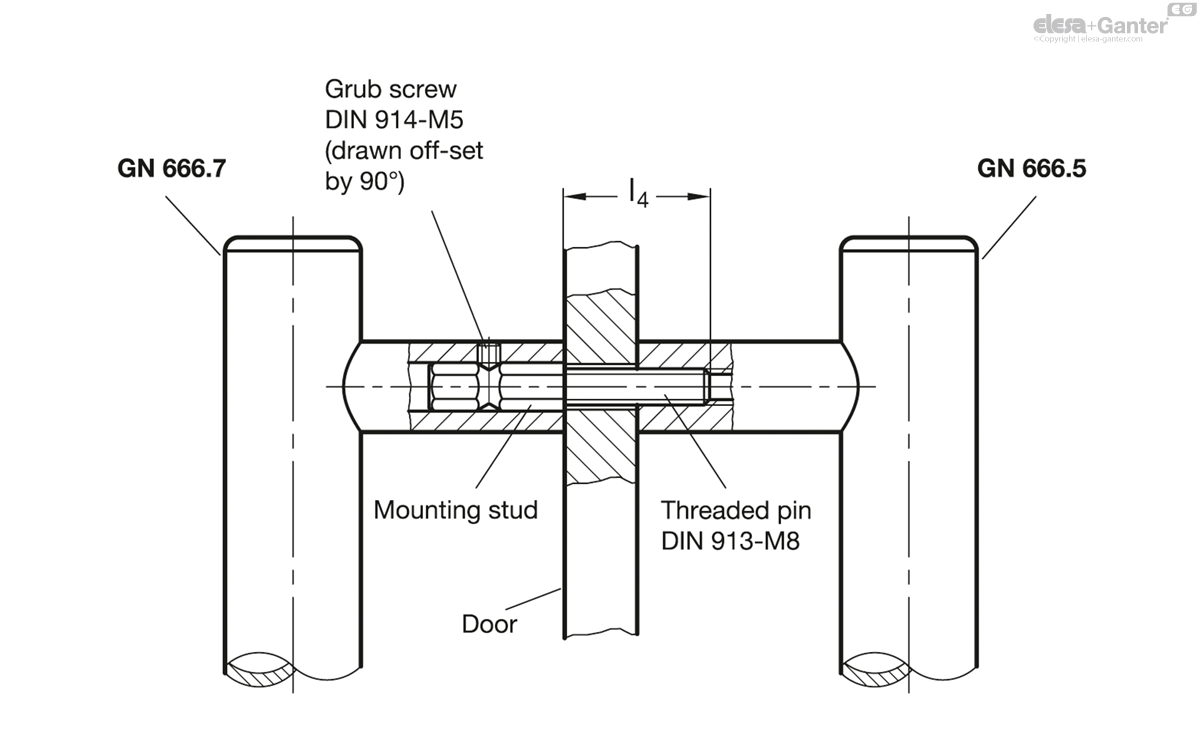

Tubular handles GN 666.5 allow the mounting of a pair of handles in opposite position. This method could be used on doors (double handle).

Generally a modification of the thread length l₄ is required for this. The included threaded pin DIN 913-M8x25-A2 of the mounting stud needs to be replaced by longer threaded pin, too.

Handles with a modified thread length l₄ are available on request.

GN 666.5-K

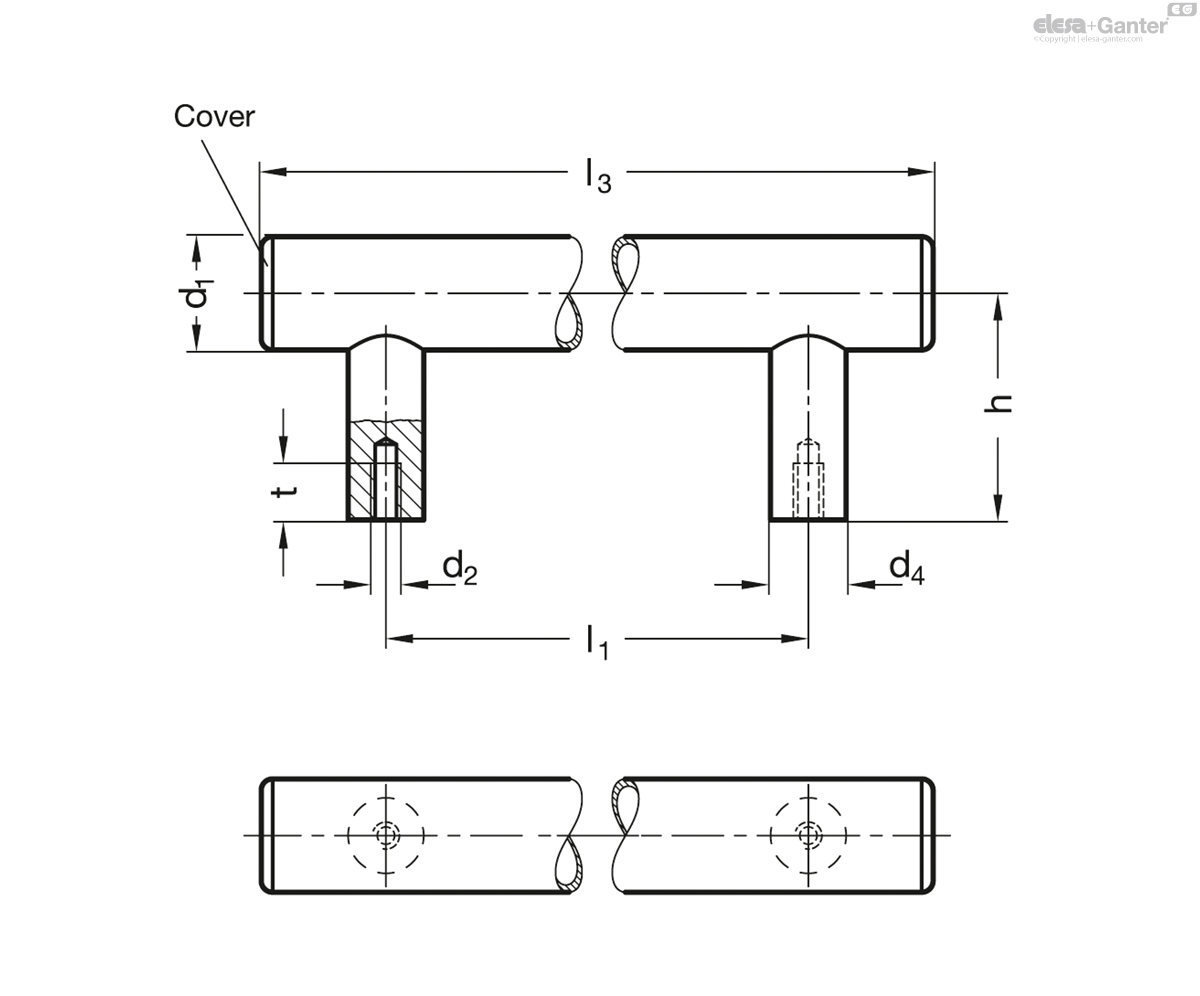

	d₁	d₂	l₁ ±0.5	d₄	h	l₃	t min.
Code									Actions
GN 666.5-30-M6-200-K	30	M 6	200	20	60	265	15	510
GN 666.5-30-M6-250-K	30	M 6	250	20	60	315	15	540
GN 666.5-30-M6-300-K	30	M 6	300	20	60	365	15	589
GN 666.5-30-M6-400-K	30	M 6	400	20	60	465	15	707
GN 666.5-30-M6-500-K	30	M 6	500	20	60	565	15	800
GN 666.5-30-M6-600-K	30	M 6	600	20	60	665	15	920
GN 666.5-30-M8-200-K	30	M 8	200	20	60	265	15	481
GN 666.5-30-M8-250-K	30	M 8	250	20	60	315	15	500
GN 666.5-30-M8-300-K	30	M 8	300	20	60	365	15	550
GN 666.5-30-M8-400-K	30	M 8	400	20	60	465	15	677
GN 666.5-30-M8-500-K	30	M 8	500	20	60	565	15	780
GN 666.5-30-M8-600-K	30	M 8	600	20	60	665	15	880
