GN 648.9

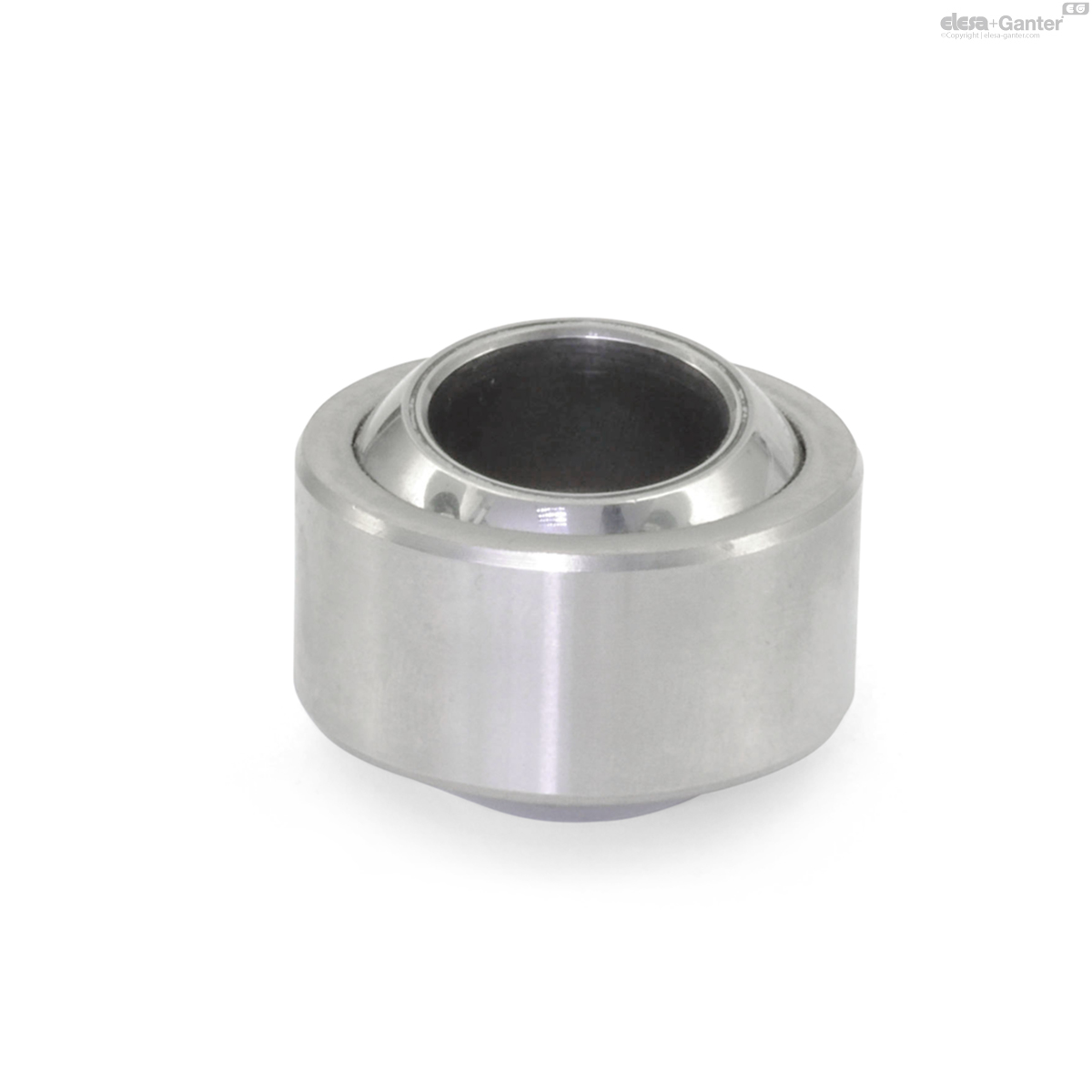

Stainless Steel-Ball joints
Description
Specification
Type

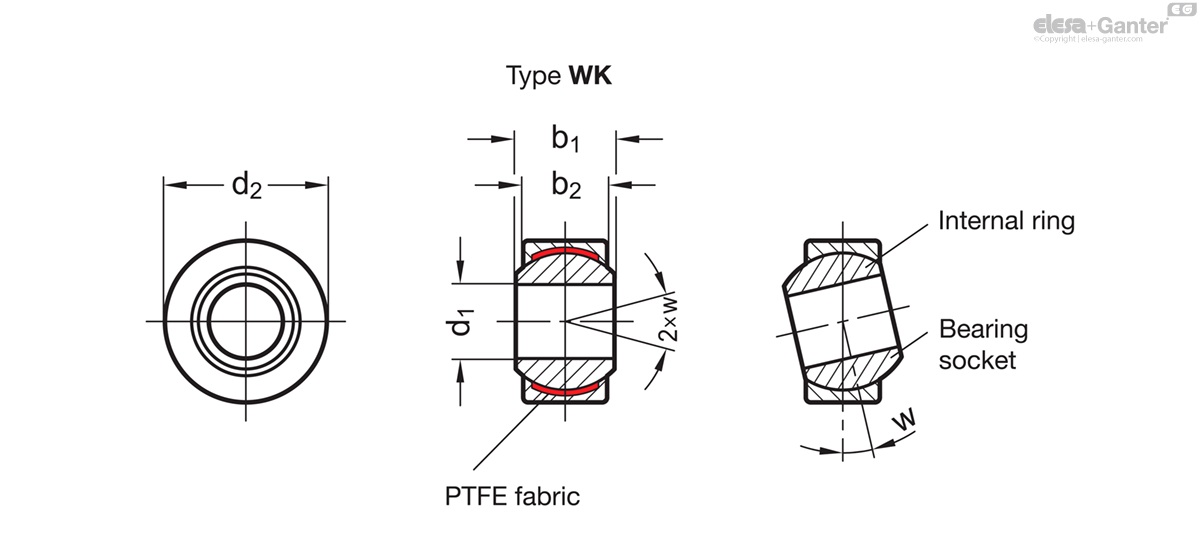

Type WK: Stainless Steel-PTFE / Stainless Steel, self lubricated
Pairing
Type WK (self lubricated)
Bearing socket
Stainless Steel AISI 316Ti
with PTFE-insert
Internal ring
Stainless Steel AISI 420
hardened, ground, polished
Information
Stainless Steel-Ball joints GN 648.9 are similar to DIN ISO 12240-4, series K.
These ball joints are integrated in the ball joint heads GN 648.5 and GN 648.6 .
- More information to ball joints as well as load capacity
Technical information
- ISO-Fundamental Tolerances
GN 648.9
| d1 H7 | d2 h6 | b1 -0.2 | b2 | w |  |
||
|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||
| GN 648.9-5-13-WK | 5 | 13 | 8 | 6 | 13° | 6 |
|
| GN 648.9-6-16-WK | 6 | 16 | 9 | 6.75 | 13° | 12 |
|
| GN 648.9-8-19-WK | 8 | 19 | 12 | 9 | 14 ° | 17 |
|
| GN 648.9-10-22-WK | 10 | 22 | 14 | 10.5 | 13° | 20 |
|
| GN 648.9-12-26-WK | 12 | 26 | 16 | 12 | 13° | 40 |
|
| GN 648.9-14-28-WK | 14 | 28* | 19 | 13.5 | 16 ° | 81 |
|
| GN 648.9-16-32-WK | 16 | 32 | 21 | 15 | 15 ° | 77 |
|
| GN 648.9-18-35-WK | 18 | 35 | 23 | 16.5 | 15 ° | 110 |
|
| GN 648.9-20-40-WK | 20 | 40 | 25 | 18 | 14 ° | 120 |
|
| GN 648.9-22-42-WK | 22 | 42 | 28 | 20 | 15 ° | 170 |
|
| GN 648.9-25-47-WK | 25 | 47 | 31 | 22 | 15 ° | 250 |
|
| GN 648.9-30-55-WK | 30 | 55 | 37 | 25 | 17 ° | 350 |
|
