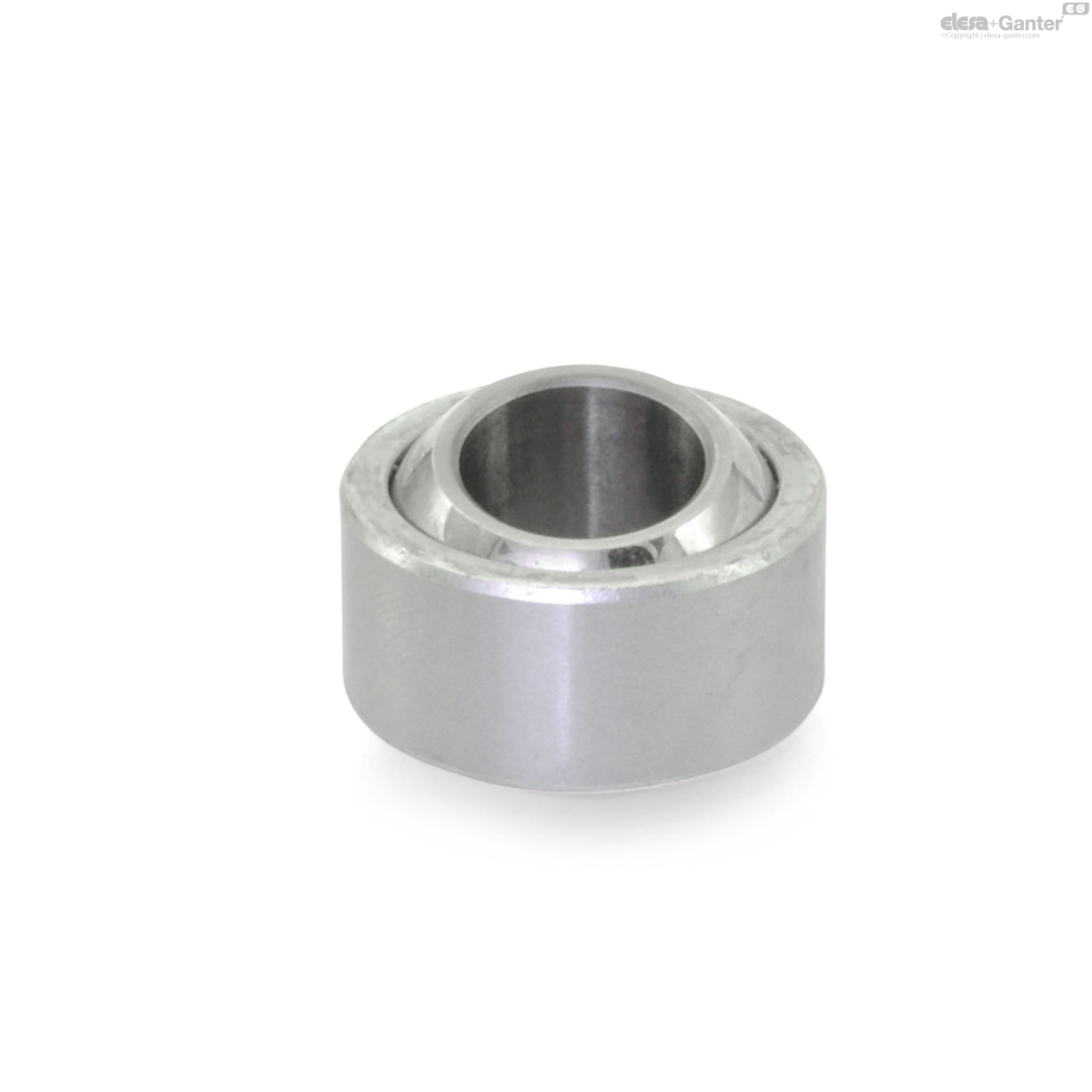

GN 648.8
Ball joints
Description
Specification
Types (pairings)
- Type N: Bronze / Steel, lubrication possible
- Type W: Steel-PTFE / Steel, self lubricated
Pairings
Type N (lubrication possible)
Bearing socket
Brass, CuSn8
Internal ring Steel 100 Cr6
hardened, ground, polished
Type W (self lubricated)
Bearing socket
Steel, zinc plated
with PTFE-insert
Internal ring
Steel, 100Cr6
hardened, ground, polished
Information
Ball joints GN 648.8 are similar to DIN ISO 12240-4, series K.
These ball joints are integrated in the ball joint heads GN 648.1 and GN 648.2 .
- More information to ball joints as well as load capacity
Technical information
- ISO-Fundamental Tolerances
GN 648.8

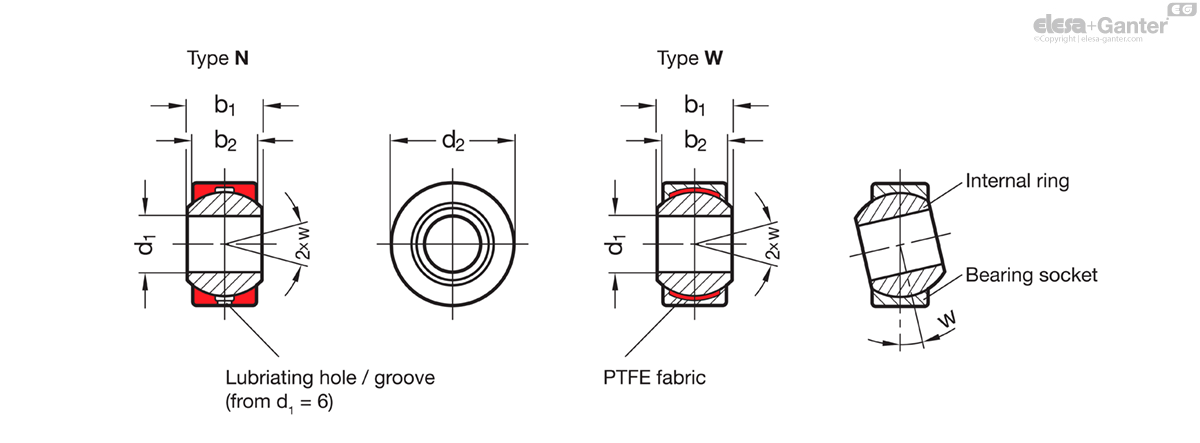

| d1 H7 | d2 h6 | b1 -0.2 | b2 | w |  |
||
|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||
| GN 648.8-5-13-N | 5 | 13 | 8 | 6 | 13° | 9 |
|
| GN 648.8-5-13-W | 5 | 13 | 8 | 6 | 13° | 9 |
|
| GN 648.8-6-16-N | 6 | 16 | 9 | 6.75 | 13° | 13 |
|
| GN 648.8-6-16-W | 6 | 16 | 9 | 6.75 | 13° | 12 |
|
| GN 648.8-8-19-N | 8 | 19 | 12 | 9 | 14° | 24 |
|
| GN 648.8-8-19-W | 8 | 19 | 12 | 9 | 14° | 17 |
|
| GN 648.8-10-22-N | 10 | 22 | 14 | 10.5 | 13° | 38 |
|
| GN 648.8-10-22-W | 10 | 22 | 14 | 10.5 | 13° | 30 |
|
| GN 648.8-12-26-N | 12 | 26 | 16 | 12 | 13° | 59 |
|
| GN 648.8-12-26-W | 12 | 26 | 16 | 12 | 13° | 40 |
|
| GN 648.8-14-28-N | 14 | 28** | 19 | 13.5 | 16° | 85 |
|
| GN 648.8-14-28-W | 14 | 28** | 19 | 13.5 | 16° | 70 |
|
| GN 648.8-16-32-N | 16 | 32 | 21 | 15 | 15° | 117 |
|
| GN 648.8-16-32-W | 16 | 32 | 21 | 15 | 15° | 77 |
|
| GN 648.8-18-35-N | 18 | 35 | 23 | 16.5 | 15° | 155 |
|
| GN 648.8-18-35-W | 18 | 35 | 23 | 16.5 | 15° | 100 |
|
| GN 648.8-20-40-N | 20 | 40 | 25 | 18 | 14° | 180 |
|
| GN 648.8-20-40-W | 20 | 40 | 25 | 18 | 14° | 140 |
|
| GN 648.8-22-42-N | 22 | 42 | 28 | 20 | 15° | 268 |
|
| GN 648.8-22-42-W | 22 | 42 | 28 | 20 | 15° | 254 |
|
| GN 648.8-25-47-N | 25 | 47 | 31 | 22 | 15° | 367 |
|
| GN 648.8-25-47-W | 25 | 47 | 31 | 22 | 15° | 230 |
|
| GN 648.8-30-55-N | 30 | 55 | 37 | 25 | 17° | 390 |
|
| GN 648.8-30-55-W | 30 | 55 | 37 | 25 | 17° | 363 |
|
