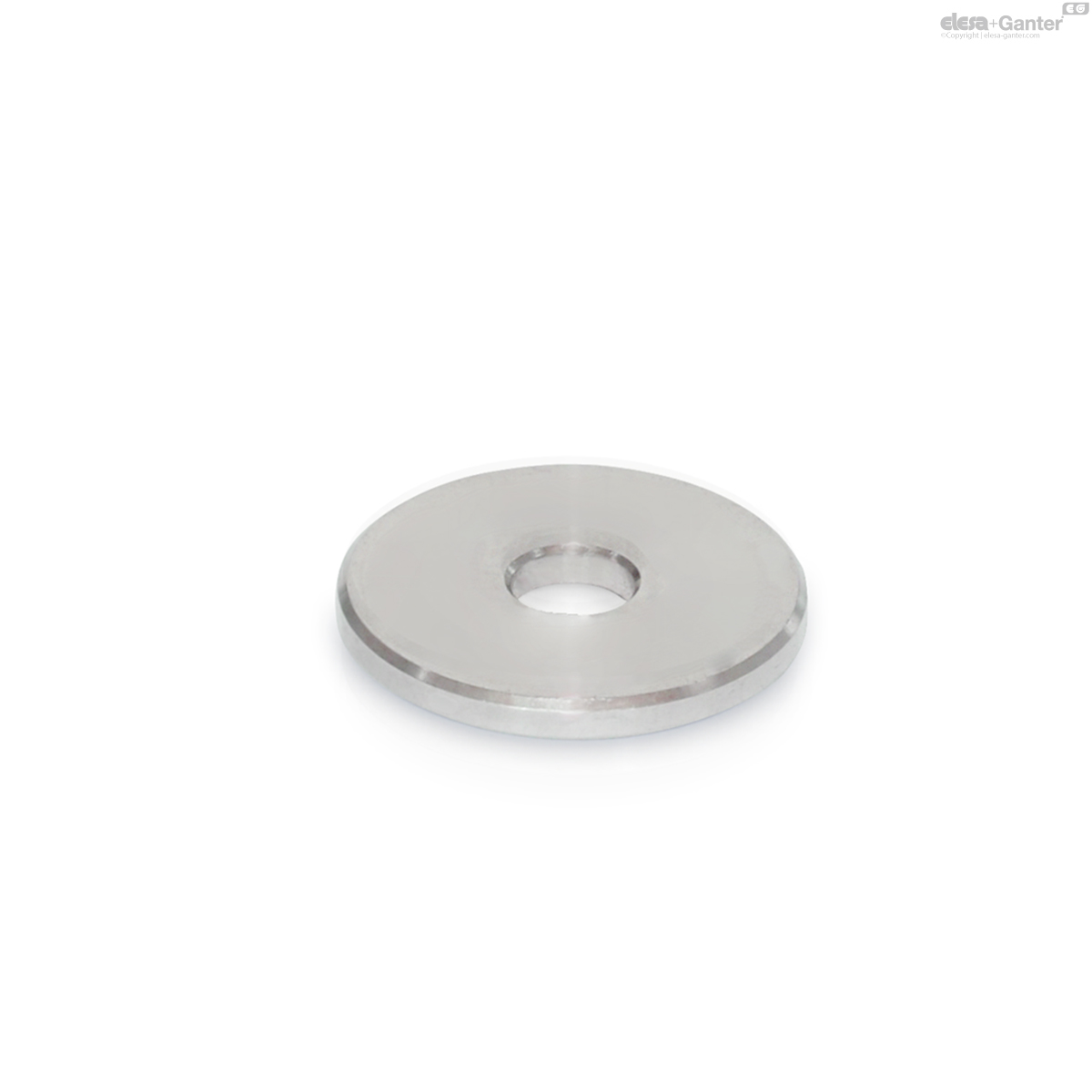

GN 6343
Washers / Levelling disks
Description
Specification
Stainless Steel NI
- AISI 304
- turned, blank
Information
Washers / Levelling disks GN 6343 are used mainly in mechanical engineering and jigmaking is required for levelling.
On request
- other dimensions
- chemically blackened surface
Technical information
- Stainless Steel characteristicsÂ
GN 6343

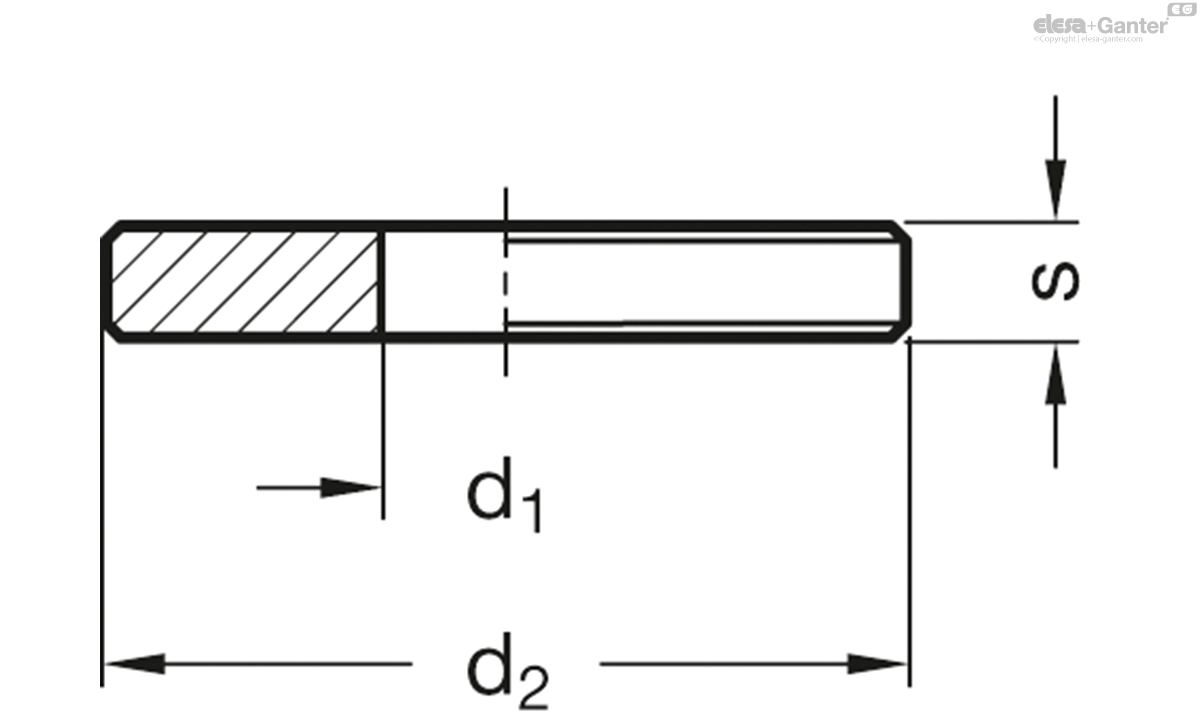

| d1 +0.1/+0.3 | d2 -0.2 | s ±0.1 |  |
||
|---|---|---|---|---|---|
| Code | Actions | ||||
| GN 6343-NI-4-8-1 | 4 | 8 | 1 | 3 |
|
| GN 6343-NI-4-8-2 | 4 | 8 | 2 | 4 |
|
| GN 6343-NI-4-12-1 | 4 | 12 | 1 | 8 |
|
| GN 6343-NI-4-12-2 | 4 | 12 | 2 | 16 |
|
| GN 6343-NI-4-12-3 | 4 | 12 | 3 | 3 |
|
| GN 6343-NI-5-10-1 | 5 | 10 | 1 | 5 |
|
| GN 6343-NI-5-10-2 | 5 | 10 | 2 | 1 |
|
| GN 6343-NI-5-10-3 | 5 | 10 | 3 | 2 |
|
| GN 6343-NI-5-15-2 | 5 | 15 | 2 | 3 |
|
| GN 6343-NI-5-15-3 | 5 | 15 | 3 | 4 |
|
| GN 6343-NI-6-12-1 | 6 | 12 | 1 | 1 |
|
| GN 6343-NI-6-12-2 | 6 | 12 | 2 | 1 |
|
| GN 6343-NI-6-12-3 | 6 | 12 | 3 | 2 |
|
| GN 6343-NI-6-20-2 | 6 | 20 | 2 | 5 |
|
| GN 6343-NI-6-20-3 | 6 | 20 | 3 | 7 |
|
| GN 6343-NI-6-20-5 | 6 | 20 | 5 | 11 |
|
| GN 6343-NI-8-16-2 | 8 | 16 | 2 | 3 |
|
| GN 6343-NI-8-16-3 | 8 | 16 | 3 | 4 |
|
| GN 6343-NI-8-16-5 | 8 | 16 | 5 | 6 |
|
| GN 6343-NI-8-25-2 | 8 | 25 | 2 | 6 |
|
| GN 6343-NI-8-25-3 | 8 | 25 | 3 | 10 |
|
| GN 6343-NI-8-25-5 | 8 | 25 | 5 | 17 |
|
| GN 6343-NI-10-20-2 | 10 | 20 | 2 | 4 |
|
| GN 6343-NI-10-20-3 | 10 | 20 | 3 | 6 |
|
| GN 6343-NI-10-20-5 | 10 | 20 | 5 | 10 |
|
| GN 6343-NI-10-30-3 | 10 | 30 | 3 | 15 |
|
| GN 6343-NI-10-30-5 | 10 | 30 | 5 | 25 |
|
| GN 6343-NI-12-20-2 | 12 | 20 | 2 | 3 |
|
| GN 6343-NI-12-20-3 | 12 | 20 | 3 | 3 |
|
| GN 6343-NI-12-20-5 | 12 | 20 | 5 | 8 |
|
| GN 6343-NI-12-30-3 | 12 | 30 | 3 | 14 |
|
| GN 6343-NI-12-30-5 | 12 | 30 | 5 | 23 |
|
| GN 6343-NI-16-20-2 | 16 | 20 | 2 | 18 |
|
| GN 6343-NI-16-20-3 | 16 | 20 | 3 | 27 |
|
| GN 6343-NI-16-20-5 | 16 | 20 | 5 | 14 |
|
| GN 6343-NI-16-30-3 | 16 | 30 | 3 | 12 |
|
| GN 6343-NI-16-30-5 | 16 | 30 | 5 | 20 |
|
