GN 6342
Washers
Steel / Stainless Steel, with axial friction bearing
Description
Specification

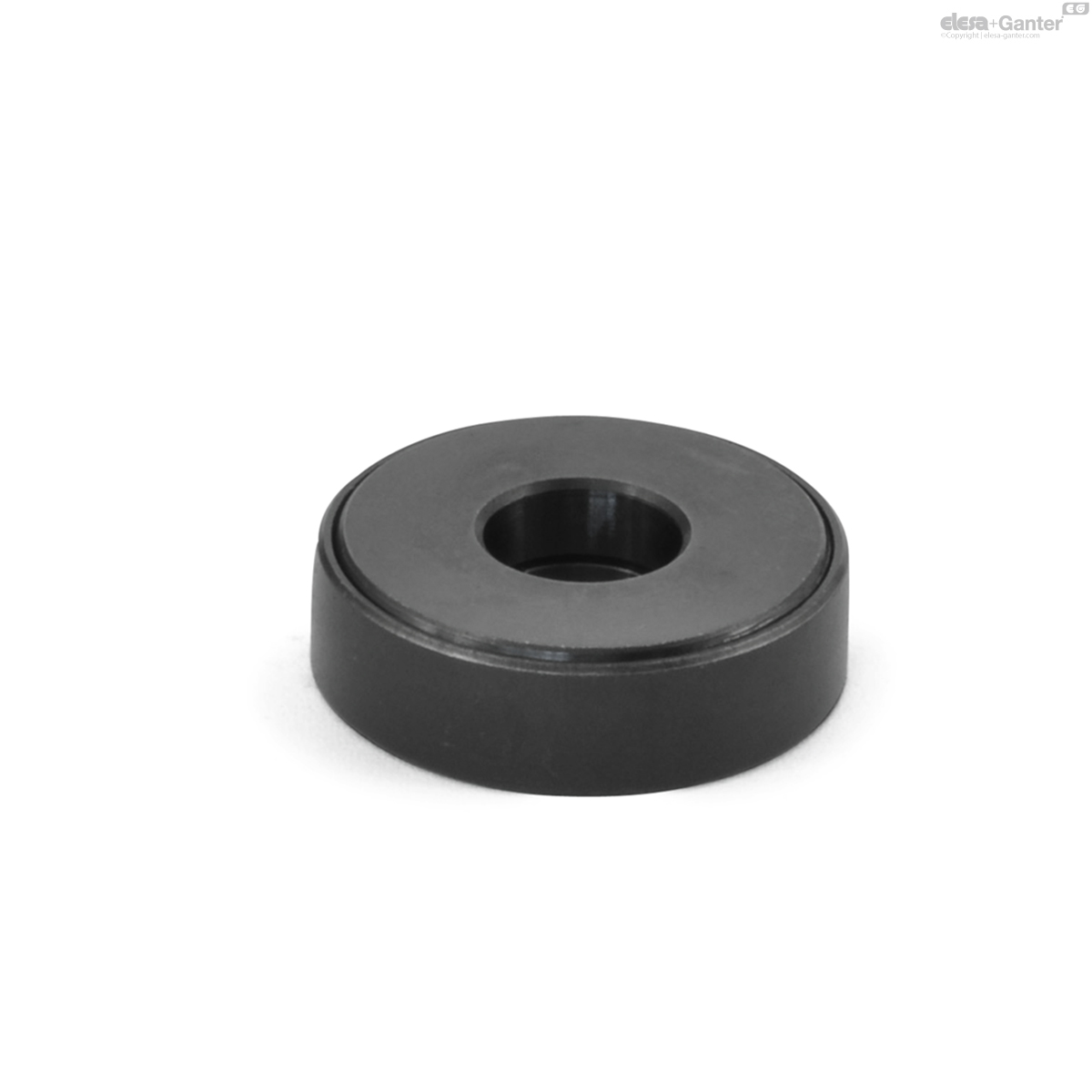

Version in Steel
Steel ST
blackened

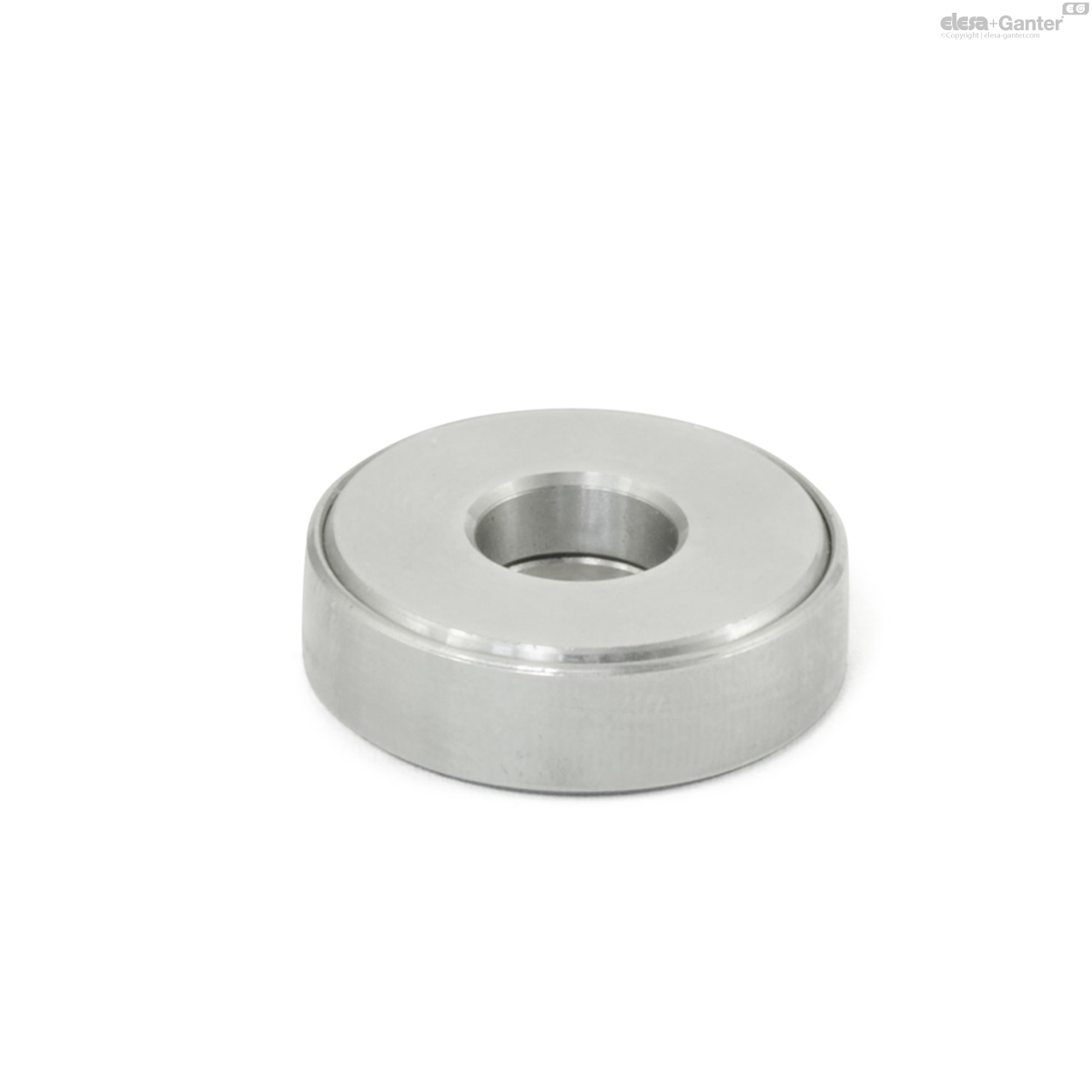

Version in Stainless Steel
Stainless Steel NI
AISI 303
Sliding disk
- Plastic (Polyamide 46)
- glasfibre reinforced
- temperature resistant up to 120 °C
- slightly greased (PTFE-mounting grease)
Information
Used in connection with clamping screws, e. g. star knob screws, washers with axial friction bearing GN 6342 offer the following advantages:
- almost double the clamping force owing to lower area friction
- fixed contact surface acting gentrly on the element to be clamped
Technical information
- Stainless Steel characteristics -
- Plastic characteristicsÂ
GN 6342

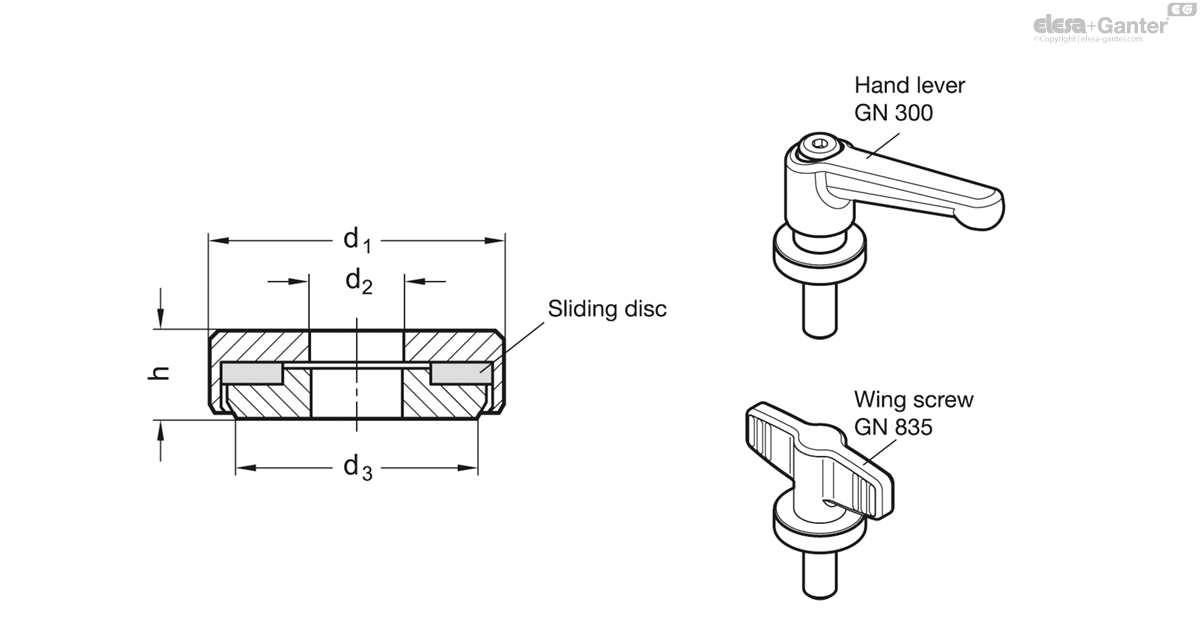

| d1 | d2 +0.2/+0.4 | d3 | h | For screws with thread |
Static load in kN |
 |
||
|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||
| GN 6342-ST-20-6 | 20 | 6 | 16 | 6 | M 6 | 20 | 11 |
|
| GN 6342-ST-26-8 | 26 | 8 | 22 | 7 | M 8 | 38 | 22 |
|
| GN 6342-ST-28-10 | 28 | 10 | 24 | 8 | M 10 | 40 | 28 |
|
| GN 6342-ST-32-12 | 32 | 12 | 28 | 9 | M 12 | 55 | 41 |
|
