GN 6336.3
Quick Release Star Knobs
Steel / Stainless Steel
Description
Specification
Plastic
Technopolymer (Polyamide PA)
- shock-resistant
- black, matt finish
Bushing

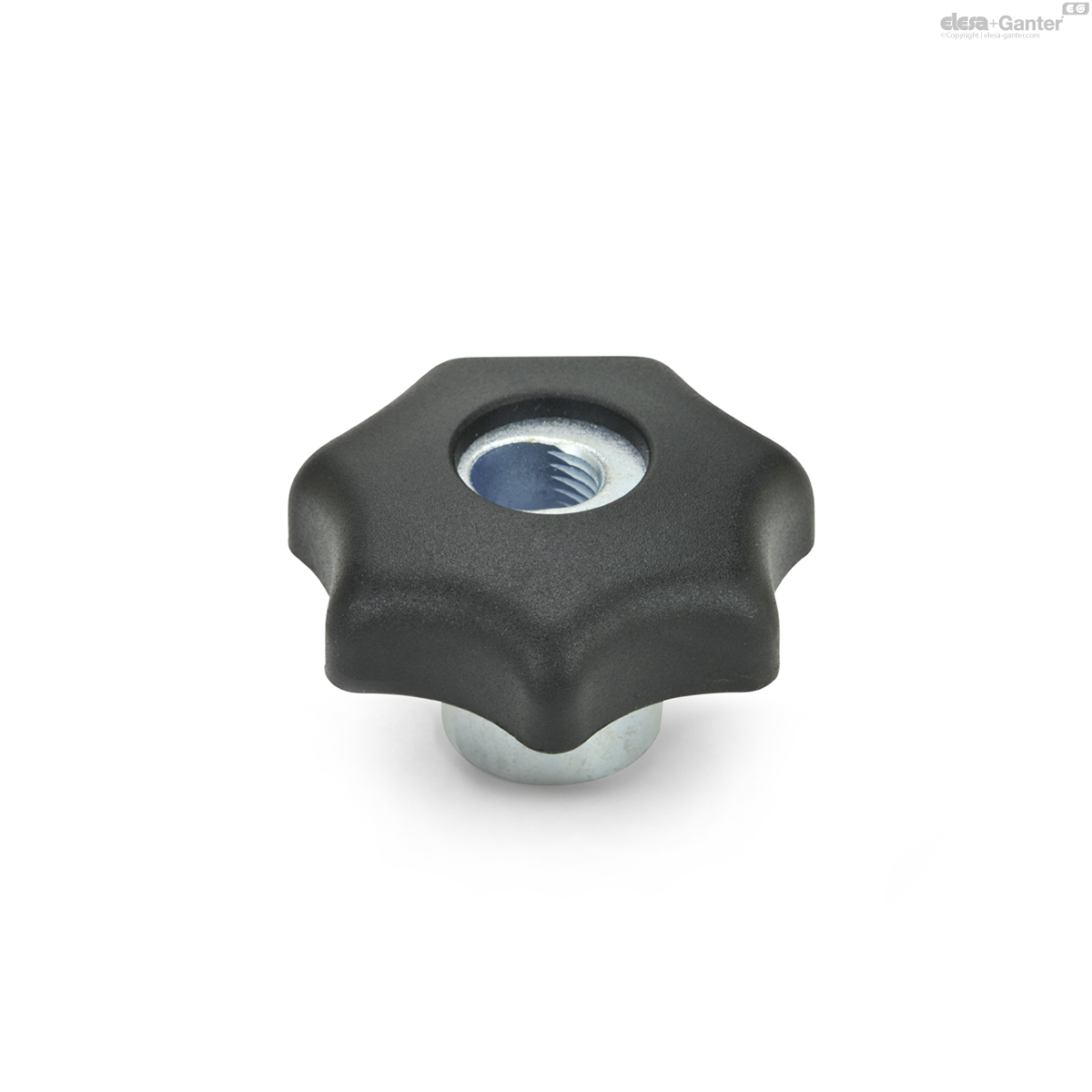

Steel zinc plated, blue passivated

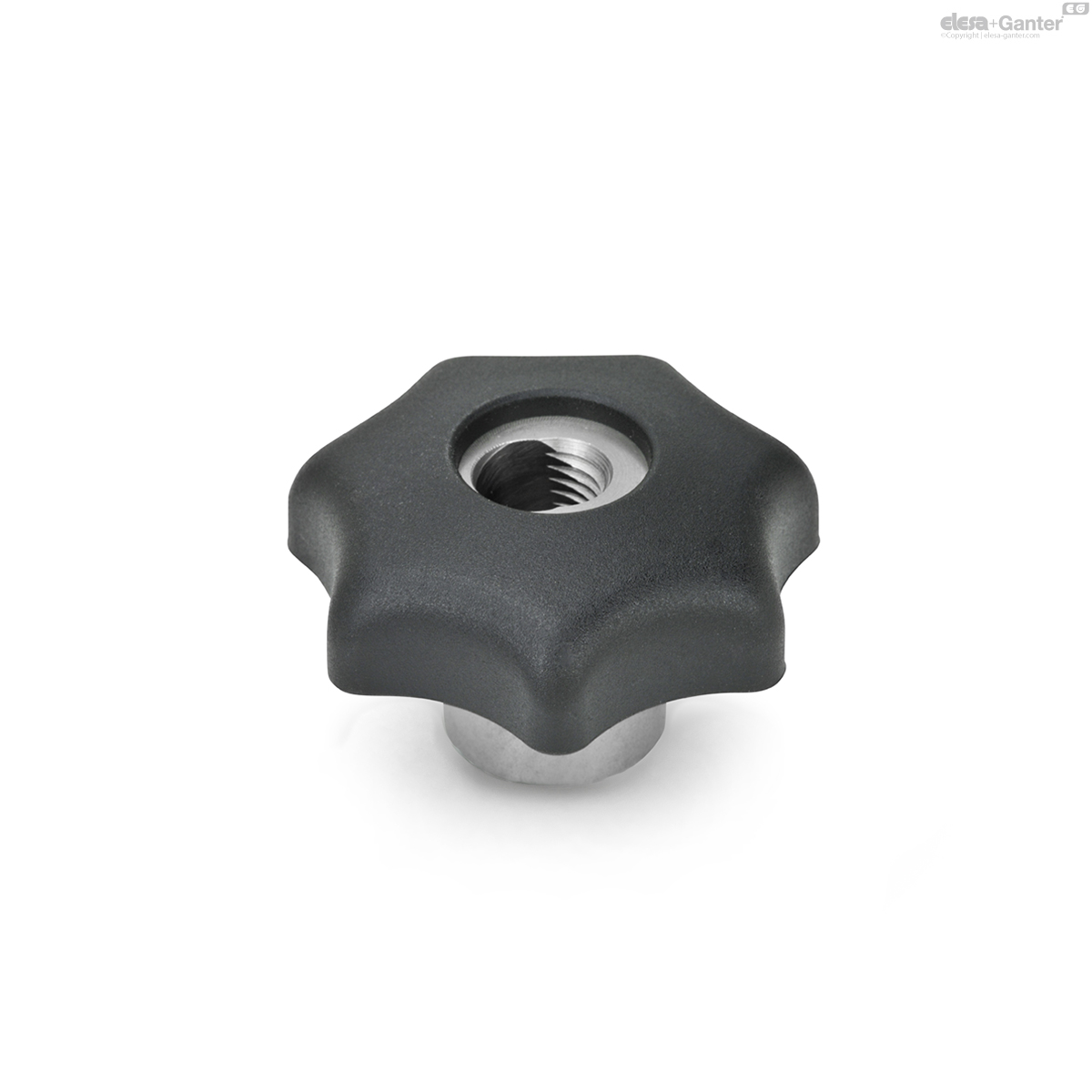

Stainless Steel AISI 303 NI
Information
Quick release star knobs GN 6336.3 are used in such applications where the knob has to be completely removed after the releasing operation and refitted rapidly for re-clamping.

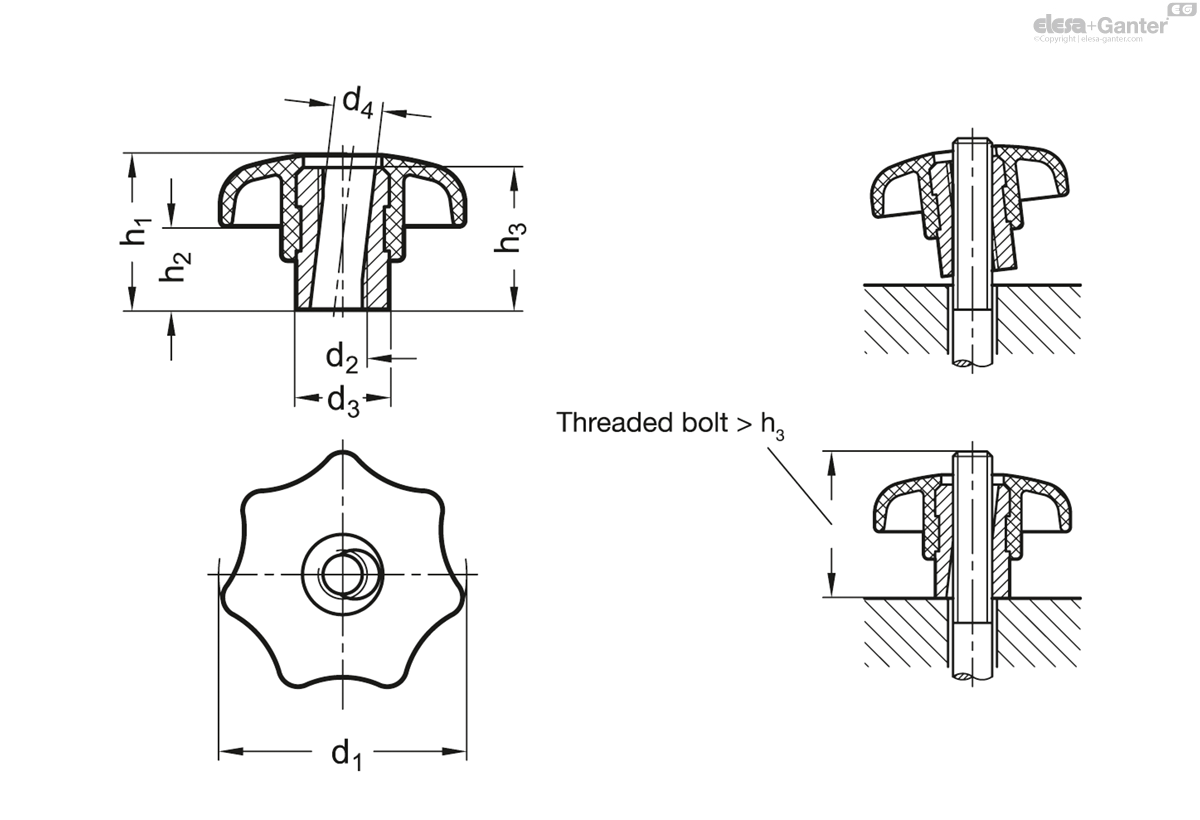

The knob is tilted over the threaded spindle. When in position, the knob is brought into a straight position for meshing of the two threads on nut and spindle. The knob will then have to be turned only by fraction of a rotation to achieve clamping.
Functional safety exists only if the clamping surface lies at a right angle to the threaded bolt.
Technical information
- Plastic CharacteristicsÂ
- Stainless Steel CharacteristicsÂ
GN 6336.3-ST
| d1 | d2 | d3 | d4 | h1 | h2 ≈ | h3 min. |  |
||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| GN 6336.3-40-M8 | 40 | M 8 | 16 | 8.4 | 26 | 14 | 23.5 | 32 |
|
| GN 6336.3-50-M10 | 50 | M 10 | 20 | 10.5 | 32 | 17 | 29 | 61 |
|
| GN 6336.3-63-M12 | 63 | M 12 | 26 | 13 | 40 | 21 | 36 | 125 |
|
