GN 6335

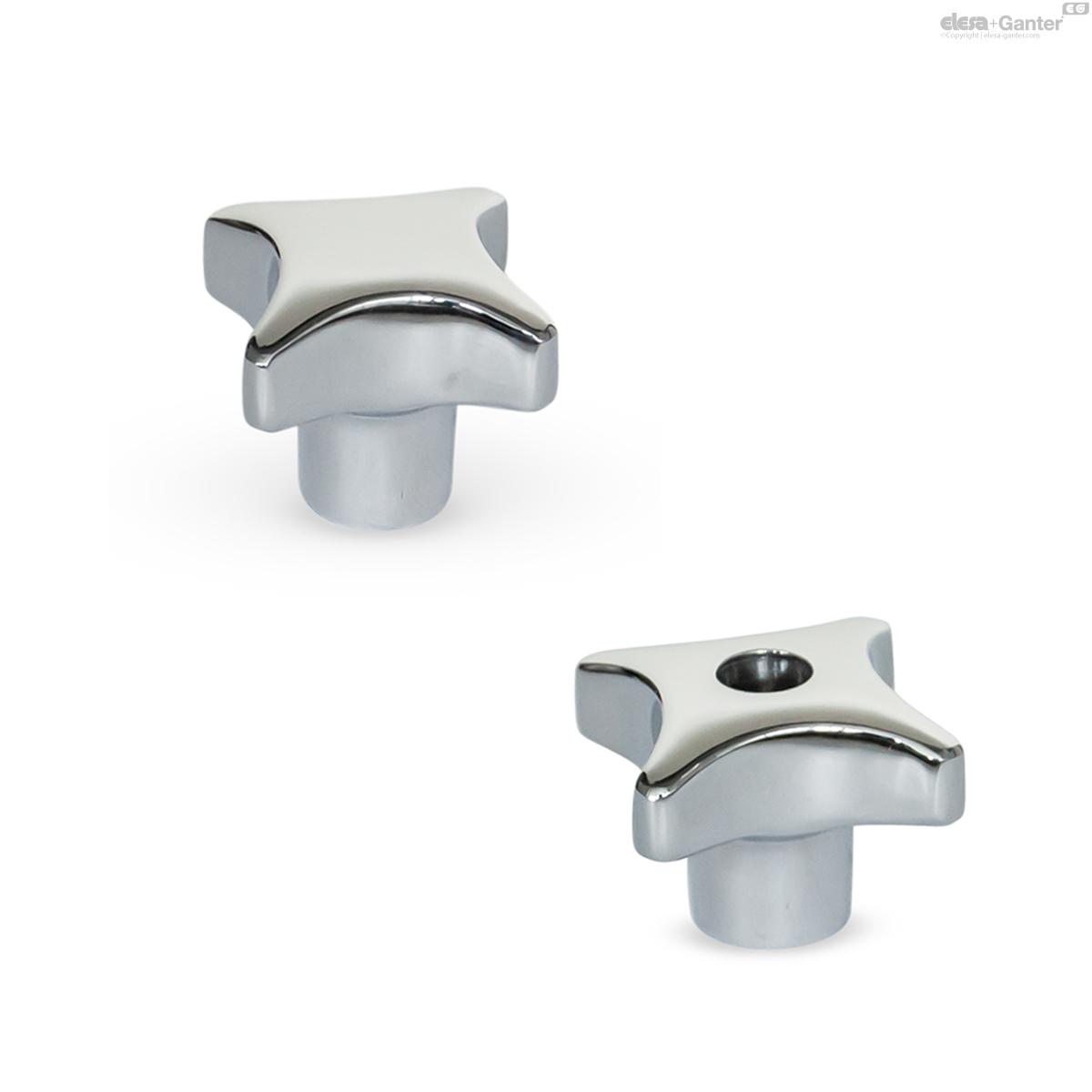

Stainless Steel-Hand knobs

Material no. AISI 316 (A4)

Enquire Now

Description

Specification

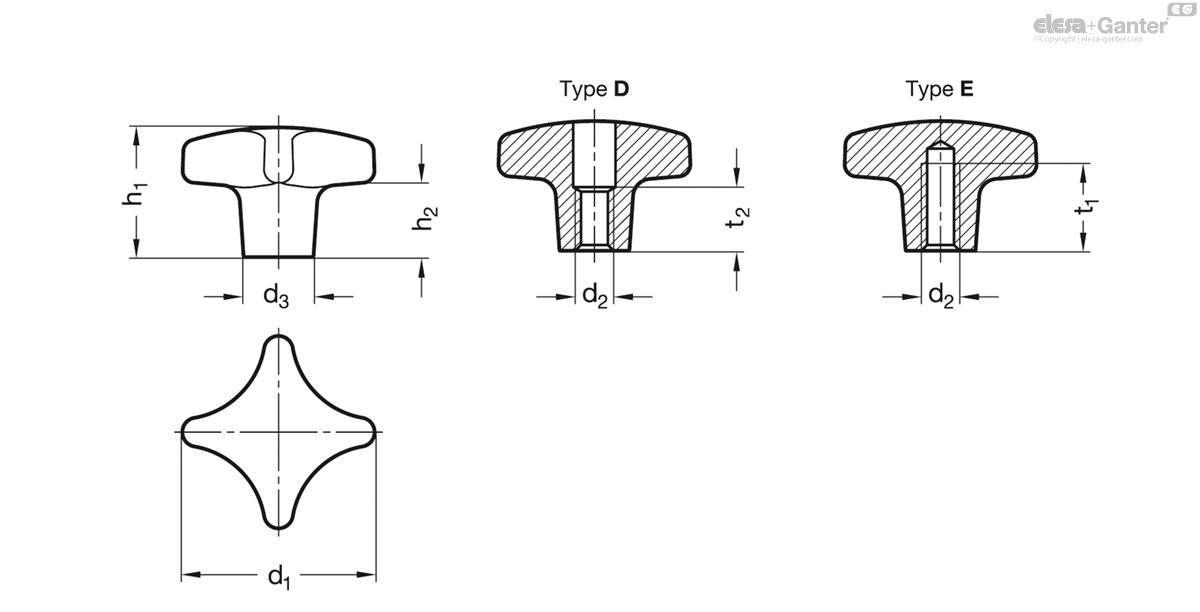

Types

Type D: with threaded through bore

Type E: with threaded blind bore

Stainless Steel precision casting A4

AISI 316

polished PL

Information

Stainless Steel-Hand knobs GN 6335 satisfy the dimensions of the DIN 6335 but differ in terms of their non-scooping geometry, which makes cleaning easier and helps prevent possible build-up of dirt.

They are suitable for areas with special hygiene requirements and, thanks to the material used, for applications in highly corrosive environments.

Technical information

Stainless Steel characteristics

GN 6335

	d₁	d₂	d₃	h₁	h₂	t₁ min.	t₂
Code									Actions
GN 6335-A4-32-M6-D-PL	32	M 6	12	20	9	-	10	36
GN 6335-A4-32-M6-E-PL	32	M 6	12	20	9	12	-	40
GN 6335-A4-40-M8-D-PL	40	M 8	14	25	13	-	13	57
GN 6335-A4-40-M8-E-PL	40	M 8	14	25	13	15	-	60
GN 6335-A4-50-M10-D-PL	50	M 10	18	32	18	-	16	109
GN 6335-A4-50-M10-E-PL	50	M 10	18	32	18	18	-	115
GN 6335-A4-63-M12-D-PL	63	M 12	20	40	23	-	20	195
GN 6335-A4-63-M12-E-PL	63	M 12	20	40	23	22	-	207
