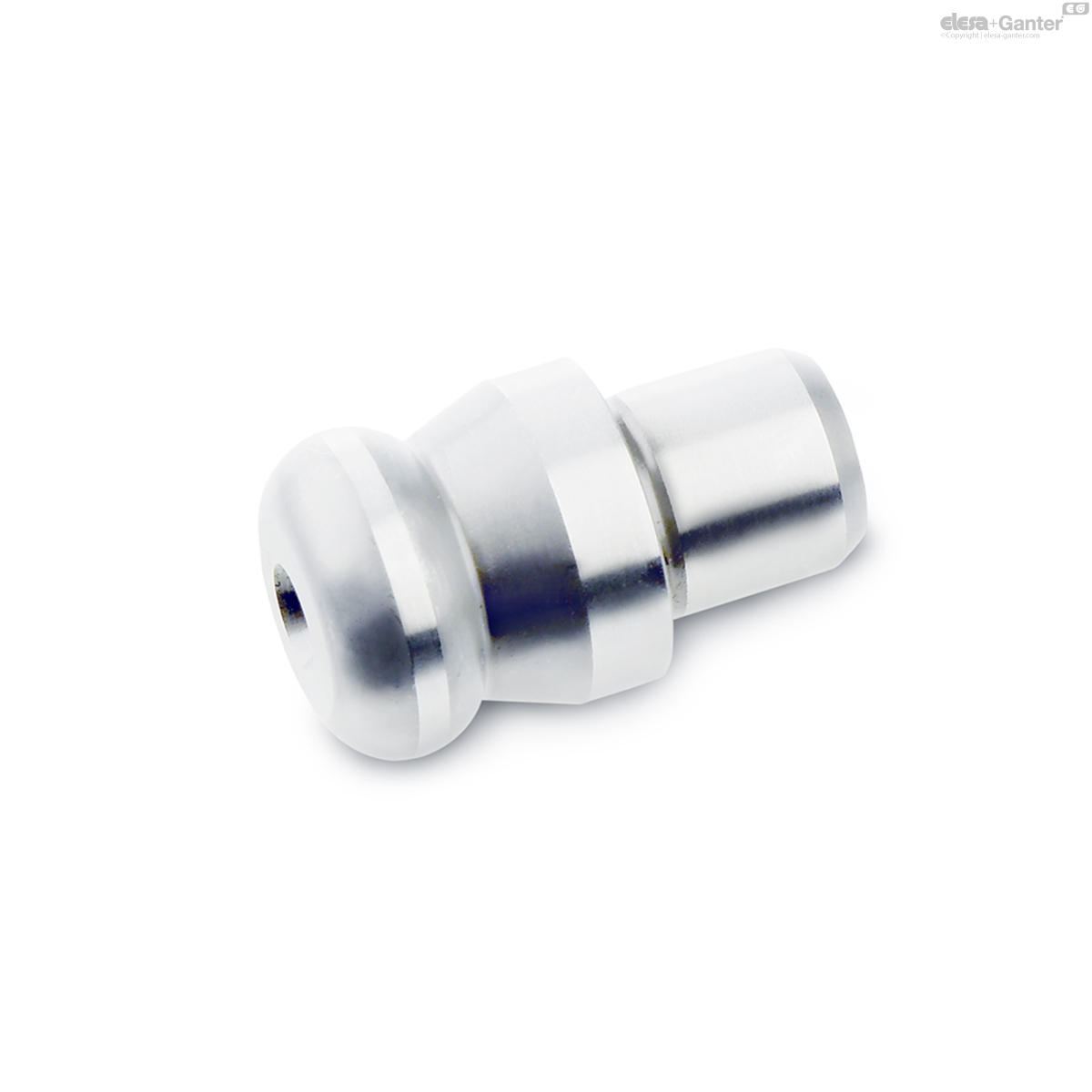

GN 6322
Workholding bolts
with ball-type shoulder
Description
Specification
Types
- Type B: Workholding bolt cylindrical
- Type C: Workholding bolt flattened
Steel
hardened
Information
Workholding bolts GN 6322 are used for positioning in bores, with the ball-type shoulder facilitating the insertion into the bore.
The flattened design (Form C) helps to compensate tolerances in the spacing of two bores. Another application of this design is to fix parts to be positioned in one direction only.
Technical information
- ISO-Fundamental Tolerances -
GN 6322
| d1 g6 | d2 n6 | d3 -0.01/-0.05 | d4 | h1 | h2 | l | s | t | r |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| GN 6322-10-7-B | 10 | 7 | 10 | M 3 | 10 | 2.5 | 7 | - | 6 | 2.5 | 7 |
|
| GN 6322-10-7-C | 10 | 7 | 10 | M 3 | 10 | 2.5 | 7 | 2.5 | 6 | 2.5 | 6 |
|
| GN 6322-12-8-B | 12 | 8 | 12 | M 4 | 12 | 3 | 8 | - | 8 | 3 | 12 |
|
| GN 6322-12-8-C | 12 | 8 | 12 | M 4 | 12 | 3 | 8 | 2.5 | 8 | 3 | 9 |
|
| GN 6322-16-12-B | 16 | 12 | 16 | M 5 | 16 | 4 | 12 | - | 10 | 4 | 30 |
|
| GN 6322-16-12-C | 16 | 12 | 16 | M 5 | 16 | 4 | 12 | 4.3 | 10 | 4 | 25 |
|
| GN 6322-20-14-B | 20 | 14 | 20 | M 5 | 20 | 5 | 14 | - | 10 | 5 | 57 |
|
| GN 6322-20-14-C | 20 | 14 | 20 | M 5 | 20 | 5 | 14 | 5 | 10 | 5 | 45 |
|
| GN 6322-22-16-B | 22 | 16 | 22 | M 5 | 22 | 5.5 | 16 | - | 10 | 5.5 | 79 |
|
| GN 6322-22-16-C | 22 | 16 | 22 | M 5 | 22 | 5.5 | 16 | 5 | 10 | 5.5 | 62 |
|
| GN 6322-25-18-B | 25 | 18 | 25 | M 5 | 25 | 6 | 18 | - | 10 | 6 | 116 |
|
| GN 6322-25-18-C | 25 | 18 | 25 | M 5 | 25 | 6 | 18 | 5.6 | 10 | 6 | 90 |
|
