GN 6321.1

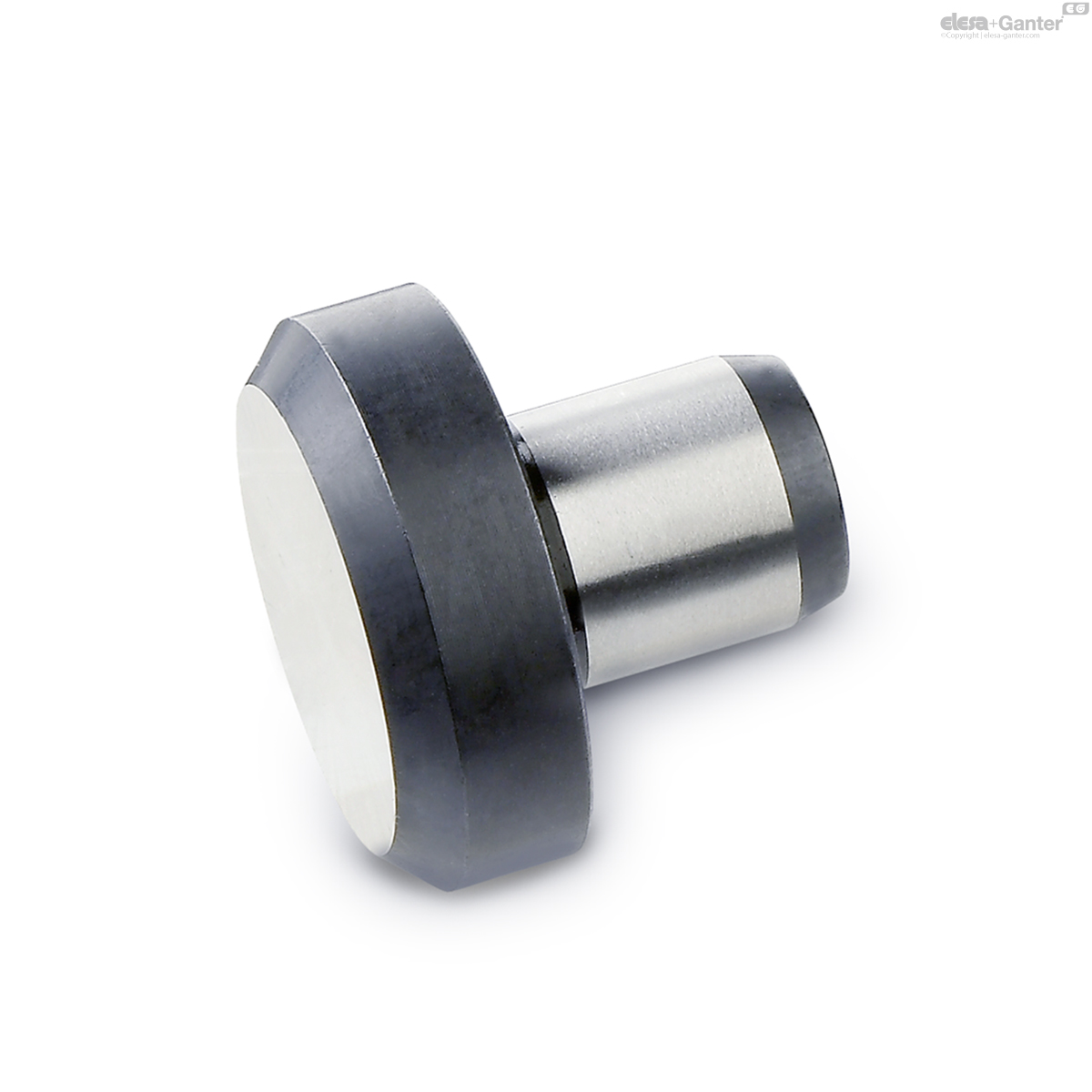

Headed dowels
Description
Specification
Steel
hardened
Information
Headed dowels GN 6321.1 can also be used as feet.
Technical information
- ISO-Fundamental TolerancesÂ
GN 6321.1
| d1 | d2 n6 | h h9 | l |  |
d p6/h6 | ||
|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||
| GN 6321.1-6-2,5 | 6 | 4 | 2.5 | 6.5 | 2 | 6 |
|
| GN 6321.1-6-4,5 | 6 | 4 | 4.5 | 8.5 | 2 | 6 |
|
| GN 6321.1-6-5 | 6 | 4 | 5 | 6 | 2 | 6 |
|
| GN 6321.1-10-4,5 | 10 | 6 | 4.5 | 8.5 | 5 | 10 |
|
| GN 6321.1-10-8 | 10 | 6 | 8 | 8 | 6 | 10 |
|
| GN 6321.1-16-5 | 16 | 8 | 5 | 10 | 11 | 16 |
|
| GN 6321.1-16-13 | 16 | 8 | 13 | 10 | 23 | 16 |
|
| GN 6321.1-20-6 | 20 | 10 | 6 | 12 | 21 | 20 |
|
| GN 6321.1-20-12 | 20 | 10 | 12 | 12 | 35 | 20 |
|
| GN 6321.1-25-8 | 25 | 12 | 8 | 14 | 41 | 25 |
|
| GN 6321.1-25-20 | 25 | 12 | 20 | 14 | 87 | 25 |
|
| GN 6321.1-25-30 | 25 | 12 | 30 | 14 | 124 | 25 |
|
| GN 6321.1-30-25 | 30 | 16 | 25 | 20 | 164 | 30 |
|
| GN 6321.1-30-40 | 30 | 16 | 40 | 20 | 248 | 30 |
|
| GN 6321.1-30-50 | 30 | 16 | 50 | 20 | 305 | 30 |
|
| GN 6321.1-30-65 | 30 | 16 | 65 | 20 | 385 | 30 |
|
| GN 6321.1-40-13 | 40 | 20 | 13 | 20 | 171 | 40 |
|
| GN 6321.1-40-32 | 40 | 20 | 32 | 20 | 357 | 40 |
|
