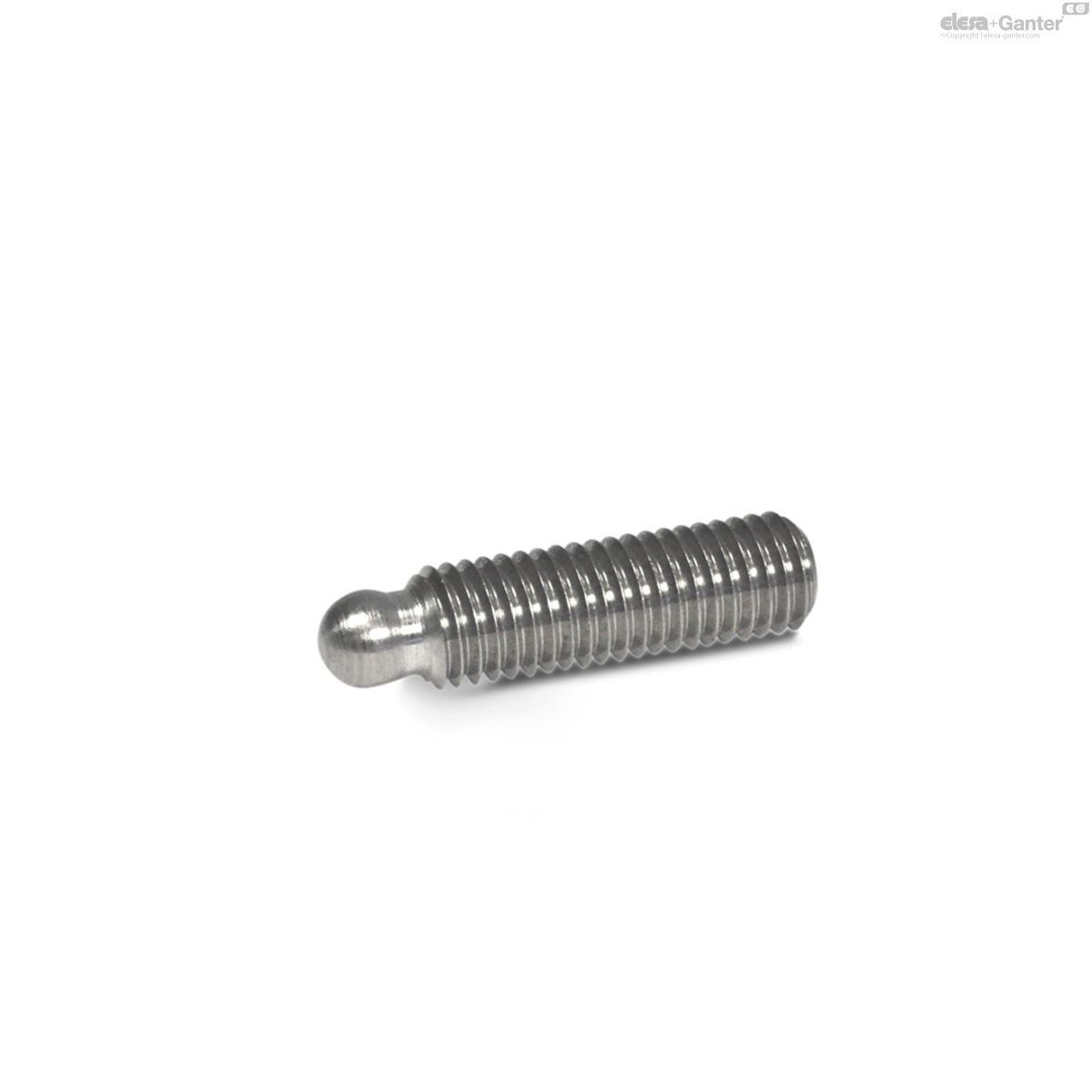

GN 632.5
Stainless Steel-Grub screws
with ball point for Thrust pads GN 631 / GN 631.5
Description
Specification
Stainless Steel AISI 303
Information
Grub screws GN 632.5 with ball point are as a rule used with thrust pads GN 631  / GN 631.5 .
The ball-Ø d2 is smaller than the thread core-Ø, which allows fitting over the ball end.
The combination of grub screws GN 632.5 and thrust pads GN 631  / GN 631.5  with gripping elements easily makes clamping screws of many different types.
Technical information
- Stainless Steel characteristicsÂ
- Strength values of screwsÂ
GN 632.5
| d1 | l | d2 +0,05 | A/F | Thrust pad GN 631 / GN 631.5 d1 - e |
 |
||
|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||
| GN 632.5-M6-30 | M 6 | 30 | 4.5 | 3 | 15 - 3.6 | 18 - 5.2 | 21 - 6 | 25 - 6.5 | 32 - 7 | 5 |
|
| GN 632.5-M6-40 | M 6 | 40 | 4.5 | 3 | 15 - 3.6 | 18 - 5.2 | 21 - 6 | 25 - 6.5 | 32 - 7 | 6 |
|
| GN 632.5-M6-50 | M 6 | 50 | 4.5 | 3 | 15 - 3.6 | 18 - 5.2 | 21 - 6 | 25 - 6.5 | 32 - 7 | 8 |
|
| GN 632.5-M8-25 | M 8 | 25 | 6.1 | 4 | 15 - 2.5 | 18 - 4.2 | 21 - 5 | 25 - 5.5 | 32 - 6 | 40 - 8 | 50 - 10.4 | 7 |
|
| GN 632.5-M8-40 | M 8 | 40 | 6.1 | 4 | 15 - 2.5 | 18 - 4.2 | 21 - 5 | 25 - 5.5 | 32 - 6 | 40 - 8 | 50 - 10.4 | 11 |
|
| GN 632.5-M8-50 | M 8 | 50 | 6.1 | 4 | 15 - 2.5 | 18 - 4.2 | 21 - 5 | 25 - 5.5 | 32 - 6 | 40 - 8 | 50 - 10.4 | 14 |
|
| GN 632.5-M8-63 | M 8 | 63 | 6.1 | 4 | 15 - 2.5 | 18 - 4.2 | 21 - 5 | 25 - 5.5 | 32 - 6 | 40 - 8 | 50 - 10.4 | 18 |
|
| GN 632.5-M10-40 | M 10 | 40 | 7.8 | 5 | 18 - 3.8 | 21 - 4.3 | 25 - 4.6 | 32 - 5 | 40 - 7 | 50 - 9.3 | 19 |
|
| GN 632.5-M10-50 | M 10 | 50 | 7.8 | 5 | 18 - 3.8 | 21 - 4.3 | 25 - 4.6 | 32 - 5 | 40 - 7 | 50 - 9.3 | 22 |
|
| GN 632.5-M10-63 | M 10 | 63 | 7.8 | 5 | 18 - 3.8 | 21 - 4.3 | 25 - 4.6 | 32 - 5 | 40 - 7 | 50 - 9.3 | 27 |
|
| GN 632.5-M10-80 | M 10 | 80 | 7.8 | 5 | 18 - 3.8 | 21 - 4.3 | 25 - 4.6 | 32 - 5 | 40 - 7 | 50 - 9.3 | 37 |
|
| GN 632.5-M12-40 | M 12 | 40 | 9.4 | 6 | 21 - 3.4 | 25 - 3.6 | 32 - 4.2 | 40 - 6.2 | 50 - 8.7 | 20 |
|
| GN 632.5-M12-63 | M 12 | 63 | 9.4 | 6 | 21 - 3.4 | 25 - 3.6 | 32 - 4.2 | 40 - 6.2 | 50 - 8.7 | 40 |
|
| GN 632.5-M12-80 | M 12 | 80 | 9.4 | 6 | 21 - 3.4 | 25 - 3.6 | 32 - 4.2 | 40 - 6.2 | 50 - 8.7 | 48 |
|
| GN 632.5-M12-100 | M 12 | 100 | 9.4 | 6 | 21 - 3.4 | 25 - 3.6 | 32 - 4.2 | 40 - 6.2 | 50 - 8.7 | 60 |
|
