GN 6319.1

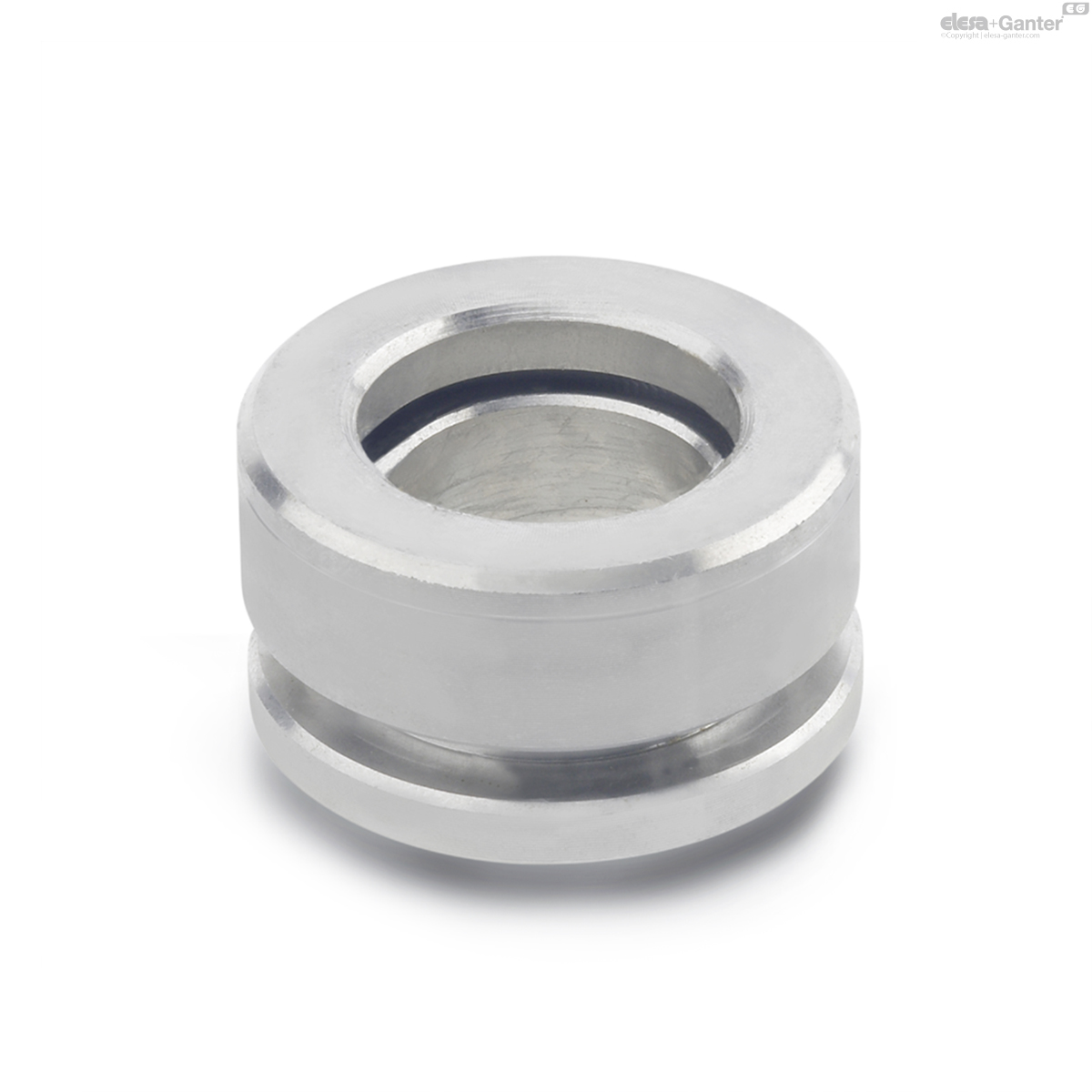

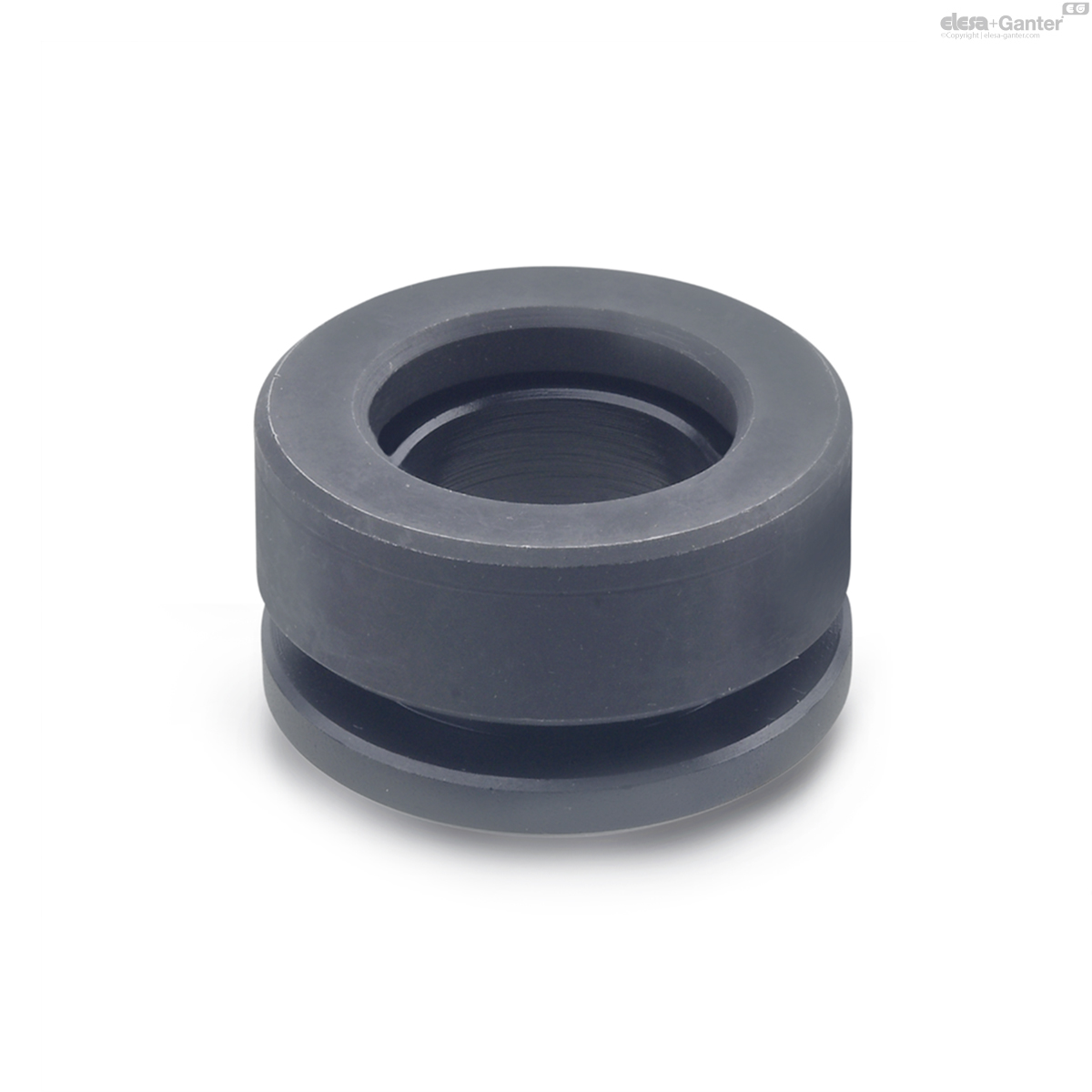

Spherical washers

Steel / Stainless Steel, combined

Enquire Now

Description

Specification

Steel ST

Case hardening steel

case hardened

all round depth 0.2 to 0.4 mm

hardness (550 + 100) HV 10

Stainless Steel AISI 303 NI

Information

Spherical washers combinations GN 6319.1 provide an 'undetachable' connection for male and female spherical washers DIN 6319 .

They simply storage and allow fast and efficient installation.

Technical information

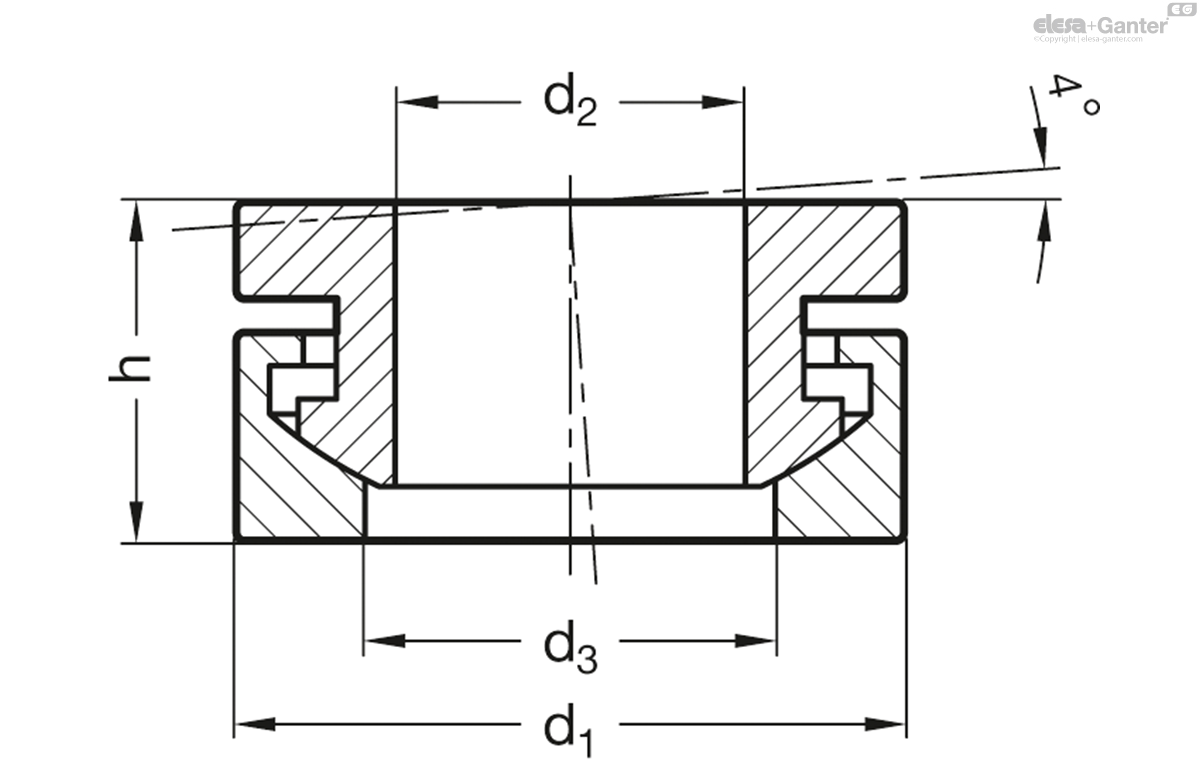

	d₁	d₂	d₃	h	For screw	Static load F in kN
Code								Actions
GN 6319.1-13-ST	13	6.4	7.4	7	M 6	9	4
GN 6319.1-17-ST	17	8.4	9.7	8.5	M 8	17	9
GN 6319.1-21-ST	21	10.5	12	10.5	M 10	26	18
GN 6319.1-25-ST	25	13	14.8	13	M 12	38	20
GN 6319.1-32-ST	32	17	19.7	17	M 16	73	60
GN 6319.1-40-ST	40	21	24.6	20.3	M 20	117	110
