GN 6311.4

Leveling Feet

Steel

Enquire Now

With plastic cap, gliding

GN 6311.4-R

Leveling Feet

With plastic cap, non-gliding

Description

Specification

Types

Type N: Without plastic cap

Type G: With plastic cap, gliding

Type R: With plastic cap, non-gliding

Foot plate / Screw

Steel

Property class 5.8

Zinc plated, blue passivated

Retaining spring

Stainless steel AISI 301

Plastic caps

Type G

Technopolymer (Polyacetal POM)

Cream RAL 9001

Type R

Elastomer (TPE)

Hardness ≈ 75 Shore A

Black

Information

Leveling feet GN 6311.4 are used for installing and leveling devices and equipment.

The pin diameter d₃ is smaller than the core diameter of the thread, with the effect that the screw can be turned in at the pin. The pressure pin is easily inserted into the plate, with the retaining spring ensuring that the assembly is secure in axial direction.

The values listed in the table for static load capacity refer to a purely vertical load in relation to the leveling foot. Under normal operating conditions, bending loads or angular loads are not uncommon and result in a reduction of load capacity which must be taken into consideration.

Technical information

Strength values of Screws / Nuts

Plastic Characteristics

Stainless Steel Characteristics

GN 6311.4-R

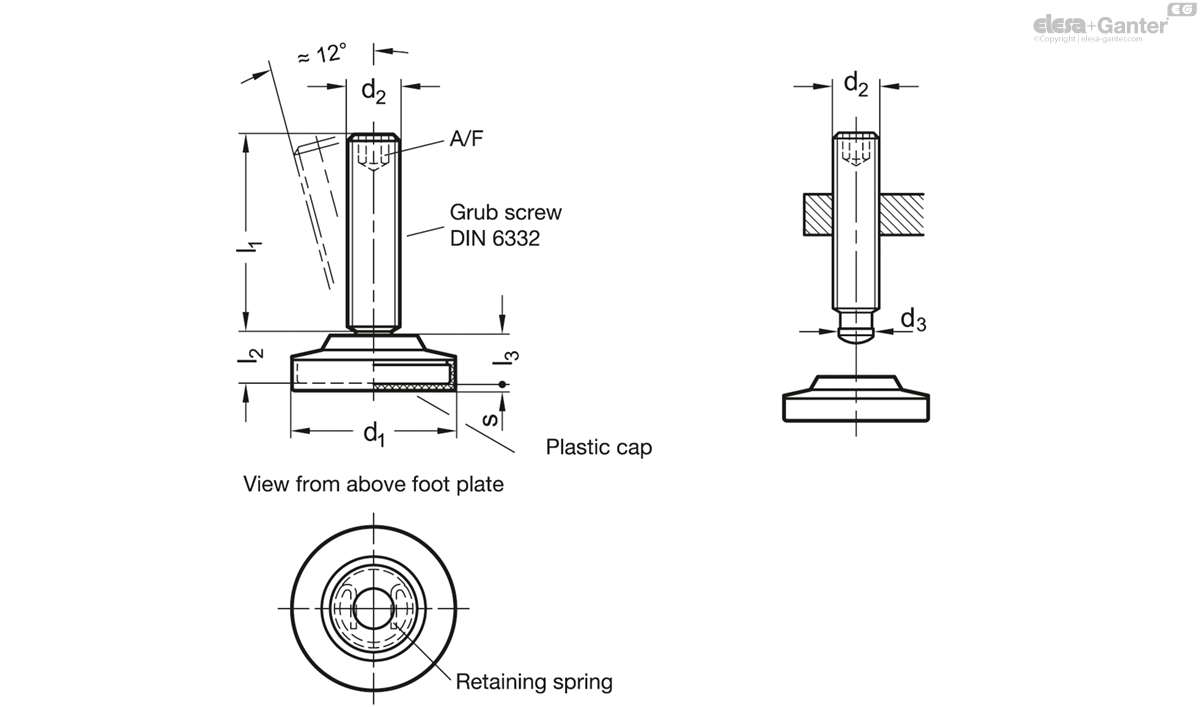

	d₁	d₂	l₁ ≈	d₃	l₂	l₃	s	A/F	Static load in kN
Code											Actions
GN 6311.4-50-M10-37-R	50	M 10	37	8	12.5	11.5	2	5	5	134
GN 6311.4-50-M10-47-R	50	M 10	47	8	12.5	11.5	2	5	5	134
GN 6311.4-50-M10-57-R	50	M 10	57	8	12.5	11.5	2	5	5	143
GN 6311.4-50-M10-72-R	50	M 10	72	8	12.5	11.5	2	5	5	152
GN 6311.4-50-M12-41-R	50	M 12	41	8	12.5	11.5	2	6	5	144
GN 6311.4-50-M12-51-R	50	M 12	51	8	12.5	11.5	2	6	5	151
GN 6311.4-50-M12-61-R	50	M 12	61	8	12.5	11.5	2	6	5	158
GN 6311.4-50-M12-71-R	50	M 12	71	8	12.5	11.5	2	6	5	165
GN 6311.4-50-M12-91-R	50	M 12	91	8	12.5	11.5	2	6	5	180
GN 6311.4-50-M16-59-R	50	M 16	59	12	14.5	13.5	2	8	5	202
GN 6311.4-50-M16-69-R	50	M 16	69	12	14.5	13.5	2	8	5	213
GN 6311.4-50-M16-89-R	50	M 16	89	12	14.5	13.5	2	8	5	241
GN 6311.4-50-M16-114-R	50	M 16	114	12	14.5	13.5	2	8	5	268
GN 6311.4-60-M16-59-R	60	M 16	59	12	14.5	13.5	2	8	7	277
GN 6311.4-60-M16-69-R	60	M 16	69	12	14.5	13.5	2	8	7	287
GN 6311.4-60-M16-89-R	60	M 16	89	12	14.5	13.5	2	8	7	316
GN 6311.4-60-M16-114-R	60	M 16	114	12	14.5	13.5	2	8	7	342
GN 6311.4-60-M20-78-R	60	M 20	78	15.5	16.5	15.5	2	10	7	370
GN 6311.4-60-M20-88-R	60	M 20	88	15.5	16.5	15.5	2	10	7	390
GN 6311.4-60-M20-113-R	60	M 20	113	15.5	16.5	15.5	2	10	7	441
GN 6311.4-60-M20-138-R	60	M 20	138	15.5	16.5	15.5	2	10	7	490
GN 6311.4-80-M16-59-R	80	M 16	59	12	19	18	2.5	8	12	502
GN 6311.4-80-M16-69-R	80	M 16	69	12	19	18	2.5	8	12	512
GN 6311.4-80-M16-89-R	80	M 16	89	12	19	18	2.5	8	12	541
GN 6311.4-80-M16-114-R	80	M 16	114	12	19	18	2.5	8	12	567
GN 6311.4-80-M20-78-R	80	M 20	78	15.5	21	20	2.5	10	12	601
GN 6311.4-80-M20-88-R	80	M 20	88	15.5	21	20	2.5	10	12	621
GN 6311.4-80-M20-113-R	80	M 20	113	15.5	21	20	2.5	10	12	672
GN 6311.4-80-M20-138-R	80	M 20	138	15.5	21	20	2.5	10	12	721
GN 6311.4-100-M16-59-R	100	M 16	59	12	22	20	3	8	19	853
GN 6311.4-100-M16-69-R	100	M 16	69	12	22	20	3	8	19	863
GN 6311.4-100-M16-89-R	100	M 16	89	12	22	20	3	8	19	892
GN 6311.4-100-M16-114-R	100	M 16	114	12	22	20	3	8	19	918
GN 6311.4-100-M20-78-R	100	M 20	78	15.5	24	23	3	10	19	950
GN 6311.4-100-M20-88-R	100	M 20	88	15.5	24	23	3	10	19	970
GN 6311.4-100-M20-113-R	100	M 20	113	15.5	24	23	3	10	19	1021
GN 6311.4-100-M20-138-R	100	M 20	138	15.5	24	23	3	10	19	1070
