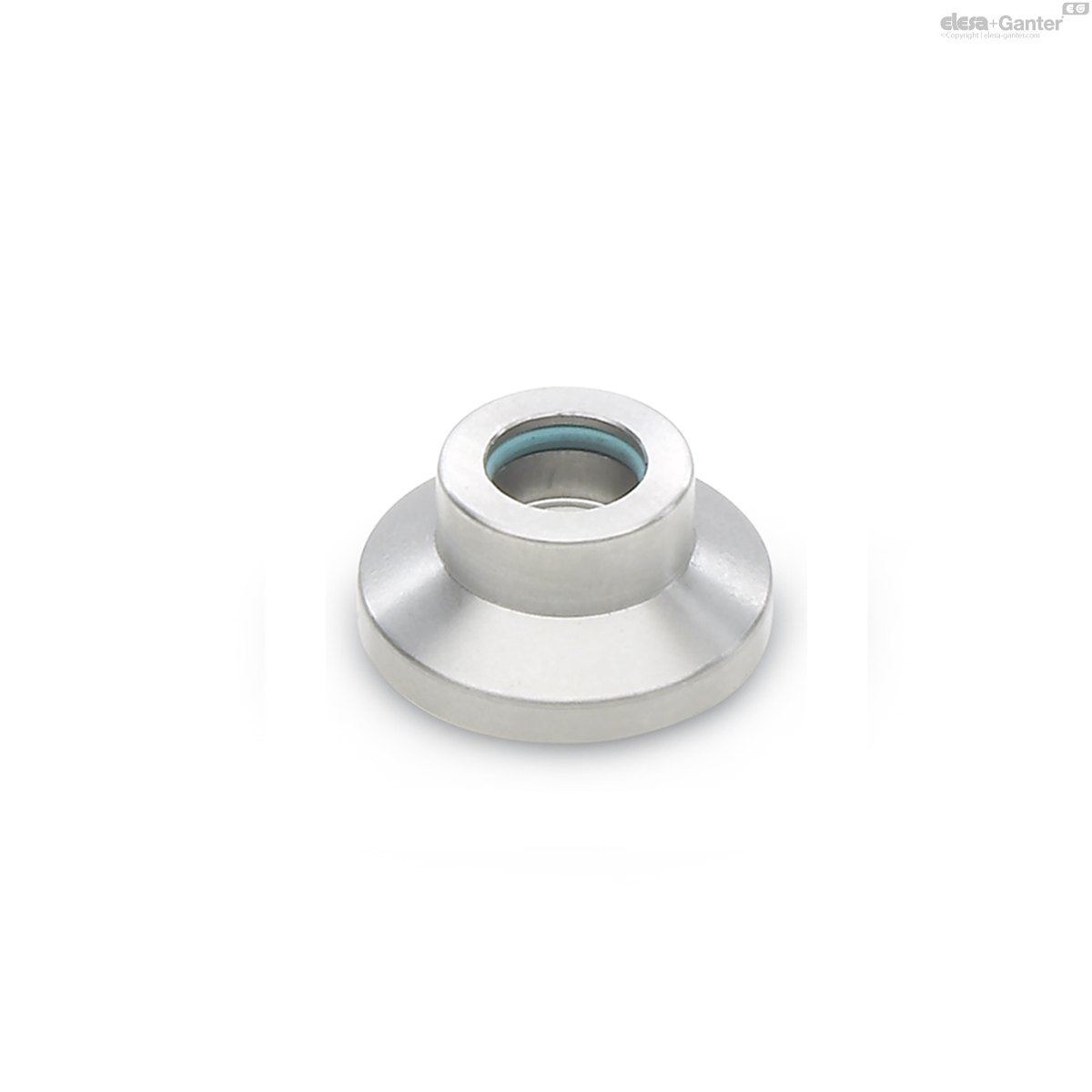

GN 631.5
Stainless Steel-Thrust pads
for Grub screws GN 632.5
Description
Specification
Stainless Steel AISI 303
O-Ring rubber FPM (Vition ®)
temperature resistant up to 200 °C
Information
Thrust pads GN 631.5 with ball point grub screw  GN 632.5  are ideal to transmit clamping forces. They lean to uneven and unparallel surfaces. They are easy to press-on to the ball point of the grub screw by hand.
Technical information
- Stainless Steel characteristicsÂ
GN 631.5

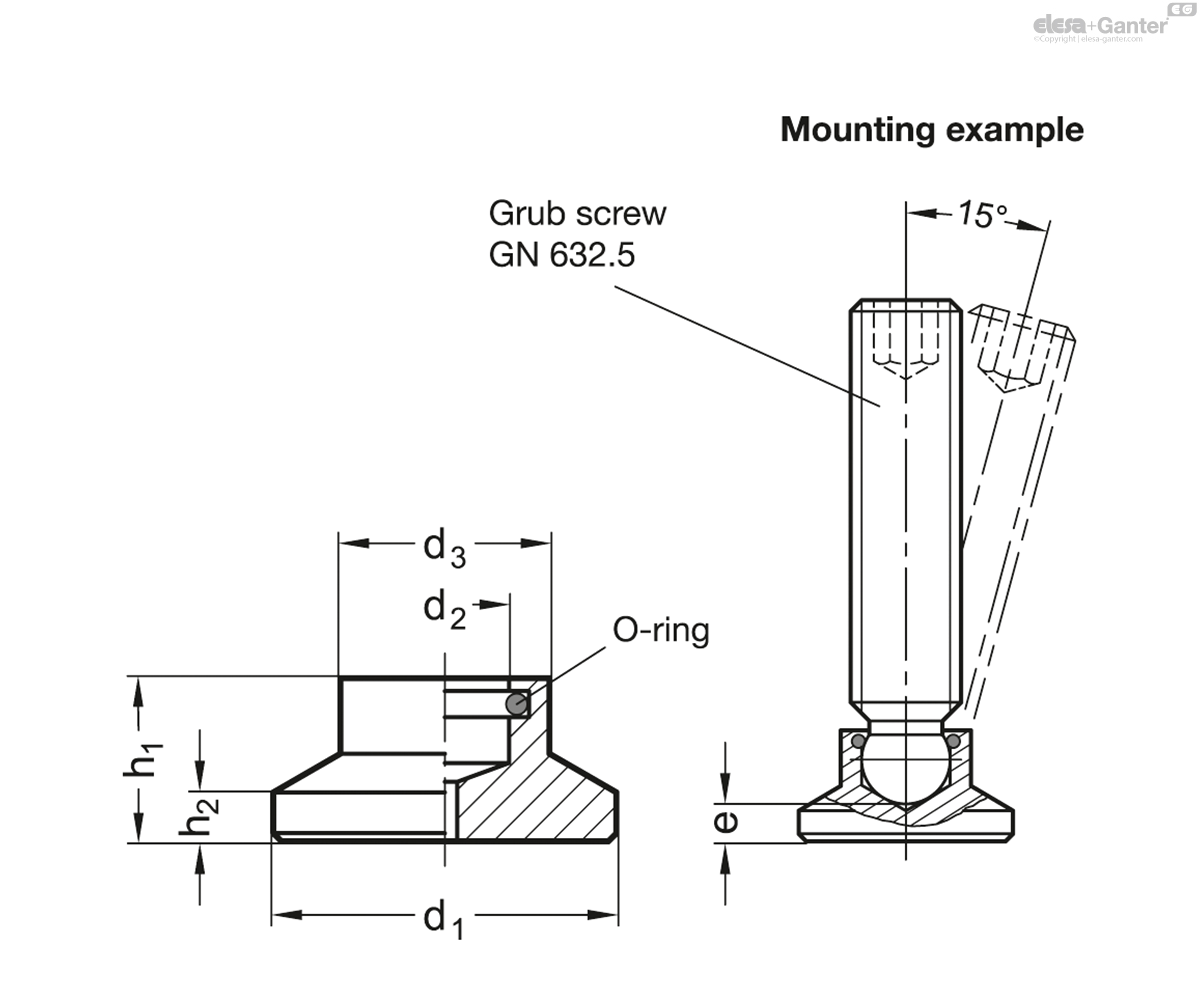

| d1 | d2 | d3 | e ≈ | h1 | h2 | Grub screw GN 632.5 |  |
||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| GN 631.5-21-4,5 | 21 | 4.5 | 12.8 | 6 | 10 | 3 | M 6 | 17 |
|
| GN 631.5-21-6,1 | 21 | 6.1 | 12,8 | 5 | 10 | 3 | M 8 | 15 |
|
| GN 631.5-21-7,8 | 21 | 7.8 | 12,8 | 4.3 | 10 | 3 | M 10 | 10 |
|
| GN 631.5-21-9,4 | 21 | 9.4 | 12.8 | 3.4 | 10 | 3 | M 12 | 13 |
|
| GN 631.5-25-4,5 | 25 | 4,5 | 13 | 6.5 | 10.5 | 3 | M 6 | 23 |
|
| GN 631.5-25-6,1 | 25 | 6.1 | 13 | 5.5 | 10.5 | 3 | M 8 | 20 |
|
| GN 631.5-25-7,8 | 25 | 7.8 | 13 | 4.6 | 10.5 | 3 | M 10 | 20 |
|
| GN 631.5-25-9,4 | 25 | 9.4 | 13 | 3.6 | 10.5 | 3 | M 12 | 21 |
|
| GN 631.5-32-4,5 | 32 | 4.5 | 14 | 7 | 11 | 3 | M 6 | 35 |
|
| GN 631.5-32-6,1 | 32 | 6.1 | 14 | 6 | 11 | 3 | M 8 | 35 |
|
| GN 631.5-32-7,8 | 32 | 7.8 | 14 | 5 | 11 | 3 | M 10 | 33 |
|
| GN 631.5-32-9,4 | 32 | 9.4 | 14 | 4.2 | 11 | 3 | M 12 | 35 |
|
| GN 631.5-40-6,1 | 40 | 6.1 | 16 | 8 | 13 | 4 | M 8 | 67 |
|
| GN 631.5-40-7,8 | 40 | 7.8 | 16 | 7 | 13 | 4 | M 10 | 67 |
|
| GN 631.5-40-9,4 | 40 | 9.4 | 16 | 6.2 | 13 | 4 | M 12 | 65 |
|
| GN 631.5-50-6,1 | 50 | 6.1 | 16 | 10.4 | 15.5 | 4 | M 8 | 116 |
|
| GN 631.5-50-7,8 | 50 | 7.8 | 16 | 9.3 | 15.5 | 4 | M 10 | 115 |
|
| GN 631.5-50-9,4 | 50 | 9.4 | 16 | 8.7 | 15.5 | 4 | M 12 | 114 |
|
