Home Machine Elements Thrust pads GN 631

GN 631

Thrust pads

for Grub screws GN 632.1 / GN 632.5

Enquire Now

Description

Specification

Plastic

Technopolymer (Polyacetal POM)

temperature resistant up to 80 °C

black, matt

Information

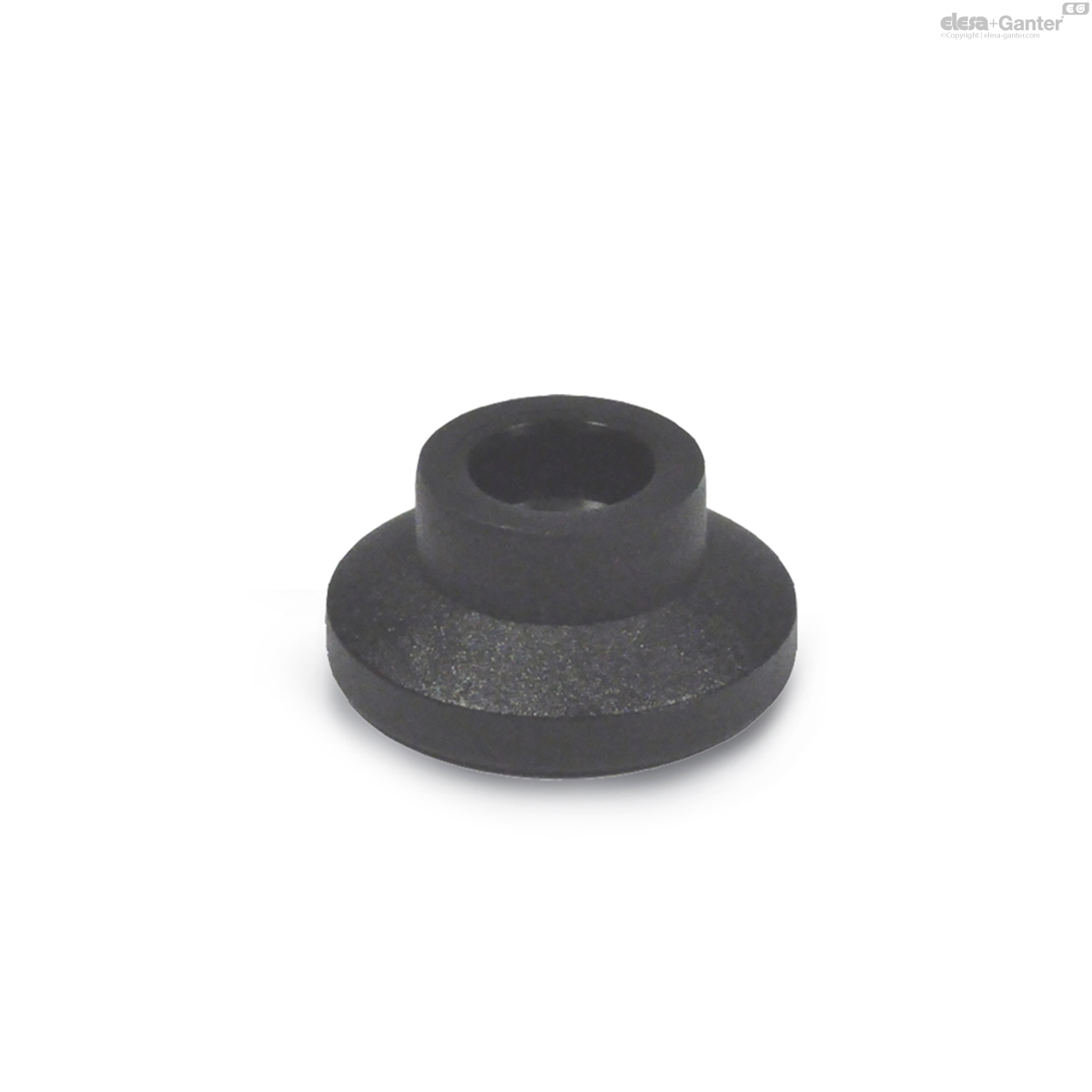

Thrust pads GN 631 with ball point grub screw GN 632.1 / GN 632.5 are ideal to transmit clamping forces. They lean to uneven and unparallel surfaces. They are easy to press-on to the ball point of the grub screw by hand.

GN 631

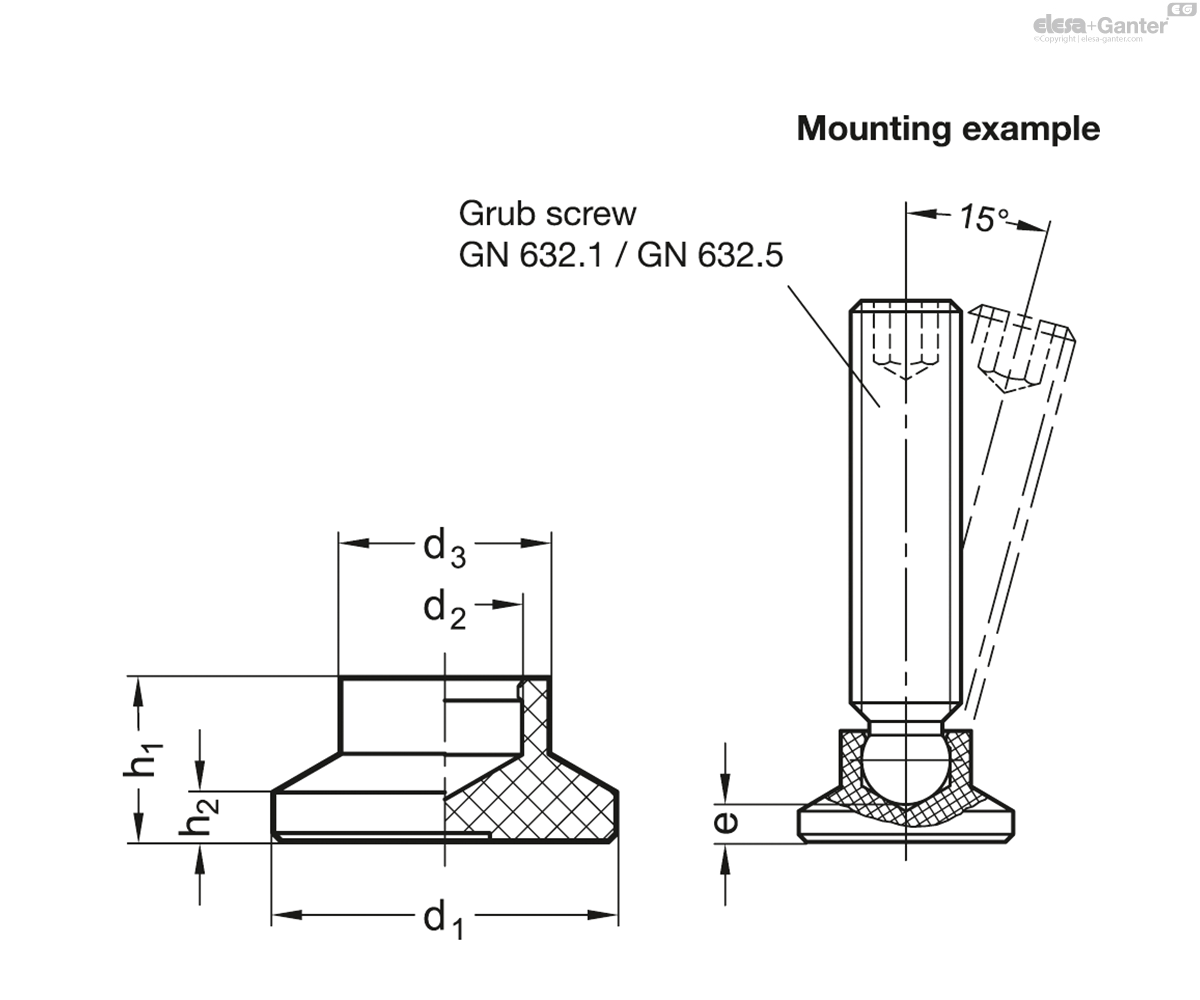

	d₁	d₂	d₃	e ≈	h₁	h₂	Grub screw GN 632.1/ GN 632.5
Code									Actions
GN 631-15-4,5	15	4.5	8.6	3.6	7.6	2.5	M 6	2
GN 631-15-6,1	15	6.1	8.6	2.5	7.6	2.5	M 8	1
GN 631-18-4,5	18	4.5	10.8	5.2	9.2	2.5	M 6	2
GN 631-18-6,1	18	6.1	10.8	4,2	9.2	2.5	M 8	2
GN 631-18-7,8	18	7.8	10.8	3.8	9.2	2.5	M 10	2
GN 631-21-4,5	21	4.5	12.8	6	10	3	M 6	3
GN 631-21-6,1	21	6.1	12.8	5	10	3	M 8	3
GN 631-21-7,8	21	7.8	12.8	4.3	10	3	M 10	2
GN 631-21-9,4	21	9.4	12.8	3.4	10	3	M 12	2
GN 631-25-4,5	25	4.5	13	6.5	10.5	3	M 6	4
GN 631-25-6,1	25	6.1	13	5.5	10.5	3	M 8	4
GN 631-25-7,8	25	7.8	13	4.6	10.5	3	M 10	4
GN 631-25-9,4	25	9.4	13	3.6	10.5	3	M 12	3
GN 631-32-4,5	32	4.5	14	7	11	3	M 6	6
GN 631-32-6,1	32	6.1	14	6	11	3	M 8	6
GN 631-32-7,8	32	7.8	14	5	11	3	M 10	5
GN 631-32-9,4	32	9.4	14	4.2	11	3	M 12	5
GN 631-40-6,1	40	6.1	16	8	13	4	M 8	10
GN 631-40-7,8	40	7.8	16	7	13	4	M 10	9
GN 631-40-9,4	40	9.4	16	6.2	13	4	M 12	7
GN 631-50-6,1	50	6.1	16	10.4	15.5	4	M 8	13
GN 631-50-7,8	50	7.8	16	9.3	15.5	4	M 10	10
GN 631-50-9,4	50	9.4	16	8.7	15.5	4	M 12	10
