GN 616.2
Spring Plungers
Steel / Stainless Steel, with Collar, with Ball, with Front Slot

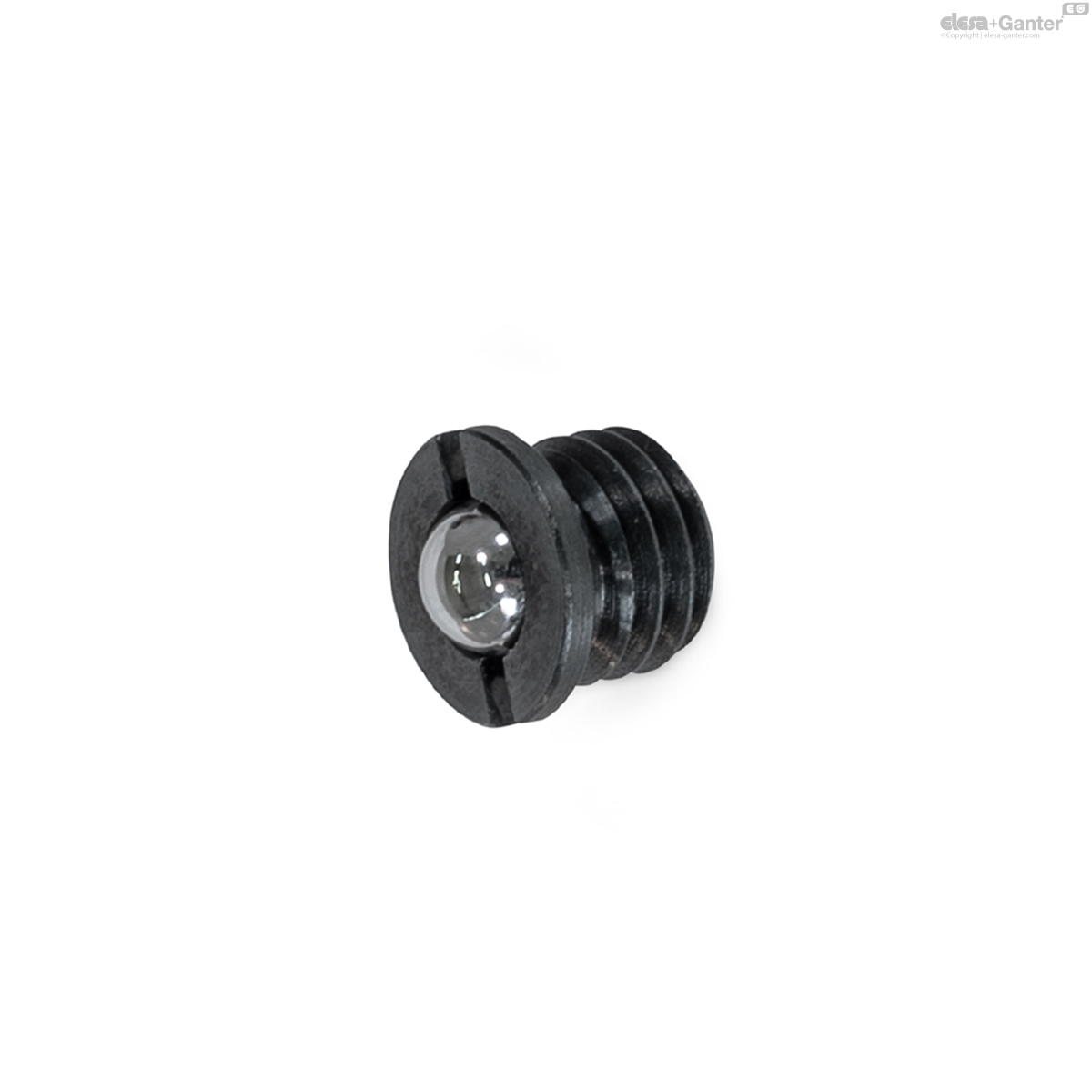

GN 616.2-ST
Spring Plungers
Housing steel, ball stainless steel

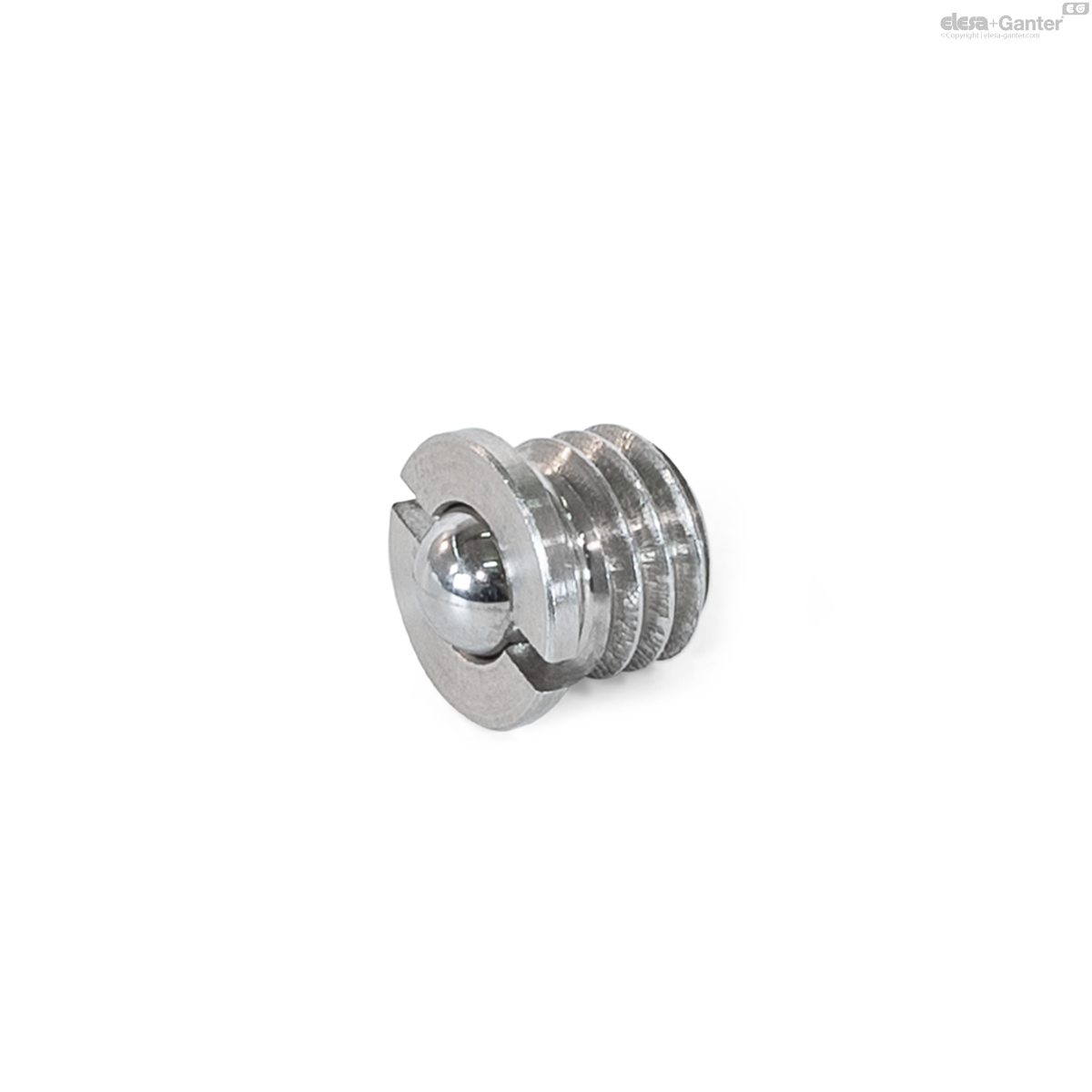

GN 616.2-NI
Spring Plungers
Housing stainless steel, ball stainless steel
Description
Specification
Types
- Type ST: Housing steel, ball stainless steel
- Type NI: Housing stainless steel, ball stainless steel
Type ST
- Housing steel, blackened
- Ball stainless steel AISI 303, hardened
Type NI
- Housing stainless steel AISI 303
- Ball stainless steel AISI 303, hardened
Spring
Stainless steel AISI 302
Information
Spring plungers GN 616.2 are used for locking as well as for push-on and push-off functions.
The slot on the ball side is used for screwing into pocket holes. A mounting tool GN 611.2 is available (see table).
Accessory
- GN 611.2Â Mounting Tools
Technical information
- Stainless Steel CharacteristicsÂ
GN 616.2-ST

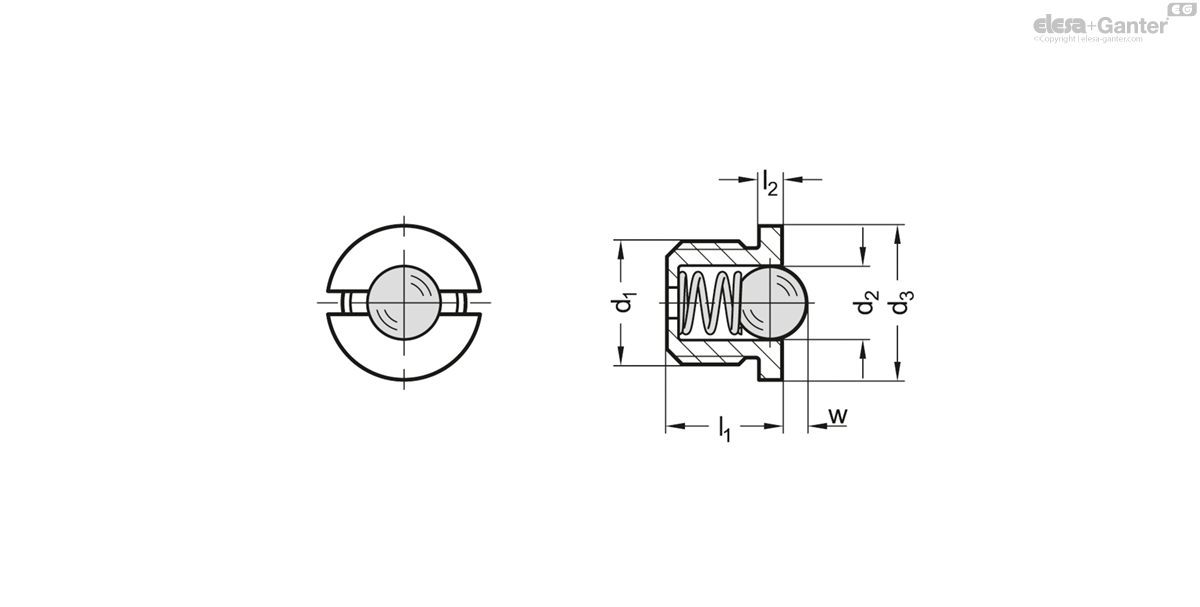

| d1 | d2 | d3 -0.1 | l1 | l2 -0.1 | w ±0.1 Compression | Spring load in N≈ initial |
Spring load in N≈ end |
Code no. for mounting tool |
 |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||
| GN 616.2-M4-ST | M 4 | 2 | 5.5 | 4 | 0.6 | 0.6 | 1.7 | 3.9 | 611.2-M4 | 1 |
|
| GN 616.2-M5-ST | M 5 | 3 | 7 | 5 | 0.8 | 0.8 | 2.9 | 4.5 | 611.2-M5 | 1 |
|
| GN 616.2-M6-ST | M 6 | 3.5 | 8 | 6 | 1 | 1 | 3.6 | 8.7 | 611.2-M6 | 1 |
|
| GN 616.2-M8-ST | M 8 | 5 | 10 | 7 | 1.6 | 1.6 | 5.4 | 10.2 | 611.2-M8 | 2 |
|
| GN 616.2-M10-ST | M 10 | 6.35 | 12 | 9 | 1.9 | 1.9 | 7.4 | 17.5 | 611.2-M10 | 4 |
|
| GN 616.2-M12-ST | M 12 | 8 | 14 | 11.5 | 2.4 | 2.4 | 10.8 | 22.3 | 611.2-M12 | 6 |
|
