GN 616.1
Spring Plungers
Steel / Stainless Steel, with sealed bolt
Description
Specification
Types

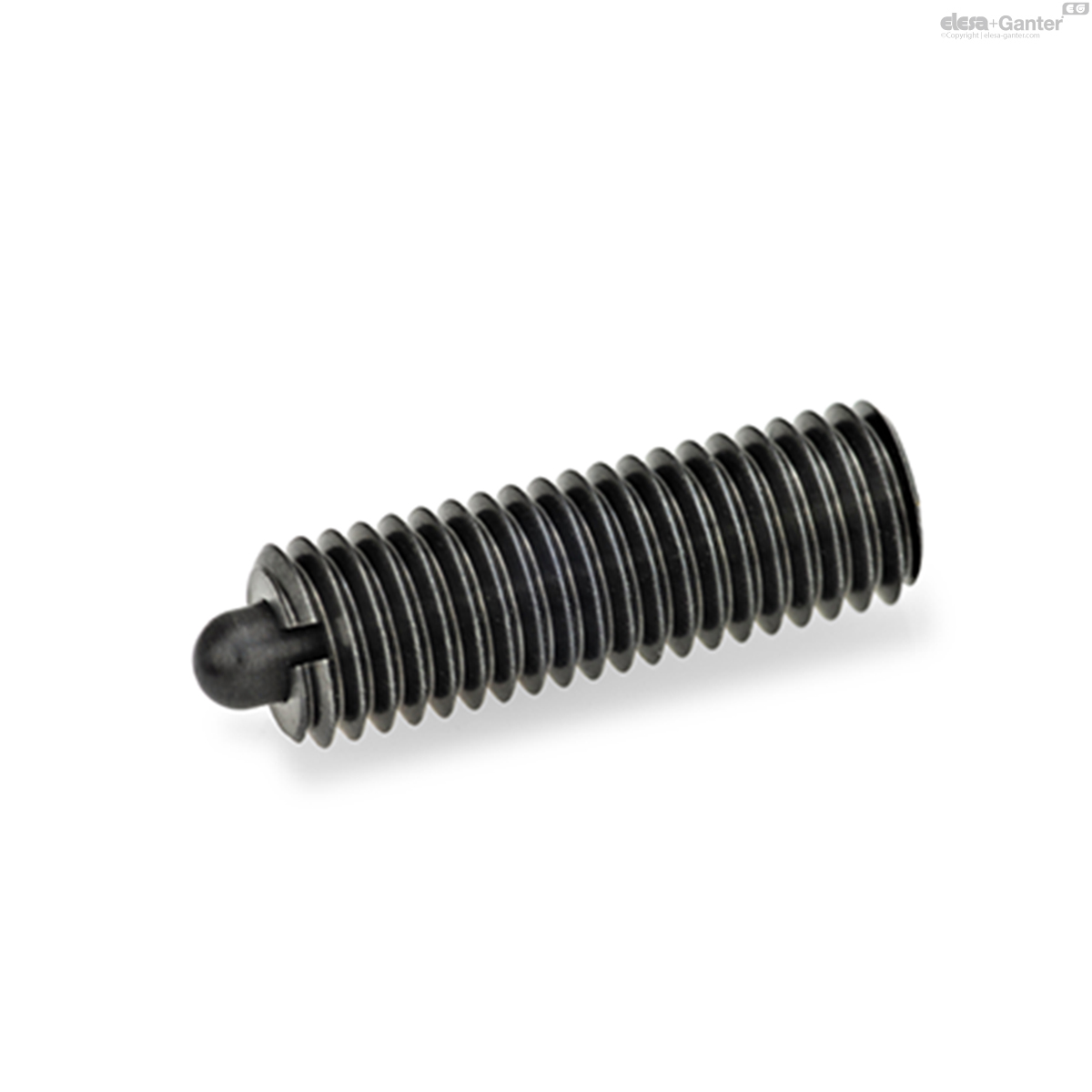

- Type S: Steel, with standard spring load
- Type SS: Steel, with high spring load

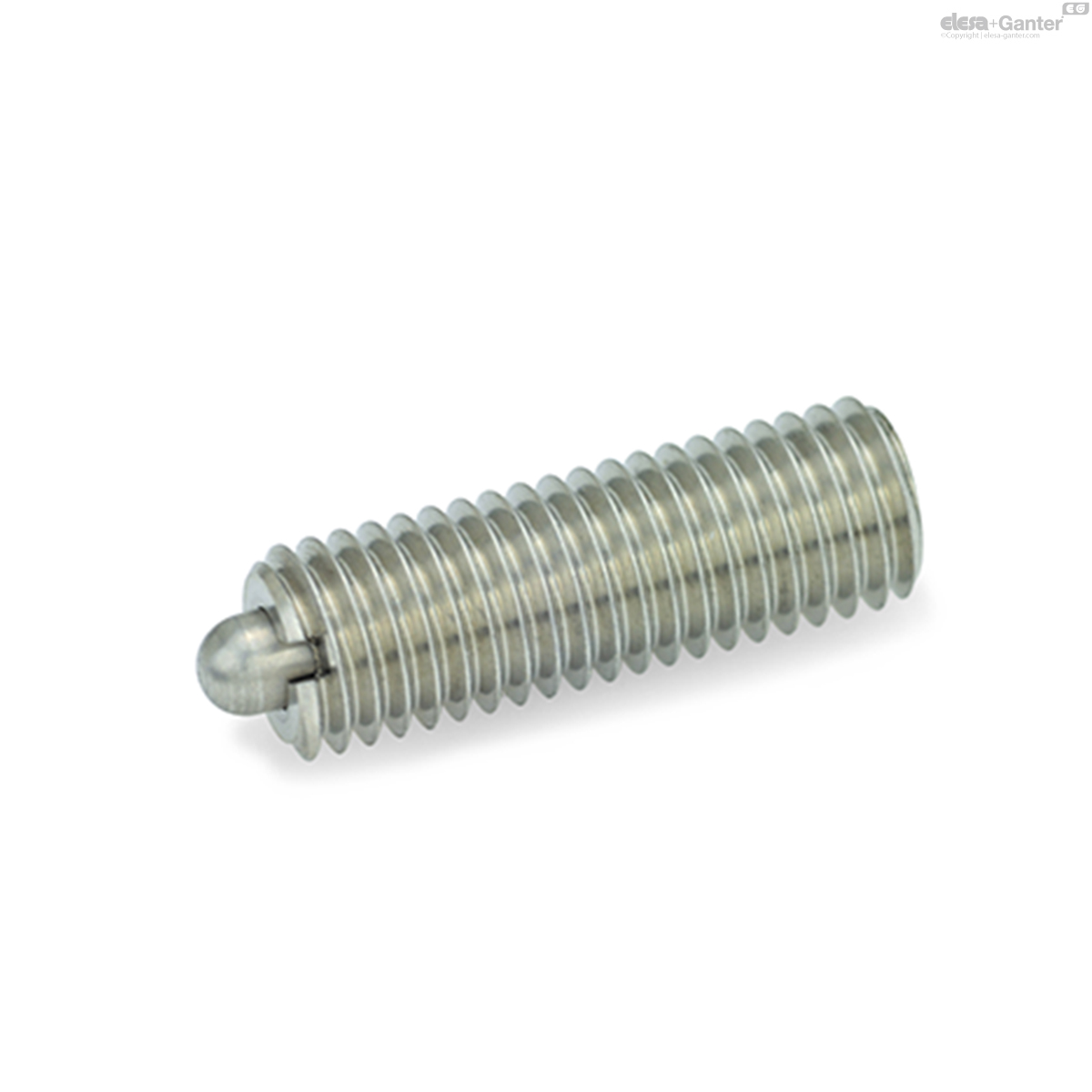

- Type SN: Stainless Steel, with standard spring load
Type S / SS
- Housing Steel, blackened
- Bolt steel, hardened
Type SN
- Housing Stainless Steel AISI 303
- Bolt Stainless Steel AISI 303
Pressure spring
Stainless Steel AISI 303
Seal
Rubber NBR (Perbunan®)
Identification of type SS:
Housing with 2 longitudinal markings
Information
Spring plungers GN 616.1 are used for locking as well as for pressure and hold-off functions. Entry of liquids and dirt is prevented by the seal.
The slit on the plunger side is used for screwing into pocket holes. For this, a special screwdriver is available as GN 611.5 (see table).
Technical information
- Stainless Steel characteristicsÂ
Accessory
- Screw drivers GN 611.5 (Code no. see table)

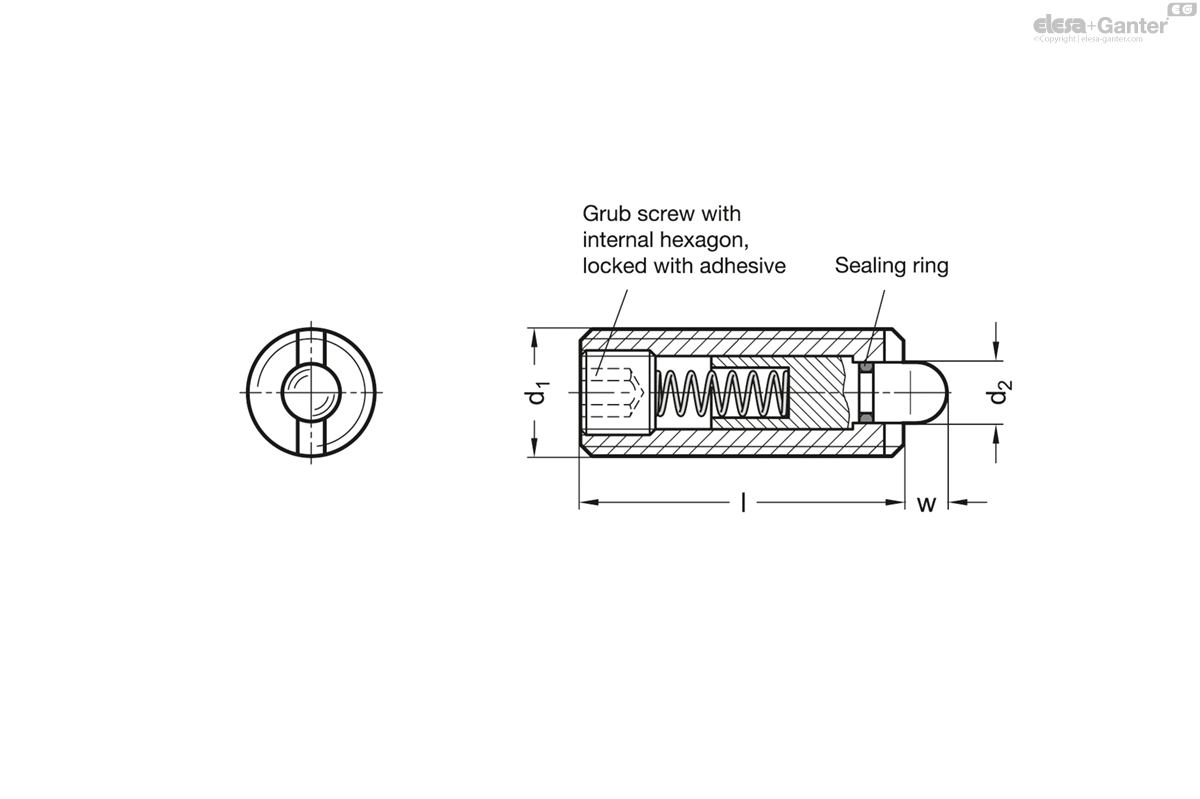

GN 616.1-S/SS
| A/F | Spring load in N ≈ initial |
Spring load in N ≈ end |
d1 | d2 | l | w | Spring load in N≈ initial |
Spring load in N≈ end |
Code no. for screw driver |
 |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| GN 616.1-M8-S | 2.5 | 9 | 24 | M 8 | 3.8 | 26 | 3 | 9 | 24 | GN 611.5-M10 | 7 |
|
| GN 616.1-M8-SS | 2.5 | 17 | 39 | M 8 | 3.8 | 26 | 3 | 17 | 39 | GN 611.5-M10 | 7 |
|
| GN 616.1-M10-S | 3 | 15 | 30 | M 10 | 4 | 28 | 3.5 | 15 | 30 | GN 611.5-M10 | 11 |
|
| GN 616.1-M10-SS | 3 | 22 | 43 | M 10 | 4 | 28 | 3.5 | 22 | 43 | GN 611.5-M10 | 12 |
|
| GN 616.1-M12-S | 4 | 24 | 50 | M 12 | 6 | 35 | 4 | 24 | 50 | GN 611.5-M12 | 20 |
|
| GN 616.1-M12-SS | 4 | 40 | 80 | M 12 | 6 | 35 | 4 | 40 | 80 | GN 611.5-M12 | 20 |
|
| GN 616.1-M16-S | 5 | 36 | 58 | M 16 | 7.5 | 40 | 5 | 36 | 58 | GN 611.5-M16 | 44 |
|
| GN 616.1-M16-SS | 5 | 44 | 113 | M 16 | 7.5 | 40 | 5 | 44 | 113 | GN 611.5-M16 | 44 |
|
