GN 615

Spring Plungers

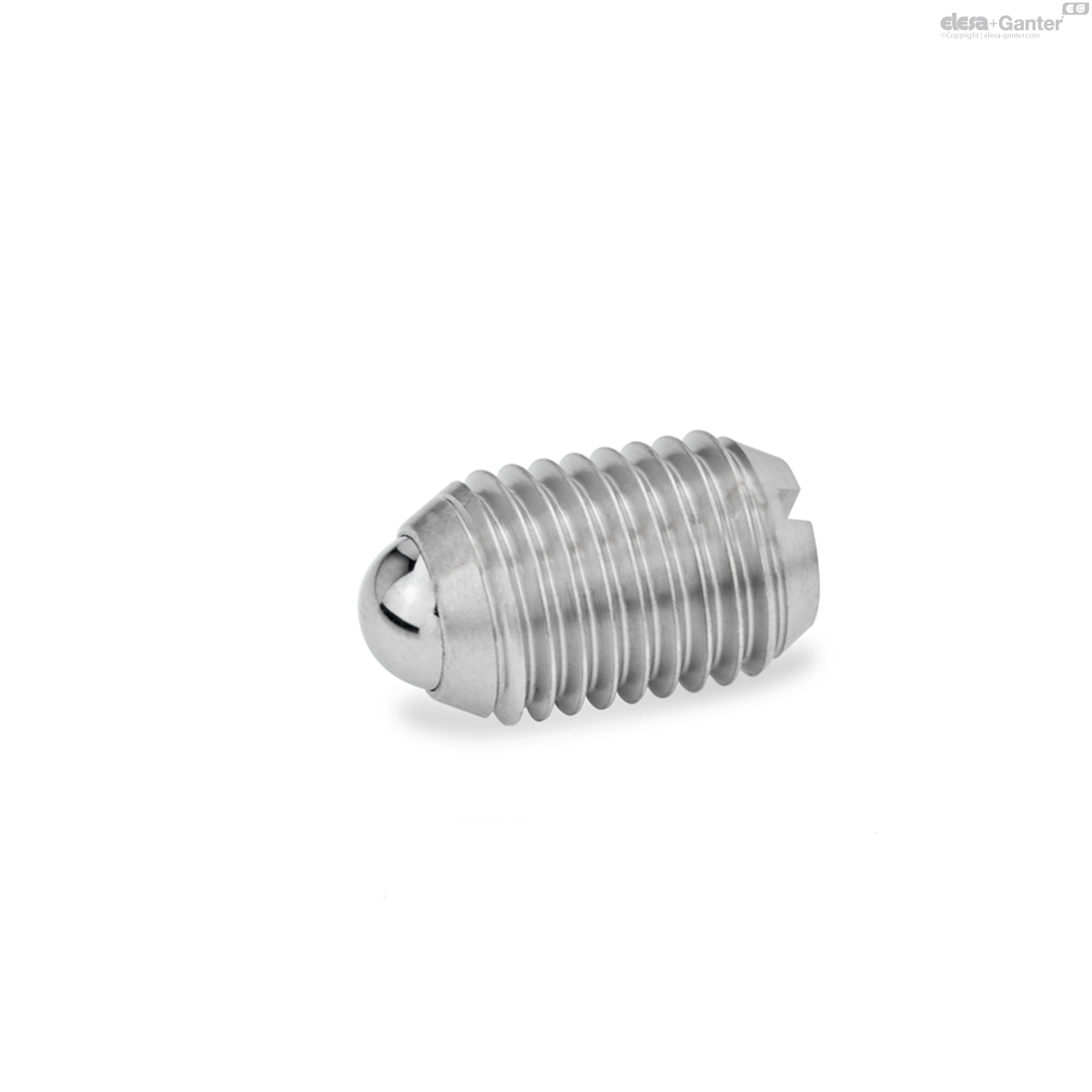

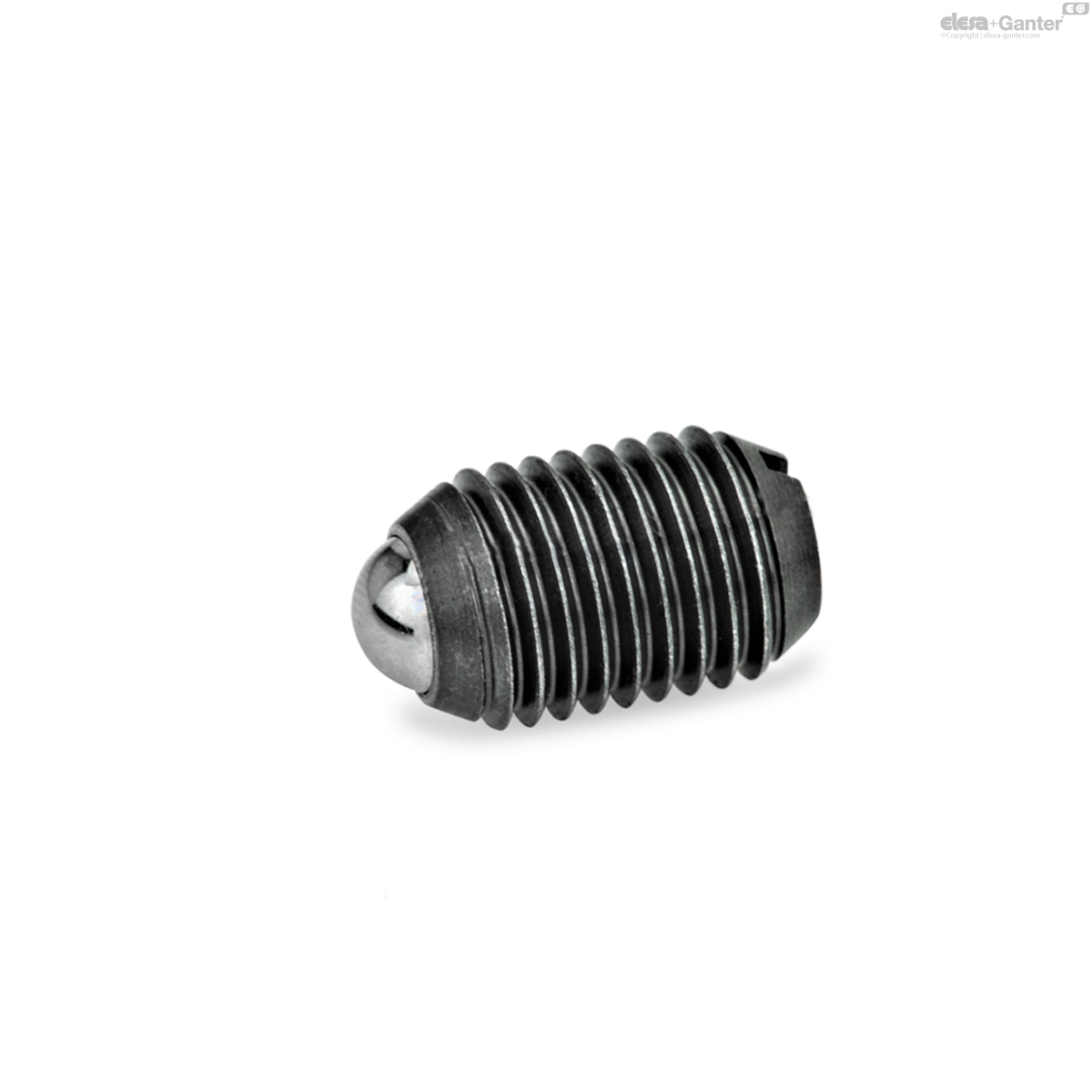

Steel / Stainless Steel, with Ball, with Slot

Enquire Now

Description

Specification

Type K / KS

Type KN / KSN

Pressure spring

Stainless steel AISI 631

Identification of the types KS / KSN

Housing with 2 longitudinal markings

Information

Spring plungers GN 615 are used as detents as well as for push-on and push-off applications and ejectors.

Technical information

	d₁	d₂	l ±0.1	l₁ ±0.1	Spring load in N ≈ initial	Spring load in N ≈ end	w	Spring load in N≈ initial	Spring load in N≈ end	For side thrust pin-Ø
Code												Actions
GN 615-M2-K	M 2	1	-	4	-	-	0.3	0.8	1.5	M 10	1
GN 615-M3-K	M 3	1.5	7	7	3	4.5	0.4	3	4.5	-	2
GN 615-M4-K	M 4	2.5	9	9	6	14	0.8	8.5	14	-	3
GN 615-M5-K	M 5	3	12	12	8	14	0.9	8	14	-	4
GN 615-M6-K	M 6	3.5	14	14	11	18	1	11	18	-	5
GN 615-M8-K	M 8	4.5	16	16	18	31	1.5	18	31	-	6
GN 615-M10-K	M 10	6	19	19	24	45	2	24	45	-	7
GN 615-M12-K	M 12	8	22	22	26	49	2.5	26	49	-	10
GN 615-M16-K	M 16	10	24	24	41	86	3.5	41	86	-	20
GN 615-M20-K	M 20	12	30	30	56	111	4.5	56	111	-	43
GN 615-M24-K	M 24	15	34	34	81	151	5.5	81	151	-	70
