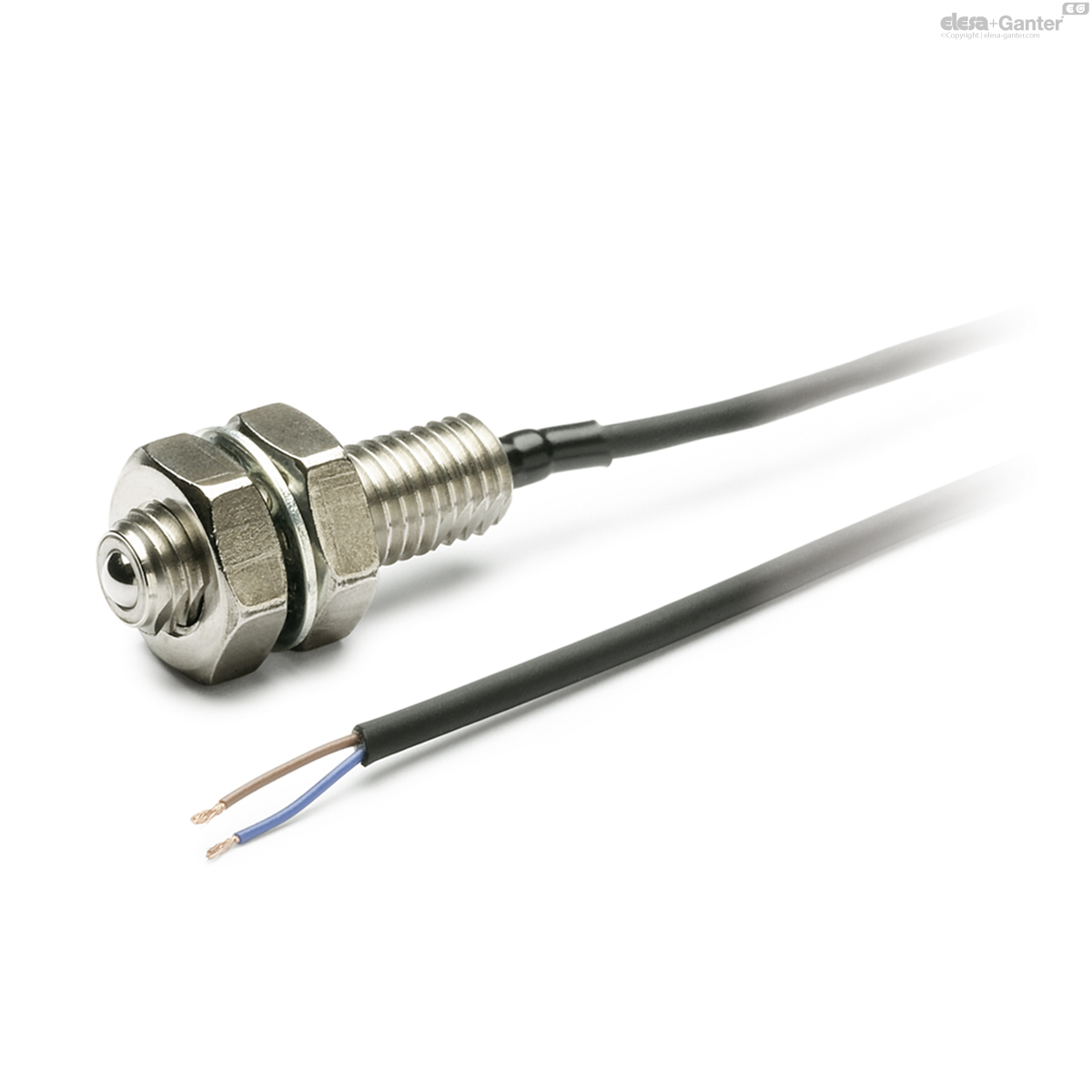

GN 615.7
Spring plungers
with limit switch
Description
Specification
Types
- Type S: normally open
- Type O: normally closed
Screw
Steel, nickel plated
Ball
Steel, hardened
Hexagonal nuts
Steel, nickel plated
Limit switch
- Voltage: 5 ... 24 V DC
- Switching load recom.: 5-10 mA
- Switching load max.: 20 mA DC
- Life expectancy: 3 million operations
- Temperature range: -10 °C ... +80 °C
Supply cable PVC:
- Ø 3; 2 phase, ≈ 2 meters long
- max. tensile load 20 N
- grey, for Type S (normally open)
- black, for Type O (normally closed)
Protection class IP 40
Information
Spring plungers GN 615.7 are used for end stops as wells as contacts.
Simultaneously an electrical control signal can be released from the built-in limit switch.
- IP Protection classesÂ

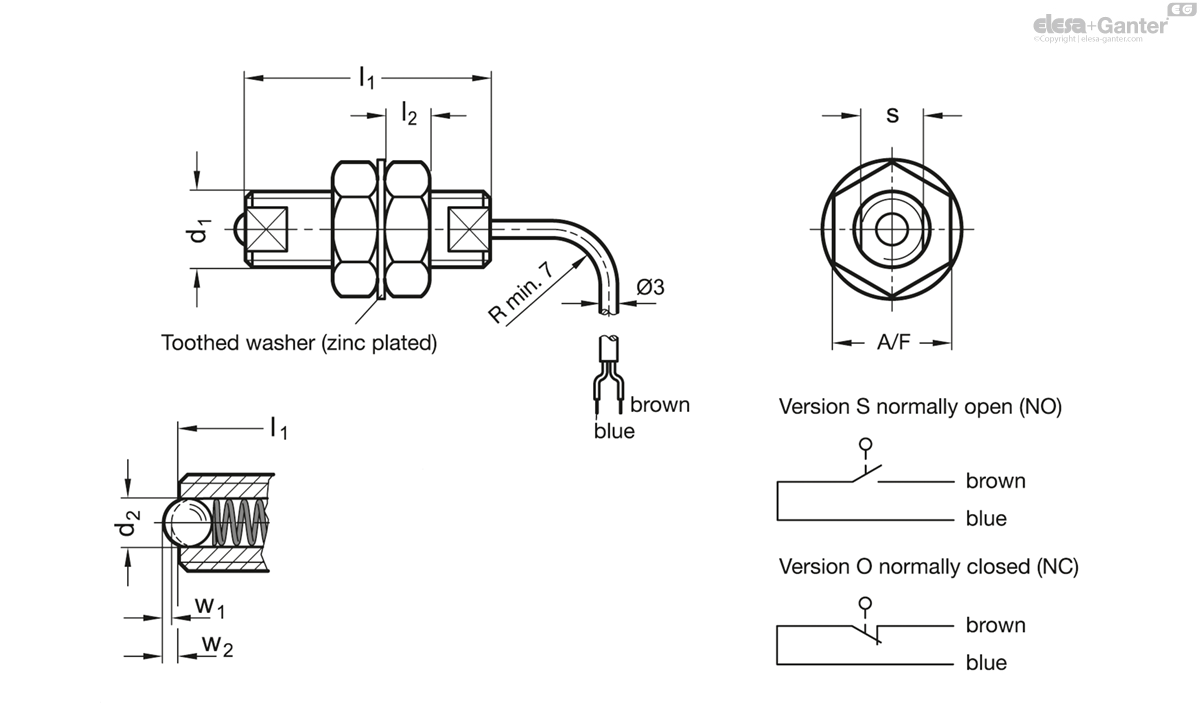

GN 615.7
| d1±0.05 | d1 | d2 | l1 | l2 | s | A/F | w1 ±0.1 Switching stroke | w2 ±0.1 Compression | Spring load in N ≈ initial |
Spring load in N ≈ end |
Location bore |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| GN 615.7-M6-O | M 6 | M 6 | 3 | 33 | 3.5 | 5 | 10 | 0.3 | 0.8 | 6 | 13 | M 10 | 40 |
|
| GN 615.7-M6-S | M 6 | M 6 | 3 | 33 | 3.5 | 5 | 10 | 0.3 | 0.8 | 6 | 13 | - | 42 |
|
| GN 615.7-M8-O | M 8 | M 8 | 4 | 36 | 5 | 7 | 13 | 0.5 | 1 | 8 | 16 | - | 53 |
|
| GN 615.7-M8-S | M 8 | M 8 | 4 | 36 | 5 | 7 | 13 | 0.5 | 1 | 8 | 16 | - | 40 |
|
| GN 615.7-M10-O | M 10 | M 10 | 5 | 40 | 6 | 8 | 17 | 0.7 | 1.2 | 10 | 20 | - | 60 |
|
| GN 615.7-M10-S | M 10 | M 10 | 5 | 40 | 6 | 8 | 17 | 0.7 | 1.2 | 10 | 20 | - | 60 |
|
