GN 615.4

Spring plungers

Steel / Stainless Steel, with bolt / with internal hexagon

Enquire Now

Description

Specification

Marking of Type BS / BSN:

Housing with 2 longitudinal markings

Spring

Stainless Steel AISI 631

Information

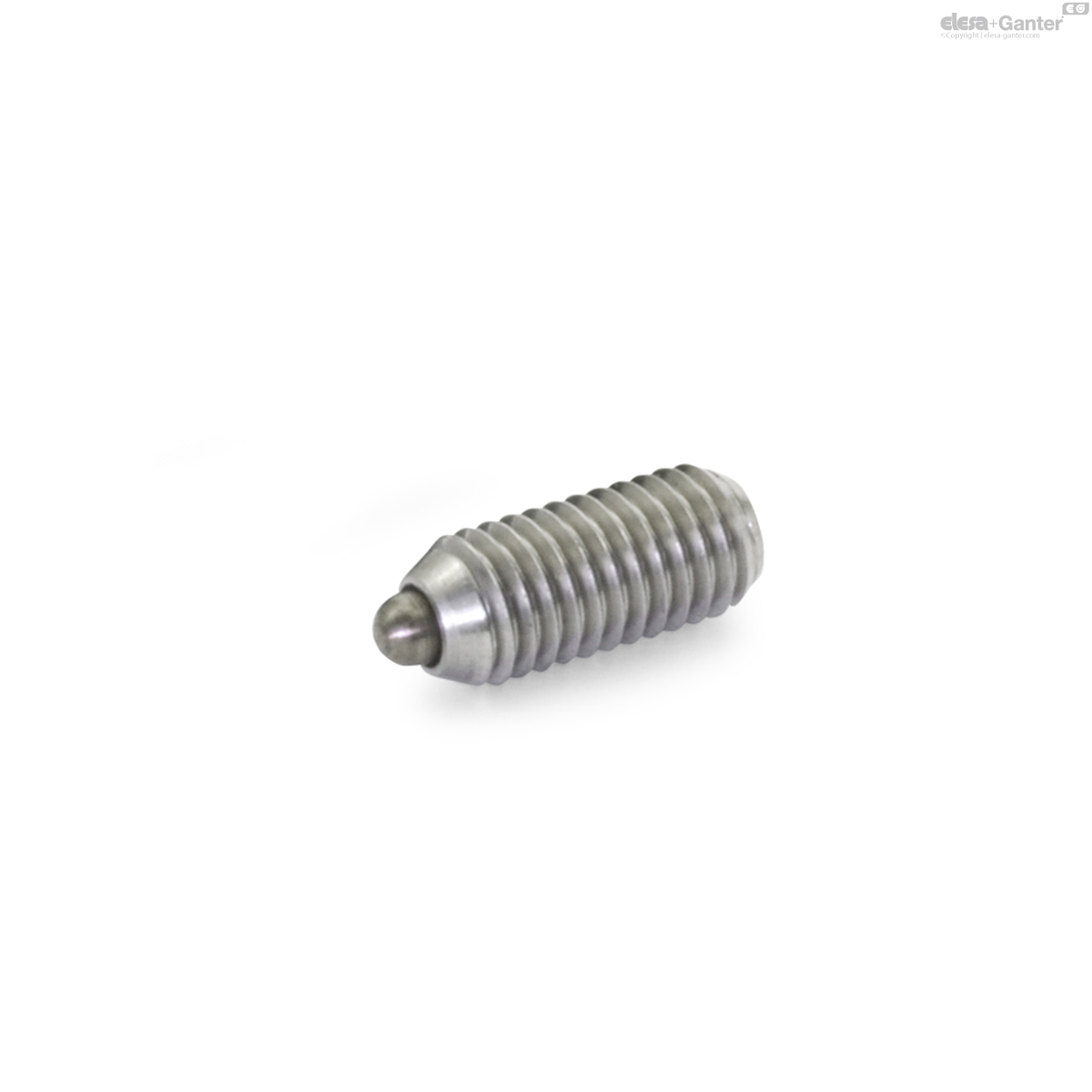

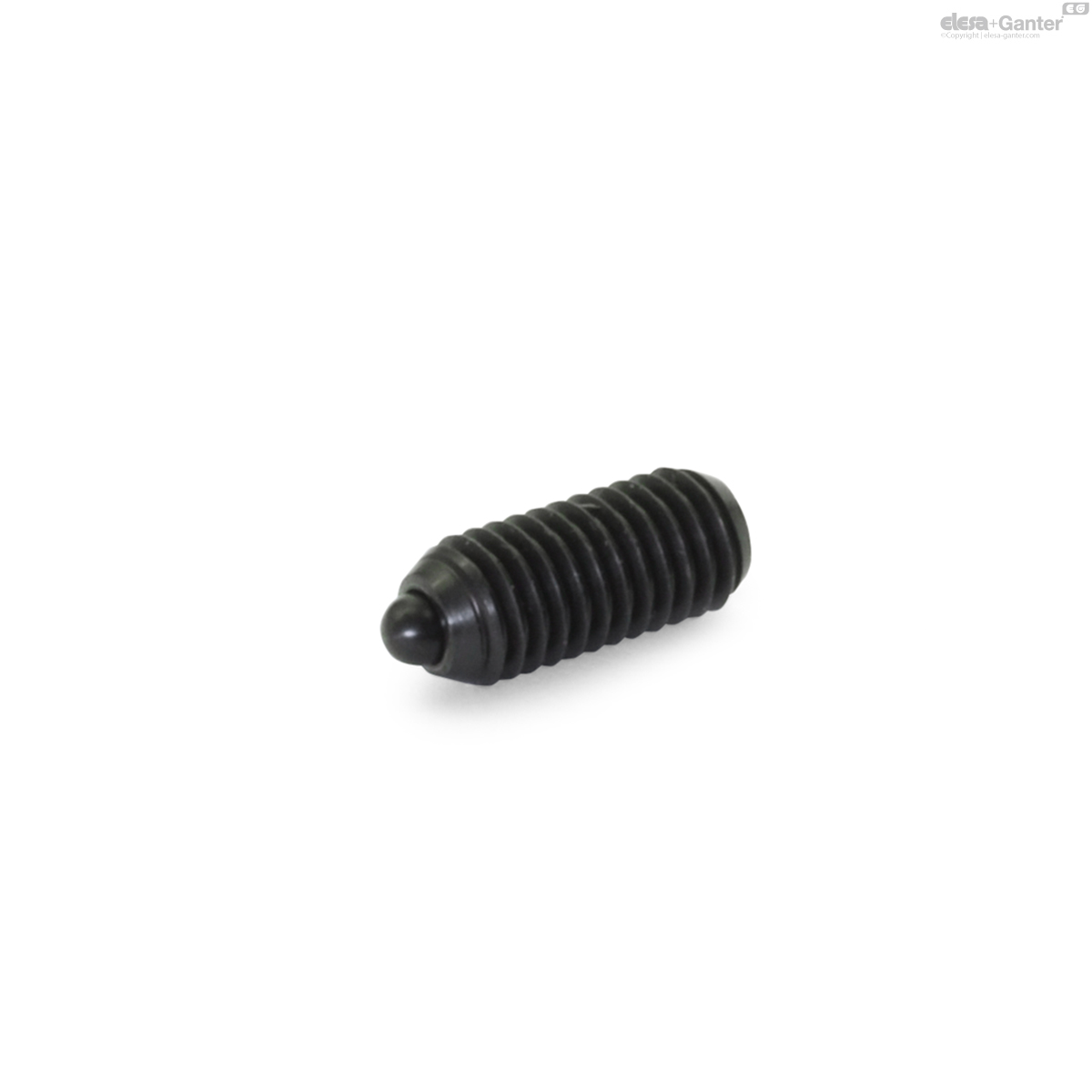

Spring plungers GN 615.4 are used as detents as well as for push-on and push-off applications and ejectors.

On request

Technical information

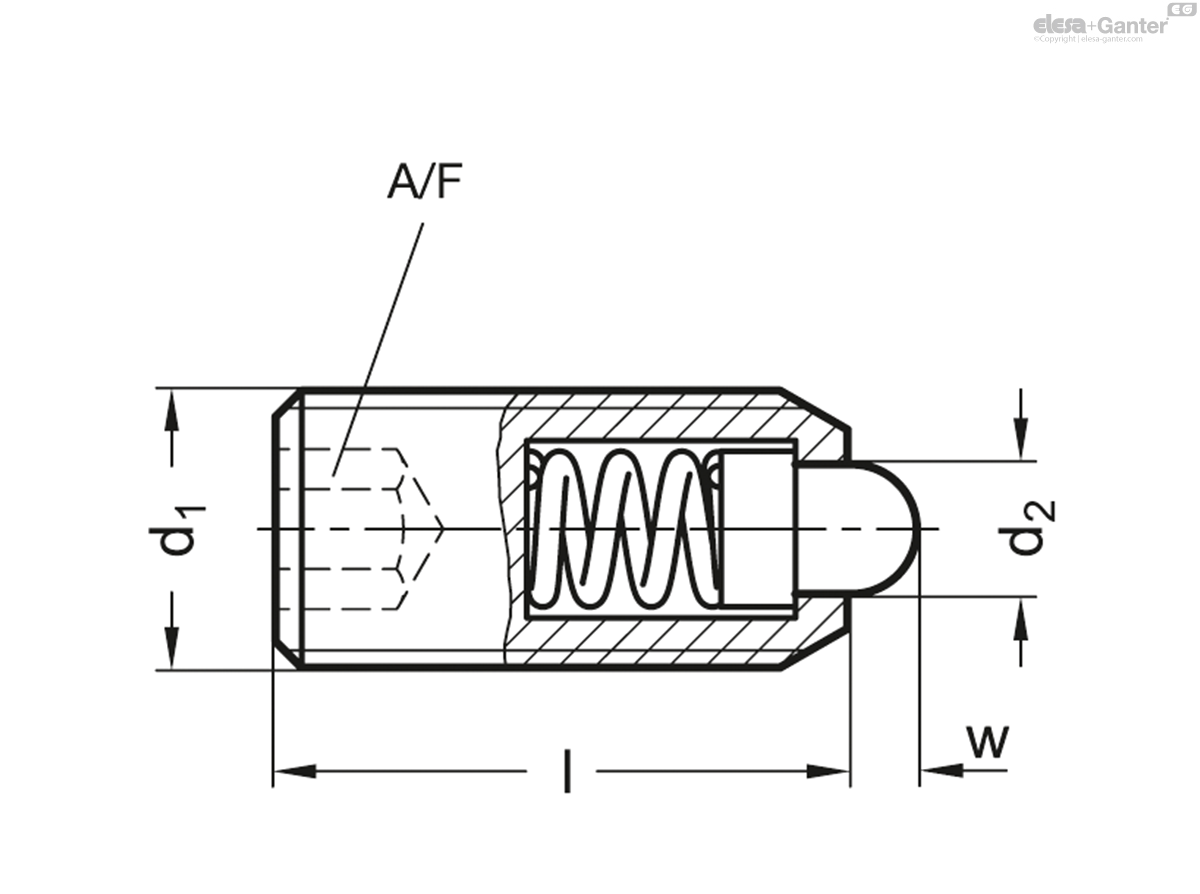

	d₁	d₂ -0.1	l ±0.1	w	A/F	Spring load in N ≈ initial	Spring load in N ≈ end
Code									Actions
GN 615.4-M4-B	M 4	1.8	12	1.5 +0.3/-0.4	2	4.5	12.5	1
GN 615.4-M5-B	M 5	2.4	14	2	2.5	5	13	1
GN 615.4-M6-B	M 6	2.7	15	2	3	6	17	2
GN 615.4-M6-BS	M 6	2.7	15	2	3	11	25	2
GN 615.4-M8-B	M 8	3.8	18	2	4	16	33	4
GN 615.4-M8-BS	M 8	3.8	18	2	4	23	59	4
GN 615.4-M10-B	M 10	4.5	23	2.5	5	19	42	9
GN 615.4-M10-BS	M 10	4.5	23	2.5	5	20	54	9
GN 615.4-M12-B	M 12	6.2	26	3.5	6	22	57	13
GN 615.4-M12-BS	M 12	6.2	26	3.5	6	38	96	13
GN 615.4-M16-B	M 16	8.5	33	4.5 ±0.3	8	38	78	32
GN 615.4-M16-BS	M 16	8.5	33	4.5 ±0.3	8	50	100	32
GN 615.4-M20-B	M 20	10	43	6.5	10	39	81	32
GN 615.4-M20-BS	M 20	10	43	6.5	10	52	133	67
GN 615.4-M24-B	M 24	13	48	8	12	72	155	106
GN 615.4-M24-BS	M 24	13	48	8	12	91	223	67
