GN 615.2

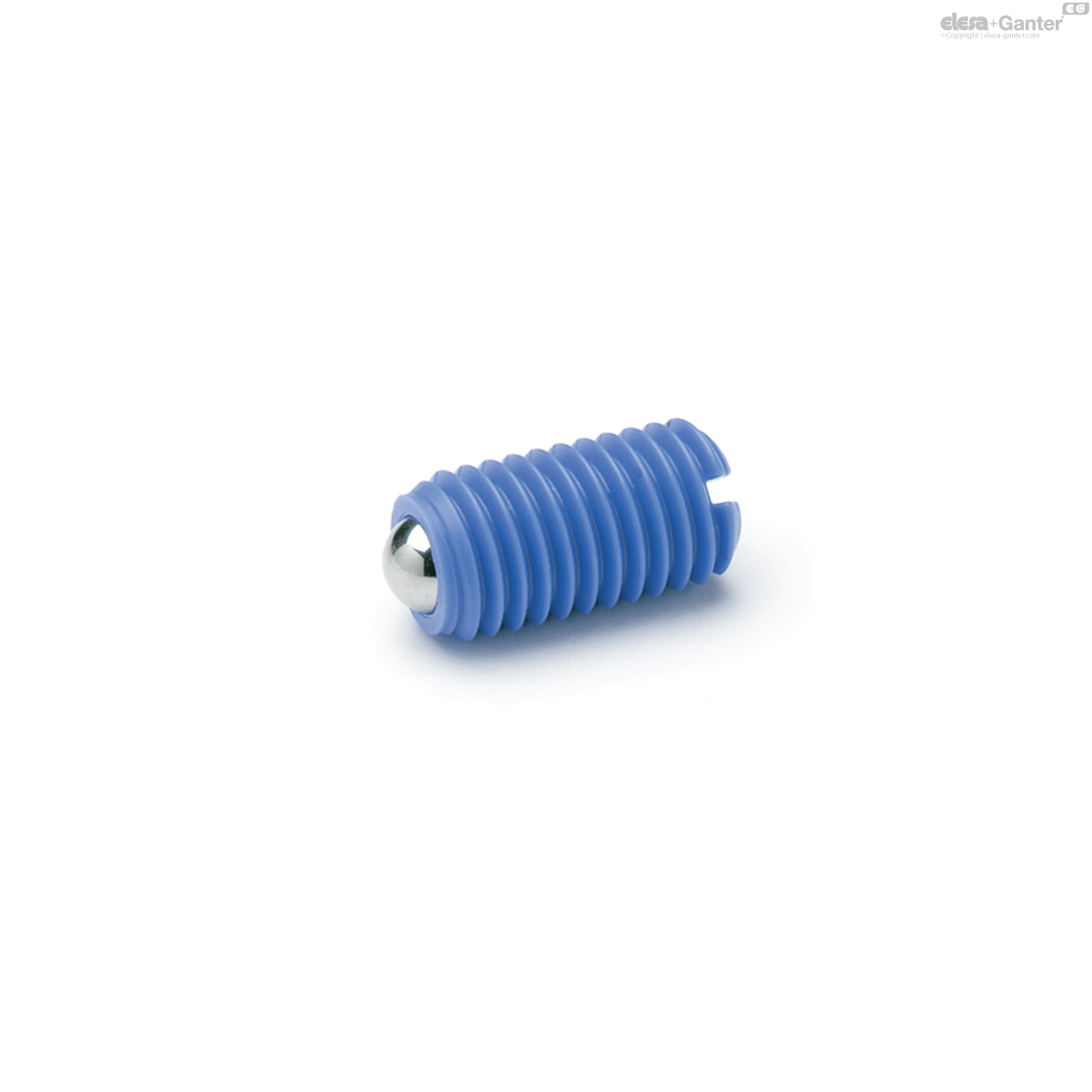

Plastic-Spring plungers
with ball, with slot
Description
Specification
Housing
Plastic (Polyacetal POM)
temperature resistant up to 50 °C
Ball
- Stainless Steel AISI 420C NI, hardened
- Plastic (Polyacetal POM) P
Spring
Stainless Steel AISI 631
(all versions)
Information
Plastic-Spring plungers GN 615.2 are used as detents as well as for push-on and push-off applications and ejectors.
These spring plungers are all stainless versions.
Technical information
- Stainless Steel characteristics -
- Plastic characteristicsÂ
GN 615.2
| d1 | d2 | l | w | Spring load in N ≈ initial |
Spring load in N ≈ end |
 |
||
|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||
| GN 615.2-M6-NI | M 6 | 3.5 | 14 | 0.9 | 12 | 17 | 1 |
|
| GN 615.2-M6-P | M 6 | 3.5 | 14 | 0.9 | 12 | 17 | 1 |
|
| GN 615.2-M8-NI | M 8 | 5 | 16 | 1.5 | 20 | 35 | 1 |
|
| GN 615.2-M8-P | M 8 | 5 | 16 | 1.5 | 20 | 35 | 1 |
|
| GN 615.2-M10-NI | M 10 | 6 | 19 | 1.9 | 25 | 45 | 3 |
|
| GN 615.2-M10-P | M 10 | 6 | 19 | 1.9 | 25 | 45 | 2 |
|
