GN 614.8

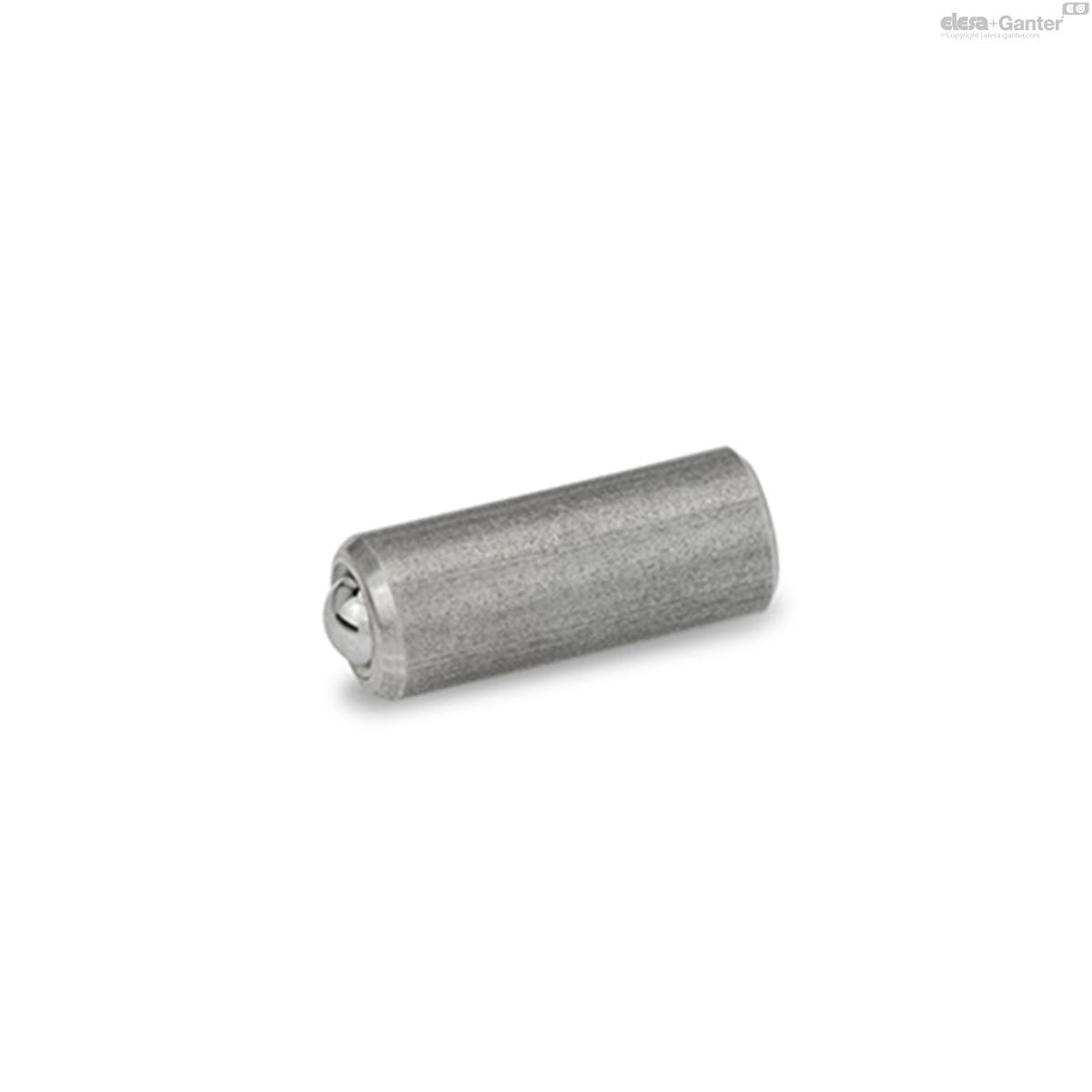

Stainless Steel-Spring plungers

without thread, ball with friction bearing

Enquire Now

Description

Specification

Housing

Stainless Steel AISI 303 NI

Ball

Stainless Steel AISI 420C, hardened

Spring

Stainless Steel AISI 631

Friction bearing

Plastic

temperature resistant up to 90 °C

Information

GN 614.8 Stainless Steel-Spring plungers are used for locking as well as for pressure and hold-off functions.

The ball is mounted in a plastic shell so as to be freely movable, which enables rolling and therefor generally optimizes the locking characteristics. Above all, this reduces wear on the counter piece.

A further characteristic of these plungers is that the plastic bearing acts as an electrical insulator.

For the mounting hole, tolerance d₁ F8 is recommended for joined ﬁtting and d₁ H9 for press ﬁtting.

Technical information

ISO-Fundamental Tolerances

Stainless Steel characteristics

GN 614.8

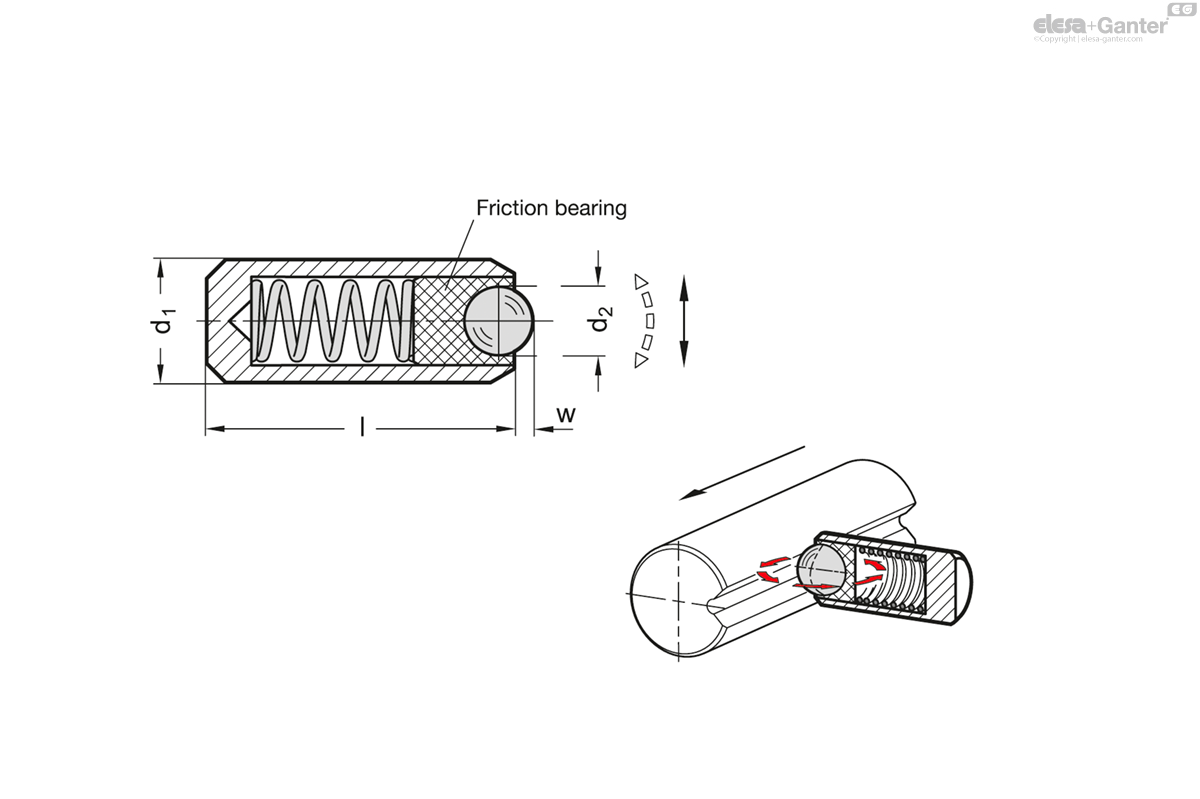

	d₁ ±0.04	d₂	l	w	Spring load in N ≈ initial	Spring load in N ≈ end
Code								Actions
GN 614.8-4-NI	4	2	11	0.5	4.8	6.8	1
GN 614.8-5-NI	5	2.5	13	0.7	6.3	10	2
GN 614.8-6-NI	6	3.5	15	0.95	16	24	2
GN 614.8-8-NI	8	4.5	18	1.5	18.8	31.7	5
GN 614.8-10-NI	10	6.5	20	2.3	26	49	8
GN 614.8-12-NI	12	8.5	22	3.1	38	68	11
