GN 614.7

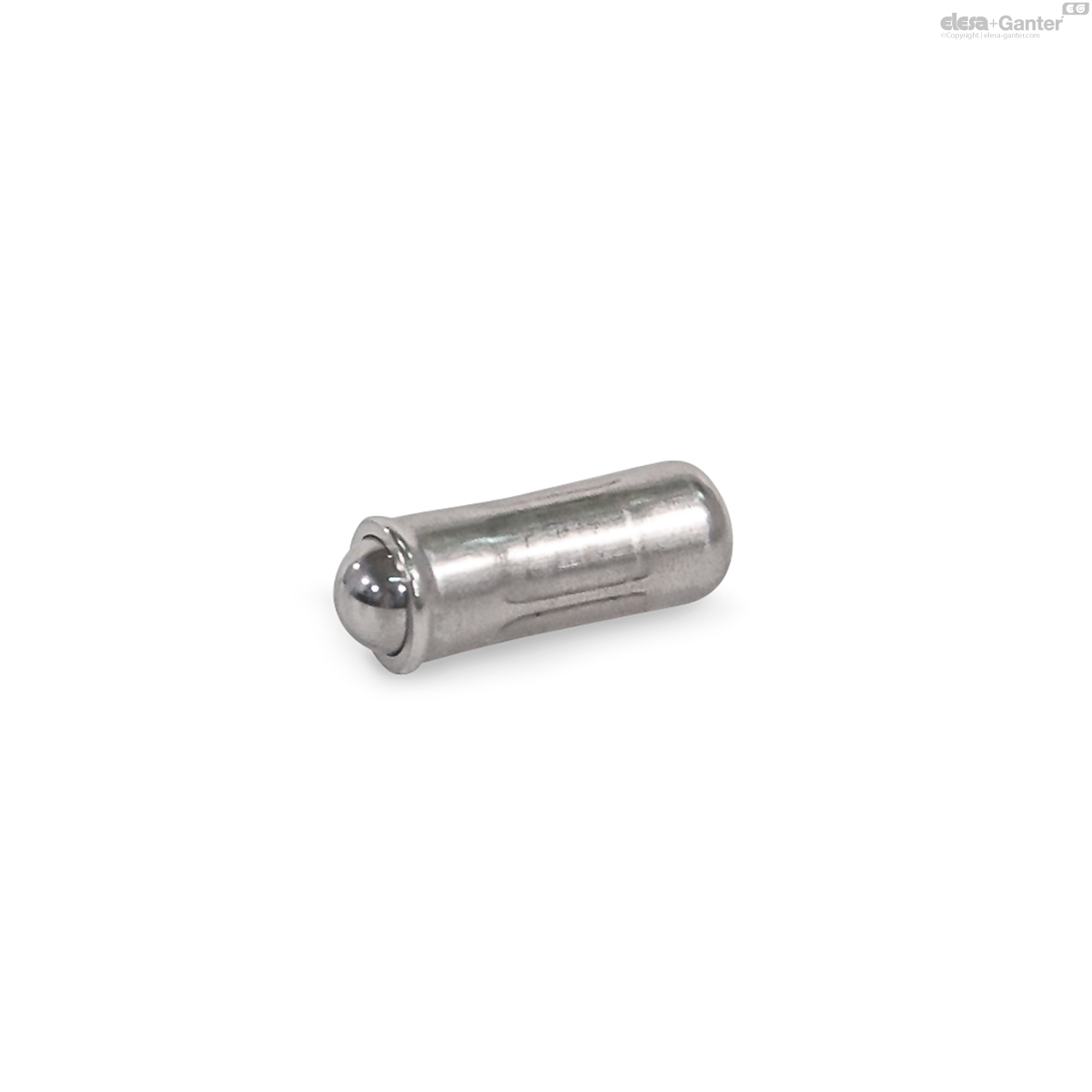

Stainless Steel Spring Plungers
Press-Fit Type, Long Version, with Ball
Description
Specification
Housing
Stainless steel AISI 305
Ball
Stainless steel AISI 420C NI
Hardened
Pressure spring
Stainless steel AISI 631
Information
Press-fit stainless steel spring plungers GN 614.7 are used as detents as well as for push-on and push-off applications and ejectors.
The tolerance d1 H7 is recommended for the locating bore.
Technical information
- ISO Fundamental TolerancesÂ
- Stainless Steel CharacteristicsÂ

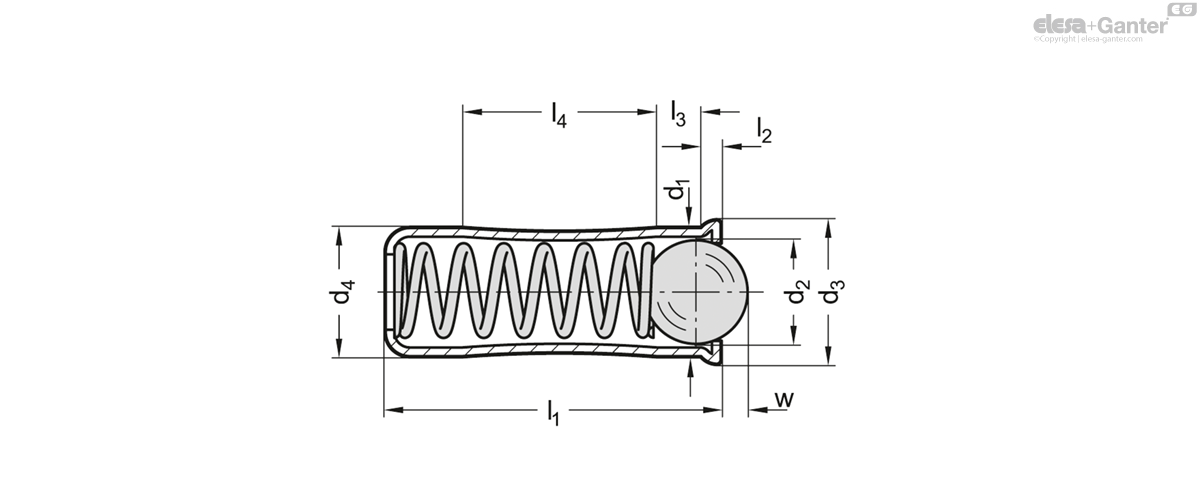

GN 614.7
| d1 +0.1 | d2 | d3 | d4 ±0.05 | l1 | l2 ≈ | l3 ≈ | l4 ≈ | w | Spring load in N≈ initial |
Spring load in N≈ end |
 |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| GN 614.7-4-NI | 4 | 3 | 4.6 | 4 | 10.7 | 0.9 | 1.8 | 5.6 | 0.9 | 12.9 | 19 | 1 |
|
| GN 614.7-5-NI | 5 | 4 | 5.6 | 5 | 12 | 0.9 | 2.1 | 6 | 1.3 | 19.3 | 29.2 | 1 |
|
| GN 614.7-6-NI | 6 | 5 | 6.5 | 6 | 15 | 1 | 2.3 | 8.2 | 1.7 | 28 | 47.5 | 2 |
|
| GN 614.7-8-NI | 8 | 6.5 | 8.5 | 8 | 18 | 1.1 | 2.9 | 9.5 | 2.3 | 40 | 67.3 | 4 |
|
| GN 614.7-10-NI | 10 | 8.5 | 11 | 10 | 26 | 1.5 | 4.2 | 14.3 | 3.1 | 66 | 105 | 8 |
|
