GN 614.4

Spring plunger

Press on type / with bolt

Enquire Now

Description

Specification

Housing

Stainless Steel AISI 305

Bolt

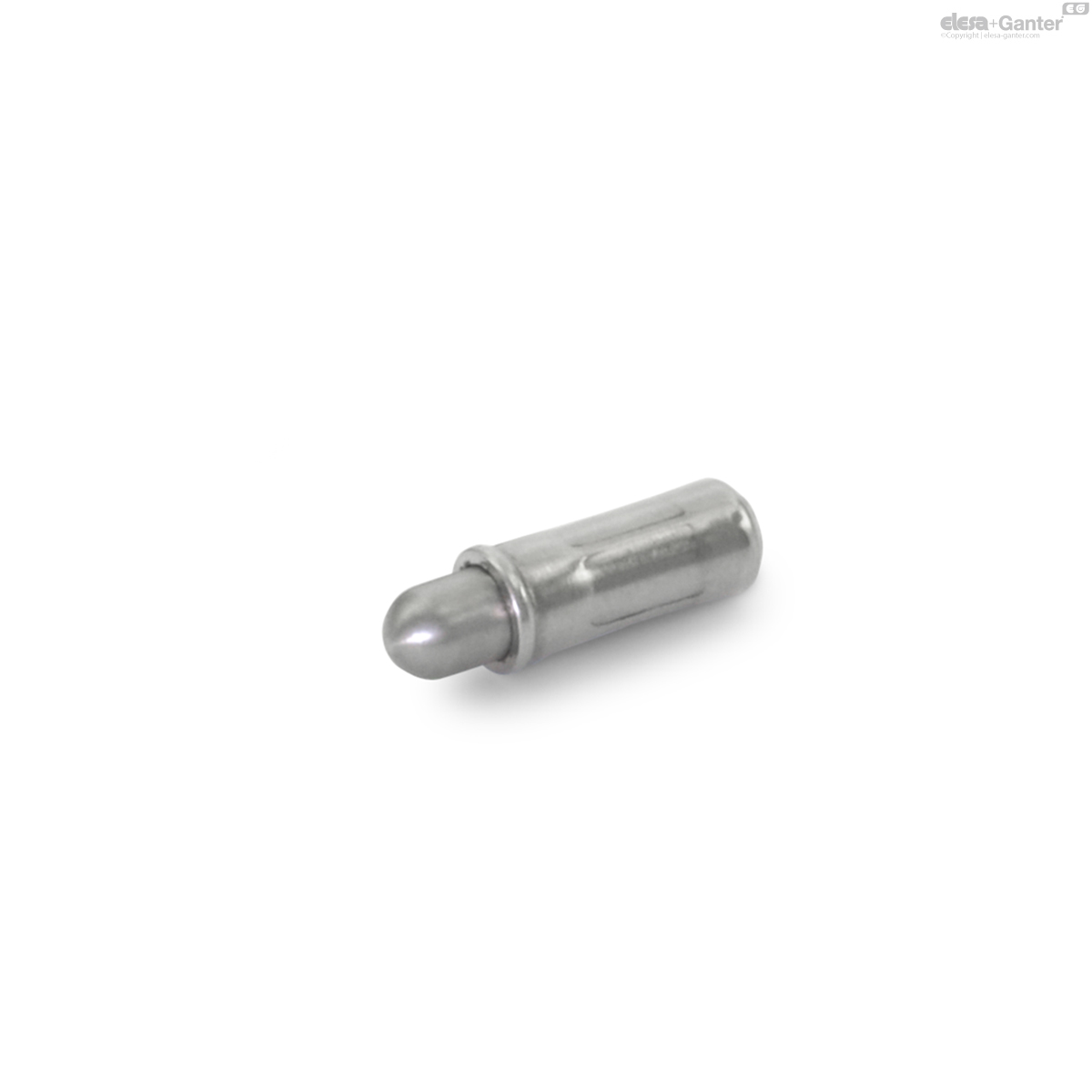

Stainless Steel AISI 303 NI

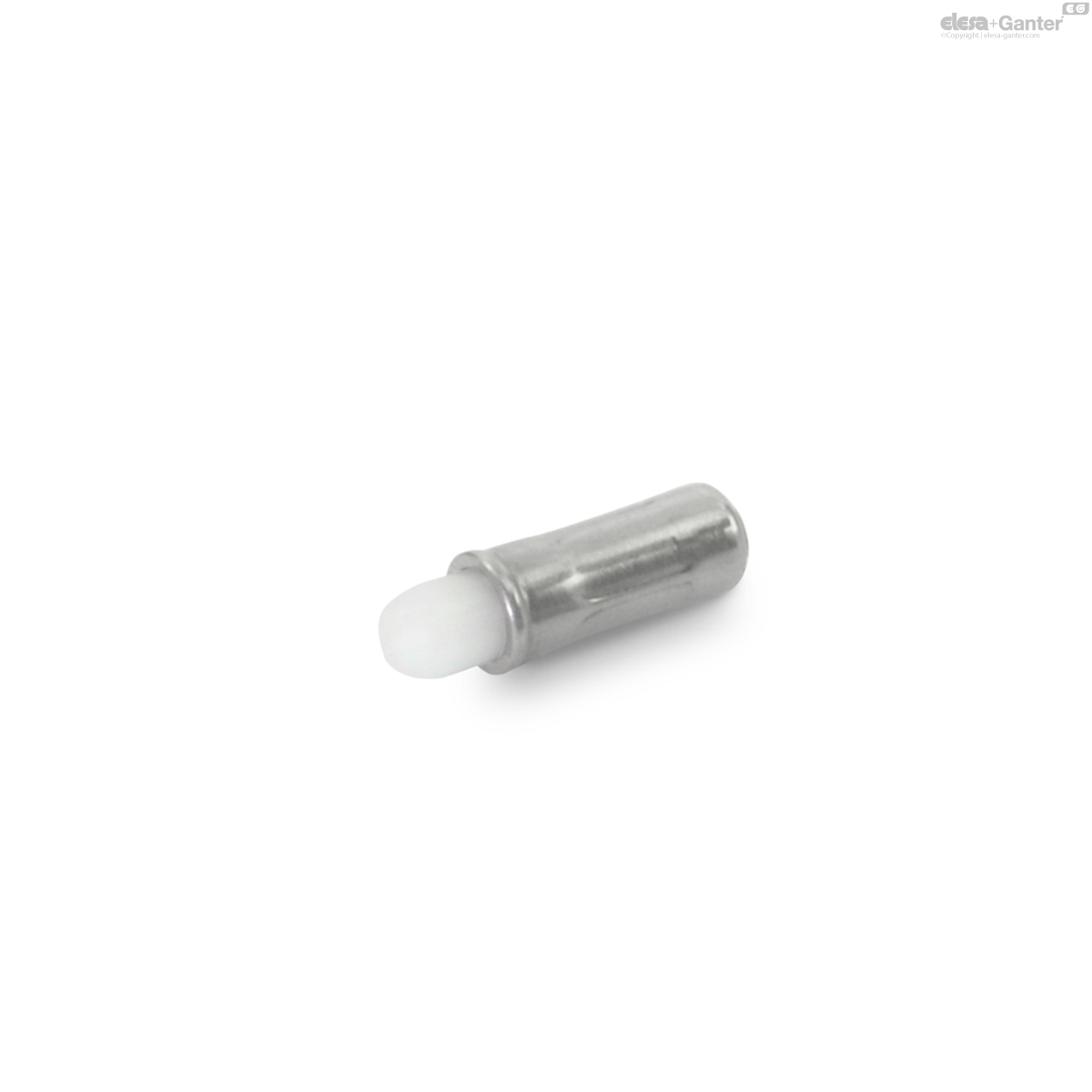

Plastic KU

Polyacetal POM, white

temperature resistant up to +50 °C

Spring

Stainless Steel AISI 631

Information

Spring plungers GN 614.4 are used for locking, as pressing and back-off pins, but also as impact dampers.

A tolerance of H7 for the location hole of d₁ is recommended.

Technical information

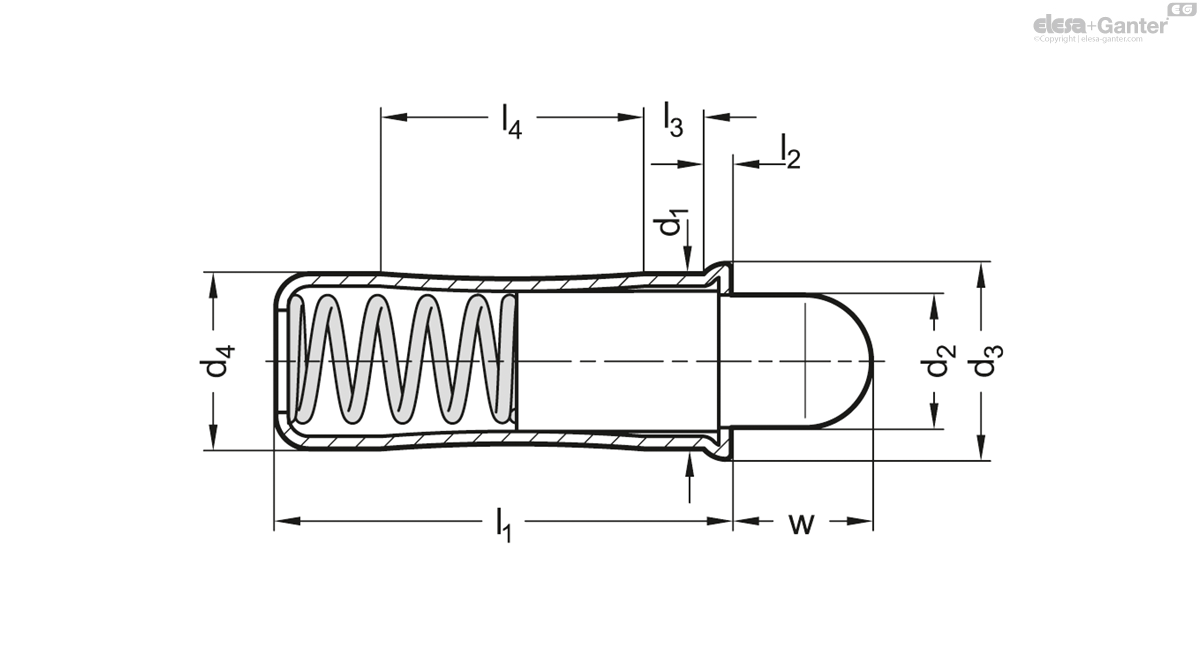

	d₁ +0.1	d₂	d₃	d₄ ±0.05	l₁	l₂ ≈	l₃ ≈	l₄ ≈	w	Spring load in N ≈ initial	Spring load in N ≈ end
Code													Actions
GN 614.4-4-NI	4	2.8	4.6	4	10.7	0.9	1.8	5.6	2.7	3	8.2	1
GN 614.4-5-NI	5	3.8	5.6	5	12	0.9	2.1	6	4	3.3	9	2
GN 614.4-6-NI	6	4.8	6.5	6	15	1	2.3	8.2	5.5	6.1	12	2
GN 614.4-8-NI	8	6.2	8.5	8	18	1.1	2.9	9.5	6.5	10.7	17	4
GN 614.4-10-NI	10	8	11	10	26	1.5	3.5	15	8	16.2	29	9
