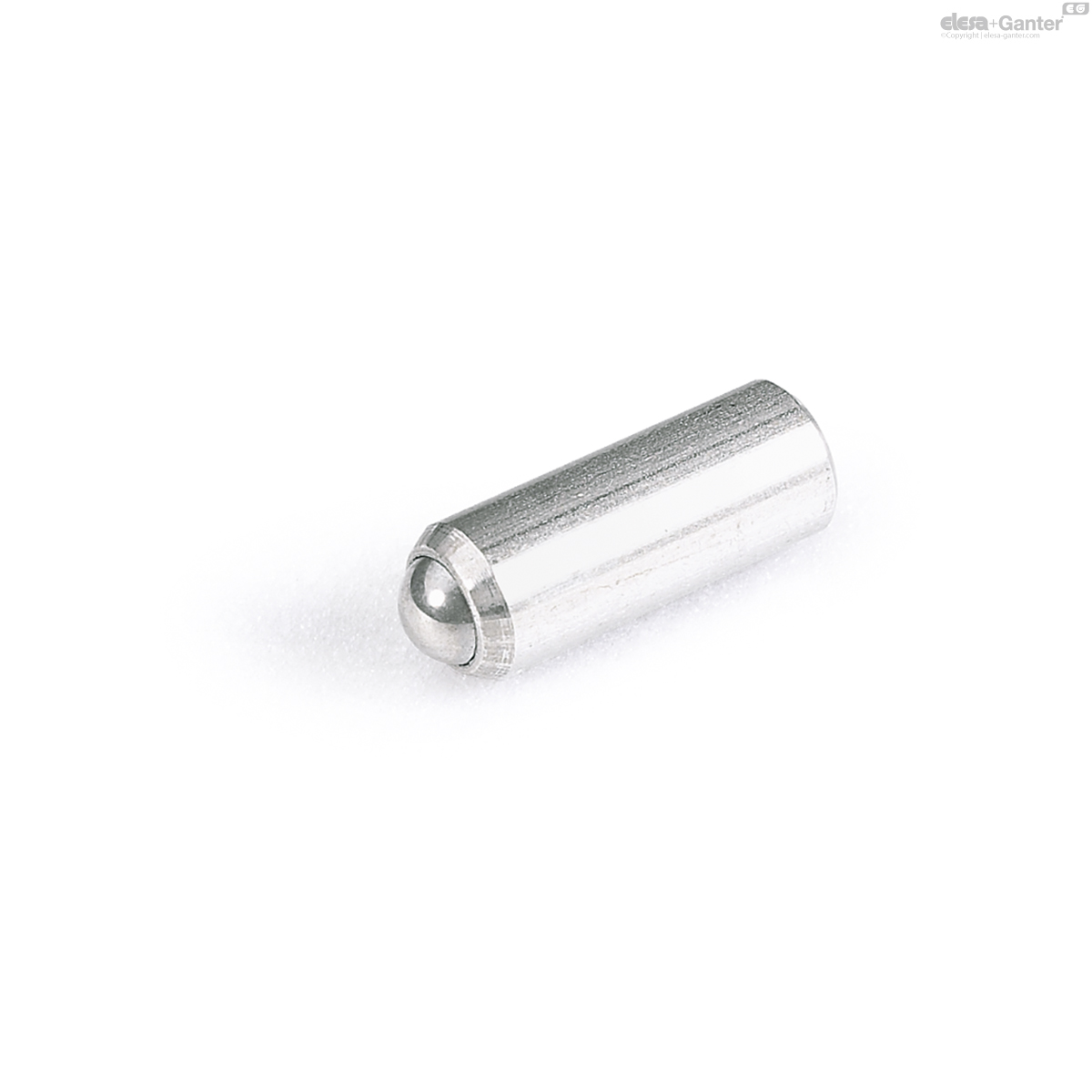

GN 614.3

Stainless Steel Spring Plungers

without Thread, with Ball

Enquire Now

Description

Specification

Housing

Stainless steel AISI 303

Ball

Stainless steel AISI 420C

Hardened

Pressure spring

Stainless steel AISI 631

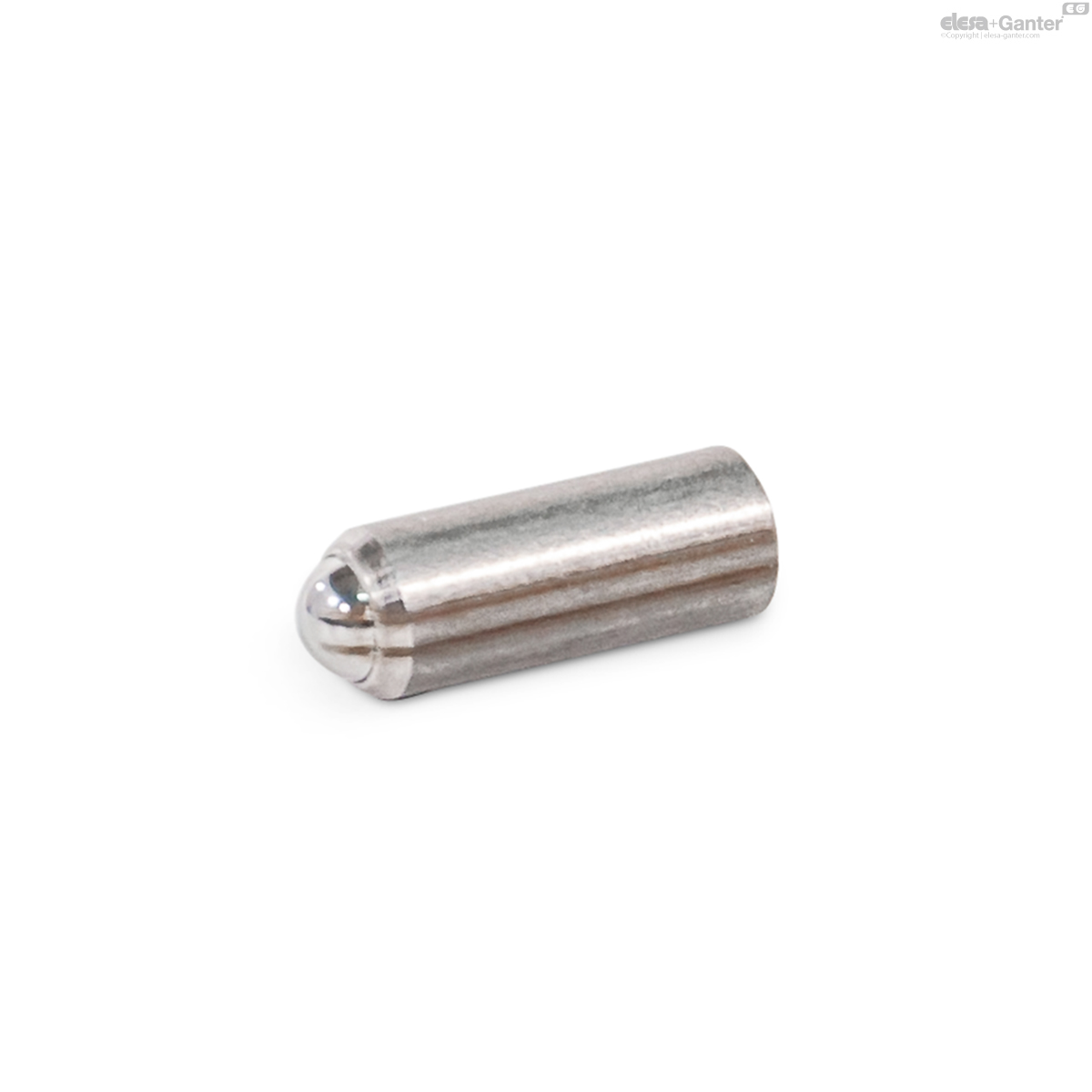

Identification of type NIS:

Housing with 2 longitudinal markings

Information

Stainless steel spring plungers GN 614.3 are used for locking as well as for pressure and hold-off functions.

For the mounting hole, tolerance d₁ F8 is recommended for joined ﬁtting and d₁ H9 for press ﬁtting.

Technical information

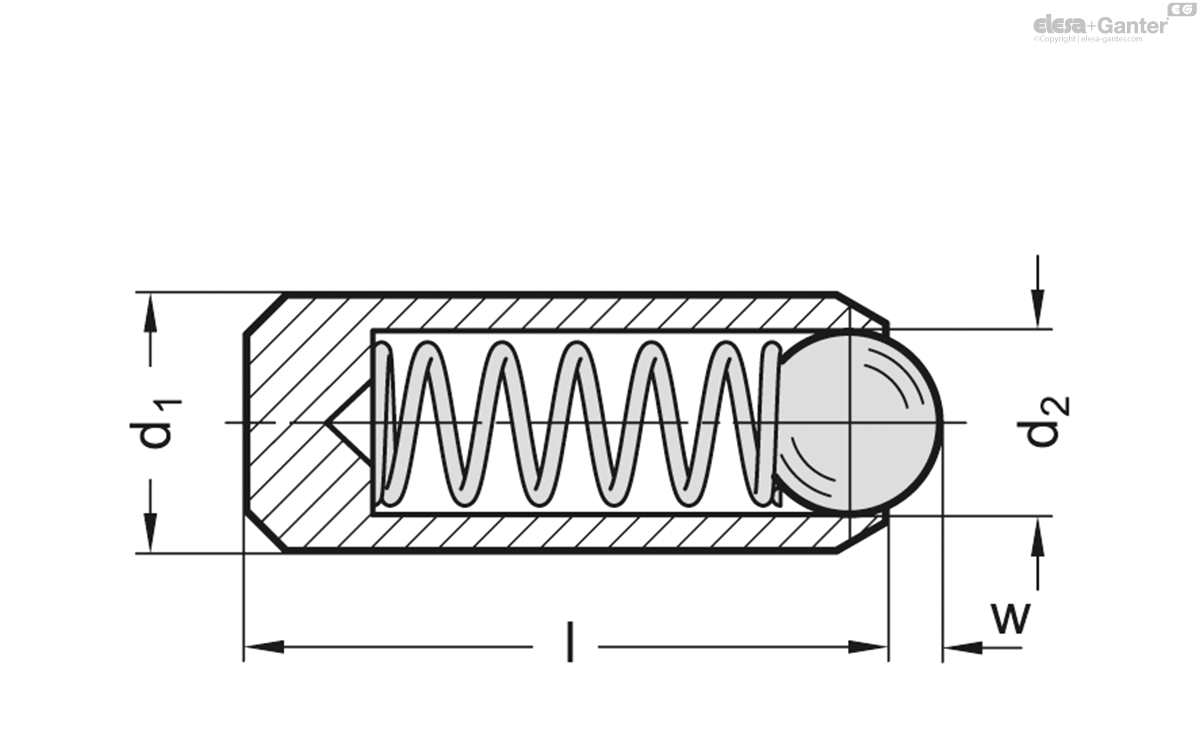

	d₁ ±0.04	d₂	l	w	Spring load in N ≈ initial	Spring load in N ≈ end
Code								Actions
GN 614.3-2,5-NI	2.5	1.5	5	0.4	2.8	4.7	1
GN 614.3-2-NI	2	1	3.5	0.3	0.8	1.5	1
GN 614.3-3,5-NI	3.5	2.5	9	0.8	6	14.5	1
GN 614.3-3-NI	3	2	7	0.65	4.5	7.5	1
GN 614.3-4,5-NI	4.5	3.2	12	0.95	9.5	16.5	1
GN 614.3-4-NI	4	3	11	0.9	8	14	1
GN 614.3-5,5-NI	5.5	4	14	1.2	15.5	25	2
GN 614.3-5-NI	5	3.5	13	1	11	18	2
GN 614.3-6-NI	6	4.5	15	1.5	18	31	2
GN 614.3-8-NI	8	6	18	2	24	45	6
GN 614.3-10-NI	10	8	20	2.5	26	49	9
GN 614.3-12-NI	12	10	22	3.5	41	86	13
