GN 614.2

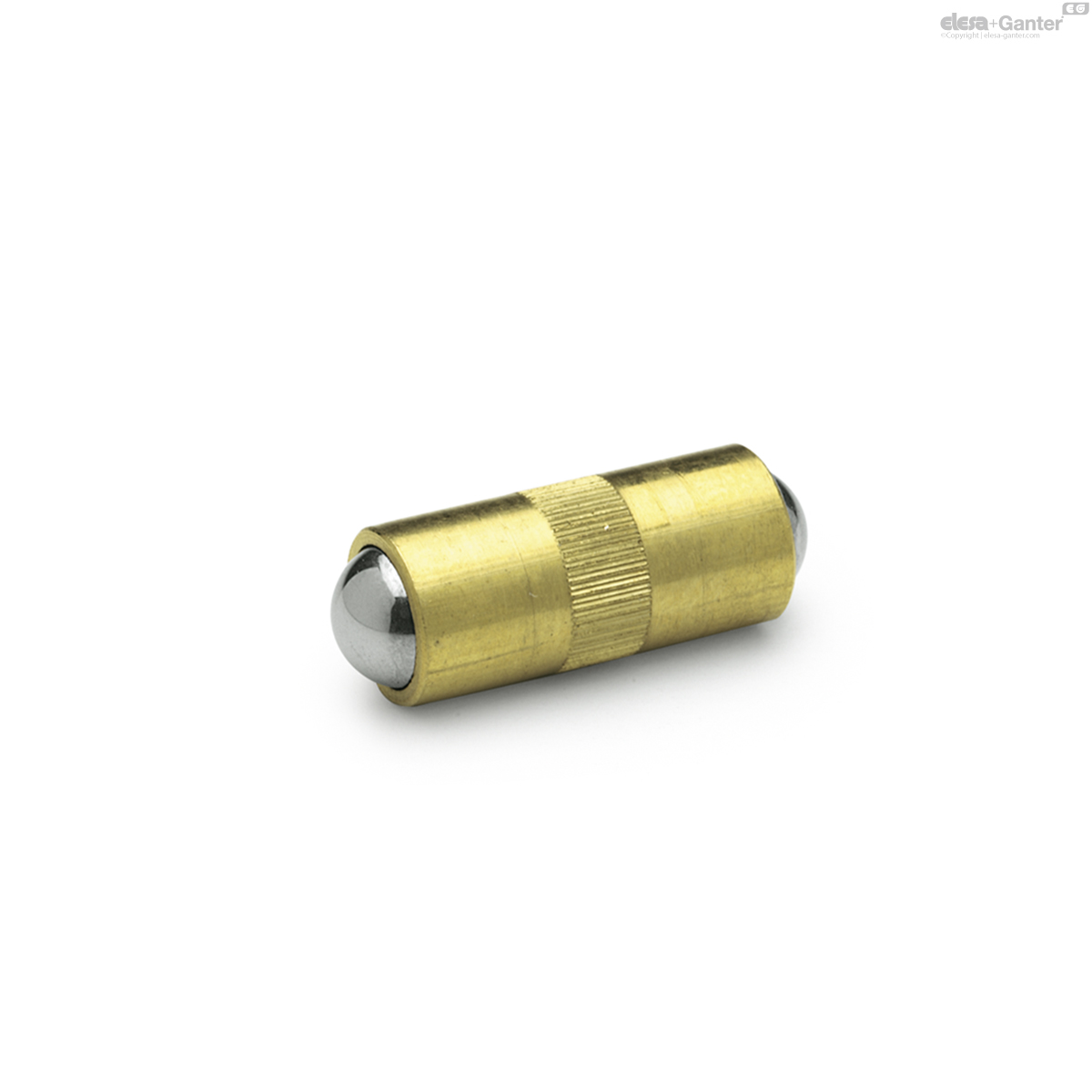

Spring plunger
Press on type, ball double ended
Description
Specification
Housing
Brass
Ball
Stainless Steel AISI 420C
hardened
Spring
Stainless Steel AISI 631
Information
Spring plungers GN 614.2 are a result of a further development of spring plungers type GN 614  for special applications.
A tolerance H8 is recommended for the locating bore of d1.
Technical information
- Stainless Steel characteristicsÂ
GN 614.2

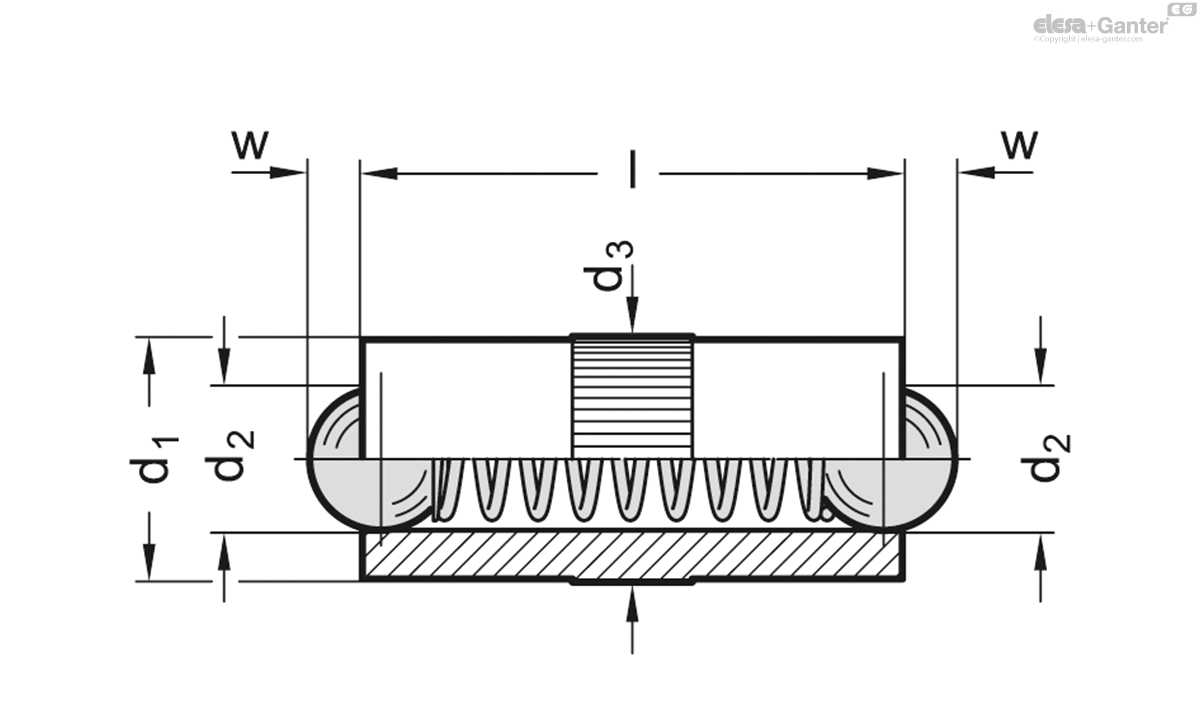

| d1 | d2 | d3 +0.05 | l | w | Spring load in N ≈ initial |
Spring load in N ≈ end |
 |
||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| GN 614.2-2,5 | 2.5 | 2 | 2.52 | 5.3 | 0.65 | 1.3 | 2.5 | 1 |
|
| GN 614.2-3 | 3 | 2.5 | 3.02 | 7.3 | 0.8 | 2 | 4.5 | 1 |
|
| GN 614.2-4 | 4 | 3 | 4.03 | 9 | 0.9 | 2.5 | 7.5 | 1 |
|
| GN 614.2-5 | 5 | 4 | 5.03 | 10.8 | 1.2 | 3.5 | 8 | 1 |
|
| GN 614.2-6 | 6 | 5 | 6.03 | 12.6 | 1.6 | 3.5 | 10.5 | 2 |
|
| GN 614.2-7 | 7 | 6 | 7.03 | 14 | 2 | 4 | 12 | 3 |
|
| GN 614.2-8 | 8 | 6.5 | 8.03 | 18 | 2.1 | 6 | 15 | 5 |
|
