Indexing plungers

Steel / Stainless Steel without rest position

Enquire Now

GN 613

Indexing plungers

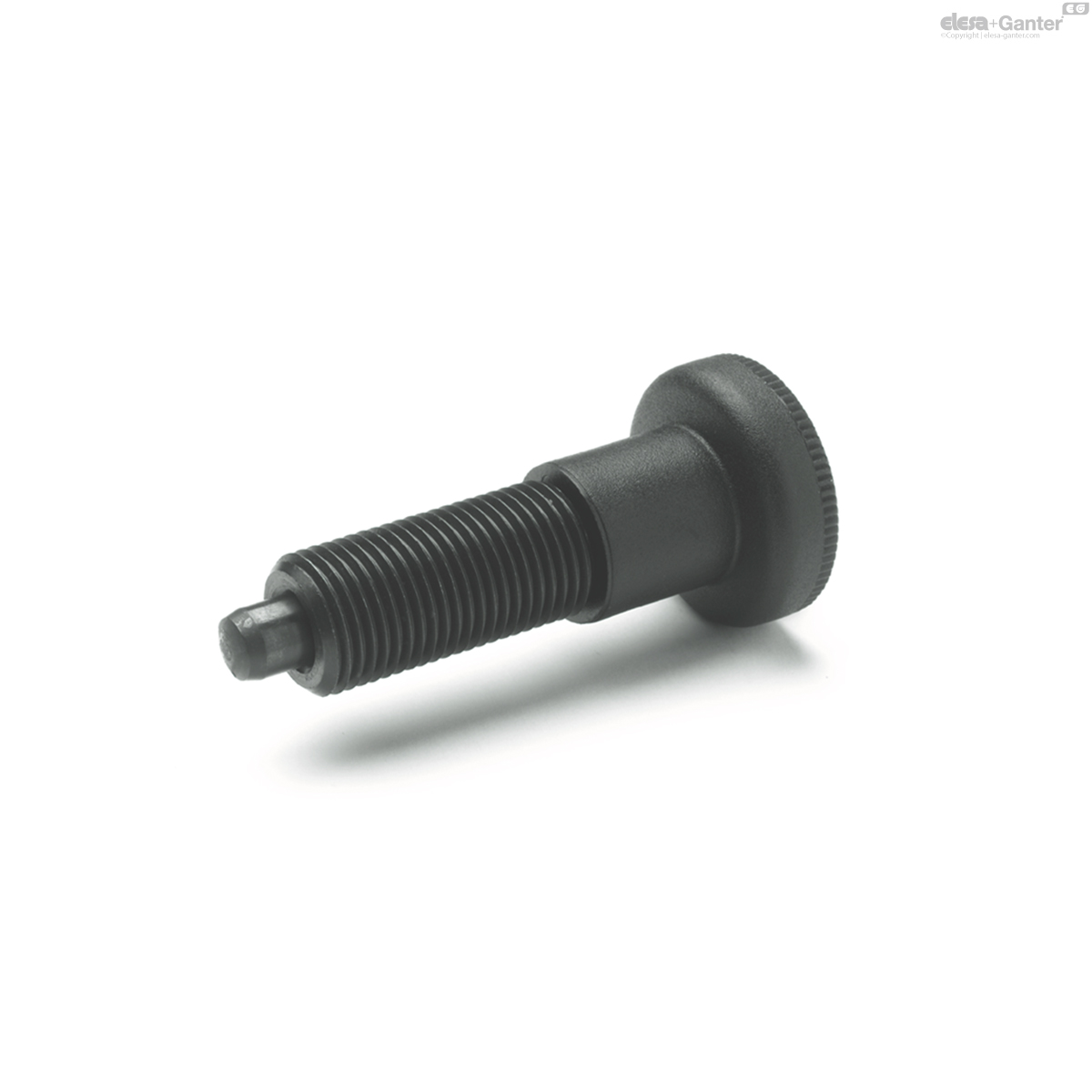

Steel with Plastic knob

GN 613-NI

Indexing plungers

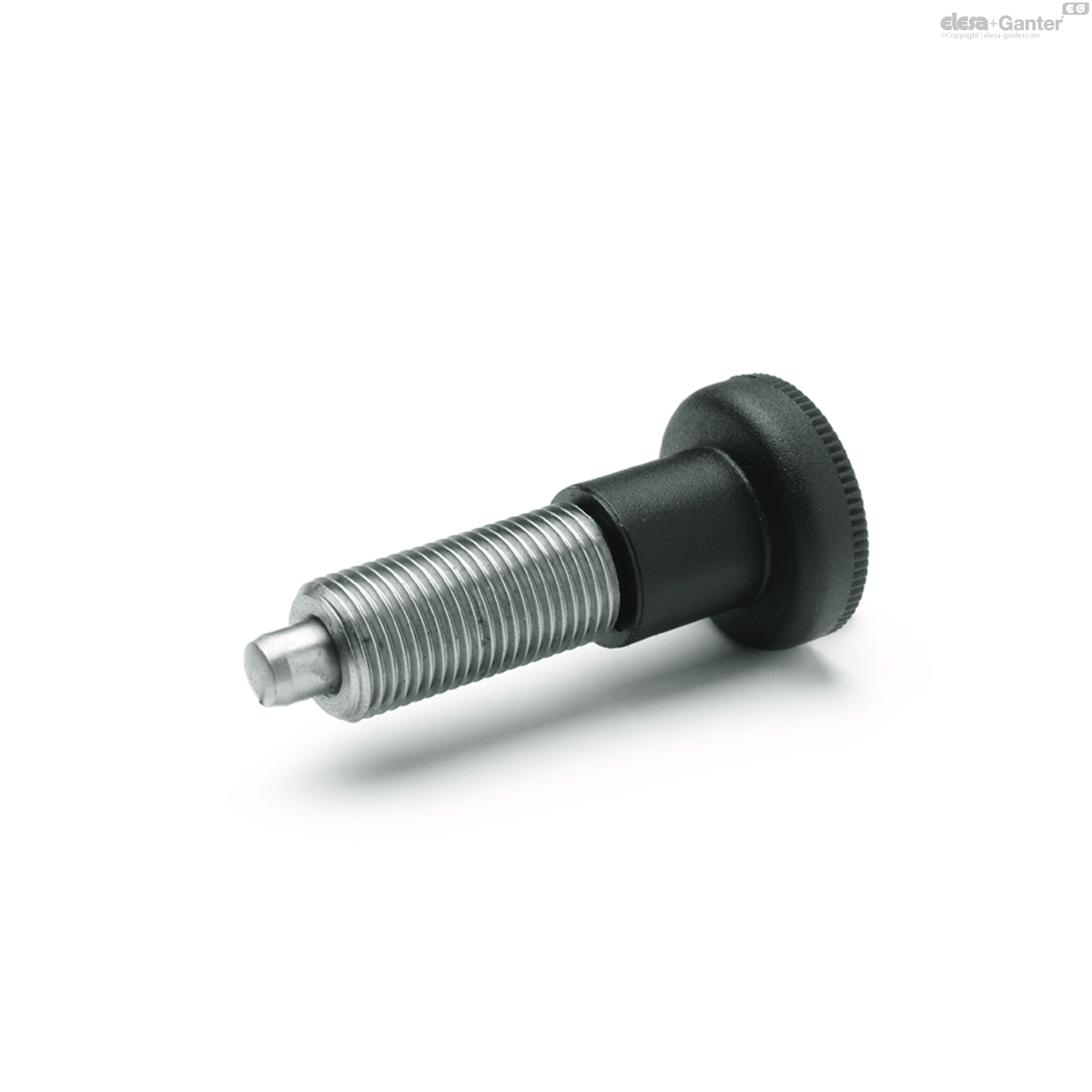

Stainless Steel with Plastic knob

GN-613-NI

Indexing plungers

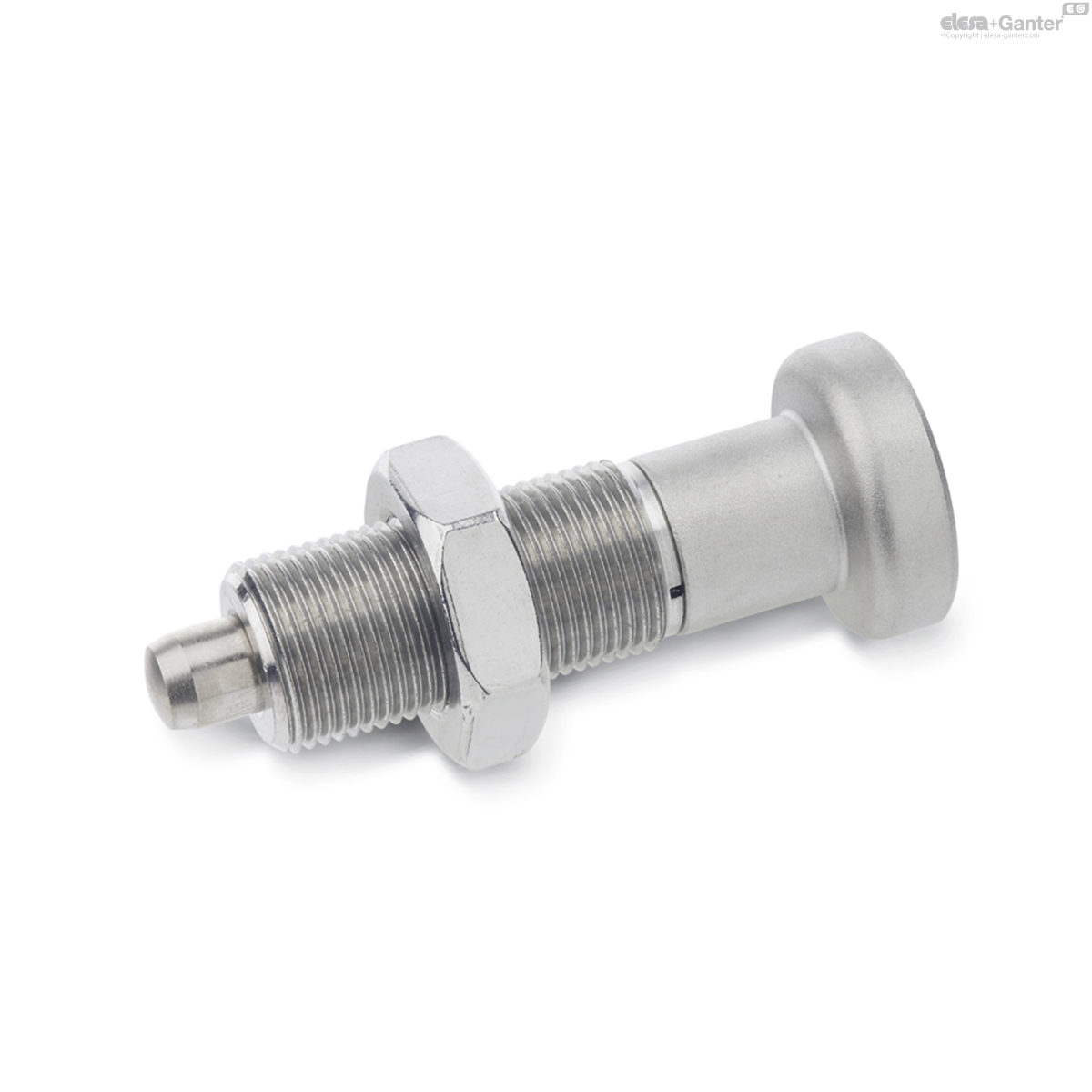

Stainless Steel knob

Description

Specification

Types

Type A: with Plastic-Knob, without lock nut

Type AK: with Plastic-Knob, with lock nut

Type AN: with Stainless Steel-Knob, without lock nut

Type AKN: with Stainless Steel-Knob, with lock nut

Type G: with threaded rod, without lock nut

Type GK: with threaded rod, with lock nut

Steel

blackened

Pin hardened

Stainless Steel AISI 303 NI

Pin chemically nickel plated

Knob Type A / AK

Plastic (Polyamide PA)

black, matt

not removable

Knob Type AN / AKN

Stainless Steel AISI 303

not removable

Information

Type G or GK of the GN 613 indexing plungers have been designed for applications where the indexing plunger is not operated with the standard knob.

The indexing plungers are designed such that the plunger set in the end position (spring is 'on block') can also absorb axial forces. For applications in which these forces are substantially above the tensile force applied by the operator (Type G), GN 817 indexing plungers are to be preferred.

A special screw driver GN 613.1 is available. Two slots are provided in the upper end of the body which are accessible with the knob in its retracted position.

Range of indexing plungers

Technical information

ISO-Fundamental Tolerances -

Stainless Steel characteristics

Plastic characteristics

GN 613

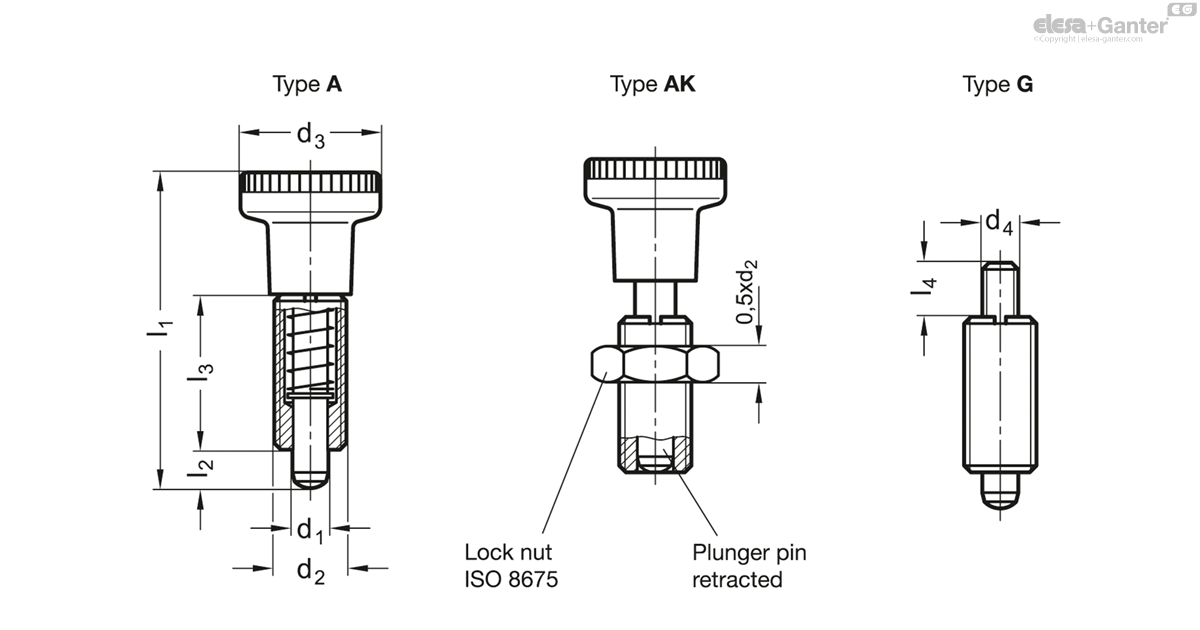

	d₁ Pin -0.02/-0.05 Bore H7	d₂	d₃	d₄	l₁ ≈	l₂	l₃	l₄	Spring load in N ≈ initial	Spring load in N ≈ end	Code no. Screw driver
Code													Actions
GN 613-5-A	5	M 10 x 1	21	-	45	5	22	-	7	17	GN 613.1-5	17
GN 613-5-AK	5	M 10 x 1	21	-	45	5	22	-	7	17	GN 613.1-5	22
GN 613-5-G	5	M 10 x 1	-	M 5	-	5	22	6	7	17	GN 613.1-5	12
GN 613-5-GK	5	M 10 x 1	-	M 5	-	5	22	6	7	17	GN 613.1-5	21
GN 613-6-A	6	M 12 x 1.5	25	-	54.5	6	26	-	9	24	GN 613.1-6	27
GN 613-6-AK	6	M 12 x 1.5	25	-	54.5	6	26	-	9	24	GN 613.1-6	39
GN 613-6-G	6	M 12 x 1.5	-	M 6	-	6	26	10	9	24	GN 613.1-6	20
GN 613-6-GK	6	M 12 x 1.5	-	M 6	-	6	26	10	9	24	GN 613.1-6	32
GN 613-8-A	8	M 16 x 1.5	31	-	69	8	34	-	11	30	GN 613.1-8	59
GN 613-8-AK	8	M 16 x 1.5	31	-	69	8	34	-	11	30	GN 613.1-8	79
GN 613-8-G	8	M 16 x 1.5	-	M 8	-	8	34	12	11	30	GN 613.1-8	45
GN 613-8-GK	8	M 16 x 1.5	-	M 8	-	8	34	12	11	30	GN 613.1-8	65
GN 613-10-A	10	M 20 x 1.5	31	-	80	10	43	-	19	45	GN 613.1-10	102
GN 613-10-AK	10	M 20 x 1.5	31	-	80	10	43	-	19	45	GN 613.1-10	138
GN 613-10-G	10	M 20 x 1.5	-	M 8	-	10	43	12	19	45	GN 613.1-10	85
GN 613-10-GK	10	M 20 x 1.5	-	M 8	-	10	43	12	19	45	GN 613.1-10	121
