GN 612.8

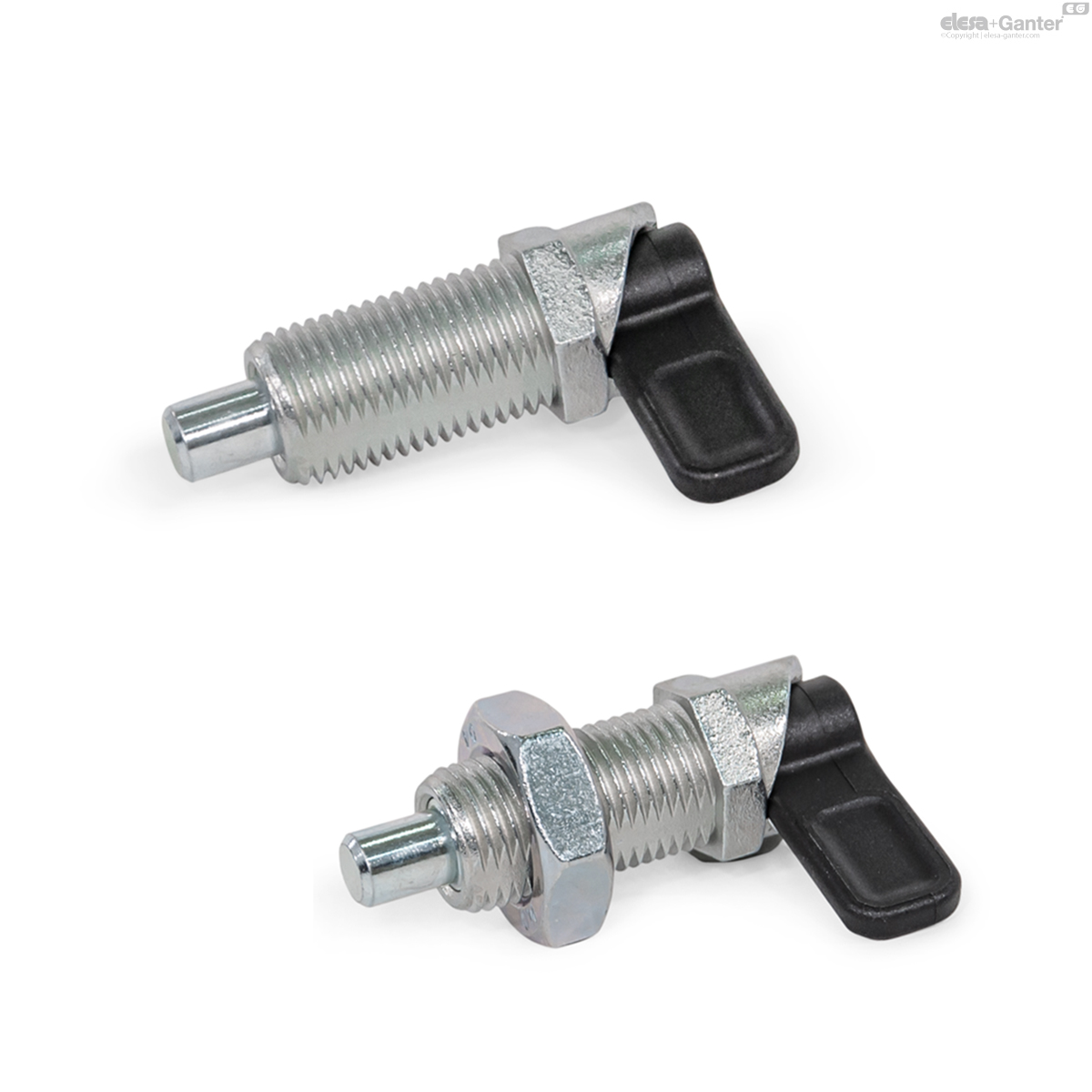

Cam action indexing plungers
Threaded body zinc die casting
Description
Specification
Types
- Type A: without lock nut
- Type AK: with lock nut
Guide
Zinc die casting
Zinc plated, blue passivated
Plunger pin
Steel
zinc plated, blue passivated
Lever
Plastic (Polyamide PA)
- black, matt
- not removable
Information
Cam action indexing plungers GN 612.8 are used in cases where the locking pin must not protrude all the time. By rotating the lock through 180° the locking pin withdraws itself. The groove allows safe positioning.
These cam action indexing plungers made of die-cast zinc are very reasonably priced design versions.
- Range of cam action indexing plungersÂ
Technical information
- Plastic characteristicsÂ
- Load rating informationÂ

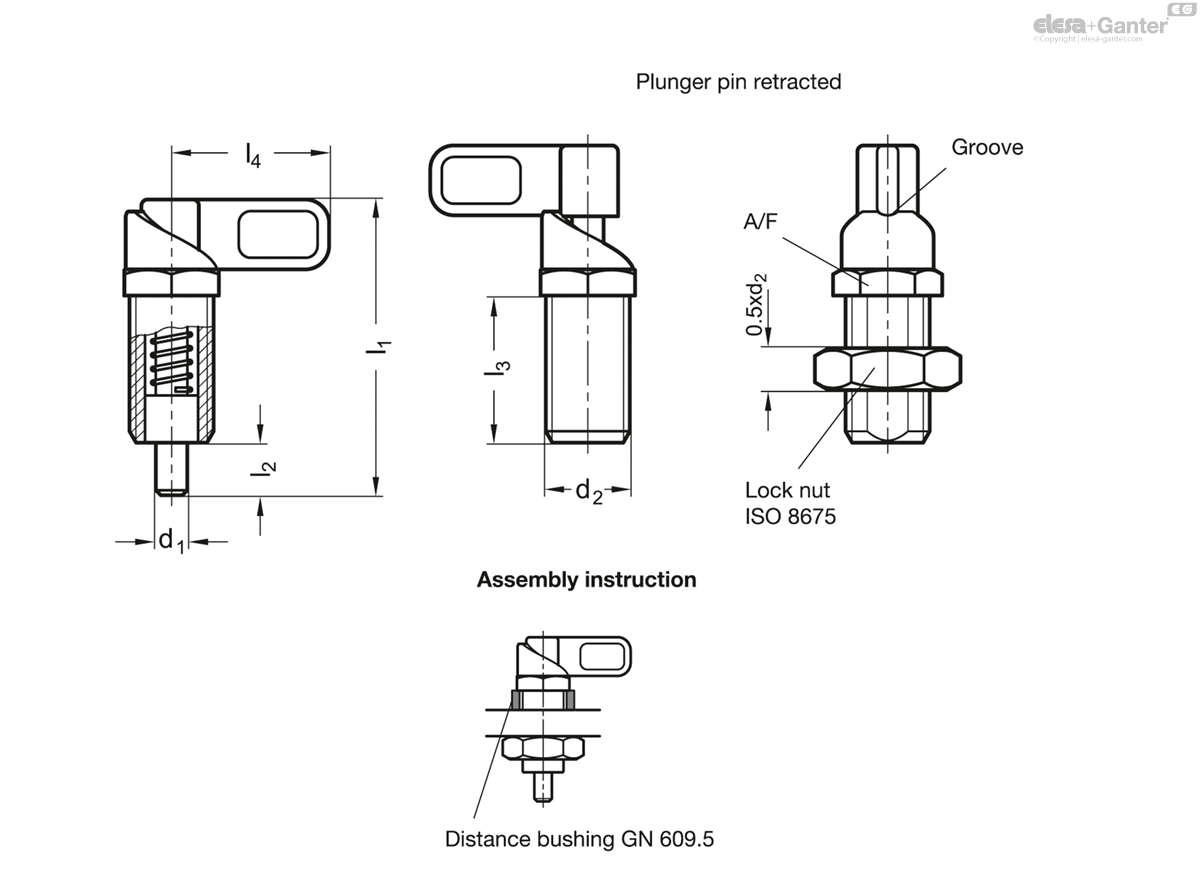

GN 612.8
| d1 Pin-0.05 Bore +0.1/+0.05 |
d2 | l1 | l2 | l3 | l4 | A/F | Spring load in N ≈ initial |
Spring load in N ≈ end |
 |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||
| GN 612.8-4-M12x1,5-A | 4 | M 12 x 1.5 | 48 | 8 | 25 | 25 | 13 | 8 | 22 | 49 |
|
| GN 612.8-4-M12x1,5-AK | 4 | M 12 x 1.5 | 48 | 8 | 25 | 25 | 13 | 8 | 22 | 29 |
|
| GN 612.8-5-M12x1,5-A | 5 | M 12 x 1.5 | 48 | 8 | 25 | 25 | 13 | 8 | 22 | 35 |
|
| GN 612.8-5-M12x1,5-AK | 5 | M 12 x 1.5 | 48 | 8 | 25 | 25 | 13 | 8 | 22 | 30 |
|
| GN 612.8-6-M12x1,5-A | 6 | M 12 x 1.5 | 48 | 8 | 25 | 25 | 13 | 8 | 22 | 23 |
|
| GN 612.8-6-M12x1,5-AK | 6 | M 12 x 1.5 | 48 | 8 | 25 | 25 | 13 | 8 | 22 | 31 |
|
| GN 612.8-6-M16x1,5-A | 6 | M 16 x 1.5 | 56.5 | 10 | 28 | 30 | 18 | 11 | 30 | 45 |
|
| GN 612.8-6-M16x1,5-AK | 6 | M 16 x 1.5 | 56.5 | 10 | 28 | 30 | 18 | 11 | 30 | 60 |
|
| GN 612.8-8-M16x1,5-A | 8 | M 16 x 1.5 | 56.5 | 10 | 28 | 30 | 18 | 11 | 30 | 47 |
|
| GN 612.8-8-M16x1,5-AK | 8 | M 16 x 1.5 | 56.5 | 10 | 28 | 30 | 18 | 11 | 30 | 59 |
|
| GN 612.8-8-M20x1,5-A | 8 | M 20 x 1.5 | 69.5 | 12 | 36 | 37 | 22 | 20 | 56 | 94 |
|
| GN 612.8-8-M20x1,5-AK | 8 | M 20 x 1.5 | 69.5 | 12 | 36 | 37 | 22 | 20 | 56 | 130 |
|
| GN 612.8-10-M16x1,5-A | 10 | M 16 x 1.5 | 56.5 | 10 | 28 | 30 | 18 | 11 | 30 | 49 |
|
| GN 612.8-10-M16x1,5-AK | 10 | M 16 x 1.5 | 56.5 | 10 | 28 | 30 | 18 | 11 | 30 | 65 |
|
| GN 612.8-10-M20x1,5-A | 10 | M 20 x 1.5 | 69.5 | 12 | 36 | 37 | 22 | 20 | 56 | 92 |
|
| GN 612.8-10-M20x1,5-AK | 10 | M 20 x 1.5 | 69.5 | 12 | 36 | 37 | 22 | 20 | 56 | 128 |
|
| GN 612.8-12-M20x1,5-A | 12 | M 20 x 1.5 | 69.5 | 12 | 36 | 37 | 22 | 20 | 56 | 100 |
|
| GN 612.8-12-M20x1,5-AK | 12 | M 20 x 1.5 | 69.5 | 12 | 36 | 37 | 22 | 20 | 56 | 110 |
|
