GN 612.2

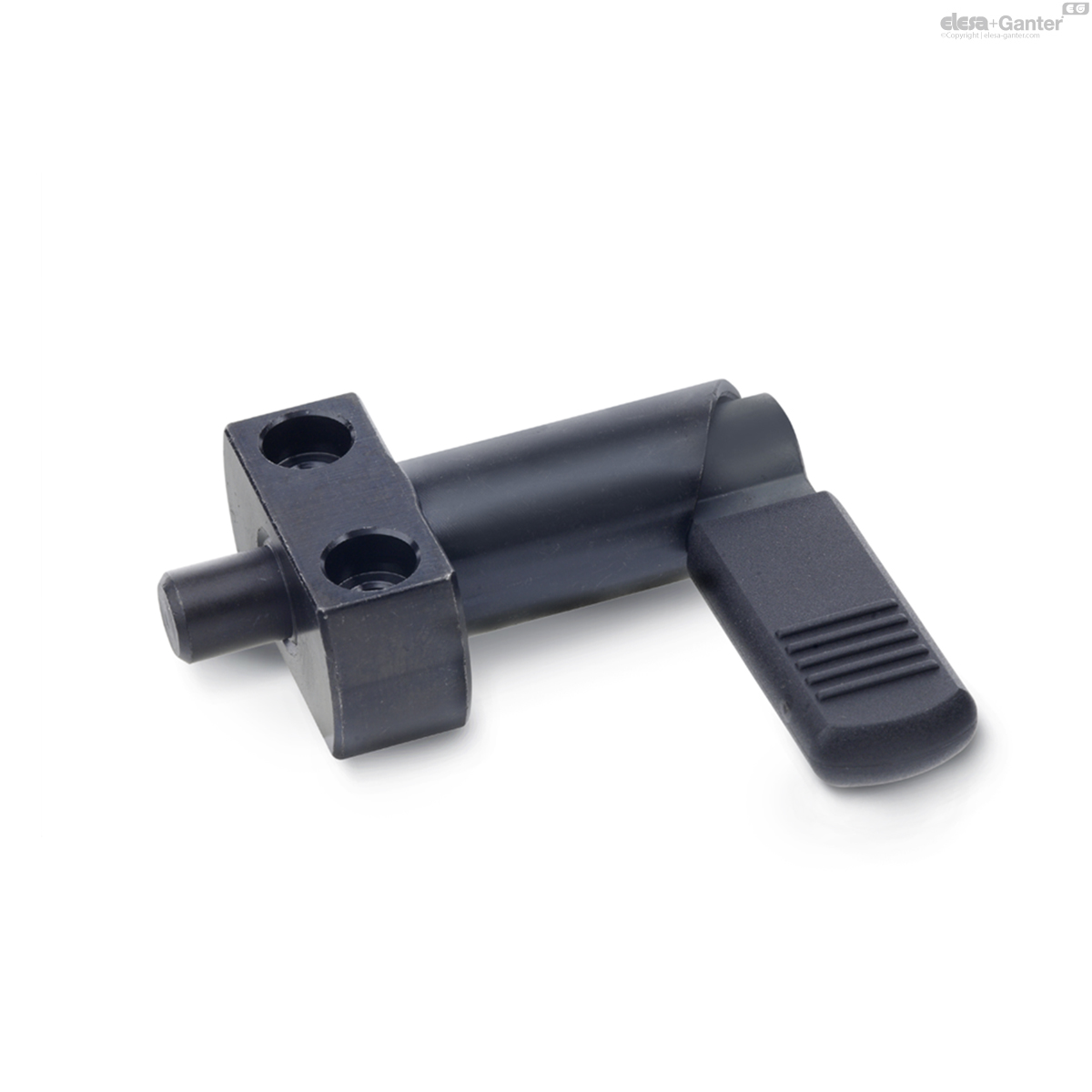

Cam action indexing plungers

Guide steel, blackened

Enquire Now

Description

Specification

Types

Type A: without plastic caps

Type B: with plastic caps

Steel

Blackened

Plunger pin nitrided

Cap

Plastic (Polyamide PA)

Black, matte

Information

Cam action indexing plungers GN 612.2 are used in cases where the locking pin must not protude all the time. By rotating the lock through 180° the locking pin withdraws itself. A groove keeps the plunger in this position.

Range of cam action indexing plungers -

Technical information

ISO-Fundamental Tolerances -

Plastic characteristics

Load rating information

GN 612.2

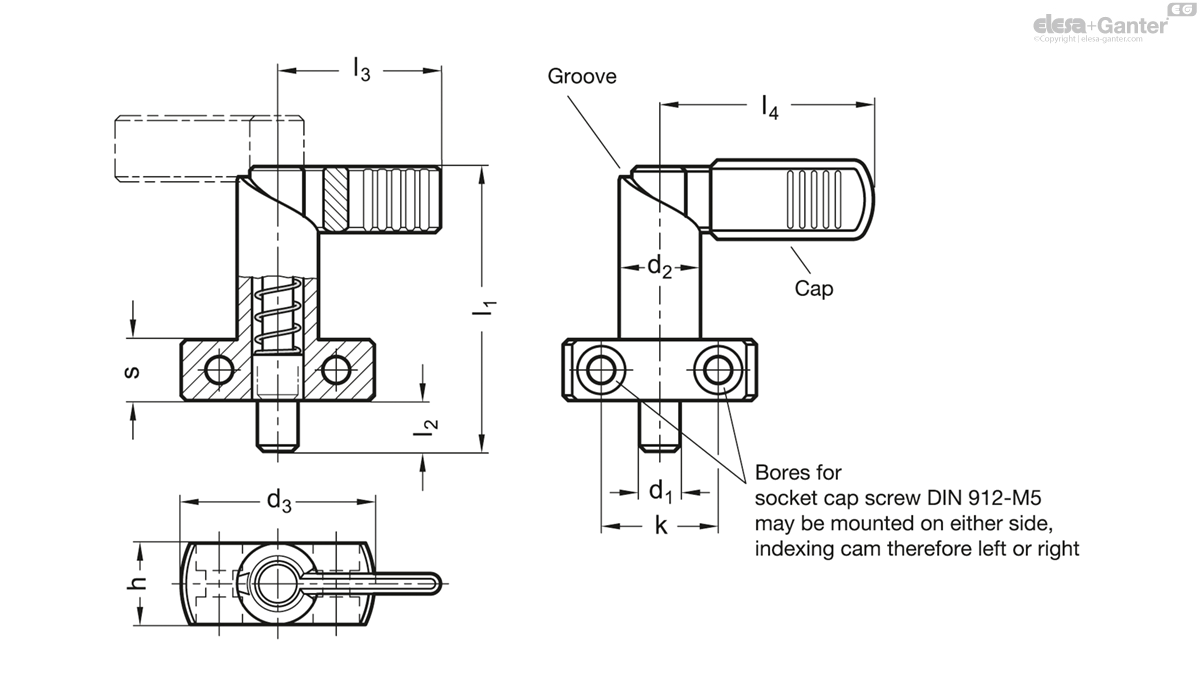

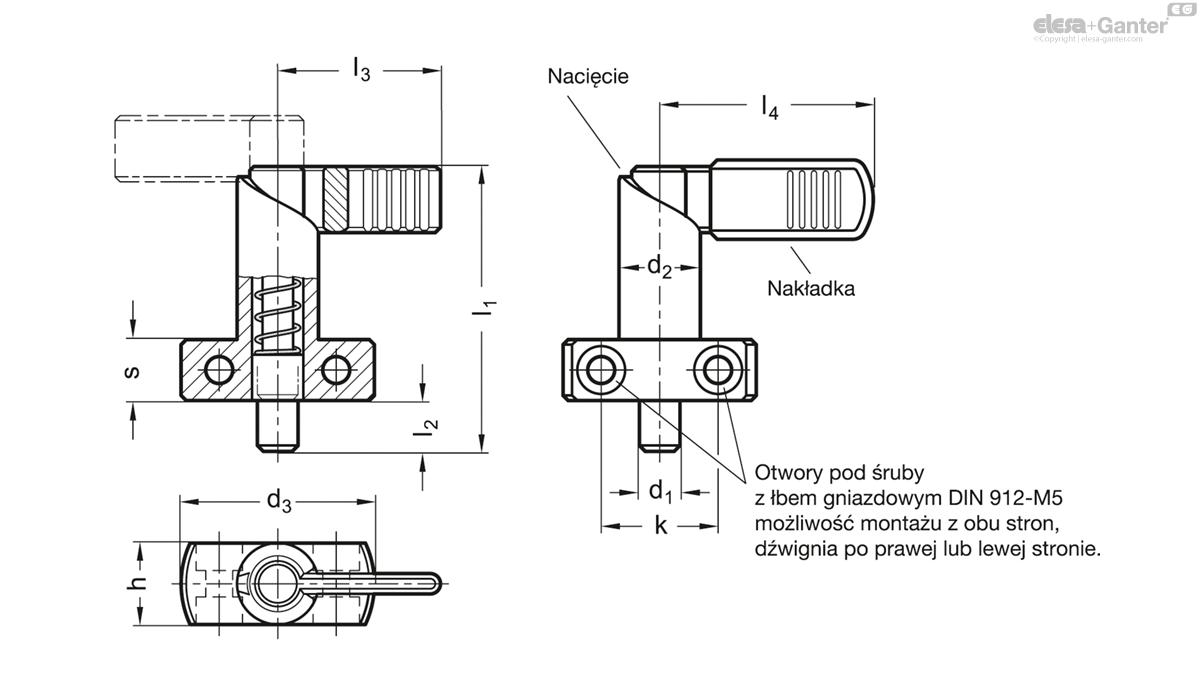

	d₁ Pin 0/-0.05 Bore H7	d₂	d₃	h	k	l₁	l₂	l₃	l₄	s	Spring load in N ≈ initial	Spring load in N ≈ end
Code														Actions
GN 612.2-6-16-A	6	16	35	16	20	56	10	32	-	12	12	32	84
GN 612.2-6-16-B	6	16	35	16	20	56	10	-	42	12	12	32	86
GN 612.2-8-16-A	8	16	35	16	20	56	10	32	-	12	12	32	84
GN 612.2-8-16-B	8	16	35	16	20	56	10	-	42	12	12	32	86
GN 612.2-8-20-A	8	20	40	20	22	69	12	37	-	15	21	58	167
GN 612.2-8-20-B	8	20	40	20	22	69	12	-	52	15	21	58	170
GN 612.2-10-16-A	10	16	35	16	20	56	10	32	-	12	12	32	86
GN 612.2-10-16-B	10	16	35	16	20	56	10	-	42	12	12	32	90
GN 612.2-10-20-A	10	20	40	20	22	69	12	37	-	15	21	58	169
GN 612.2-10-20-B	10	20	40	20	22	69	12	-	52	15	21	58	173
GN 612.2-12-20-A	12	20	40	20	22	69	12	37	-	15	21	58	170
GN 612.2-12-20-B	12	20	40	20	22	69	12	-	52	15	21	58	175
